Hi,

I updated my M8S+ (S905x) device with the 8.2.5 release.

I have a problem with some mkv files. For instance, here you can find a 30sec sample.

I tried with older version of LibreElec (an old adamg 1.0.6 release) and also the latest CoreElec. All have the same problem: video stuttering and audio out of sync.

The file is reproduced perfectly with Kodi (X86), VLC and other desktop player.

Any help?

Thank you.

Avok78

Hi all,

quick question.

Have you guys removed the S905 project in the master branch?

LibreELEC.tv/projects at master · adamg-xda/LibreELEC.tv · GitHub

Thank you.

Avok78

Hi,

I have a couple of questions (I'm using the master branch "b12053a"):

1) What happened to the ssh service?

It doesn't work anymore. Under settings->service->ssh there is only the "Disable ssh password" option.

I use ssh to upload the release.

2) IPtv addon is not longer available in the repositories and by installing through the zip file, after 1:15min it hangs and it stops to work

Thank you.

Regards.

Avok78 · SACD files (.dff .dfs) on S905x devices Avok78 September 23, 2017 at 1:59 PM

Quote from Tim_Taylor

Plays fine on my 905X boxes.

Shut

At this point I don't know where is the problem.

Any suggestion? Thanks.

Avok78 · SACD files (.dff .dfs) on S905x devices Avok78 September 21, 2017 at 1:41 PM

Quote from mime

I guess nothing special in there. I can send you the guisettings.xml also.

Hi mime,

thanks for the pictures.

We are using the same audio settings! At this point, I don't know what is happening with my boxes.
I mean, today I copied the file to the internal memory, but the results are the same, when the file is "reproduced", the CPU loads go crazy and the audio is on and off (attached there is the picture, sorry it's fuzzy).

Am I the only one with this problem ?

Avok78 · SACD files (.dff .dfs) on S905x devices Avok78 September 20, 2017 at 2:00 PM

Quote from mime

Both files no problem on my X96 2G/16G (S905X) running LE 8.1.6. Played from NAS over 100Mb network. Output is PCM 2/0 and PCM 3/4.1 respectively on my A/V receiver.

Really?

Can I ask you what type of Audio settings you are using?

I tried on 3 different boxes (S812, S905x, S912) and I have the same problem.

Thanks.

Avok78 · SACD files (.dff .dfs) on S905x devices Avok78 September 18, 2017 at 2:29 PM

Quote from mmpp

Avok78 Please provide sample files that do not work on your box.

Hi all,

thanks for your help.

Here you could please find some dsf files (royalty free :)) that I have successfully tested on Kodi X86 version (on Ubuntu and on LibreElec X86 version):

In particular these are the files that I used:

1) DSF - DSD64 (2Ch)

2) DSF - DSD64 (5.1Ch)

I tested on a Mecool MS8 pro+ (S950x) with LibreElec 8.1.8 installed on memory and the files are loaded from the USB drive.

I discovered that the dsf/dff 2Ch versions are reproduced well.

Instead, for the 5.1Ch version, the files are reproduced very bad (scattering, on-off, very noisy).

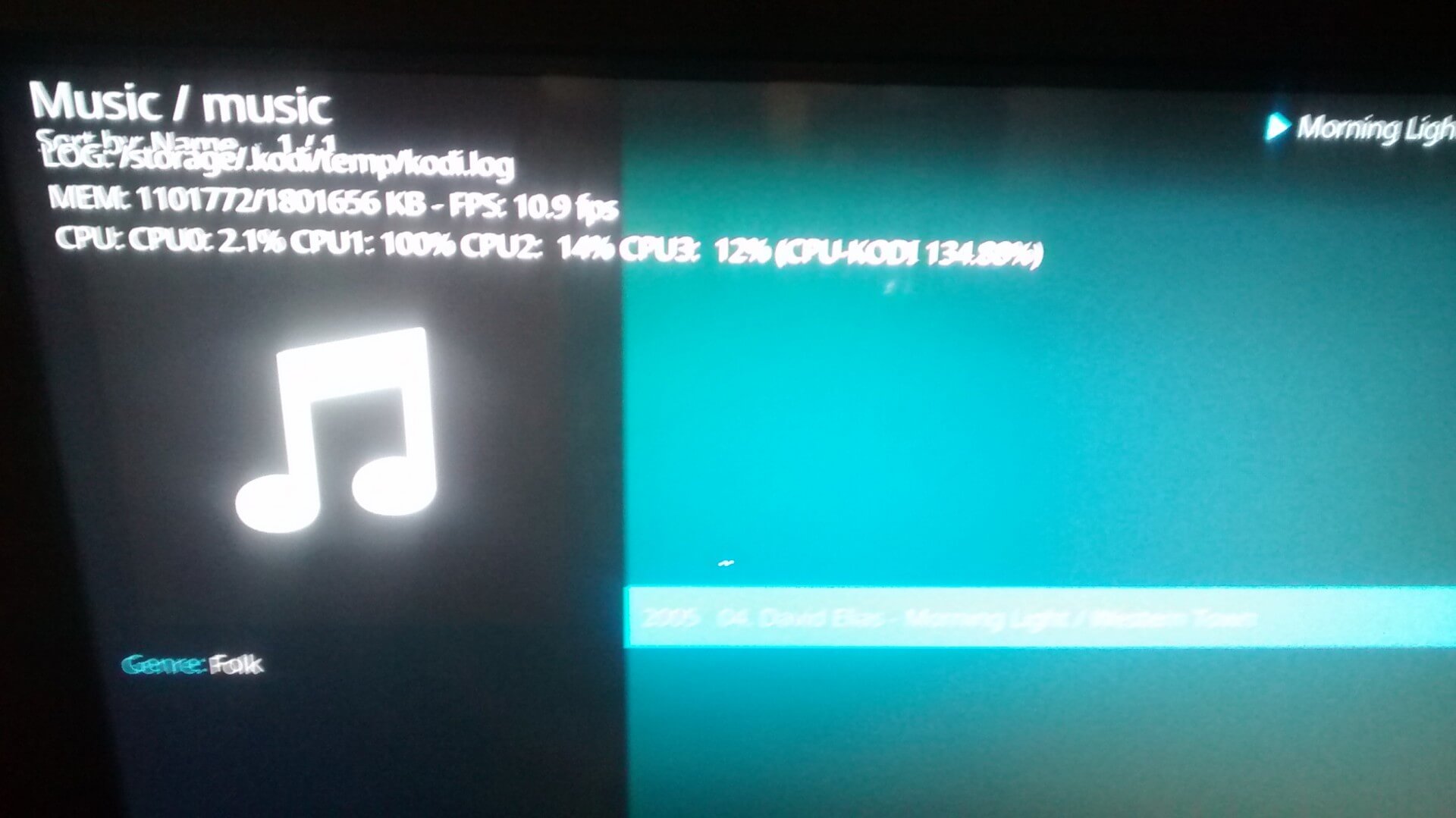

Also, I have noticed that when the files are reproduced the CPU3 reaches 100%, the CPU2 reaches ~80%, CPU0: ~5% and CPU1: ~20%.

At this point, I believe that it's a CPU problem that is not powerful enough to reproduce those file types.

Anyway, in the kodi setting I tried to put the Resample option to Low-Medium or High but I had the same results.

Thanks.

Regards.

Avok78 · [8.2.3.1] LibreELEC 8.2 for S905/S905X Avok78 September 17, 2017 at 5:45 PM

Quote from Cinbad702

I am a noob and am ordering the Mecool M8S Pro Plus, I would like to run it with LibreElec, but the instructions to do so seem very daunting to me. Can a Noob do it by following step by step instructions or will I be in over my head?

1) Download the image file

2) Download the device tree file

3) Download the LibreElec USB-SD creator

4) Plugin the SD or USB flash drive in your computer

5) Run the LibreElec USB-SD creator (step #3):

- a) select the image file (step #1)

- b) select the path of the SD or USB flash drive plugged in (step #4)

- c) click write image

- d) at the end of the process the USB/SD card will be recognized by your operating system and you will be able to navigate into the USB/SD drive

6) Rename the device tree file (step #2) in dtb.img

7) Navigate into the USB/SD folders (step #5-d) and overwrite the dtb.img file with the file renamed in the step #6

8.) Unplug the SD/USB drive from your computer

9) If you are using the USB flash drive, plug in on the first USB port from the top of your Mecool device

10) Unplug the Mecool box's power supply cord

11) In the front of your Mecool box you will see a tiny push button. With a toothpick push it and keep it pushed.

12) Reconnect the power supply

13) After ~30sec the LibreElec logo will be displayed on your TV. Release the push button (step #11)

Every time that the USB/SD card (created with this procedure) is plugged in your box, LibreElec will run automatically (you don't need to push the button again).

To run your android system, just unplug the USB/SD card from your box.

If you want to install permanently LibreElec in your box, follow the guide

Avok78 · [8.2.3.1] LibreELEC 8.2 for S905/S905X Avok78 September 17, 2017 at 3:42 PM

Quote from kszaq

Separate thread, log, samples - any chance?

Fair enough

This is the thread:

SACD files (.dff .dfs) on S905x devices

Avok78 · SACD files (.dff .dfs) on S905x devices Avok78 September 17, 2017 at 3:40 PM

Hi,

I have a problem reproducing the dfs and dff files (no sound) on Mecool M8S pro+ (Arm S905x) with Libreelec installed on the internal memory.

The same files are correctly reproduced on the X86 Kodi version.

This is the log (I have hidden some parts):

Code

10:30:48.323 T:4102895712   DEBUG: Keyboard: scancode: 0x1c, sym: 0x000d, unicode: 0x0000, modifier: 0x0
10:30:48.699 T:4102895712   DEBUG: OnKey: return (0xf00d) pressed, action is Select
10:30:48.721 T:4102882208   DEBUG: CAnnouncementManager - Announcement: OnAdd from xbmc
10:30:48.721 T:4102882208   DEBUG: GOT ANNOUNCEMENT, type: 2, from xbmc, message OnAdd
10:30:48.730 T:4102895712   DEBUG: Loading settings for **Hidden**/01 - HOTEL CALIFORNIA.dff
10:30:48.733 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers(**Hidden**/01 - HOTEL CALIFORNIA.dff)
10:30:48.733 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: system rules
10:30:48.733 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: matches rule: system rules
10:30:48.733 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: mms/udp
10:30:48.733 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: lastfm/shout
10:30:48.734 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: rtmp
10:30:48.734 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: rtsp
10:30:48.734 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: streams
10:30:48.734 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: dvd
10:30:48.734 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: dvdimage
10:30:48.734 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: sdp/asf
10:30:48.734 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: nsv
10:30:48.735 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: radio
10:30:48.735 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: matched 0 rules with players
10:30:48.735 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: adding audiodefaultplayer (PAPlayer)
10:30:48.735 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: for video=0, audio=1
10:30:48.735 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: for video=1, audio=1
10:30:48.735 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: adding player: VideoPlayer
10:30:48.735 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: added 2 players
10:30:48.737 T:4102895712   DEBUG: CFileCache::Open - opening <01 - HOTEL CALIFORNIA.dff> using cache
10:30:48.746 T:4102895712   DEBUG: CSMBFile::Open - opened **Hidden**/01 - HOTEL CALIFORNIA.dff, fd=10000
10:30:48.754 T:3917476768   DEBUG: Thread FileCache start, auto delete: false
10:30:48.806 T:4102895712   DEBUG: Open - probing detected format [iff]
10:30:48.861 T:4102895712   DEBUG: Seek - waiting for position 361133330.
10:30:48.946 T:3917476768    INFO: CFileCache::Process - Source read didn't return any data! Hit eof(?)
10:30:48.988 T:4102895712   DEBUG: Open - avformat_find_stream_info starting
10:30:49.116 T:4102895712   DEBUG: Open - av_find_stream_info finished
10:30:49.118 T:4102895712   DEBUG: CDVDDemuxFFmpeg::AddStream ID: 0
10:30:49.118 T:4102895712   DEBUG: FactoryCodec - Audio: passthrough - Opening
10:30:49.119 T:4102895712   DEBUG: FactoryCodec - Audio: passthrough - Failed
10:30:49.119 T:4102895712   DEBUG: FactoryCodec - Audio: FFmpeg - Opening
10:30:49.120 T:4102895712   DEBUG: FactoryCodec - Audio: FFmpeg - Opened
10:30:49.136 T:4102895712   DEBUG: CSMBFile::Open - opened **Hidden**/01 - HOTEL CALIFORNIA.dff, fd=10001
10:30:49.160 T:4102895712   DEBUG: CSMBFile::Close closing fd 10001
10:30:49.196 T:4102895712   DEBUG: file **Hidden**/01 - HOTEL CALIFORNIA.dff could not be opened for tag reading
10:30:49.264 T:4102895712    INFO: CDVDAudioCodecFFmpeg::GetChannelMap - FFmpeg reported 6 channels, but the layout contains 0 ignoring
10:30:49.264 T:4102895712   DEBUG: SeekTime - seek ended up on time 0
10:30:52.589 T:3909088160   DEBUG: Previous line repeats 1 times.
10:30:52.589 T:3909088160   DEBUG: Thread JobWorker 3909088160 terminating (autodelete)
10:30:54.445 T:4102895712    INFO: AudioDecoder: File is queued
10:30:54.447 T:4102895712   DEBUG: AudioDecoder::GetReplayGain - Final Replaygain applied: 1.000000, Track/Album Gain 89.000000, Peak 1.000000
10:30:54.501 T:4070568864    INFO: CActiveAESink::OpenSink - initialize sink
10:30:54.873 T:4070568864   DEBUG: CActiveAESink::OpenSink - trying to open device ALSA:hdmi:CARD=AMLM8AUDIO,DEV=0
10:30:54.873 T:4070568864    INFO: CAESinkALSA::Initialize - Attempting to open device "@:CARD=AMLM8AUDIO,DEV=0"
10:30:54.878 T:4070568864    INFO: CAESinkALSA - ALSA: /home/kszaq/ocz/le-master/build.LibreELEC-S905.arm-8.2-devel/alsa-lib-1.1.4.1/src/conf.c:5000:(snd_config_expand) Unknown parameters CARD=AMLM8AUDIO,DEV=0
10:30:54.878 T:4070568864    INFO: CAESinkALSA - ALSA: /home/kszaq/ocz/le-master/build.LibreELEC-S905.arm-8.2-devel/alsa-lib-1.1.4.1/src/pcm/pcm.c:2501:(snd_pcm_open_noupdate) Unknown PCM surround51:CARD=AMLM8AUDIO,DEV=0
10:30:54.878 T:4070568864    INFO: CAESinkALSA - Unable to open device "surround51:CARD=AMLM8AUDIO,DEV=0" for playback
10:30:54.878 T:4070568864    INFO: CAESinkALSA - ALSA: /home/kszaq/ocz/le-master/build.LibreELEC-S905.arm-8.2-devel/alsa-lib-1.1.4.1/src/conf.c:5000:(snd_config_expand) Unknown parameters CARD=AMLM8AUDIO,DEV=0
10:30:54.878 T:4070568864    INFO: CAESinkALSA - ALSA: /home/kszaq/ocz/le-master/build.LibreELEC-S905.arm-8.2-devel/alsa-lib-1.1.4.1/src/pcm/pcm.c:2501:(snd_pcm_open_noupdate) Unknown PCM surround71:CARD=AMLM8AUDIO,DEV=0
10:30:54.878 T:4070568864    INFO: CAESinkALSA - Unable to open device "surround71:CARD=AMLM8AUDIO,DEV=0" for playback
10:30:54.879 T:4070568864    INFO: CAESinkALSA::Initialize - Opened device "sysdefault:CARD=AMLM8AUDIO"
10:30:54.880 T:4070568864   DEBUG: CAESinkALSA::SelectALSAChannelMap - Selected ALSA map "FL FR LFE FC RL RR NA NA"
10:30:54.880 T:4070568864    INFO: CAESinkALSA::InitializeHW - Your hardware does not support AE_FMT_FLOAT, trying other formats
10:30:54.880 T:4070568864    INFO: CAESinkALSA::InitializeHW - Using data format AE_FMT_S32NE
10:30:54.880 T:4070568864   DEBUG: CAESinkALSA::InitializeHW - Request: periodSize 2048, bufferSize 16384
10:30:54.906 T:4070568864   DEBUG: CAESinkALSA::InitializeHW - Got: periodSize 2048, bufferSize 16384
10:30:54.907 T:4070568864   DEBUG: CAESinkALSA::InitializeHW - Setting timeout to 86 ms
10:30:54.907 T:4070568864   DEBUG: CAESinkALSA::GetChannelLayout - Input Channel Count: 6 Output Channel Count: 8
10:30:54.907 T:4070568864   DEBUG: CAESinkALSA::GetChannelLayout - Requested Layout: FL,FR,FC,LFE,BL,BR
10:30:54.907 T:4070568864   DEBUG: CAESinkALSA::GetChannelLayout - Got Layout: FL,FR,LFE,FC,BL,BR,UNKNOWN1,UNKNOWN1 (ALSA: FL FR LFE FC RL RR NA NA)
10:30:54.907 T:4070568864   DEBUG: CActiveAESink::OpenSink - ALSA Initialized:
10:30:54.907 T:4070568864   DEBUG:   Output Device : AML-M8AUDIO
10:30:54.907 T:4070568864   DEBUG:   Sample Rate   : 192000
10:30:54.907 T:4070568864   DEBUG:   Sample Format : AE_FMT_S32NE
10:30:54.907 T:4070568864   DEBUG:   Channel Count : 8
10:30:54.907 T:4070568864   DEBUG:   Channel Layout: FL,FR,LFE,FC,BL,BR,UNKNOWN1,UNKNOWN1
10:30:54.907 T:4070568864   DEBUG:   Frames        : 2048
10:30:54.907 T:4070568864   DEBUG:   Frame Size    : 32
10:30:55.036 T:4080796576   DEBUG: CActiveAE::ClearDiscardedBuffers - buffer pool deleted
10:30:55.687 T:4102895712   DEBUG: Previous line repeats 1 times.
10:30:55.687 T:4102895712    INFO: PAPlayer::PrepareStream - Ready
10:30:55.687 T:4102895712   DEBUG: PlayFile: OpenFile succeed, play state 1
10:30:55.687 T:3909088160   DEBUG: Thread PAPlayer start, auto delete: false
10:30:55.687 T:3909088160   DEBUG: PAPlayer::Process - Playback started
10:30:55.687 T:3909088160   DEBUG: OnPlayBackStarted: play state was 1, starting 0
10:30:55.689 T:4102895712   DEBUG: Keyboard: scancode: 0x1c, sym: 0x000d, unicode: 0x0000, modifier: 0x0
10:30:55.689 T:4102895712   DEBUG: Previous line repeats 1 times.
10:30:55.689 T:4102895712   DEBUG: OnKey: return (0xf00d) pressed, action is Select
10:30:55.692 T:4102882208   DEBUG: CAnnouncementManager - Announcement: OnClear from xbmc
10:30:55.692 T:4102882208   DEBUG: GOT ANNOUNCEMENT, type: 2, from xbmc, message OnClear
10:30:55.709 T:4102895712   DEBUG: Loading settings for **Hidden**/01 - HOTEL CALIFORNIA.dff
10:30:55.710 T:4102882208   DEBUG: CAnnouncementManager - Announcement: OnAdd from xbmc
10:30:55.710 T:4102882208   DEBUG: GOT ANNOUNCEMENT, type: 2, from xbmc, message OnAdd
10:30:55.711 T:4102895712   DEBUG: PlayFile: Ignored 1 playback thread messages
10:30:55.712 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers(**Hidden**/01 - HOTEL CALIFORNIA.dff)
10:30:55.712 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: system rules
10:30:55.712 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: matches rule: system rules
10:30:55.712 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: mms/udp
10:30:55.712 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: lastfm/shout
10:30:55.712 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: rtmp
10:30:55.713 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: rtsp
10:30:55.713 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: streams
10:30:55.713 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: dvd
10:30:55.713 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: dvdimage
10:30:55.713 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: sdp/asf
10:30:55.713 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: nsv
10:30:55.713 T:4102895712   DEBUG: CPlayerSelectionRule::GetPlayers: considering rule: radio
10:30:55.714 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: matched 0 rules with players
10:30:55.714 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: adding audiodefaultplayer (PAPlayer)
10:30:55.714 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: for video=0, audio=1
10:30:55.714 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: for video=1, audio=1
10:30:55.714 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: adding player: VideoPlayer
10:30:55.714 T:4102895712   DEBUG: CPlayerCoreFactory::GetPlayers: added 2 players
10:30:55.729 T:4102882208   DEBUG: CAnnouncementManager - Announcement: OnSpeedChanged from xbmc
10:30:55.729 T:4102882208   DEBUG: GOT ANNOUNCEMENT, type: 1, from xbmc, message OnSpeedChanged
10:30:57.207 T:3917476768   DEBUG: Thread FileCache 3917476768 terminating
10:30:57.217 T:3909088160   DEBUG: CSMBFile::Close closing fd 10000
10:30:57.335 T:4080796576   DEBUG: CActiveAE::DiscardStream - audio stream deleted
10:30:57.335 T:4080796576   DEBUG: CActiveAE::ClearDiscardedBuffers - buffer pool deleted
10:30:57.558 T:3909088160   DEBUG: Previous line repeats 2 times.
10:30:57.558 T:3909088160   DEBUG: OnPlayBackStopped: play state was 2, starting 1
10:30:57.559 T:4102895712   DEBUG: CFileCache::Open - opening <HOTEL CALIFORNIA.dff> using cache
10:30:57.560 T:3909088160   DEBUG: Thread PAPlayer 3909088160 terminating
10:30:57.576 T:4102895712   DEBUG: CSMBFile::Open - opened **Hidden**/01 - HOTEL CALIFORNIA.dff, fd=10000
10:30:57.584 T:3909088160   DEBUG: Thread FileCache start, auto delete: false
10:30:57.605 T:4102895712   DEBUG: Open - probing detected format [iff]
10:30:57.636 T:4102895712   DEBUG: Seek - waiting for position 361133330.
10:30:57.708 T:3909088160    INFO: CFileCache::Process - Source read didn't return any data! Hit eof(?)
10:30:57.750 T:4102895712   DEBUG: Open - avformat_find_stream_info starting
10:30:57.894 T:4102895712   DEBUG: Open - av_find_stream_info finished
10:30:57.894 T:4102895712   DEBUG: CDVDDemuxFFmpeg::AddStream ID: 0
10:30:57.894 T:4102895712   DEBUG: FactoryCodec - Audio: passthrough - Opening
10:30:57.894 T:4102895712   DEBUG: FactoryCodec - Audio: passthrough - Failed
10:30:57.894 T:4102895712   DEBUG: FactoryCodec - Audio: FFmpeg - Opening
10:30:57.895 T:4102895712   DEBUG: FactoryCodec - Audio: FFmpeg - Opened
10:30:57.911 T:4102895712   DEBUG: CSMBFile::Open - opened **Hidden**/01 - HOTEL CALIFORNIA.dff, fd=10001
10:30:57.943 T:4102895712   DEBUG: CSMBFile::Close closing fd 10001
10:30:57.988 T:4102895712   DEBUG: file **Hidden**/01 - HOTEL CALIFORNIA.dff could not be opened for tag reading
10:30:58.047 T:4102895712    INFO: CDVDAudioCodecFFmpeg::GetChannelMap - FFmpeg reported 6 channels, but the layout contains 0 ignoring
10:30:58.048 T:4102895712   DEBUG: SeekTime - seek ended up on time 0
10:31:00.563 T:4070568864   DEBUG: Previous line repeats 1 times.
10:31:00.563 T:4070568864    INFO: CActiveAESink::OpenSink - initialize sink
10:31:00.648 T:4070568864   DEBUG: CActiveAESink::OpenSink - trying to open device ALSA:hdmi:CARD=AMLM8AUDIO,DEV=0
10:31:00.649 T:4070568864    INFO: CAESinkALSA::Initialize - Attempting to open device "@:CARD=AMLM8AUDIO,DEV=0"
10:31:00.654 T:4070568864    INFO: CAESinkALSA::Initialize - Opened device "sysdefault:CARD=AMLM8AUDIO"
10:31:00.655 T:4070568864    INFO: CAESinkALSA::InitializeHW - Your hardware does not support AE_FMT_FLOAT, trying other formats
10:31:00.655 T:4070568864    INFO: CAESinkALSA::InitializeHW - Using data format AE_FMT_S32NE
10:31:00.655 T:4070568864   DEBUG: CAESinkALSA::InitializeHW - Request: periodSize 4096, bufferSize 16384
10:31:00.656 T:4070568864   DEBUG: CAESinkALSA::InitializeHW - Got: periodSize 4096, bufferSize 16384
10:31:00.656 T:4070568864   DEBUG: CAESinkALSA::InitializeHW - Setting timeout to 372 ms
10:31:00.656 T:4070568864   DEBUG: CAESinkALSA::GetChannelLayout - Input Channel Count: 2 Output Channel Count: 2
10:31:00.656 T:4070568864   DEBUG: CAESinkALSA::GetChannelLayout - Requested Layout: FL,FR
10:31:00.657 T:4070568864   DEBUG: CAESinkALSA::GetChannelLayout - Got Layout: FL,FR (ALSA: none)
10:31:00.657 T:4070568864   DEBUG: CActiveAESink::OpenSink - ALSA Initialized:
10:31:00.657 T:4070568864   DEBUG:   Output Device : AML-M8AUDIO
10:31:00.657 T:4070568864   DEBUG:   Sample Rate   : 44100
10:31:00.657 T:4070568864   DEBUG:   Sample Format : AE_FMT_S32NE
10:31:00.657 T:4070568864   DEBUG:   Channel Count : 2
10:31:00.657 T:4070568864   DEBUG:   Channel Layout: FL,FR
10:31:00.657 T:4070568864   DEBUG:   Frames        : 4096
10:31:00.657 T:4070568864   DEBUG:   Frame Size    : 8
10:31:00.659 T:4080796576   DEBUG: CActiveAE::ClearDiscardedBuffers - buffer pool deleted
10:31:03.258 T:4102895712   DEBUG: Previous line repeats 1 times.
10:31:03.258 T:4102895712    INFO: AudioDecoder: File is queued
10:31:03.260 T:4102895712   DEBUG: AudioDecoder::GetReplayGain - Final Replaygain applied: 1.000000, Track/Album Gain 89.000000, Peak 1.000000
10:31:03.351 T:4070568864    INFO: CActiveAESink::OpenSink - initialize sink
10:31:03.723 T:4070568864   DEBUG: CActiveAESink::OpenSink - trying to open device ALSA:hdmi:CARD=AMLM8AUDIO,DEV=0
10:31:03.723 T:4070568864    INFO: CAESinkALSA::Initialize - Attempting to open device "@:CARD=AMLM8AUDIO,DEV=0"
10:31:03.728 T:4070568864    INFO: CAESinkALSA - ALSA: /home/kszaq/ocz/le-master/build.LibreELEC-S905.arm-8.2-devel/alsa-lib-1.1.4.1/src/conf.c:5000:(snd_config_expand) Unknown parameters CARD=AMLM8AUDIO,DEV=0
10:31:03.728 T:4070568864    INFO: CAESinkALSA - ALSA: /home/kszaq/ocz/le-master/build.LibreELEC-S905.arm-8.2-devel/alsa-lib-1.1.4.1/src/pcm/pcm.c:2501:(snd_pcm_open_noupdate) Unknown PCM surround51:CARD=AMLM8AUDIO,DEV=0
10:31:03.729 T:4070568864    INFO: CAESinkALSA - Unable to open device "surround51:CARD=AMLM8AUDIO,DEV=0" for playback
10:31:03.729 T:4070568864    INFO: CAESinkALSA - ALSA: /home/kszaq/ocz/le-master/build.LibreELEC-S905.arm-8.2-devel/alsa-lib-1.1.4.1/src/conf.c:5000:(snd_config_expand) Unknown parameters CARD=AMLM8AUDIO,DEV=0
10:31:03.729 T:4070568864    INFO: CAESinkALSA - ALSA: /home/kszaq/ocz/le-master/build.LibreELEC-S905.arm-8.2-devel/alsa-lib-1.1.4.1/src/pcm/pcm.c:2501:(snd_pcm_open_noupdate) Unknown PCM surround71:CARD=AMLM8AUDIO,DEV=0
10:31:03.729 T:4070568864    INFO: CAESinkALSA - Unable to open device "surround71:CARD=AMLM8AUDIO,DEV=0" for playback
10:31:03.730 T:4070568864    INFO: CAESinkALSA::Initialize - Opened device "sysdefault:CARD=AMLM8AUDIO"
10:31:03.731 T:4070568864   DEBUG: CAESinkALSA::SelectALSAChannelMap - Selected ALSA map "FL FR LFE FC RL RR NA NA"
10:31:03.731 T:4070568864    INFO: CAESinkALSA::InitializeHW - Your hardware does not support AE_FMT_FLOAT, trying other formats
10:31:03.731 T:4070568864    INFO: CAESinkALSA::InitializeHW - Using data format AE_FMT_S32NE
10:31:03.731 T:4070568864   DEBUG: CAESinkALSA::InitializeHW - Request: periodSize 2048, bufferSize 16384
10:31:03.756 T:4070568864   DEBUG: CAESinkALSA::InitializeHW - Got: periodSize 2048, bufferSize 16384
10:31:03.757 T:4070568864   DEBUG: CAESinkALSA::InitializeHW - Setting timeout to 86 ms
10:31:03.757 T:4070568864   DEBUG: CAESinkALSA::GetChannelLayout - Input Channel Count: 6 Output Channel Count: 8
10:31:03.757 T:4070568864   DEBUG: CAESinkALSA::GetChannelLayout - Requested Layout: FL,FR,FC,LFE,BL,BR
10:31:03.757 T:4070568864   DEBUG: CAESinkALSA::GetChannelLayout - Got Layout: FL,FR,LFE,FC,BL,BR,UNKNOWN1,UNKNOWN1 (ALSA: FL FR LFE FC RL RR NA NA)
10:31:03.757 T:4070568864   DEBUG: CActiveAESink::OpenSink - ALSA Initialized:
10:31:03.757 T:4070568864   DEBUG:   Output Device : AML-M8AUDIO
10:31:03.757 T:4070568864   DEBUG:   Sample Rate   : 192000
10:31:03.757 T:4070568864   DEBUG:   Sample Format : AE_FMT_S32NE
10:31:03.757 T:4070568864   DEBUG:   Channel Count : 8
10:31:03.757 T:4070568864   DEBUG:   Channel Layout: FL,FR,LFE,FC,BL,BR,UNKNOWN1,UNKNOWN1
10:31:03.757 T:4070568864   DEBUG:   Frames        : 2048
10:31:03.757 T:4070568864   DEBUG:   Frame Size    : 32
10:31:03.873 T:4080796576   DEBUG: CActiveAE::ClearDiscardedBuffers - buffer pool deleted
10:31:04.529 T:4102895712   DEBUG: Previous line repeats 1 times.
10:31:04.529 T:4102895712    INFO: PAPlayer::PrepareStream - Ready
10:31:04.529 T:4102895712   DEBUG: PlayFile: OpenFile succeed, play state 1
10:31:04.529 T:4014990240   DEBUG: Thread PAPlayer start, auto delete: false
10:31:04.530 T:4014990240   DEBUG: PAPlayer::Process - Playback started
10:31:04.530 T:4014990240   DEBUG: OnPlayBackStarted: play state was 1, starting 0
10:31:04.536 T:4102895712   DEBUG: Keyboard: scancode: 0x1c, sym: 0x000d, unicode: 0x0000, modifier: 0x0
10:31:04.547 T:3917476768   DEBUG: Thread JobWorker start, auto delete: true
10:31:04.547 T:3917476768   DEBUG: CGUIInfoManager::SetCurrentSong(**Hidden**/01 - HOTEL CALIFORNIA.dff)
10:31:04.567 T:4102882208   DEBUG: CAnnouncementManager - Announcement: OnPlay from xbmc
10:31:04.568 T:4102882208   DEBUG: GOT ANNOUNCEMENT, type: 1, from xbmc, message OnPlay
10:31:04.573 T:3917476768   DEBUG: Loading additional tag info for file **Hidden**/01 - HOTEL CALIFORNIA.dff
10:31:04.590 T:3917476768   DEBUG: CSMBFile::Open - opened **Hidden**/01 - HOTEL CALIFORNIA.dff, fd=10001
10:31:04.749 T:3917476768   DEBUG: CSMBFile::Close closing fd 10001
10:31:34.759 T:3917476768   DEBUG: Thread JobWorker 3917476768 terminating (autodelete)

Display More

Avok78 · [8.2.3.1] LibreELEC 8.2 for S905/S905X Avok78 September 16, 2017 at 5:24 PM

Hi,

I'd like to ask the developers if it would be possible to make the .dff .dfs files (SACD) reproduction work on the s905x devices.

On Kodi that runs on x86 those files work perfectly.

Any chance?

Also, any chance to do not see the dithering (24bit-->16bit) on the Hi-Res Flac audio files?

Thanks a lot.

Avok78 · S802/S812-Libreelec images for 7/8/9 Avok78 September 5, 2017 at 2:36 PM

Quote from Demetris

Am building you a new image to test, stay tuned.

If anyone else exist that can test me HD-MA please report back with device name so i can build him/her an image too.

Ok image is ready

Avok78

LibreELEC-S8X2.arm-8.2.RC3-M8S-PLUS.img.gz

Test and report.

Gracias

Display More

Hi Demetris,

thanks for the image.

Under the "Audio output device" section, the ALSA HDMI output device is no longer available.

Only these two devices are available:

- ALSA: default (AML M8Audio Analog): PCM (in the previous image, this device was labelled without the PCM)

- PULSE: default (Bluetooth Audio)

By selecting the 1st device listed above, no audio is reproduced at all. Pass-trough is not available.

I didn't test the Bluetooth Audio.

Thanks.

Avok78 · S802/S812-Libreelec images for 7/8/9 Avok78 September 4, 2017 at 5:26 PM

Quote from Demetris

Avok78 On what device u r testing HD-MA? M8S+?

Yes M8S+

Avok78 · S802/S812-Libreelec images for 7/8/9 Avok78 September 3, 2017 at 9:53 PM

Hi all,

If anyone else is interested in trying the M8S+ 8.2 RC3 build, I made the image that you can download from here (I suggest to install it first on an SD card, test it for awhile and install permanently on the NAND):

LibreELEC-S8X2.arm-8.2.RC3-M8S-PLUS.img.gz

Note: the WiFi card is not supported (only the Ethernet port).

I'm using it and it works so far. The pass-trough is available for every HD sources but there is a problem with the HD-MA sources: a noise is reproduced.

Regards.

Avok78 · S802/S812-Libreelec images for 7/8/9 Avok78 September 2, 2017 at 11:36 PM

Quote from Demetris

Avok78

Am pretty sure i'll regret it after i do...1.2.3 My wifi doesn't work please fix. I hope next release will have wifi working.

But i will just ignore and move forward.

AHAHAH

There are many users that have the M8S+ and they don't care about the wifi.

You can make many people happy

Thanks!

Avok78 · S802/S812-Libreelec images for 7/8/9 Avok78 August 29, 2017 at 2:40 PM

Quote from Demetris

@godfather007

And all others with audio passthrough issues.

New LE8.2-RC2 is currently uploaded replacing the previous one.

Please check it out and report back.

Best Regards

Hi Demetris,

are you planning to release the LE8.2-RC2 S8X2.M8S-PLUS version (even without the wifi support)?

Thank you.

Regards.

Avok78 · S802/S812-Libreelec images for 7/8/9 Avok78 August 17, 2017 at 2:34 PM

Quote from DS-1

Hi all and hi Demetris!

I have a M8S-PLUS and i'd like to know what's the right image for it, because I can't find support or filename rom for it anymore!

Thanks in advance for the reply!

Hi Demetris,

I'd also like to know which image should I use for the M8S+ box.

Personally I'm not interested in the wifi since I use the Ethernet port.

Any chance to see the .dfs/.dff files working on this release?

Thanks.

Avok78 · S802/S812-Libreelec images for 7/8/9 Avok78 July 28, 2017 at 1:51 PM

Hi,

I'm using the LibreELEC-S8X2.M8S-PLUS.arm-8.0.2 image and I noticed that the DSD (.dsf) files do not work properly.

When the AUDIO passthrough is set to ON (only the AC3 and DTS options are available): no signal is transferred to the AVR (so, no sound is reproduced).

When the AUDIO passthrough is set to OFF: the sound is reproduced intermittently.

I tried to change the sample rate (from 44.1kHz up to the maximum), same problem.

Please note that the .dsf files are stored in the M8S+ NAND.

I don't have any problem with this type of audio files with the LibreElec X86 version.

Any help? Any suggestion?

Thanks.

Posts by Avok78

[8.2.4.1] LibreELEC Kodi Krypton - S905 & S912 devices

[8.90.6] LibreELEC 9.0 Alpha for S905/S912 devices

[8.90.6] LibreELEC 9.0 Alpha for S905/S912 devices

SACD files (.dff .dfs) on S905x devices

SACD files (.dff .dfs) on S905x devices

SACD files (.dff .dfs) on S905x devices

SACD files (.dff .dfs) on S905x devices

[8.2.3.1] LibreELEC 8.2 for S905/S905X

[8.2.3.1] LibreELEC 8.2 for S905/S905X

SACD files (.dff .dfs) on S905x devices

[8.2.3.1] LibreELEC 8.2 for S905/S905X

S802/S812-Libreelec images for 7/8/9

S802/S812-Libreelec images for 7/8/9

S802/S812-Libreelec images for 7/8/9

S802/S812-Libreelec images for 7/8/9

S802/S812-Libreelec images for 7/8/9

S802/S812-Libreelec images for 7/8/9

S802/S812-Libreelec images for 7/8/9
