Install LE on HP t430 Thin Client - Problems

leano · August 4, 2024 at 9:22 AM

DEVICE: HP t430 Thin Client; 2/16GB; Gemini Lake; Intel Celeron N4000 CPU 1.10GHz
i tried with 'LibreELEC-Generic.x86_64-13.0-nightly-20240802-d20b714' and the nightly 'LibreELEC-Generic-legacy.x86_64-13.0-nightly-20240802-d20b714', both same
connect the PC via HDMI at my TV, i see only the message with starts in 5 seconds, afterwards black screen (no signal)
when i use my USB Dock (my workplace with monitor, keyboard,...) via USB-C, then i'm able to run and finish the setup
1. BUT, after close the installation, i connect the PC to my TV and i see only the HP logo, then NO SIGNAL
2. after add 'video=HDMI-A-2:D' at sysconfig.txt, TV output works
3. i execute also getedid create, same behaviour
  BOOT_IMAGE=/KERNEL boot=UUID=xxxx disk=UUID=xxxx quiet video=HDMI-A-2:D initrd=/edid.cpio drm.edid_firmware=edid/edid.bin video=HDMI-A-2:D
  italics it's added manually by me
  the bold it's from getedid command
PROBLEMS
1. 4K ISO/MKV files not working; from HDD attached via USB; after press the file to play > black screen; with the Back button i'm able return to KODI
2. 1K (FullHD) files ISO/MKV plays fine but no audio

The t430 has 1x DP, 1x HDMI and 1x USB-C with DP.

Code

LibreElec:~ # tail /sys/class/drm/*/status
==> /sys/class/drm/card0-DP-1/status <==
disconnected

==> /sys/class/drm/card0-HDMI-A-1/status <==
disconnected

==> /sys/class/drm/card0-HDMI-A-2/status <==
Connected

I set at BIOS the GPU memory size to 128M, beside this option there nothing about GPU. But it looks like that A1 is HDMI and A2 the DP.

Code

LibreElec:~ # ls /sys/class/drm
card0           card0-HDMI-A-1  renderD128
card0-DP-1      card0-HDMI-A-2  version

Code

kmsprint -m
Connector 2 (160) HDMI-A-2 (connected)
   0 3840x2160@60.00  594.000 3840/176/88/296/+  2160/8/10/72/+     60 (60.00) P|D
   1 4096x2160@60.00  594.000 4096/88/88/128/+   2160/8/10/72/+     60 (60.00) D     256:135
   2 4096x2160@59.94  593.407 4096/88/88/128/+   2160/8/10/72/+     60 (59.94) D     256:135
   3 4096x2160@50.00  594.000 4096/968/88/128/+  2160/8/10/72/+     50 (50.00) D     256:135
   4 4096x2160@30.00  297.000 40

**Da Flex** · August 4, 2024 at 7:12 PM

I guess your PC has an LSPCon chip to convert from DP to HDMI. Those chips have known driver issues, and such issues are very likely unsolvable by us (search for "LSPCon" on the forum).

Make sure your BIOS is up-to-date. If your hardware support page offers video driver updates, install the latest. They sometimes include firmware for the LSPCon driver. You probably need Windows to install those updates.

**smp** · August 4, 2024 at 7:37 PM

What TV? Samsung?

leano · August 4, 2024 at 7:41 PM

Quote from smp

What TV? Samsung?

yes

Code

LibreELEC:~ # cat /sys/class/drm/card0-HDMI-A-2/edid | edid-decode
edid-decode (hex):

00 ff ff ff ff ff ff 00 4c 2d f7 0d 00 0e 00 01
01 1b 01 03 80 6f 3e 78 0a 23 ad a4 54 4d 99 26
0f 47 4a bd ef 80 71 4f 81 c0 81 00 81 80 95 00
a9 c0 b3 00 01 01 08 e8 00 30 f2 70 5a 80 b0 58
8a 00 50 1d 74 00 00 1e 02 3a 80 18 71 38 2d 40
58 2c 45 00 50 1d 74 00 00 1e 00 00 00 fd 00 18
4b 0f 87 3c 00 0a 20 20 20 20 20 20 00 00 00 fc
00 53 41 4d 53 55 4e 47 0a 20 20 20 20 20 01 75

02 03 59 f0 57 61 10 1f 04 13 05 14 20 21 22 5d
5e 5f 60 65 66 62 63 64 07 16 03 12 2c 09 07 07
15 07 50 3d 04 c0 57 07 00 83 01 00 00 e2 00 0f
e3 05 c3 01 6e 03 0c 00 30 00 b8 3c 20 00 80 01
02 03 04 67 d8 5d c4 01 78 80 03 e3 06 0d 01 e3
0f 01 e0 e5 01 8b 84 90 01 01 1d 80 d0 72 1c 16
20 10 2c 25 80 50 1d 74 00 00 9e 66 21 56 aa 51
00 1e 30 46 8f 33 00 50 1d 74 00 00 1e 00 00 b3

----------------

Block 0, Base EDID:
  EDID Structure Version & Revision: 1.3
  Vendor & Product Identification:
    Manufacturer: SAM
    Model: 3575
    Serial Number: 16780800
    Made in: week 1 of 2017
  Basic Display Parameters & Features:
    Digital display
    Maximum image size: 111 cm x 62 cm
    Gamma: 2.20
    RGB color display
    First detailed timing is the preferred timing
  Color Characteristics:
    Red  : 0.6406, 0.3300
    Green: 0.3007, 0.6005
    Blue : 0.1503, 0.0605
    White: 0.2802, 0.2900
  Established Timings I & II:
    IBM     :   720x400    70.081663 Hz   9:5     31.467 kHz     28.320000 MHz
    DMT 0x04:   640x480    59.940476 Hz   4:3     31.469 kHz     25.175000 MHz
    Apple   :   640x480    66.666667 Hz   4:3     35.000 kHz     30.240000 MHz
    DMT 0x05:   640x480    72.808802 Hz   4:3     37.861 kHz     31.500000 MHz
    DMT 0x06:   640x480    75.000000 Hz   4:3     37.500 kHz     31.500000 MHz
    DMT 0x09:   800x600    60.316541 Hz   4:3     37.879 kHz     40.000000 MHz
    DMT 0x0a:   800x600    72.187572 Hz   4:3     48.077 kHz     50.000000 MHz
    DMT 0x0b:   800x600    75.000000 Hz   4:3     46.875 kHz     49.500000 MHz
    Apple   :   832x624    74.551266 Hz   4:3     49.726 kHz     57.284000 MHz
    DMT 0x10:  1024x768    60.003840 Hz   4:3     48.363 kHz     65.000000 MHz
    DMT 0x11:  1024x768    70.069359 Hz   4:3     56.476 kHz     75.000000 MHz
    DMT 0x12:  1024x768    75.028582 Hz   4:3     60.023 kHz     78.750000 MHz
    DMT 0x24:  1280x1024   75.024675 Hz   5:4     79.976 kHz    135.000000 MHz
    Apple   :  1152x870    75.061550 Hz 192:145   68.681 kHz    100.000000 MHz
  Standard Timings:
    DMT 0x15:  1152x864    75.000000 Hz   4:3     67.500 kHz    108.000000 MHz
    DMT 0x55:  1280x720    60.000000 Hz  16:9     45.000 kHz     74.250000 MHz
    DMT 0x1c:  1280x800    59.810326 Hz  16:10    49.702 kHz     83.500000 MHz
    DMT 0x23:  1280x1024   60.019740 Hz   5:4     63.981 kHz    108.000000 MHz
    DMT 0x2f:  1440x900    59.887445 Hz  16:10    55.935 kHz    106.500000 MHz
    DMT 0x53:  1600x900    60.000000 Hz  16:9     60.000 kHz    108.000000 MHz (RB)
    DMT 0x3a:  1680x1050   59.954250 Hz  16:10    65.290 kHz    146.250000 MHz
  Detailed Timing Descriptors:
    DTD 1:  3840x2160   60.000000 Hz  16:9    135.000 kHz    594.000000 MHz (1872 mm x 1053 mm)
                 Hfront  176 Hsync  88 Hback  296 Hpol P
                 Vfront    8 Vsync  10 Vback   72 Vpol P
    DTD 2:  1920x1080   60.000000 Hz  16:9     67.500 kHz    148.500000 MHz (1872 mm x 1053 mm)
                 Hfront   88 Hsync  44 Hback  148 Hpol P
                 Vfront    4 Vsync   5 Vback   36 Vpol P
    Display Range Limits:
      Monitor ranges (GTF): 24-75 Hz V, 15-135 kHz H, max dotclock 600 MHz
    Display Product Name: 'SAMSUNG'
  Extension blocks: 1
Checksum: 0x75

----------------

Block 1, CTA-861 Extension Block:
  Revision: 3
  Underscans IT Video Formats by default
  Basic audio support
  Supports YCbCr 4:4:4
  Supports YCbCr 4:2:2
  Native detailed modes: 0
  Video Data Block:
    VIC  97:  3840x2160   60.000000 Hz  16:9    135.000 kHz    594.000000 MHz
    VIC  16:  1920x1080   60.000000 Hz  16:9     67.500 kHz    148.500000 MHz
    VIC  31:  1920x1080   50.000000 Hz  16:9     56.250 kHz    148.500000 MHz
    VIC   4:  1280x720    60.000000 Hz  16:9     45.000 kHz     74.250000 MHz
    VIC  19:  1280x720    50.000000 Hz  16:9     37.500 kHz     74.250000 MHz
    VIC   5:  1920x1080i  60.000000 Hz  16:9     33.750 kHz     74.250000 MHz
    VIC  20:  1920x1080i  50.000000 Hz  16:9     28.125 kHz     74.250000 MHz
    VIC  32:  1920x1080   24.000000 Hz  16:9     27.000 kHz     74.250000 MHz
    VIC  33:  1920x1080   25.000000 Hz  16:9     28.125 kHz     74.250000 MHz
    VIC  34:  1920x1080   30.000000 Hz  16:9     33.750 kHz     74.250000 MHz
    VIC  93:  3840x2160   24.000000 Hz  16:9     54.000 kHz    297.000000 MHz
    VIC  94:  3840x2160   25.000000 Hz  16:9     56.250 kHz    297.000000 MHz
    VIC  95:  3840x2160   30.000000 Hz  16:9     67.500 kHz    297.000000 MHz
    VIC  96:  3840x2160   50.000000 Hz  16:9    112.500 kHz    594.000000 MHz
    VIC 101:  4096x2160   50.000000 Hz 256:135  112.500 kHz    594.000000 MHz
    VIC 102:  4096x2160   60.000000 Hz 256:135  135.000 kHz    594.000000 MHz
    VIC  98:  4096x2160   24.000000 Hz 256:135   54.000 kHz    297.000000 MHz
    VIC  99:  4096x2160   25.000000 Hz 256:135   56.250 kHz    297.000000 MHz
    VIC 100:  4096x2160   30.000000 Hz 256:135   67.500 kHz    297.000000 MHz
    VIC   7:  1440x480i   59.940060 Hz  16:9     15.734 kHz     27.000000 MHz
    VIC  22:  1440x576i   50.000000 Hz  16:9     15.625 kHz     27.000000 MHz
    VIC   3:   720x480    59.940060 Hz  16:9     31.469 kHz     27.000000 MHz
    VIC  18:   720x576    50.000000 Hz  16:9     31.250 kHz     27.000000 MHz
  Audio Data Block:
    Linear PCM:
      Max channels: 2
      Supported sample rates (kHz): 48 44.1 32
      Supported sample sizes (bits): 24 20 16
    AC-3:
      Max channels: 6
      Supported sample rates (kHz): 48 44.1 32
      Maximum bit rate: 640 kb/s
    DTS:
      Max channels: 6
      Supported sample rates (kHz): 48
      Maximum bit rate: 1536 kb/s
    Enhanced AC-3 (DD+):
      Max channels: 8
      Supported sample rates (kHz): 48 44.1 32
  Speaker Allocation Data Block:
    FL/FR - Front Left/Right
  Video Capability Data Block:
    YCbCr quantization: No Data
    RGB quantization: No Data
    PT scan behavior: No Data
    IT scan behavior: Supports both over- and underscan
    CE scan behavior: Supports both over- and underscan
  Colorimetry Data Block:
    xvYCC601
    xvYCC709
    BT2020YCC
    BT2020RGB
    Reserved MD0
  Vendor-Specific Data Block (HDMI), OUI 00-0C-03:
    Source physical address: 3.0.0.0
    Supports_AI
    DC_36bit
    DC_30bit
    DC_Y444
    Maximum TMDS clock: 300 MHz
    Extended HDMI video details:
      HDMI VICs:
        HDMI VIC 1:  3840x2160   30.000000 Hz  16:9     67.500 kHz    297.000000 MHz
        HDMI VIC 2:  3840x2160   25.000000 Hz  16:9     56.250 kHz    297.000000 MHz
        HDMI VIC 3:  3840x2160   24.000000 Hz  16:9     54.000 kHz    297.000000 MHz
        HDMI VIC 4:  4096x2160   24.000000 Hz 256:135   54.000 kHz    297.000000 MHz
  Vendor-Specific Data Block (HDMI Forum), OUI C4-5D-D8:
    Version: 1
    Maximum TMDS Character Rate: 600 MHz
    SCDC Present
    Supports 12-bits/component Deep Color 4:2:0 Pixel Encoding
    Supports 10-bits/component Deep Color 4:2:0 Pixel Encoding
  HDR Static Metadata Data Block:
    Electro optical transfer functions:
      Traditional gamma - SDR luminance range
      SMPTE ST2084
      Hybrid Log-Gamma
    Supported static metadata descriptors:
      Static metadata type 1
  YCbCr 4:2:0 Capability Map Data Block:
    VIC  97:  3840x2160   60.000000 Hz  16:9    135.000 kHz    594.000000 MHz
    VIC  96:  3840x2160   50.000000 Hz  16:9    112.500 kHz    594.000000 MHz
    VIC 101:  4096x2160   50.000000 Hz 256:135  112.500 kHz    594.000000 MHz
    VIC 102:  4096x2160   60.000000 Hz 256:135  135.000 kHz    594.000000 MHz
  Vendor-Specific Video Data Block (HDR10+), OUI 90-84-8B:
    Application Version: 1
  Detailed Timing Descriptors:
    DTD 3:  1920x1080i  50.000000 Hz  16:9     28.125 kHz     74.250000 MHz (1872 mm x 1053 mm)
                 Hfront  528 Hsync  44 Hback  148 Hpol P
                 Vfront    2 Vsync   5 Vback   15 Vpol P Vfront +0.5 Odd Field
                 Vfront    2 Vsync   5 Vback   15 Vpol P Vback  +0.5 Even Field
    DTD 4:  1366x768    59.789541 Hz 683:384   47.712 kHz     85.500000 MHz (1872 mm x 1053 mm)
                 Hfront   70 Hsync 143 Hback  213 Hpol P
                 Vfront    3 Vsync   3 Vback   24 Vpol P
Checksum: 0xb3  Unused space in Extension Block: 2 bytes

Display More

**smp** · August 4, 2024 at 7:50 PM Best Answer

Goto General->External Device Manager->HDMI UHD Color (or Input Signal Plus on newer models) and disable it.

Use the normal Generic image, not Legacy.

leano · August 4, 2024 at 8:23 PM

Quote from smp

Goto General->External Device Manager->HDMI UHD Color (or Input Signal Plus on newer models) and disable it.

WOW, thanks many times for this hint and for your help!

After disable the mentioned option the KODI was appears immediately. I see under system > display > resolution 3840x2160p with rate 60. And now, the 4K movie runs fine.

But i'll check further after apply the mentioned settings from wiki pages, like whitelist.

Once again, THANKS!

leano · August 4, 2024 at 9:05 PM

next question is raised ... w/o UHD Color no HDR is available.

samsung shows the info only with UHD and the HDR label is missing.

as i understand, only Intel UHD 620 and newer is with HDR?

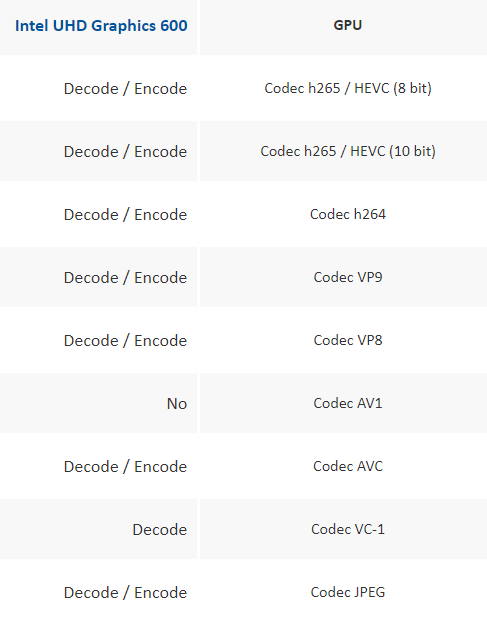

the UHD 600 is able to decode HEVC h265 8 and 10 bit, so it should have HDR?

when i install the (none legacy) generic will i get HDR?

**Da Flex** · August 4, 2024 at 9:19 PM

Quote from leano

when i install the (none legacy) generic will i get HDR?

Yes.

**smp** · August 4, 2024 at 9:35 PM

More info here about Samsung + Gemini Lake no signal issue.

leano · August 5, 2024 at 12:54 PM

Quote from Da Flex

Make sure your BIOS is up-to-date. If your hardware support page offers video driver updates, install the latest. They sometimes include firmware for the LSPCon driver. You probably need Windows to install those updates.

BIOS with 1.16 is updated
Windows 10 64bit is installed, but i'm not able to install the graphic driver, neither via setup.exe or via device manager.
HP Support Assistence tool (automatic driver update) is also not running. i tried the driver from Intel too, without success.
therefore Bacis Driver is installed from Microsoft (default driver)
with Windows i'm able to turn on Samsung UHD Color with for the according HDMI output (but no HDR label is shown)

However, as next i'll install the Generic LE, i'll report the outcome.

leano · August 5, 2024 at 7:05 PM

the generic 'LibreELEC-Generic.x86_64-12.0.0.img.gz' is installed. HDR label is shown at the according 4K files. the samsung tv UHD color option is not working, like with legacy image, only when this option is disabled its working.

the UHD color option is not working at all ?
not even with the newest nightly build 13 ?
my android tv (mibox) is with 3840x2160/60 and KODI GUI with 1920x1080/60.
when i play a movie only the refresh-rate is changed, due to adjust option is enabled.
the resolution keeps always the same, 3840x2160.
at LE i set the GUI to 1920x1080/60 and at playing a movie resolution and refresh rate is changed.
to make the same like [2]: add 'video=HDMI-A-2:3840x2160M@60' at sysconfig.txt ?
what is difference between 'video=HDMI-A-2:D' and 'video=HDMI-A-2:d', upper and lower case Dd?

**Da Flex** · August 5, 2024 at 7:44 PM

Quote from leano

what is difference between 'video=HDMI-A-2:D' and 'video=HDMI-A-2:d', upper and lower case Dd?

modedb default video mode support — The Linux Kernel documentation

Install LE on HP t430 Thin Client - Problems

Similar Threads

Gemini Lake Laggy UI and GPU Frequency Scaling
