linuxserver.io docker - WebGrab+Plus

lpt2007 · March 9, 2021 at 4:38 PM

Hi,

I installed WebGrab+Plus from linuxserver.io and I put test configuration to WebGrab++.config.xml file.

here is config:

XML

<?xml version="1.0"?>
<settings>

  <!-- for detailed info about the settings see http://webgrabplus.com/documentation/configuration/webgrabconfigxml
  and http://webgrabplus.com/sites/default/files/downloads/Misc/Documented_Configuration_Files.zip -->

  <filename>/data/guide.xml</filename>
  <mode></mode>
  <postprocess grab="y" run="n">rex</postprocess>
  <user-agent>Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/79.0.3945.130 Safari/537.36 Edg/79.0.309.71</user-agent>
  <!--<decryptkey site="site-name">decrypt_userkey</decryptkey>-->
  <!--<license wg-username="your webgrab+plus username" registered-email="your registered email address" password="optional-password" />-->
  <logging>on</logging>
  <retry time-out="5">4</retry>
  <timespan>0</timespan>
  <update>f</update>

  <!--
            Replace the next dummy channel entry with the channels you want.
            You can look into the installed siteini.pack folder on your computer

            For the latest version,
            see http://webgrabplus.com/epg-channels for the available sites/channels
  -->

  <channel site="siol.net" site_id="slo1" update="i" xmltv_id="TV SLO 1">TV SLO 1</channel>
  <channel site="siol.net" site_id="slo2" update="i" xmltv_id="TV SLO 2">TV SLO 2</channel>
  <channel site="siol.net" site_id="slo3" update="i" xmltv_id="TV SLO 3">TV SLO 3</channel>

</settings>

Display More

But when I start addon file guide.xml is not in /data folder.

How I can find out what is wrong?

lpt2007 · March 9, 2021 at 5:50 PM

After some time guide.xml is in /data folder.

I don't know how to connect /data/guide.xml with tvheadend (I use tvheadend from linuxserver.io)?

elonesna · March 9, 2021 at 8:44 PM

Quote from lpt2007

After some time guide.xml is in /data folder.
I don't know how to connect /data/guide.xml with tvheadend (I use tvheadend from linuxserver.io)?

You need to study a little more about docker. You have two alternatives: (1) Search with Google "How to mount a host directory in a Docker container", or (2) Search with Google "How to copy files from docker container to host"

lpt2007 · March 9, 2021 at 8:56 PM

Hi,

Its alreadi mounted to host.

Location on host:

Code

/storage/.kodi/userdata/addon_data/docker.linuxserver.webgrabplus/data/guide.xml

but I don't know where is location on tvheadend for grabber to take it?

elonesna · March 10, 2021 at 2:14 PM

Quote from lpt2007

I don't know where is location on tvheadend for grabber to take it?

The EPG configuration for an XMLTV file in tvheadend is done (1) in the kodi tvheadend addon configuration, and (2) enabling external EPG XMLTV Grabber in http://tvheadend-ip-device:9981

lpt2007 · March 10, 2021 at 2:39 PM

Quote from elonesna

The EPG configuration for an XMLTV file in tvheadend is done (1) in the kodi tvheadend addon configuration, and (2) enabling external EPG XMLTV Grabber in http://tvheadend-ip-device:9981

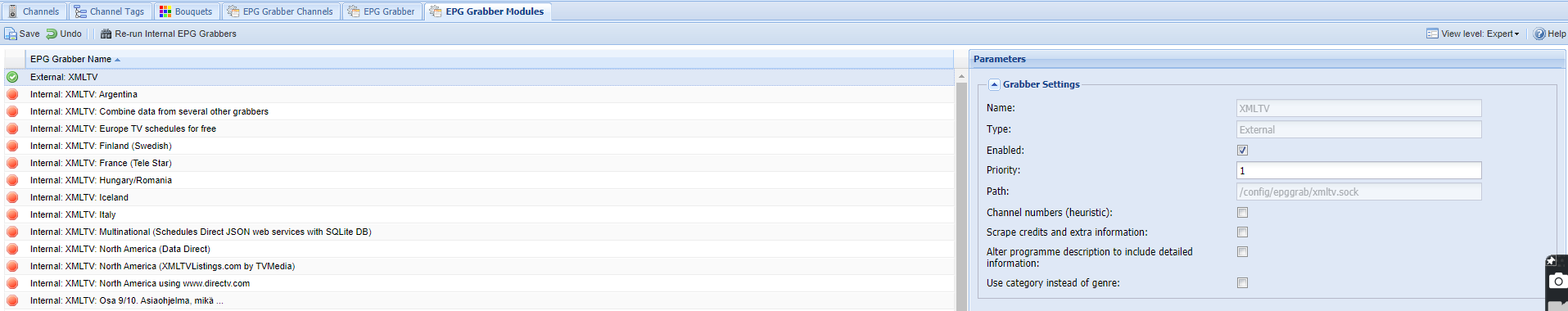

You mean like this? See image.

Now I don't know how to connect "/storage/.kodi/userdata/addon_data/docker.linuxserver.webgrabplus/data/guide.xml" with "/config/epggrab/xmltv.sock"

lpt2007 · March 11, 2021 at 6:24 PM

I try those three solutions from this link but not working.

LINK

Anyone have solution for raspberry pi hardware?

elonesna · March 11, 2021 at 6:58 PM

Which part of "The EPG configuration for an XMLTV file in tvheadend is done (1) in the kodi tvheadend addon configuration" did you not understand?

lpt2007 · March 11, 2021 at 9:06 PM

No. Can you explain more?

I configured "External: XMLTV" in tvheadend web ui. Like this on picture LINK

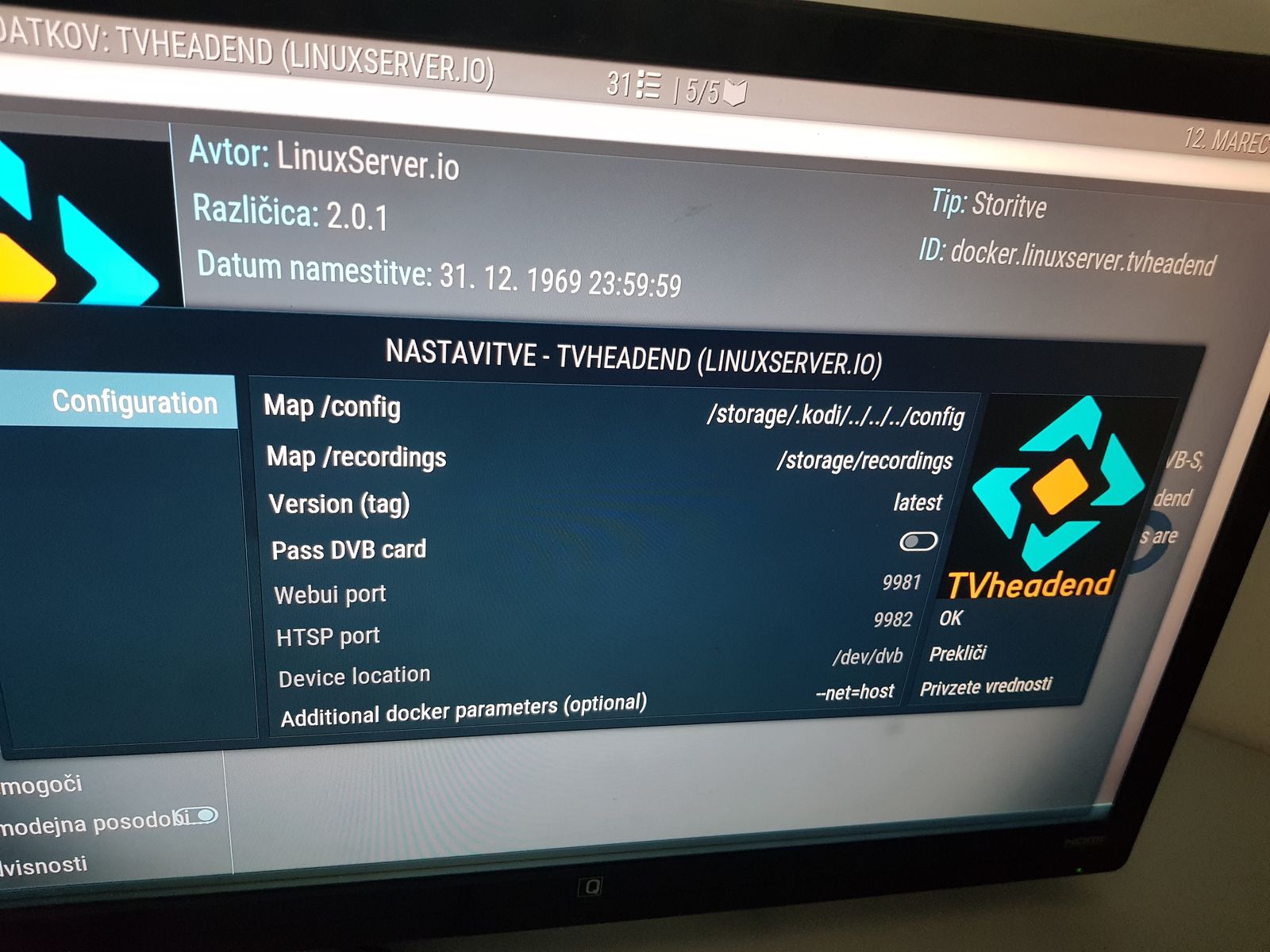

In KODI tvheadend server addon configuration I don't have configuration for for XMLTV file. See picture

elonesna · March 12, 2021 at 3:06 PM

Sorry, I can't answer you, I only use the official LibreELEC kodi addon tvheadend.

You may need to look up information about tvheadend to use sockets in a way similar to:

Using socat: cat tv.xml | socat - UNIX-CONNECT: /path/to/xmltv.sock

Using netcat (from the nmap project): cat tv.xml | nc -w 5 -U /path/to/xmltv.sock

Using curl: cat tv.xml | curl -d @ - -m 5 -X POST --unix-socket /path/to/xmltv.sock Google

I don't use this and I don't know if this is supported by LibreELEC.
