How to configuration IR with USB-Serial dongle?

  • How to configuration IR with USB-Serial dongle?

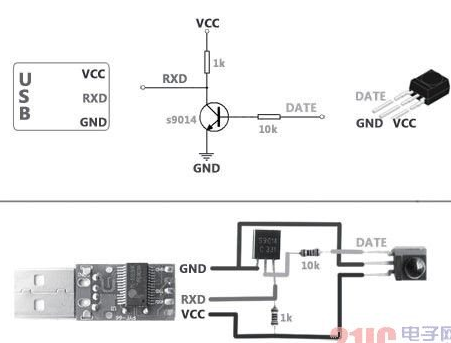

    I make an IR receiver with USB-TTL dongle.

    Already successfully remote controlled in windows.


    I try to drive it at LIBELEC.

    But unsuccessful.


    Kernel identified

    Code
    1. [ [email protected]] usb 1-1: new full-speed USB device number 4 using xhci-hcd
    2. [ [email protected]] usb 1-1: New USB device found, idVendor=1a86, idProduct=7523
    3. [ [email protected]] usb 1-1: New USB device strings: Mfr=0, Product=2, SerialNumber=0
    4. [ [email protected]] usb 1-1: Product: USB2.0-Serial
    5. [ [email protected]] ch341 1-1:1.0: ch341-uart converter detected
    6. [ [email protected]] usb 1-1: ch341-uart converter now attached to ttyUSB0


    I refer to this post

    USB-UIRT configuration


    Using the driver = atwf83 formulation may receive the remote control.

    But receive code is wrong

    Edited once, last by herosam ().
