robert90 · WebGrab - XMLTV EPG grabber does not work robert90 June 27, 2016 at 6:44 PM

Can anybody help me? How can I solve my problem? I don't know how to use the solution from nickr.

robert90

Yes for test it is possible to install oscam to another PC.
I need to look again at the weekend himself .
In the period under following log the image was stable, according to my mother.

TVHeadend Log:

Code

2016-06-20 18:21:00.831 subscription: 0030: "127.0.0.1 [  | Kodi Media Center ]" subscribing on channel "RTL HD", weight: 150, adapter: "Availink AVL6211+AV2011 DVB-S/S2 : DVB-S #1", network: "Astra 19.2", mux: "10832.25H", provider: "CBC", service: "RTL HD", profile="htsp", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"
2016-06-20 18:21:02.368 descrambler: cannot decode packets for service "RTL HD"
2016-06-20 18:21:02.907 TS: Astra 19.2/10832.25H/RTL HD: TELETEXT @ #32 Continuity counter error (total 1)
2016-06-20 18:21:03.244 parser: The timediff for TELETEXT is big (86148734), using current dts
2016-06-20 18:21:03.252 parser: transport stream TELETEXT, DTS discontinuity. DTS = 0, last = 86145134
2016-06-20 18:21:33.939 eit: 10832.25H in Astra 19.2: invalid checksum (len 1565, errors 1)
2016-06-20 18:21:33.954 TS: Astra 19.2/10832.25H/RTL HD: H264 @ #255 Continuity counter error (total 1)
2016-06-20 18:21:34.302 descrambler: ECM - key late (2573 ms) for service "RTL HD"
2016-06-20 18:21:34.588 TS: Astra 19.2/10832.25H/RTL HD: TELETEXT @ #32 Continuity counter error (total 2)
2016-06-20 18:21:35.058 TS: Astra 19.2/10832.25H/RTL HD Transport error indicator (total 1)
2016-06-20 18:21:35.075 TS: Astra 19.2/10832.25H/RTL HD: AC3 @ #259: Invalid start code 27:36:e0
2016-06-20 18:21:35.075 TS: Astra 19.2/10832.25H/RTL HD: AC3 @ #259 Continuity counter error (total 1)
2016-06-20 18:21:35.384 descrambler: RTL HD even stream key is not valid
2016-06-20 18:21:36.683 TS: Astra 19.2/10832.25H/RTL HD: H264 @ #255: Invalid start code d0:0b:d9
2016-06-20 18:21:37.359 parser: transport stream AC3, DTS discontinuity. DTS = 3144960, last = 3049920
2016-06-20 18:24:19.619 subscription: 0030: "127.0.0.1 [  | Kodi Media Center ]" unsubscribing from "RTL HD", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"
2016-06-20 18:24:19.621 mpegts: 11464.25H in Astra 19.2 - tuning on Availink AVL6211+AV2011 DVB-S/S2 : DVB-S #1

Display More

Oscam Log:

Code

[list]
[*]2016/06/20 18:21:01 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:B2ABBD48543A2D1375FF7A3427DD5762): found (285 ms) by Diskstation - RTL HD
[*]2016/06/20 18:21:11 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:F9E0BB4E1442BD14884F14119F9C740E): found (232 ms) by Diskstation - RTL HD
[*]2016/06/20 18:21:21 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:3BCB08F250B05EF2AB109CFEE70B1276): found (151 ms) by Diskstation - RTL HD
[*]2016/06/20 18:21:31 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:B1B9389FE8194CE4DDD70B219C886120): found (171 ms) by Diskstation - RTL HD
[*]2016/06/20 18:21:34 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:B1B9389FE8194CE4DDD70B219C886120): cache1 (0 ms) by Diskstation - RTL HD
[*]2016/06/20 18:21:41 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:BD53D0F23252A890275E6B03280BD3C4): found (165 ms) by Diskstation - RTL HD
[*]2016/06/20 18:21:51 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D[img]https://forum.libreelec.tv/images/smilies/biggrin.png[/img]4E47AD66A1C4156FDEE113A4CC27869): found (181 ms) by Diskstation - RTL HD
[*]2016/06/20 18:22:01 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:9E7CA56545C1BD6EDFB159BB87143E7C): found (167 ms) by Diskstation - RTL HD
[*]2016/06/20 18:22:11 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:9740F3B2BD76BCEFDF324296F79B00C9): found (183 ms) by Diskstation - RTL HD
[*]2016/06/20 18:22:21 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:F82C8AC347B6765AB45980294151A715): found (175 ms) by Diskstation - RTL HD
[*]2016/06/20 18:22:31 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:12F1277DEBF03C837DF342CF3799075D): found (159 ms) by Diskstation - RTL HD
[*]2016/06/20 18:22:41 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D[img]https://forum.libreelec.tv/images/smilies/biggrin.png[/img]13B0B5168E6FE3C0A559DDEB1CC665A): found (181 ms) by Diskstation - RTL HD
[*]2016/06/20 18:22:51 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:7A36B1ABE63C25C5ED5D741444576A26): found (176 ms) by Diskstation - RTL HD
[*]2016/06/20 18:23:01 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:F4C968F4D47051E86392D8A18FB120CA): found (182 ms) by Diskstation - RTL HD
[*]2016/06/20 18:23:11 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:50CA9D6FA08E5F013DF14A4DC024644F): found (167 ms) by Diskstation - RTL HD
[*]2016/06/20 18:23:21 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:25E7449FEF361F919D5B5708749766AB): found (158 ms) by Diskstation - RTL HD
[*]2016/06/20 18:23:31 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D[img]https://forum.libreelec.tv/images/smilies/biggrin.png[/img]752F7FD7B4112976C7BE1EE6A32465C): found (122 ms) by Diskstation - RTL HD
[*]2016/06/20 18:23:41 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:56C522A86E149E6F395D2456C82BCBD5): found (116 ms) by Diskstation - RTL HD
[*]2016/06/20 18:23:51 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:23FC5B4E3862C29823342C84E1E0A72D): found (131 ms) by Diskstation - RTL HD
[*]2016/06/20 18:24:01 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:CDA8F8B4FDEF8D662EE355EFCE3DF62E): found (128 ms) by Diskstation - RTL HD
[*]2016/06/20 18:24:11 1C28088B c (ecm) wetek (098C@000000/0641/EF10/9D:695C0B77C11F48E15D043E374C0D440E): found (130 ms) by Diskstation - RTL HD
[/list]

Display More

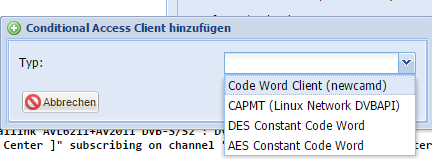

How should I use cccam with tvheadend? I can't choice this in the options (see picture).

robert90 · WebGrab - XMLTV EPG grabber does not work robert90 June 20, 2016 at 5:20 PM

I think u have right, because I can't run the script manuel. I get this error:

Code

/storage/.kodi/addons/service.tvheadend42/bin/tv_grab_wg++: line 11: can't open 1: no such file
/storage/.kodi/addons/service.tvheadend42/bin/tv_grab_wg++: line 11: 0: not found

How can I do this? My Linux Know How is not so good. Maybe u have an Link for me?

robert90

The oscam Server is on my nas and on wetek.. Between my nas and wetek I use cccamuas protocol. And for tvheadend newcamd or dvbapi. This configuration is needed because my nas and wetek are not in the same network and newcamd is not secure over Internet.

robert90

I let turn off the wetek.. I post the log file in they next days.. Thank you for your help.

Gesendet von meinem HTC One M9 mit Tapatalk

robert90 · WebGrab - XMLTV EPG grabber does not work robert90 June 19, 2016 at 7:59 PM

Hello,

I use this file as EPG-Grab-Module

Bash

#!/bin/bash
xmltv_file_location=/storage/downloads/guide.xml
dflag=
vflag=
cflag=
qflag=
if (( $# < 1 ))
then
  cat "$xmltv_file_location"
  exit 0
fi


for arg
do
    delim=""
    case "$arg" in
    #translate --gnu-long-options to -g (short options)
       --description) args="${args}-d ";;
       --version) args="${args}-v ";;
       --capabilities) args="${args}-c ";;
       --quiet) args="${args}-q ";;


       #pass through anything else
       *) [[ "${arg:0:1}" == "-" ]] || delim="\""
           args="${args}${delim}${arg}${delim} ";;
    esac
done


#Reset the positional parameters to the short options
eval set -- $args


while getopts "dvcq" option
do
    case $option in
        d)  dflag=1;;
        v)  vflag=1;;
        c)  cflag=1;;
        q)  qflag=1;;
        \?) printf "unknown option: -%s\n" $OPTARG
            printf "Usage: %s: [--description] [--version] [--capabilities] \n" $(basename $0)
            exit 2
            ;;
    esac >&2
done


if [ "$dflag" ]
then
   printf "$0 is a wrapper grabber around WebGrab+Plus\n"
fi
if [ "$vflag" ]
then
   printf "0.2\n"
fi
if [ "$cflag" ]
then
   printf "baseline\n"
fi
if [ "$qflag" ]
then
   printf ""
fi


exit 0

Display More

But TVHeadend don't found any EPG-Channels.
I use the same tv_grab_file (only other path for guide.xml) on my Synology NAS, there all works perfect.
Any Idea why it doesn't work?

Best Regards
Robert

robert90

With this Version (WeTek_Play) the encrypted channels not work. They don't play, only not encrypted channels work.

Code

2016-06-19 20:32:02.362 subscription: 0007: "127.0.0.1 [  | Kodi Media Center ]" subscribing on channel "RTL HD", weight: 150, adapter: "Availink AVL6211+AV2011 DVB-S/S2 : DVB-S #1", network: "Astra 19.2", mux: "10832.25H", provider: "CBC", service: "RTL HD", profile="htsp", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"
Es scheint ein Problem mit dem Datenabruf von Tvheadend zu geben. Versuche neu zu verbinden...
Wiederverbunden mit Tvheadend
2016-06-19 20:32:08.261 htsp: 127.0.0.1: Welcomed client software: Kodi Media Center (HTSPv25)
2016-06-19 20:32:08.268 htsp: 127.0.0.1 [ Kodi Media Center ]: Identified as user ''
2016-06-19 20:32:08.270 mpegts: 10832.25H in Astra 19.2 - tuning on Availink AVL6211+AV2011 DVB-S/S2 : DVB-S #1
2016-06-19 20:32:09.323 subscription: 0001: "127.0.0.1 [  | Kodi Media Center ]" subscribing on channel "RTL HD", weight: 150, adapter: "Availink AVL6211+AV2011 DVB-S/S2 : DVB-S #1", network: "Astra 19.2", mux: "10832.25H", provider: "CBC", service: "RTL HD", profile="htsp", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"
Es scheint ein Problem mit dem Datenabruf von Tvheadend zu geben. Versuche neu zu verbinden...
Wiederverbunden mit Tvheadend
Es scheint ein Problem mit dem Datenabruf von Tvheadend zu geben. Versuche neu zu verbinden...
Wiederverbunden mit Tvheadend
2016-06-19 20:32:20.149 htsp: 127.0.0.1 [ Kodi Media Center ]: Identified as user ''
2016-06-19 20:32:20.152 mpegts: 10832.25H in Astra 19.2 - tuning on Availink AVL6211+AV2011 DVB-S/S2 : DVB-S #1
2016-06-19 20:32:21.103 scanfile: DVB-S - loaded 1 regions with 113 networks
2016-06-19 20:32:21.106 scanfile: DVB-T - loaded 44 regions with 1105 networks
2016-06-19 20:32:21.108 scanfile: DVB-C - loaded 17 regions with 55 networks
2016-06-19 20:32:21.109 scanfile: ISDB-T - loaded 2 regions with 1000 networks
2016-06-19 20:32:21.503 subscription: 0001: "127.0.0.1 [  | Kodi Media Center ]" subscribing on channel "RTL HD", weight: 150, adapter: "Availink AVL6211+AV2011 DVB-S/S2 : DVB-S #1", network: "Astra 19.2", mux: "10832.25H", provider: "CBC", service: "RTL HD", profile="htsp", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"
Es scheint ein Problem mit dem Datenabruf von Tvheadend zu geben. Versuche neu zu verbinden...

Display More

With the 4.1-2126 Version, the encrypted channels play, but freeze all few seconds.

Code

2016-06-19 20:29:50.092 subscription: 0009: "127.0.0.1 [  | Kodi Media Center ]" subscribing on channel "RTL HD", weight: 150, adapter: "Availink AVL6211+AV2011 DVB-S/S2 : DVB-S #1", network: "Astra 19.2", mux: "10832.25H", provider: "CBC", service: "RTL HD", profile="htsp", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"
2016-06-19 20:29:51.565 cwc: Got unexpected ECM reply (seqno: 3)
2016-06-19 20:29:52.720 descrambler: cannot decode packets for service "RTL HD"
2016-06-19 20:29:53.777 TS: Astra 19.2/10832.25H/RTL HD: TELETEXT @ #32 Continuity counter error (total 1)
2016-06-19 20:29:53.872 parser: The timediff for TELETEXT is big (86119934), using current dts
2016-06-19 20:29:53.875 parser: transport stream TELETEXT, DTS discontinuity. DTS = 0, last = 86116334
2016-06-19 20:30:05.645 subscription: 0009: "127.0.0.1 [  | Kodi Media Center ]" unsubscribing from "RTL HD", hostname="127.0.0.1", username="127.0.0.1", client="Kodi Media Center"

robert90

I have let configure vnc.
I test it with TVHeadend 4.1-2126 (4.1-2126-18.06.2016) and oscam from libreelec repository and WeTek_Play.

I can't say of picture freeze, because vnc. But in the TVHeadend Log the same error like before are displayed.
With channels without encryption I have no error.

Now I use DVBApi to connect TVHeadend with oscam. Next I will try newcamd.

robert90

I will try next Weekend. Thank You.

robert90

Unfortunately, I still have trouble.

In the appendix, the log of Kodi and tvheadend.
In TVHeadend Log are also error, I have to the Internet but not found useful.
Have WETEK contacted, possibly the tuner is damaged.
Has yet another idea?

Best regards

Robert

robert90

Now I have Timeshift disabled. It now seems to work. I'll observe.
Does someone timeshift be run? If so, on the SD card or on a USB stick?

robert90

The problem is still there. In the attachment you find the log file. If the picture freeze, in the top often also a loading bar.

robert90

The box is at my parents.
Since I'm only back in a few weeks.
I'll soon as possible make the log files available.
During this time, the subject must therefore wait.

robert90

Hello,

i have install LibreElec 7.0 to my WeTek Play.
I install TVHeadend 4.2 and oscam and configure tvheadend with DVB-S2 and CA-Client DVBAPI.

Sometimes the sound and sometimes the picure freeze (only few millisecond).
Has anyone similar problems and found a solution for this?

Best Regards
Robert
