Posts by porkchop999

Quote from smp

I think this is an issue with your TV (firmware?).

Intel driver default to 4K/24 12-bit RGB. Maybe your TV doesn't like this video mode.

Try to force 8 and 10 bit with proptest (copy it to /storage and chmod 755)

# systemctl stop kodi

# ./proptest

It should look something like this (values may be different for your box):

# ./proptest 326 connector 328 8 (this will force 8-bit for Connector 326 (HDMI-A-2))

# ./proptest 326 connector 328 10 (this will force 10-bit for Connector 326 (HDMI-A-2))

Then

# systemctl start kodi

and try to switch to 4k/24.

Display More

I have the same issue on my NUC11TN no 4k/24 unless 8bit is forced. The gemini nuc was fine.

Have the same issue on my NUC11TN no HD Passthrough audio, then audio does not work until a reboot. All other audio formats seem fine.

Quote from nokia-lover

Ok, but should Kodi present the switches for HD audio pass through?

Under Windows it does and Gemini Lake (in my particular case)

is passing HD audio bitstream to my Marantz AVR.

Or you mean that some people reported pass through issues on Gemini Lake

in Libreelec/Linux?

I have had no passthrough issues with Gemini Lake and Libreelec

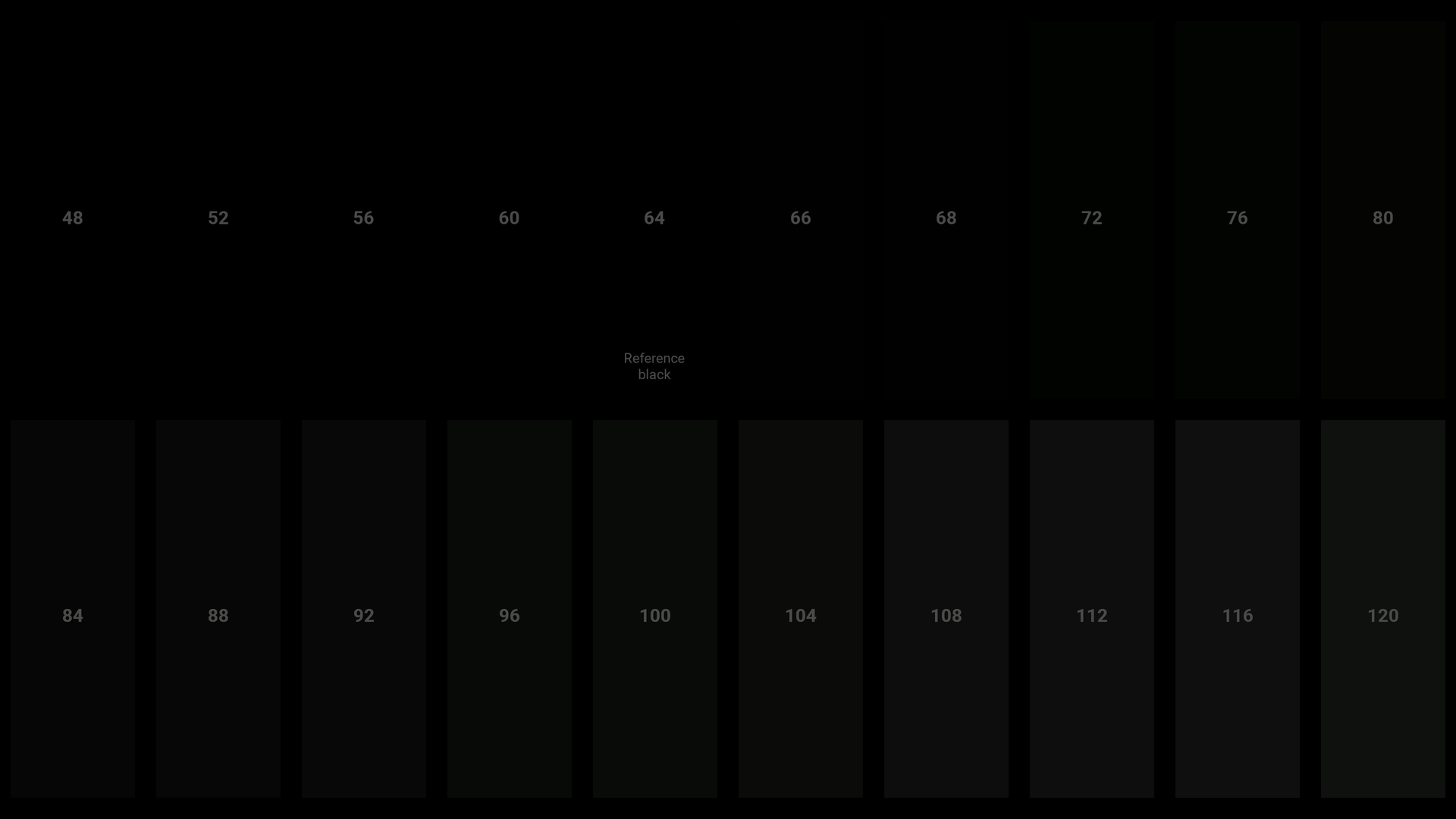

This is a screen shot from your latest build, (EGL) no green but definatley limited colour range

Quote from smp

Try this test.

All bars (66-120) should look grey. But when using the EGL render method - bars 68-88 look green.

They look correct with direct to plane method (http://github.com/lrusak/xbmc/commits/drmprime-vaapi-hdr branch).

I haven't been able to notice the green on my TV (Sony AH8). Although I can't get the tv to pickup full range. Kodi is set to full but the tv is picking up the signal as limited. If I force full on the TV if washes out the picture. Are you still forcing full range in your builds ?

I see what you mean. Do you see this in movies as well ?

I am still using the patch you supplied in January

Dropbox - LibreELEC-Generic.x86_64-9.80.img.gz - Simplify your life

Im still building off matrix/9b4db0e hasn't got the stutter issue if that helps

Looks like I ran into the NUC7PJYH bios update disaster 0058/0059 Will no long boot any form of Linux and you cant roll back the update. Another win from Intel. Don't update if you have one of these

Intel NUC7PJYH2 BIOS Upgrade to 0058 causes boot failure Linux and Unix-like operating systems - Intel Community

Quote from smp

Updated build with HDR:

Current Kodi master (83387b9)

Linux kernel 5.11.7

Mesa 21.0.0

Full-feature Intel media-driver with fixed VAAPI DI

HDR patches from Commits · lrusak/xbmc · GitHub

https://www.dropbox.com/s/hy9hq052d3p1…578.img.gz?dl=1

Display More

Would you have the patch you use for Kodi that works with Irusak branch ?

This branch seems to build and work now. Not sure which will work better ?

Commits · lrusak/xbmc · GitHub

Awesome thanks

Patch works great

Quote from smp

Required some tinkering as they don't apply cleanly anymore.

Yes got build errors when I tried it

Quote from smp

I compiled another image for Gemini Lake hardware.

Updated to a current Kodi and LE master. HDR commits from here.Thanks

Thanks for this.

I think your missing : in the url link

Can I ask you you merged Irusak commits with the current Kodi master ?

Same reason older receiver and the Nuc is the only device plugged into the tv

Quote from pletopia

can I ask what machine your running this on?

Intel NUC NUC7PJYH, HDMI 1 to the TV, HDMI2 to the Receiver.

smp Thanks for doing these builds working really well

Works but no audio
