I used the same version of VDR. Finally I migrated to Tvheadend and now everything work perfect.
Posts by piotrekcrash
-
-
I had similar problem with my VDR, finally I asked developer of dvbapi plugin for VDR. Here You can read it:
-
-
Hi,
I'm using KII Pro with:
LibreELEC release: S905.arm-8.0.0c-I
VDR 2.2.0 / vdr-plugin-dvbapi 2.2.3
OSCam v1.20-unstable_svn, build r11350I have problem with connection between VDR and OSCam over dvbapi.
It's possible to connect both only if directly after System boot I'm changing fast

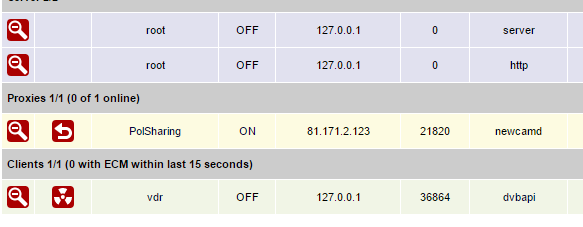

encrypted channels one by one, then dvbapi Client apper in Oscam Clients sectionand everything works correct to next system boot. But If I'm not make this process
on beginning then dvbapi never connect to OSCam.When dvbapi is not connected to OSCam in logs apper something like this:
CodeFeb 28 16:55:03 LibreELEC00 vdr[2715]: [2940] DVBAPI: 0.0 CA_PMT decoding len=15 lm=4 prg=7357 len=0 Feb 28 16:55:03 LibreELEC00 vdr[2715]: [2940] DVBAPI: pid=2,01fb len=0 (0x0) Feb 28 16:55:03 LibreELEC00 vdr[2715]: [2940] DVBAPI: pid=4,025f len=0 (0x0) Feb 28 16:55:03 LibreELEC00 vdr[2715]: [2940] DVBAPI: pid=4,02c3 len=0 (0x0) Feb 28 16:55:03 LibreELEC00 vdr[2715]: [2940] DVBAPI: 0.0 got CA pmt ciCmd=-1 caLm=4 Feb 28 16:55:03 LibreELEC00 vdr[2715]: [2940] DVBAPI: 0.0 answer to query suppressed Feb 28 16:55:03 LibreELEC00 vdr[2715]: [2940] DVBAPI: 0.0 set CAM decrypt (SID 7357 (0x1CBD), caLm 4, HasCaDescriptors 0) Feb 28 16:55:03 LibreELEC00 vdr[2715]: [2940] DVBAPI: CA_PMT doesn't contain CA descriptorsbut when after few channel changes this will connect it look like this:
Code
Display MoreFeb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: 0.0 CA_PMT decoding len=61 lm=4 prg=15708 len=4c Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: ci_cmd(G)=01 Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: pid=2,00a7 len=0 (0x0) Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: pid=4,006c len=0 (0x0) Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: pid=4,006d len=0 (0x0) Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: 0.0 got CA pmt ciCmd=1 caLm=4 Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: 0.0 answer to query suppressed Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: 0.0 set CAM decrypt (SID 15708 (0x3D5C), caLm 4, HasCaDescriptors 1) Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: send: channelSid=0x3d5c (15708) Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2994] DVBAPI: Write, sock=0 Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2787] DVBAPI: OSCam not connected, (re)connecting... Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2787] DVBAPI: created socket with socket_fd=38 Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2787] DVBAPI: Successfully (re)connected to OSCam Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2787] DVBAPI: Write, sock=38 Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2787] DVBAPI: socket_fd=38 len=42 wrote=42 Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2787] DVBAPI: send: channelSid=0x3d5c (15708) Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2787] DVBAPI: Write, sock=38 Feb 28 16:55:16 LibreELEC00 vdr[2715]: [2787] DVBAPI: socket_fd=38 len=107 wrote=107and is OSCam log i can see:
Code2017/02/28 16:55:16 265ED022 c (dvbapi) Client connected: 'vdr-plugin-dvbapi 2.2.3 / VDR 2.2.0' (protocol version = 2)Enyone know what is source of my problem?
-
Anyone tested Oscam with VDR? I configured all like in LE7 and encrypted channels not working. VNSI message "no data"
Channels without encruption works ok.
Code
Display More19:21:08.284 T:3746567072 DEBUG: PVRManager - OpenLiveStream - opening live stream on channel 'TVN Turbo HD' 19:21:08.284 T:3746567072 DEBUG: opening live stream for channel 'TVN Turbo HD' 19:21:08.285 T:3746567072 NOTICE: AddOnLog: VDR VNSI Client: Logged in at '1483122068+3600' to 'VDR-Network-Streaming-Interface (VNSI) 19:21:08.285 T:3746567072 DEBUG: AddOnLog: VDR VNSI Client: changing to channel 5 19:21:08.391 T:3973059488 DEBUG: PushCecKeypress - received key b duration 231 19:21:08.457 T:3746567072 DEBUG: CDVDInputStreamPVRManager - Open - playback has started on filename pvr://channels/tv/Wszystkie/pvr.v 19:21:08.457 T:3746567072 DEBUG: CDVDInputStreamPVRManager::Open - stream opened: pvr://channels/tv/Wszystkie/pvr.vdr.vnsi_1918672853. 19:21:08.457 T:3746567072 NOTICE: Creating Demuxer 19:21:08.458 T:3746567072 DEBUG: OnPlayBackStarted: play state was 1, starting 1 19:21:08.458 T:3746567072 DEBUG: CVideoPlayer::SetCaching - caching state 2 19:21:08.458 T:4117406128 DEBUG: PlayFile: OpenFile succeed, play state 2 19:21:08.458 T:3746567072 DEBUG: CDVDClock::SetSpeedAdjust - adjusted:0.000000 19:21:08.458 T:4117406128 DEBUG: OnPlayBackStarted: play state was 2, starting 0 19:21:08.472 T:4117390240 DEBUG: CAnnouncementManager - Announcement: OnPlay from xbmc 19:21:08.472 T:4117390240 DEBUG: GOT ANNOUNCEMENT, type: 1, from xbmc, message OnPlay 19:21:08.472 T:3922727840 DEBUG: CGUIInfoManager::SetCurrentMovie(pvr://channels/tv/Wszystkie/pvr.vdr.vnsi_1918672853.pvr) 19:21:18.360 T:3746567072 DEBUG: AddOnLog: VDR VNSI Client: StreamStatus - Channel: no data 19:21:18.360 T:3746567072 DEBUG: CAddonCallbacksAddon - QueueNotification - VDR VNSI Client - Info Message : 'Channel: no data'
