Create remote.conf from scratch

I have a new TX3-Pro (S905X- Android 6) box. I run it with kszaq 7.0.2.009 version (thanks to kszaq, great job!). The only problem I had was that the remote control didn’t work at all. Also copying remote.conf from the Android /etc folder to libreelec /storage/.config didn’t help. I thought a while, that may be the device tree (dtb) was wrong for my box but this wasn’t. It was the remote.conf. It seems to me, that Android 6 uses a remote configuration different from the /system/etc/remote.conf.…

ippon

January 6, 2017 at 8:08 PM

copy https://github.com/CoreELEC/remot…ent/remote.conf to /storage/.config

comment content of:

between key_begin and key_end

between repeat_key_begin and repeat_key_end

run remotecfg .config/remote.conf

press OK button in remote

LibreELEC:~ # dmesg
[ 538.296106@0] remote: Wrong custom code is 0xfd029f00
[ 543.716170@0] remote: Wrong custom code is 0xfd029f00
LibreELEC:~ #

vi remote.conf，set factory_code

factory_code = 0xfd029f00

run command:

LibreELEC:~ # remotecfg .config/remote.conf
curpara:factory_code fd029f00
curpara:work_mode 00000000
curpara:repeat_enable 00000001
curpara:repeat_delay 00000082
curpara:repeat_peroid 00000078
curpara:release_delay 00000014
curpara:debug_enable 00000001
repeat_delay = 130
repeat_peroid = 120
work_mode = 0
repeat_enable = 0x1
factory_code = 64770
release_delay = 0x14
debug_enable = 0x1
LibreELEC:~ #

press POWER button in remote and get log message:

LibreELEC:~ # dmesg
[ 2138.422743@2] remote: cur_mode = 0
[ 2138.422761@2] remote: set_remote_mode[78]
[ 2164.000795@0] remote: Wrong custom code is 0xa8579f00
[ 2165.311417@0] remote: Wrong custom code is 0xa8579f00
[ 2165.836795@0] remote: Wrong custom code is 0xa8579f00
[ 2166.101722@0] remote: Wrong custom code is 0xa8579f00
LibreELEC:~ #

try to edit remote.conf with
# 0x57 116 ;POWER

LibreELEC:~ # remotecfg .config/remote.conf
curpara:factory_code fd029f00
curpara:work_mode 00000000
curpara:repeat_enable 00000001
curpara:repeat_delay 00000082
curpara:repeat_peroid 00000078
curpara:release_delay 00000014
curpara:debug_enable 00000001
KEYMAP_LEVEL: ircode = 0x57, keycode = 116
repeat_delay = 130
repeat_peroid = 120
work_mode = 0
repeat_enable = 0x1
factory_code = 64770
release_delay = 0x14
debug_enable = 0x1
LibreELEC:~ #

also tried:

# 0xa8 116 ;POWER

but, none of can poweroff box

and never got following:

remote: scancode is 0x0043,invalid key is 0x0000.

only get message as:

remote: Wrong custom code is 0xa8579f00

don't know, how to do

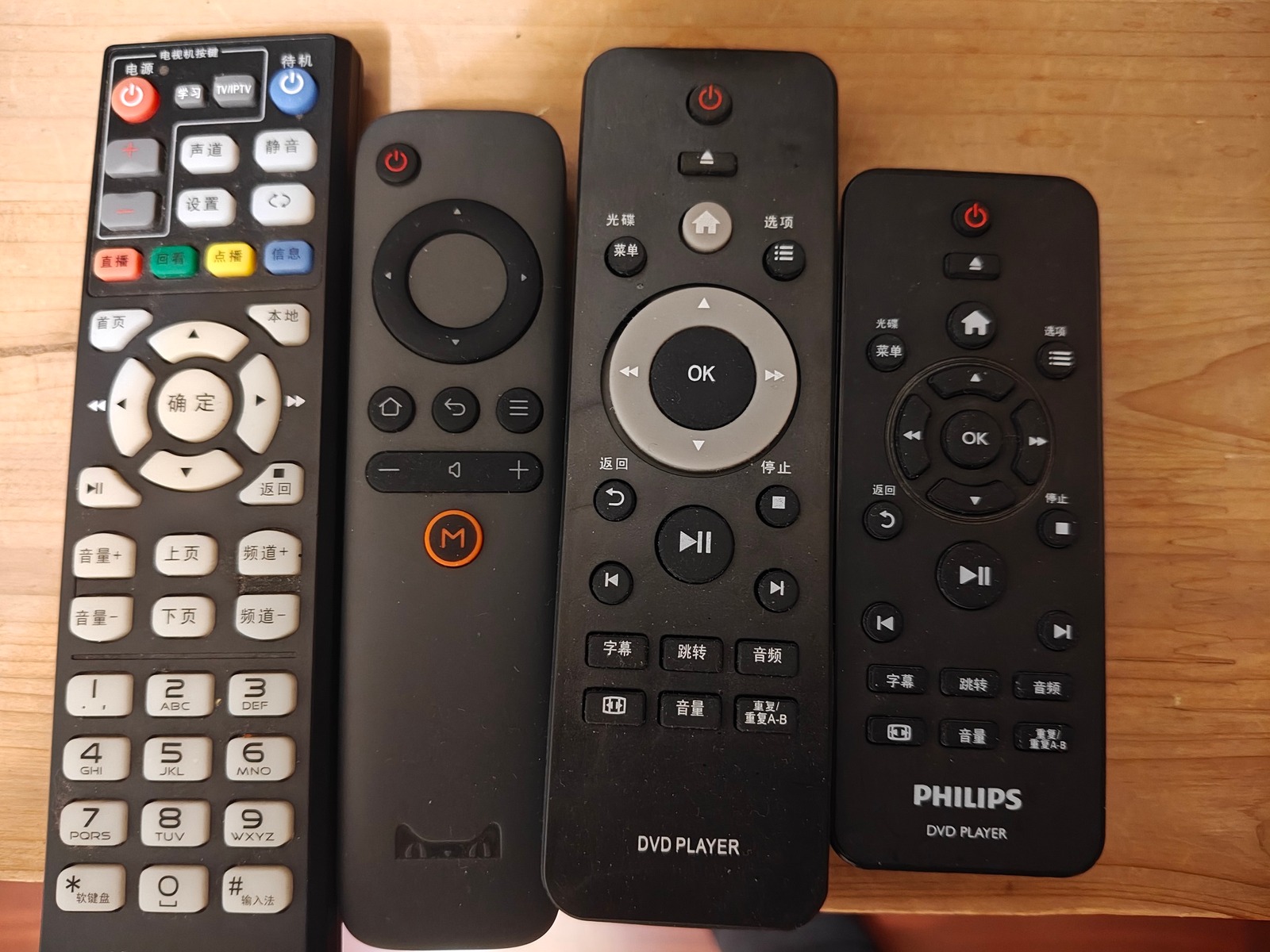

my box's Skyworth Q+ remote dammaged, so I use third party remote, it can be used in LE12 with meson-ir format config file

have no idea

here I post meson-ir format remote config file which can work in LE12 and coreelec

# table minix, type: NEC
0x9f57 KEY_POWER

0x9f43 KEY_UP
0x9f06 KEY_LEFT
0x9f0e KEY_RIGHT
0x9f0a KEY_DOWN

0x9f47 KEY_HOME
0x9f16 KEY_CONTEXT_MENU
0x9f02 KEY_ENTER
0x9f4f KEY_ESC

0x9f5d KEY_VOLUMEDOWN
0x9fff KEY_VOLUMEUP

0x9f8a KEY_MUTE

Quote from dtech

In my images meson-ir is not supported, only amremote, so all you need is the appropriate remote.conf file.
If you could identify what box you have, I could help you find the correct remote control config.

thank you, I will investigate how to use amremote

hello,

I download 9.2.8.19, it boot success

but when I try to config remote, it report following error:

LibreELEC:~ # ir-keytable
/sys/class/rc/: No such file or directory
No devices found

how to fix it ?

thank you
