12.0.1 - dmesg output from running system
https://paste.kodi.tv/onevobudob
12.0.2 - after update via wget update folder and reboot
https://paste.kodi.tv/exoyifudep
12.0.1 - get back via wget
Posts by leano
-
-
after update my BD Remote Control (Sony PS3 remote control) was not working.
the bluetooth connection page shows connected yes, but not working (press any button at controller nothing happens). it was neccessary to plug a wired mouse.
after delete and pair (trust and connect) it works after reboot (not immediately like default). but with the next reboot same issue again.
my workaround was downgrade to previous 12.0.1 via /storage/.update and wget as described in the wiki.
with 12.0.1 no issues with the remote controller. i repeat the update again for twice to 12.0.2, exact the same problem.
using bluetoothctl at 12.0.2 the reported issue is same. i remove the device with untrust and delete and pair again with trust and connect commands.
full reset with 12.0.2 was not solved the issue, with backup and restore settings.
-

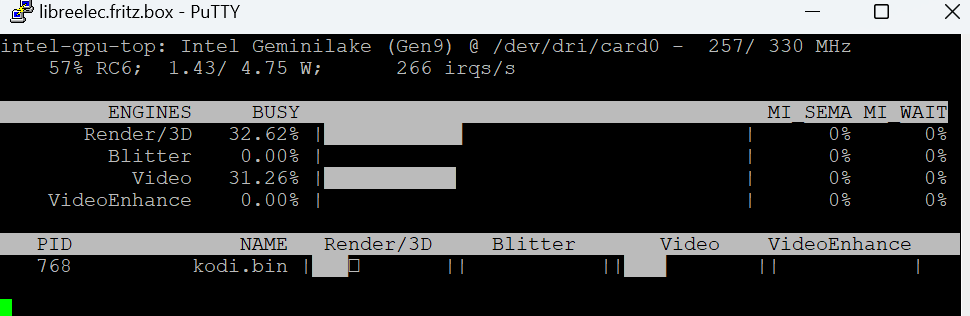

i was able to run the (useful) utility as follows:
- mkdir igputop (/storage/igputop)
- wget ftp.de.debian.org/debian/pool/main/i/intel-gpu-tools/intel-gpu-tools_1.27.1-1_amd64.deb
- ar x intel-gpu-tools/intel-gpu-tools_1.27.1-1_amd64.deb
- tar xvf data.tar.gz
- export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/storage/igputop/usr/lib/x86_64-linux-gnu/
note: re-run after reboot, lost after reboot - cd /usr/bin
- ./intel_gpu_top
-
2024-08-18 09:32:35.378 T:782 info <general>: ----------------------------- - Pastebin.com
note: the pastekodi command upload log with my SSID, router MAC, ... therefore i paste only the kodi.log.

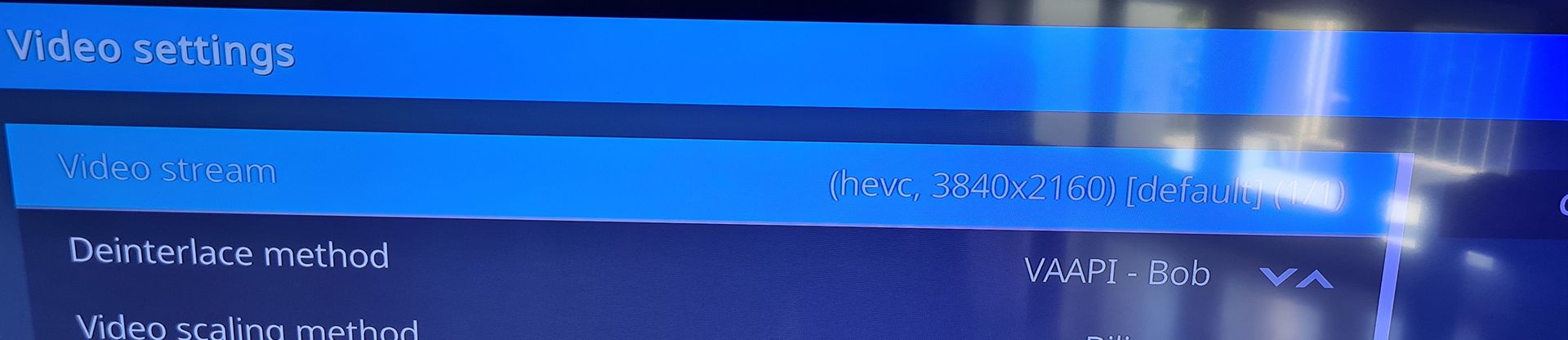

i performed with the 4 test/sample files from Samples - Official Kodi Wiki
only at [1] HDR is missing, but it should be or?
- (HDR HEVC 10-bit BT.2020 24fps) Exodus Sample.mp4
- 4K HEVC 59.940 Broadcast Capture Sample.mkv
- HDR10Plus_PA_DTSX.mkv
- Hybrid HDR10Plus DV Sample.mkv
note for '<algorithmdirtyregions>0</algorithmdirtyregions>'
i have the problem with subtitle stutter, therefore i set this value to 0.
but it looks like that this problem is not solved, therefore i change 'scaling_governor' to 'powersave', by autostart.sh.
default was 'schedutil'. i'll see with the next movies if still persist.
-
the first two photos is from GUI after start. the last two ones is when video is playing.
the selected element, which is blue, is brighter when video is playing.
is now clear what i want to report or do you see the difference?
-
indeed, the change from 16:9 standard to custom and screen fit: auto was solved the reported issue. thanks!
did you have an idea/solution about the brightness issue?
-

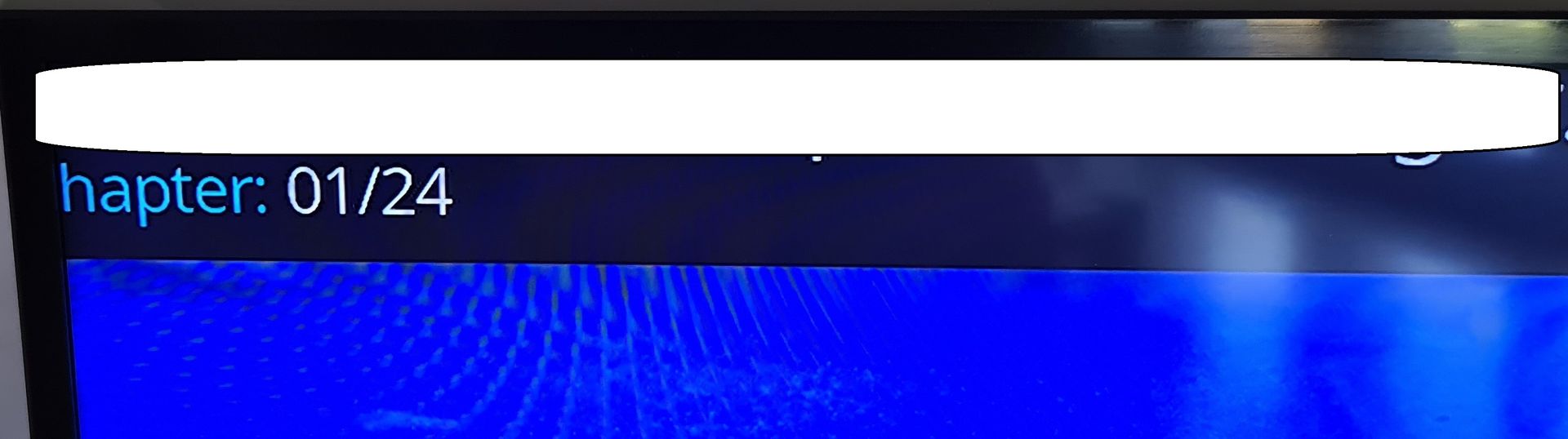

when i play 1080p movies (tested with *.mkv and *.iso), the GUI resolution is cut, doesnt proper shows the elements at the edges. the first two photos shows playing 1080p video. the last photo 4k. with 4k movies no issues.
further, the focused/selected item is more bright, in compare of none playback. the brigtness issue happens at every movie file.
KODI GUI is set as described in the LE wiki, including whitelist and refresh rate adjust.
-
create log with upload to paste.libreelec.tv it's very useful, but it include a lot information about connected network.
CodeAug 03 17:25:03.334837 LibreELEC iwd[421]: Permanent Address: xx:xx:xx:xx:xx:xx Aug 03 17:25:03.329875 LibreELEC connman-vpnd[415]: wlan0 {newlink} index 2 address xx:xx:xx:xx:xx:xx mtu 1500 Aug 03 17:25:03.374806 LibreELEC connman-vpnd[415]: wlan0 {newlink} index 3 address xx:xx:xx:xx:xx:xx mtu 1500 Aug 03 17:25:08.239275 LibreELEC iwd[421]: event: connect-info, ssid: zz, bss: yy:yy:yy:yy:yy:yy, signal: -63, load: 3/255 Aug 03 17:25:08.240791 LibreELEC kernel: wlan0: authenticate with yy:yy:yy:yy:yy:yy- xx is the unique MAC address of the device
- yy is the MAC address of the router
- zz is the SSID name
therefore, my request herewith is to change/mod the log before upload.
-
i'm using the same device, with N4000 CPU. therefore i want to ask for the result.
i cannot confirm the described behaviour with dropped frames at the KODI GUI, but i like to have optimized LE for t430.
did you compile a custom image without 'projects/Generic/patches/kodi/000-temp-revert-fences.patch' ?
and did you changed the GPU frequency?
thanks in advance.
-
the generic 'LibreELEC-Generic.x86_64-12.0.0.img.gz' is installed. HDR label is shown at the according 4K files. the samsung tv UHD color option is not working, like with legacy image, only when this option is disabled its working.
- the UHD color option is not working at all ?
not even with the newest nightly build 13 ? - my android tv (mibox) is with 3840x2160/60 and KODI GUI with 1920x1080/60.
when i play a movie only the refresh-rate is changed, due to adjust option is enabled.
the resolution keeps always the same, 3840x2160. - at LE i set the GUI to 1920x1080/60 and at playing a movie resolution and refresh rate is changed.
- to make the same like [2]: add 'video=HDMI-A-2:3840x2160M@60' at sysconfig.txt ?
- what is difference between 'video=HDMI-A-2:D' and 'video=HDMI-A-2:d', upper and lower case Dd?
- the UHD color option is not working at all ?
-
Make sure your BIOS is up-to-date. If your hardware support page offers video driver updates, install the latest. They sometimes include firmware for the LSPCon driver. You probably need Windows to install those updates.
- BIOS with 1.16 is updated
- Windows 10 64bit is installed, but i'm not able to install the graphic driver, neither via setup.exe or via device manager.
HP Support Assistence tool (automatic driver update) is also not running. i tried the driver from Intel too, without success.
therefore Bacis Driver is installed from Microsoft (default driver) - with Windows i'm able to turn on Samsung UHD Color with for the according HDMI output (but no HDR label is shown)
However, as next i'll install the Generic LE, i'll report the outcome.
-
next question is raised ... w/o UHD Color no HDR is available.
samsung shows the info only with UHD and the HDR label is missing.
as i understand, only Intel UHD 620 and newer is with HDR?
the UHD 600 is able to decode HEVC h265 8 and 10 bit, so it should have HDR?
when i install the (none legacy) generic will i get HDR?
-
Goto General->External Device Manager->HDMI UHD Color (or Input Signal Plus on newer models) and disable it.
WOW, thanks many times for this hint and for your help!
After disable the mentioned option the KODI was appears immediately. I see under system > display > resolution 3840x2160p with rate 60. And now, the 4K movie runs fine.
But i'll check further after apply the mentioned settings from wiki pages, like whitelist.
Once again, THANKS!
-
What TV? Samsung?
yes
Code
Display MoreLibreELEC:~ # cat /sys/class/drm/card0-HDMI-A-2/edid | edid-decode edid-decode (hex): 00 ff ff ff ff ff ff 00 4c 2d f7 0d 00 0e 00 01 01 1b 01 03 80 6f 3e 78 0a 23 ad a4 54 4d 99 26 0f 47 4a bd ef 80 71 4f 81 c0 81 00 81 80 95 00 a9 c0 b3 00 01 01 08 e8 00 30 f2 70 5a 80 b0 58 8a 00 50 1d 74 00 00 1e 02 3a 80 18 71 38 2d 40 58 2c 45 00 50 1d 74 00 00 1e 00 00 00 fd 00 18 4b 0f 87 3c 00 0a 20 20 20 20 20 20 00 00 00 fc 00 53 41 4d 53 55 4e 47 0a 20 20 20 20 20 01 75 02 03 59 f0 57 61 10 1f 04 13 05 14 20 21 22 5d 5e 5f 60 65 66 62 63 64 07 16 03 12 2c 09 07 07 15 07 50 3d 04 c0 57 07 00 83 01 00 00 e2 00 0f e3 05 c3 01 6e 03 0c 00 30 00 b8 3c 20 00 80 01 02 03 04 67 d8 5d c4 01 78 80 03 e3 06 0d 01 e3 0f 01 e0 e5 01 8b 84 90 01 01 1d 80 d0 72 1c 16 20 10 2c 25 80 50 1d 74 00 00 9e 66 21 56 aa 51 00 1e 30 46 8f 33 00 50 1d 74 00 00 1e 00 00 b3 ---------------- Block 0, Base EDID: EDID Structure Version & Revision: 1.3 Vendor & Product Identification: Manufacturer: SAM Model: 3575 Serial Number: 16780800 Made in: week 1 of 2017 Basic Display Parameters & Features: Digital display Maximum image size: 111 cm x 62 cm Gamma: 2.20 RGB color display First detailed timing is the preferred timing Color Characteristics: Red : 0.6406, 0.3300 Green: 0.3007, 0.6005 Blue : 0.1503, 0.0605 White: 0.2802, 0.2900 Established Timings I & II: IBM : 720x400 70.081663 Hz 9:5 31.467 kHz 28.320000 MHz DMT 0x04: 640x480 59.940476 Hz 4:3 31.469 kHz 25.175000 MHz Apple : 640x480 66.666667 Hz 4:3 35.000 kHz 30.240000 MHz DMT 0x05: 640x480 72.808802 Hz 4:3 37.861 kHz 31.500000 MHz DMT 0x06: 640x480 75.000000 Hz 4:3 37.500 kHz 31.500000 MHz DMT 0x09: 800x600 60.316541 Hz 4:3 37.879 kHz 40.000000 MHz DMT 0x0a: 800x600 72.187572 Hz 4:3 48.077 kHz 50.000000 MHz DMT 0x0b: 800x600 75.000000 Hz 4:3 46.875 kHz 49.500000 MHz Apple : 832x624 74.551266 Hz 4:3 49.726 kHz 57.284000 MHz DMT 0x10: 1024x768 60.003840 Hz 4:3 48.363 kHz 65.000000 MHz DMT 0x11: 1024x768 70.069359 Hz 4:3 56.476 kHz 75.000000 MHz DMT 0x12: 1024x768 75.028582 Hz 4:3 60.023 kHz 78.750000 MHz DMT 0x24: 1280x1024 75.024675 Hz 5:4 79.976 kHz 135.000000 MHz Apple : 1152x870 75.061550 Hz 192:145 68.681 kHz 100.000000 MHz Standard Timings: DMT 0x15: 1152x864 75.000000 Hz 4:3 67.500 kHz 108.000000 MHz DMT 0x55: 1280x720 60.000000 Hz 16:9 45.000 kHz 74.250000 MHz DMT 0x1c: 1280x800 59.810326 Hz 16:10 49.702 kHz 83.500000 MHz DMT 0x23: 1280x1024 60.019740 Hz 5:4 63.981 kHz 108.000000 MHz DMT 0x2f: 1440x900 59.887445 Hz 16:10 55.935 kHz 106.500000 MHz DMT 0x53: 1600x900 60.000000 Hz 16:9 60.000 kHz 108.000000 MHz (RB) DMT 0x3a: 1680x1050 59.954250 Hz 16:10 65.290 kHz 146.250000 MHz Detailed Timing Descriptors: DTD 1: 3840x2160 60.000000 Hz 16:9 135.000 kHz 594.000000 MHz (1872 mm x 1053 mm) Hfront 176 Hsync 88 Hback 296 Hpol P Vfront 8 Vsync 10 Vback 72 Vpol P DTD 2: 1920x1080 60.000000 Hz 16:9 67.500 kHz 148.500000 MHz (1872 mm x 1053 mm) Hfront 88 Hsync 44 Hback 148 Hpol P Vfront 4 Vsync 5 Vback 36 Vpol P Display Range Limits: Monitor ranges (GTF): 24-75 Hz V, 15-135 kHz H, max dotclock 600 MHz Display Product Name: 'SAMSUNG' Extension blocks: 1 Checksum: 0x75 ---------------- Block 1, CTA-861 Extension Block: Revision: 3 Underscans IT Video Formats by default Basic audio support Supports YCbCr 4:4:4 Supports YCbCr 4:2:2 Native detailed modes: 0 Video Data Block: VIC 97: 3840x2160 60.000000 Hz 16:9 135.000 kHz 594.000000 MHz VIC 16: 1920x1080 60.000000 Hz 16:9 67.500 kHz 148.500000 MHz VIC 31: 1920x1080 50.000000 Hz 16:9 56.250 kHz 148.500000 MHz VIC 4: 1280x720 60.000000 Hz 16:9 45.000 kHz 74.250000 MHz VIC 19: 1280x720 50.000000 Hz 16:9 37.500 kHz 74.250000 MHz VIC 5: 1920x1080i 60.000000 Hz 16:9 33.750 kHz 74.250000 MHz VIC 20: 1920x1080i 50.000000 Hz 16:9 28.125 kHz 74.250000 MHz VIC 32: 1920x1080 24.000000 Hz 16:9 27.000 kHz 74.250000 MHz VIC 33: 1920x1080 25.000000 Hz 16:9 28.125 kHz 74.250000 MHz VIC 34: 1920x1080 30.000000 Hz 16:9 33.750 kHz 74.250000 MHz VIC 93: 3840x2160 24.000000 Hz 16:9 54.000 kHz 297.000000 MHz VIC 94: 3840x2160 25.000000 Hz 16:9 56.250 kHz 297.000000 MHz VIC 95: 3840x2160 30.000000 Hz 16:9 67.500 kHz 297.000000 MHz VIC 96: 3840x2160 50.000000 Hz 16:9 112.500 kHz 594.000000 MHz VIC 101: 4096x2160 50.000000 Hz 256:135 112.500 kHz 594.000000 MHz VIC 102: 4096x2160 60.000000 Hz 256:135 135.000 kHz 594.000000 MHz VIC 98: 4096x2160 24.000000 Hz 256:135 54.000 kHz 297.000000 MHz VIC 99: 4096x2160 25.000000 Hz 256:135 56.250 kHz 297.000000 MHz VIC 100: 4096x2160 30.000000 Hz 256:135 67.500 kHz 297.000000 MHz VIC 7: 1440x480i 59.940060 Hz 16:9 15.734 kHz 27.000000 MHz VIC 22: 1440x576i 50.000000 Hz 16:9 15.625 kHz 27.000000 MHz VIC 3: 720x480 59.940060 Hz 16:9 31.469 kHz 27.000000 MHz VIC 18: 720x576 50.000000 Hz 16:9 31.250 kHz 27.000000 MHz Audio Data Block: Linear PCM: Max channels: 2 Supported sample rates (kHz): 48 44.1 32 Supported sample sizes (bits): 24 20 16 AC-3: Max channels: 6 Supported sample rates (kHz): 48 44.1 32 Maximum bit rate: 640 kb/s DTS: Max channels: 6 Supported sample rates (kHz): 48 Maximum bit rate: 1536 kb/s Enhanced AC-3 (DD+): Max channels: 8 Supported sample rates (kHz): 48 44.1 32 Speaker Allocation Data Block: FL/FR - Front Left/Right Video Capability Data Block: YCbCr quantization: No Data RGB quantization: No Data PT scan behavior: No Data IT scan behavior: Supports both over- and underscan CE scan behavior: Supports both over- and underscan Colorimetry Data Block: xvYCC601 xvYCC709 BT2020YCC BT2020RGB Reserved MD0 Vendor-Specific Data Block (HDMI), OUI 00-0C-03: Source physical address: 3.0.0.0 Supports_AI DC_36bit DC_30bit DC_Y444 Maximum TMDS clock: 300 MHz Extended HDMI video details: HDMI VICs: HDMI VIC 1: 3840x2160 30.000000 Hz 16:9 67.500 kHz 297.000000 MHz HDMI VIC 2: 3840x2160 25.000000 Hz 16:9 56.250 kHz 297.000000 MHz HDMI VIC 3: 3840x2160 24.000000 Hz 16:9 54.000 kHz 297.000000 MHz HDMI VIC 4: 4096x2160 24.000000 Hz 256:135 54.000 kHz 297.000000 MHz Vendor-Specific Data Block (HDMI Forum), OUI C4-5D-D8: Version: 1 Maximum TMDS Character Rate: 600 MHz SCDC Present Supports 12-bits/component Deep Color 4:2:0 Pixel Encoding Supports 10-bits/component Deep Color 4:2:0 Pixel Encoding HDR Static Metadata Data Block: Electro optical transfer functions: Traditional gamma - SDR luminance range SMPTE ST2084 Hybrid Log-Gamma Supported static metadata descriptors: Static metadata type 1 YCbCr 4:2:0 Capability Map Data Block: VIC 97: 3840x2160 60.000000 Hz 16:9 135.000 kHz 594.000000 MHz VIC 96: 3840x2160 50.000000 Hz 16:9 112.500 kHz 594.000000 MHz VIC 101: 4096x2160 50.000000 Hz 256:135 112.500 kHz 594.000000 MHz VIC 102: 4096x2160 60.000000 Hz 256:135 135.000 kHz 594.000000 MHz Vendor-Specific Video Data Block (HDR10+), OUI 90-84-8B: Application Version: 1 Detailed Timing Descriptors: DTD 3: 1920x1080i 50.000000 Hz 16:9 28.125 kHz 74.250000 MHz (1872 mm x 1053 mm) Hfront 528 Hsync 44 Hback 148 Hpol P Vfront 2 Vsync 5 Vback 15 Vpol P Vfront +0.5 Odd Field Vfront 2 Vsync 5 Vback 15 Vpol P Vback +0.5 Even Field DTD 4: 1366x768 59.789541 Hz 683:384 47.712 kHz 85.500000 MHz (1872 mm x 1053 mm) Hfront 70 Hsync 143 Hback 213 Hpol P Vfront 3 Vsync 3 Vback 24 Vpol P Checksum: 0xb3 Unused space in Extension Block: 2 bytes -
- DEVICE: HP t430 Thin Client; 2/16GB; Gemini Lake; Intel Celeron N4000 CPU 1.10GHz
- i tried with 'LibreELEC-Generic.x86_64-13.0-nightly-20240802-d20b714' and the nightly 'LibreELEC-Generic-legacy.x86_64-13.0-nightly-20240802-d20b714', both same
- connect the PC via HDMI at my TV, i see only the message with starts in 5 seconds, afterwards black screen (no signal)
- when i use my USB Dock (my workplace with monitor, keyboard,...) via USB-C, then i'm able to run and finish the setup
- BUT, after close the installation, i connect the PC to my TV and i see only the HP logo, then NO SIGNAL
- after add 'video=HDMI-A-2:D' at sysconfig.txt, TV output works
- i execute also getedid create, same behaviour
BOOT_IMAGE=/KERNEL boot=UUID=xxxx disk=UUID=xxxx quiet video=HDMI-A-2:D initrd=/edid.cpio drm.edid_firmware=edid/edid.bin video=HDMI-A-2:D
italics it's added manually by me
the bold it's from getedid command
- PROBLEMS
- 4K ISO/MKV files not working; from HDD attached via USB; after press the file to play > black screen; with the Back button i'm able return to KODI
- 1K (FullHD) files ISO/MKV plays fine but no audio
The t430 has 1x DP, 1x HDMI and 1x USB-C with DP.
CodeLibreElec:~ # tail /sys/class/drm/*/status ==> /sys/class/drm/card0-DP-1/status <== disconnected ==> /sys/class/drm/card0-HDMI-A-1/status <== disconnected ==> /sys/class/drm/card0-HDMI-A-2/status <== ConnectedI set at BIOS the GPU memory size to 128M, beside this option there nothing about GPU. But it looks like that A1 is HDMI and A2 the DP.
CodeLibreElec:~ # ls /sys/class/drm card0 card0-HDMI-A-1 renderD128 card0-DP-1 card0-HDMI-A-2 versionCodekmsprint -m Connector 2 (160) HDMI-A-2 (connected) 0 3840x2160@60.00 594.000 3840/176/88/296/+ 2160/8/10/72/+ 60 (60.00) P|D 1 4096x2160@60.00 594.000 4096/88/88/128/+ 2160/8/10/72/+ 60 (60.00) D 256:135 2 4096x2160@59.94 593.407 4096/88/88/128/+ 2160/8/10/72/+ 60 (59.94) D 256:135 3 4096x2160@50.00 594.000 4096/968/88/128/+ 2160/8/10/72/+ 50 (50.00) D 256:135 4 4096x2160@30.00 297.000 40
