Hi there,
A little information about TV boxes in general.
Some BOX RK322x are really lowcost, so lowcost that the manufacturer to save a few cents do not populated certain component.

Here's an example of a box we recently received:

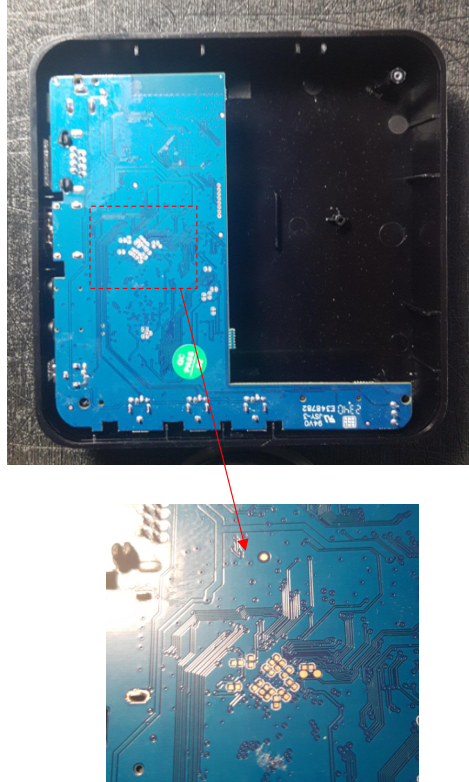

The motherboard is a R29_5G_LP3_V1.2_00523 and when we analyze the PCB we can see that the manufacturer hasn't installed the decoupling capacitors back of RK3228a CPU => This will make the box unstable.

Decoupling capacitors play a multiple role. Among other things, they act as local energy reservoirs, providing the chips with instantaneous high-frequency energy. As a result, they absorb high frequencies and limit noise propagation via power supplies between chips. The closer the ceramic capacitors are placed to the chips, the more efficient they will be, given the parasitic inductance of the tracks and vias.

The manufacturer had foreseen the installation of these decoupling capacitors... but didn't install them!
If your box is unstable, check that they are present: If they are not present I advise you (if it is still possible) to return this! ....

PoC.ng

pocng

Hi remlei

Can you share kodi and dmesg logs?
Can you open your TV BOX and take some photos?
MXQ Box have lot of different hardware revision...

Regards,

pocng

pocng

Hi ilmich

When I wrote that the wifi card is not detected, it's because I don't have any SDIO device information in the dmesg (dmesg | grep -i sdio => nothing). I think I've got a DTS problem, probably something missing...
I've read the article https://community.silabs.com/s/article/linu…?language=en_US and for the moment it's not a driver problem but more a mmc/sdio dts config problem, I'm going to have another look at the configs and prepare debug files to share. (same things with r29 tv box posted above...)

Thanks for rtl8822bs-aml git projet, I'll test it as soon as I get to detect SDIO

PS: for the r329q v3.1 I've finally made the merge request for boot support on the emmc and share this patched LibreElec built here

PS2: the Android dmesg / dts / firmware / pictures for H20 and R29 box is shared here

pocng

Hi @ilmich,

I once again fell for a box on special offer for less than $7 (including postage, just received), an H20 (board tagged H20-221-1.8-B).
The DTS decompiled from Android is almost identical to the DTS of the R2 _5G_LP3_V3.0-231005 box (quoted posts above but another wifi chipset).

With the "R29" DTB:
Boot on SDcard: OK
Ethernet: OK
HDMI/video Playback : OK (for over 3 hours)
Power/Standby LED : OK

UART Port Pin : OK
SDIO WIFI : not detected => wifi is sdio 02e7/9086 / smartchip sci S9082H (on armbian forum i can see : its a clone of some wifi rtl chips , its closse source , no linux support)

I've added this tvbox info (photo, android dts, backup...) to this share: http://sandbox02.poc.ng/tvbox/H20-221-V1_8-B/

pocng

Hi @ilmich,

I quickly checked the GPIOs for Wlan and so far I haven't found the source of the problem. At first glance, the pins are indeed those defined in the dtb...

To help me identify the pinctrl from the gpio kernel debug file, I've made myself a correspondence table, I don't know if it can help other people but i share it here : http://sandbox02.poc.ng/tvbox/rk322x_linux_gpio.txt

Code

WIP :

* From Extract info from android DTS:
WIFI,host_wake_irq = <0x75 0x1c 0x00>; => gpio0/RK_PD4
WIFI,poweren_gpio = <0x7c 0x1a 0x00>; => gpio2/RK_PD2
BT,power_gpio = <0x7c 0x1d 0x00>; => gpio2/RK_PD5
uart_rts_gpios = <0xa9 0x06 0x01>; => gpio3/RK_PA6
BT,wake_gpio = <0xa9 0x1b 0x00>; => gpio3/RK_PD3

* From dmesg
[    5.250216] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 102. => GPIO3    RK_PA6
[    5.250334] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,power_gpio = 93. => GPIO2    RK_PD5 => rk322x.dtsi =??=> uart0-cts (rockchip,pins = <2 RK_PD5 1 &pcfg_pull_none>;)
[    5.250466] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 123.  => GPIO3    RK_PD3
[    5.250604] [BT_RFKILL]: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 122.
[    4.789424] export led gpio: 39 => GPIO1    RK_PA7
/* defined in android dtb but fd650 not present */
[    4.965395] fd650_devs_get_of_pdata sda gpio:13 => GPIO0    RK_PB5
[    4.965530] fd650_devs_get_of_pdata scl gpio:116 => GPIO3    RK_PC4

* from /sys/kernel/degub/gpio
GPIOs 0-31, platform/pinctrl.17, gpio0:
 gpio-13  (fd650_sda           ) out hi 		GPIO0	RK_PB5 /* fd650 controle not present */


GPIOs 32-63, platform/pinctrl.17, gpio1:
 gpio-35  (spk_ctl             ) out lo 		GPIO1	RK_PA3
 gpio-39  (power-led-normal    ) out lo			GPIO1	RK_PA7


GPIOs 64-95, platform/pinctrl.17, gpio2:
 gpio-72  (phy_led             ) out lo			GPIO2	RK_PB0	/* orange led */
 gpio-75  (power-hold          ) in  lo			GPIO2	RK_PB3
 gpio-90  (wlan_default_wlan_po) out hi			GPIO2	RK_PD2
 gpio-93  (ap6335_poweron      ) out lo			GPIO2	RK_PD3

GPIOs 96-127, platform/pinctrl.17, gpio3:
 gpio-102 (ap6335_rts          ) in  hi			GPIO3	RK_PA6
 gpio-116 (fd650_scl           ) out hi			GPIO3	RK_PC2 /* fd650 controle not present */
 gpio-117 (phy_link            ) out lo  		GPIO3	RK_PC3
 gpio-118 (otg_drv_gpio        ) out hi			GPIO3	RK_PC4
 gpio-119 (power               ) in  hi			GPIO3	RK_PC5
 gpio-121 (menu                ) in  hi			GPIO3	RK_PC7
 gpio-122 (ap6335_wake_host    ) in  hi			GPIO3	RK_PD2
 gpio-123 (ap6335_wake         ) in  hi			GPIO3	RK_PD3

Display More

To be continue ...

pocng

Hi ilmich

You will find on this share : http://sandbox02.poc.ng/tvbox/r29/
- the backup made with multitools
- 100MB first rom backup (FIRST100MB-R29_5G_LP3_V3.0-231005_mxqpro4k.img.xz)
- the android device tree in FS mode (R29_5G_LP3_V3.0-231005_android_dtbfs.tar.gz )
- the source device tree created from devicetree fs android (R29_5G_LP3_V3.0-231005_android.dts)
- the gpio kernel debug file (R29_5G_LP3_V3.0-231005_gpio.txt)
- Board pictures (R29_5G_LP3_V3.0-231005-Photos.pdf)

guerrero2694 can you confirm that you have the same? (look http://sandbox02.poc.ng/tvbox/r29/R29_…1005-Photos.pdf)

pocng

Hi guerrero2694,

You could provide the reference of the board (you have to remove the 4 screws hidden behind the little anti-slip pads).
I also bought a model with the same reference "MXQ PRO 5g 4K" recently (today ), the reference of my card inside is: r29_5g_lp3_v3.0 231005

I quickly tested the tvbox (on libreelec with r29 dtb):

boot on SDcard : ok
Ethernet: OK
HDMI/video playback: ok
USB : OK

console UART Ok (requires soldering)
maskrom pin : I'll need to look for it...

Install to emmc : NO OK ( strange thing is that if I boot with multitool, and then reboot with quick removing the SD card, I manage to boot correctly... otherwise on cold boot the emmc is not detected by the uboot..)

wifi : no detected

For info => Android GPIO debug + dmesg :

PrivateBin

Visit this link to see the note. Giving the URL to anyone allows them to access the note, too.

privatebin.net

pocng

Hi ilmich ,

Same thing : not working

I'm going to check the changes I've made on my side (and how work fine) and I'll get back to you soon (with an MR I think), I'm out of town for the next two weeks...
See you soon!

log:

Code

INF TEE-CORE:rockchip_cpu_suspend:217: 1.1.0-333-gc9d95d1 #2 2018年 08月 17日 星期五 03:32:22 UTC arm v2.0

012345Am6DDR Version V1.11 20200910_dbg
In
ID:0xFFF
330MHz
DDR3
Bus Width=16 Col=11 Bank=8 Row=16 CS=1 Die Bus-Width=16 Size=2048MB
mach:3
OUT
Boot1 Release Time: May 13 2019 17:02:59, version: 2.56
ChipType = 0xc, 380
mmc2:cmd19,100
SdmmcInit=2 0
BootCapSize=1000
UserCapSize=7456MB
FwPartOffset=2000 , 1000
SdmmcInit=0 NOT PRESENT
StorageInit ok = 48837
SecureMode = 0
SecureInit ret = 0, SecureMode = 0
atags_set_bootdev: ret:(0)
GPT 0x63337df8 signature is wrong
recovery gpt...
GPT 0x63337df8 signature is wrong
recovery gpt fail!
LOADER Check OK! 0x60200000, 126700
TOS    Check OK! 0x68400000, 149056
Enter Trust OS
INF [0x0] TEE-CORE:init_primary_helper:377: Initializing (1.1.0-333-gc9d95d1 #2 2018年 08月 17日 星期五 03:32:22 UTC arm)
INF [0x0] TEE-CORE:init_primary_helper:378: Release version: 2.0
INF [0x0] TEE-CORE:init_primary_helper:379: Next entry point address: 0x60200000
INF [0x0] TEE-CORE:init_teecore:83: teecore inits done

U-Boot 2017.09 (May 15 2024 - 19:18:08 +0200)
Model: Rockchip RK322x SoC (eMMC)
PreSerial: 2
DRAM:  2 GiB
Sysmem: init
Relocation Offset is: 00000000
MMC:   dwmmc@30000000: 1, dwmmc@30020000: 0
Using default environment
In:    serial@11030000
Out:   serial@11030000
Err:   serial@11030000
Model: Rockchip RK322x SoC (eMMC)
Bootdev(atags): mmc 0
mmc_init: -110, time 31
rockchip_get_bootdev: can't find dev_desc!
rockchip_get_boot_mode: dev_desc is NULL!
CLK: (sync kernel. arm: enter 600000 KHz, init 600000 KHz, kernel 0N/A)
 apll 600000 KHz
 dpll 660000 KHz
 cpll 500000 KHz
 gpll 594000 KHz
 armclk 600000 KHz
 aclk_bus 74250 KHz
 hclk_bus 37125 KHz
 pclk_bus 37125 KHz
 aclk_peri 74250 KHz
 hclk_peri 37125 KHz
 pclk_peri 37125 KHz
Net:   eth0: ethernet@30200000
Hit key to stop autoboot('CTRL+C'):  0
MMC: no card present
mmc_init: -123, time 2
mmc_init: -110, time 31
starting USB...
USB0:   Core Release: 3.10a
scanning bus 0 for devices... 1 USB Device(s) found
      scanning usb for storage devices... 0 Storage Device(s) found
Device 0: unknown device
DMA reset timeout

Display More

pocng

Hi ilmich, thanks for this build, but... No new build not boot : same things

Can you share your modification (diff?) to compare?

for max-frequency I based it on a DTS with the same emmc (a samsung iot dev platform) and on another box that uses the same eemc component (an Amlogic Phicomm N1 box) => max-frequency = <0x2faf080>.

Code

DDR Version V1.11 20200910_dbg
In
ID:0xFFF
330MHz
DDR3
Bus Width=16 Col=11 Bank=8 Row=16 CS=1 Die Bus-Width=16 Size=2048MB
mach:3
OUT
Boot1 Release Time: May 13 2019 17:02:59, version: 2.56
ChipType = 0xc, 380
mmc2:cmd19,100
SdmmcInit=2 0
BootCapSize=1000
UserCapSize=7456MB
FwPartOffset=2000 , 1000
SdmmcInit=0 NOT PRESENT
StorageInit ok = 48833
SecureMode = 0
SecureInit ret = 0, SecureMode = 0
atags_set_bootdev: ret:(0)
GPT 0x63337df8 signature is wrong
recovery gpt...
GPT 0x63337df8 signature is wrong
recovery gpt fail!
LOADER Check OK! 0x60200000, 126692
TOS    Check OK! 0x68400000, 149046
Enter Trust OS
INF [0x0] TEE-CORE:init_primary_helper:377: Initializing (1.1.0-333-gc9d95d1 #2 2018年 08月 17日 星期五 03:32:22 UTC arm)
INF [0x0] TEE-CORE:init_primary_helper:378: Release version: 2.0
INF [0x0] TEE-CORE:init_primary_helper:379: Next entry point address: 0x60200000
INF [0x0] TEE-CORE:init_teecore:83: teecore inits done

U-Boot 2017.09 (May 14 2024 - 20:05:07 +0200)
Model: Rockchip RK322x SoC (eMMC)
PreSerial: 2
DRAM:  2 GiB
Sysmem: init
Relocation Offset is: 00000000
MMC:   dwmmc@30000000: 1, dwmmc@30020000: 0
Using default environment
In:    serial@11030000
Out:   serial@11030000
Err:   serial@11030000
Model: Rockchip RK322x SoC (eMMC)
Bootdev(atags): mmc 0
mmc_init: -110, time 32
rockchip_get_bootdev: can't find dev_desc!
rockchip_get_boot_mode: dev_desc is NULL!
CLK: (sync kernel. arm: enter 600000 KHz, init 600000 KHz, kernel 0N/A)
 apll 600000 KHz
 dpll 660000 KHz
 cpll 500000 KHz
 gpll 594000 KHz
 armclk 600000 KHz
 aclk_bus 74250 KHz
 hclk_bus 37125 KHz
 pclk_bus 37125 KHz
 aclk_peri 74250 KHz
 hclk_peri 37125 KHz
 pclk_peri 37125 KHz
Net:   eth0: ethernet@30200000
Hit key to stop autoboot('CTRL+C'):  0
MMC: no card present
mmc_init: -123, time 2
mmc_init: -110, time 31
starting USB...
USB0:   Core Release: 3.10a
scanning bus 0 for devices... 1 USB Device(s) found
      scanning usb for storage devices... 0 Storage Device(s) found
Device 0: unknown device
DMA reset timeout

dm tree
mmc        [ + ]   rockchip_rk3288_dw_mshc    |-- dwmmc@30000000
blk        [   ]   mmc_blk                    |   `-- dwmmc@30000000.blk
mmc        [ + ]   rockchip_rk3288_dw_mshc    |-- dwmmc@30020000
blk        [   ]   mmc_blk                    |   `-- dwmmc@30020000.blk

=> mmc list
dwmmc@30000000: 1
dwmmc@30020000: 0
=> mmc info
mmc_init: -110, time 28

Display More

pocng

Hi ilmich ,

For the moment I'm trying to understand what this patch does exactly to set best option if you ever have good resources on understanding the possible options in DTS I'm interested, I'll do some testing, if I get something conclusive I'll open an MR. For the moment I've compiled the uboot present (tar.gz + patch) in your repository as standalone (for my tests), I've also set up the compilation chain for LibreElec with your repository but I'll have to read the manuals for good contributing )

Regards

pocng

Hi ilmich , WIP

I change dts and rebuild u-boot file based on https://github.com/paolosabatino/…vbox.patch#L107 -> to 137 patch

Diff

--- /home/maker/dev/uboot/LE/uboot/LE_patched-u-boot-e311da245800596d57b7b7d91ebd4a730747a9ec/u-boot-e311da245800596d57b7b7d91ebd4a730747a9ec/arch/arm/dts/rk322x-box.dts    2024-05-13 23:11:30.514032705 +0200
+++ /home/maker/dev/uboot/LE/uboot/u-boot-e311da245800596d57b7b7d91ebd4a730747a9ec/arch/arm/dts/rk322x-box.dts    2024-05-13 19:50:04.011978806 +0200
@@ -11,7 +11,7 @@
#include <dt-bindings/input/input.h>

/ {
-    model = "Rockchip RK322x SoC (eMMC)";
+    model = "Rockchip RK322x SoC (eMMC r329q 3.1)";

    aliases {
        mmc1 = &emmc;
@@ -28,6 +28,17 @@
    /delete-property/ pinctrl-names;
    /delete-property/ pinctrl-0;
    /delete-property/ default-sample-phase;
+    u-boot,dm-spl;
+    clock-frequency = <50000000>;
+    clock-freq-min-max = <400000 50000000>;
+    broken-cd;
+    cap-mmc-highspeed;
+    mmc-hs200-1_8v;
+    supports-emmc;
+    disable-wp;
+    non-removable;
+    /delete-property/ pinctrl-names;
+    /delete-property/ pinctrl-0;
    status = "okay";
};

Display More

Code

DDR Version V1.11 20200910_dbg
In
ID:0xFFF
330MHz
DDR3
Bus Width=16 Col=11 Bank=8 Row=16 CS=1 Die Bus-Width=16 Size=2048MB
mach:3
OUT
Boot1 Release Time: May 13 2019 17:02:59, version: 2.56
ChipType = 0xc, 382
mmc2:cmd19,100
SdmmcInit=2 0
BootCapSize=1000
UserCapSize=7456MB
FwPartOffset=2000 , 1000
SdmmcInit=0 NOT PRESENT
StorageInit ok = 59258
SecureMode = 0
SecureInit ret = 0, SecureMode = 0
atags_set_bootdev: ret:(0)
GPT 0x63337df8 signature is wrong
recovery gpt...
GPT 0x63337df8 signature is wrong
recovery gpt fail!
LOADER Check OK! 0x60200000, 137738
TOS    Check OK! 0x68400000, 160039
Enter Trust OS
INF [0x0] TEE-CORE:init_primary_helper:377: Initializing (1.1.0-333-gc9d95d1 #2 2018年 08月 17日 星期五 03:32:22 UTC arm)
INF [0x0] TEE-CORE:init_primary_helper:378: Release version: 2.0
INF [0x0] TEE-CORE:init_primary_helper:379: Next entry point address: 0x60200000
INF [0x0] TEE-CORE:init_teecore:83: teecore inits done

U-Boot 2017.09 (May 13 2024 - 22:27:16 +0200)
Model: Rockchip RK322x SoC (eMMC r329q 3.1)
PreSerial: 2
DRAM:  2 GiB
Sysmem: init
Relocation Offset is: 00000000
MMC:   dwmmc@30000000: 1, dwmmc@30020000: 0
Using default environment
In:    serial@11030000
Out:   serial@11030000
Err:   serial@11030000
Model: Rockchip RK322x SoC (eMMC r329q 3.1)
Bootdev(atags): mmc 0
PartType: DOS
get part misc fail -1
boot mode: normal
CLK: (sync kernel. arm: enter 600000 KHz, init 600000 KHz, kernel 0N/A)
 apll 600000 KHz
 dpll 660000 KHz
 cpll 500000 KHz
 gpll 594000 KHz
 armclk 600000 KHz
 aclk_bus 74250 KHz
 hclk_bus 37125 KHz
 pclk_bus 37125 KHz
 aclk_peri 74250 KHz
 hclk_peri 37125 KHz
 pclk_peri 37125 KHz
Net:   eth0: ethernet@30200000
Hit key to stop autoboot('CTRL+C'):  0
MMC: no card present
mmc_init: -123, time 2
switch to partitions #0, OK
mmc0(part 0) is current device
Scanning mmc 0:1...
Found /extlinux/extlinux.conf
Retrieving file: /extlinux/extlinux.conf
reading /extlinux/extlinux.conf
184 bytes read in 3 ms (59.6 KiB/s)
1:    LibreELEC
Retrieving file: /KERNEL
reading /KERNEL
10216112 bytes read in 227 ms (42.9 MiB/s)
append: boot=UUID=1205-3238 disk=UUID=2d12fd63-e5cb-4f48-861e-261ab2f8812f quiet console=uart8250,mmio32,0x11030000 console=tty0
Retrieving file: /rk322x-box.dtb
reading /rk322x-box.dtb
41170 bytes read in 3 ms (13.1 MiB/s)
## Flattened Device Tree blob at 68300000
  Booting using the fdt blob at 0x68300000
  Loading Device Tree to 7fff2000, end 7ffff0d1 ... OK
Adding bank: 0x60000000 - 0x68400000 (size: 0x08400000)
Adding bank: 0x69200000 - 0xe0000000 (size: 0x76e00000)
Total: 1730.796 ms
Starting kernel ...
[    0.043953] Failed to find PMU node
[    0.354856] rk_gmac-dwmac 30200000.ethernet: Can not read property: tx_delay.
[    0.362912] rk_gmac-dwmac 30200000.ethernet: set tx_delay to 0x30
[    0.369778] rk_gmac-dwmac 30200000.ethernet: Can not read property: rx_delay.
[    0.377787] rk_gmac-dwmac 30200000.ethernet: set rx_delay to 0x10
[    0.520620] inno-hdmi-phy 12030000.hdmi-phy: error -ENXIO: IRQ index 0 not found
[   23.326595] reboot: Restarting system
DDR Version V1.11 20200910_dbg
In
ID:0xFFF
330MHz
DDR3
Bus Width=16 Col=11 Bank=8 Row=16 CS=1 Die Bus-Width=16 Size=2048MB
mach:3
OUT
Boot1 Release Time: May 13 2019 17:02:59, version: 2.56
ChipType = 0xc, 380
mmc2:cmd19,100
SdmmcInit=2 0
BootCapSize=1000
UserCapSize=7456MB
FwPartOffset=2000 , 1000
SdmmcInit=0 NOT PRESENT
StorageInit ok = 60114
SecureMode = 0
SecureInit ret = 0, SecureMode = 0
atags_set_bootdev: ret:(0)
GPT 0x63337df8 signature is wrong
recovery gpt...
GPT 0x63337df8 signature is wrong
recovery gpt fail!
LOADER Check OK! 0x60200000, 138898
TOS    Check OK! 0x68400000, 161502
Enter Trust OS
INF [0x0] TEE-CORE:init_primary_helper:377: Initializing (1.1.0-333-gc9d95d1 #2 2018年 08月 17日 星期五 03:32:22 UTC arm)
INF [0x0] TEE-CORE:init_primary_helper:378: Release version: 2.0
INF [0x0] TEE-CORE:init_primary_helper:379: Next entry point address: 0x60200000
INF [0x0] TEE-CORE:init_teecore:83: teecore inits done

U-Boot 2017.09 (May 13 2024 - 22:27:16 +0200)
Model: Rockchip RK322x SoC (eMMC r329q 3.1)
PreSerial: 2
DRAM:  2 GiB
Sysmem: init
Relocation Offset is: 00000000
MMC:   dwmmc@30000000: 1, dwmmc@30020000: 0
Using default environment
In:    serial@11030000
Out:   serial@11030000
Err:   serial@11030000
Model: Rockchip RK322x SoC (eMMC r329q 3.1)
Bootdev(atags): mmc 0
PartType: DOS
get part misc fail -1
boot mode: normal
CLK: (sync kernel. arm: enter 600000 KHz, init 600000 KHz, kernel 0N/A)
 apll 600000 KHz
 dpll 660000 KHz
 cpll 500000 KHz
 gpll 594000 KHz
 armclk 600000 KHz
 aclk_bus 74250 KHz
 hclk_bus 37125 KHz
 pclk_bus 37125 KHz
 aclk_peri 74250 KHz
 hclk_peri 37125 KHz
 pclk_peri 37125 KHz
Net:   eth0: ethernet@30200000
Hit key to stop autoboot('CTRL+C'):  0
MMC: no card present
mmc_init: -123, time 2
switch to partitions #0, OK
mmc0(part 0) is current device
Scanning mmc 0:1...
Found /extlinux/extlinux.conf
Retrieving file: /extlinux/extlinux.conf
reading /extlinux/extlinux.conf
184 bytes read in 2 ms (89.8 KiB/s)
1:    LibreELEC
Retrieving file: /KERNEL
reading /KERNEL
10216112 bytes read in 227 ms (42.9 MiB/s)
append: boot=UUID=1205-3238 disk=UUID=2d12fd63-e5cb-4f48-861e-261ab2f8812f quiet console=uart8250,mmio32,0x11030000 console=tty0
Retrieving file: /rk322x-box.dtb
reading /rk322x-box.dtb
41170 bytes read in 4 ms (9.8 MiB/s)
## Flattened Device Tree blob at 68300000
  Booting using the fdt blob at 0x68300000
  Loading Device Tree to 7fff2000, end 7ffff0d1 ... OK
Adding bank: 0x60000000 - 0x68400000 (size: 0x08400000)
Adding bank: 0x69200000 - 0xe0000000 (size: 0x76e00000)
Total: 1730.760 ms
Starting kernel ...

Display More

pocng

hi,

Yes, I'm 99% sure it's an eMMC. The chip on the mothercard is a KLM8G1GEME, and if I look at the Samsung datasheet, it's an eMMC (eMMC 5.1). Maybe enabling sdhci (Secure Digital Host Contoller Interdace) support in uboot ?

When i seen "dm tree" on multitool mshc is used...

mmc [ + ] rockchip_rk3288_dw_mshc |-- dwmmc@30000000
blk [ + ] mmc_blk | `-- dwmmc@30000000.blk
mmc [ + ] rockchip_rk3288_dw_mshc |-- dwmmc@30020000
blk [ ] mmc_blk | `-- dwmmc@30020000.blk

regards,

pocng

Re @ilmich

minor precision:

since booting the SD card, I can no longer see the eMMC:

Code

setenv devnum 0; run mmc_boot
mmc_init: -110, time 31
=> mmc dev 0
mmc_init: -110, time 31

but libreelec can boot on sdcard...

Which parameters did you modify in U-Boot?

pcong

PS : in my previous post when i say "multiboot" = U-Boot form multitool => https://github.com/paolosabatino/…tepnand-patches)

pocng

Hi ilmich

Thanks for your test build, but the same

Do you think putting the dtb of "rk322x-box-mxq4kpro_r329q" in the u-boot build would help?
I've tried to recompile multiboot but so far nothing conclusive (I'll have to read some docs on how to properly generate the image for this platform ) .

Any idea what the difference is between loading u-boot from the SD card and from the eMMC?

Thanks for your support

(from sdcard this test build work...)

Full log:

Code

DDR Version V1.11 20200910_dbg
In
ID:0xFFF
330MHz
DDR3
Bus Width=16 Col=11 Bank=8 Row=16 CS=1 Die Bus-Width=16 Size=2048MB
mach:3
OUT
Boot1 Release Time: May 13 2019 17:02:59, version: 2.56
ChipType = 0xc, 380
mmc2:cmd19,100
SdmmcInit=2 0
BootCapSize=1000
UserCapSize=7456MB
FwPartOffset=2000 , 1000
SdmmcInit=0 NOT PRESENT
StorageInit ok = 65923
SecureMode = 0
SecureInit ret = 0, SecureMode = 0
atags_set_bootdev: ret:(0)
GPT 0x63337df8 signature is wrong
recovery gpt...
GPT 0x63337df8 signature is wrong
recovery gpt fail!
LOADER Check OK! 0x60200000, 144085
TOS    Check OK! 0x68400000, 166731
Enter Trust OS
INF [0x0] TEE-CORE:init_primary_helper:377: Initializing (1.1.0-333-gc9d95d1 #2 2018年 08月 17日 星期五 03:32:22 UTC arm)
INF [0x0] TEE-CORE:init_primary_helper:378: Release version: 2.0
INF [0x0] TEE-CORE:init_primary_helper:379: Next entry point address: 0x60200000
INF [0x0] TEE-CORE:init_teecore:83: teecore inits done

U-Boot 2017.09 (May 12 2024 - 22:23:08 +0200)
Model: Rockchip RK322x SoC (eMMC)
PreSerial: 2
DRAM:  2 GiB
Sysmem: init
Relocation Offset is: 00000000
MMC:   dwmmc@30000000: 1, dwmmc@30020000: 0
Using default environment
In:    serial@11030000
Out:   serial@11030000
Err:   serial@11030000
Model: Rockchip RK322x SoC (eMMC)
Bootdev(atags): mmc 0
mmc_init: -110, time 31
rockchip_get_bootdev: can't find dev_desc!
rockchip_get_boot_mode: dev_desc is NULL!
CLK: (sync kernel. arm: enter 600000 KHz, init 600000 KHz, kernel 0N/A)
 apll 600000 KHz
 dpll 660000 KHz
 cpll 500000 KHz
 gpll 594000 KHz
 armclk 600000 KHz
 aclk_bus 74250 KHz
 hclk_bus 37125 KHz
 pclk_bus 37125 KHz
 aclk_peri 74250 KHz
 hclk_peri 37125 KHz
 pclk_peri 37125 KHz
Net:   eth0: ethernet@30200000
Hit key to stop autoboot('CTRL+C'):  0
MMC: no card present
mmc_init: -123, time 2
mmc_init: -110, time 31
starting USB...
USB0:   Core Release: 3.10a
scanning bus 0 for devices... 1 USB Device(s) found
      scanning usb for storage devices... 0 Storage Device(s) found
Device 0: unknown device
DMA reset timeout
missing environment variable: pxeuuid
[removed]
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/default
DMA reset timeout
Config file not found
=> <INTERRUPT>
=> mmc info
mmc_init: -110, time 31
=> mmc list
dwmmc@30000000: 1
dwmmc@30020000: 0
=> mmc dev 1
mmc_init: -110, time 31
=> mmc dev 0
mmc_init: -110, time 31

Display More

pocng

Hello everyone!
First, thank @ilmich for this great port for rk322x devices!.

I have a tv box (crylight TVbox Art no 4412) based on the "r329q" motherboard in version 3.1 (cpu : rk3229 / ram K4B4G0446Q, emmc Samsung KLM8G1GEME).
Boot from SD card works perfectly and dtb rk322x-box-mxq4kpro_r329q is OK it's perfect.

I'm now trying to install on the eMMC (using multitool or rkflashtool or rkdeveloptool)... Flash works fine, but when the box reboots, it can't find the MMC under UBOOT (when I break the boot process and use the mmc info command, I get no information):

Image used: LibreELEC-RK322X.arm-11.0-nightly-20240218-d7324fb-rk322x.img.gz (also tested with 20240312)

From multitool UBOOT :

Code

=> mmc info
Device: dwmmc@30020000
Manufacturer ID: 15
OEM: 0
Name: M8G2FB
Bus Speed: 50000000
Mode: MMC High Speed (52MHz)
Rd Block Len: 512
MMC version 4.4.1
High Capacity: Yes
Capacity: 7.3 GiB
Bus Width: 8-bit
Erase Group Size: 512 KiB
HC WP Group Size: 8 MiB
User Capacity: 7.3 GiB WRREL
Boot Capacity: 2 MiB ENH
RPMB Capacity: 128 KiB ENH
Boot area 0 is not write protected
Boot area 1 is not write protected
=> mmc list
dwmmc@30000000: 1
dwmmc@30020000: 0 (eMMC)

Display More

Boot from LibreElec on eMMC :

Code

U-Boot 2017.09 (Feb 29 2024 - 16:34:18 +0100)
Model: Rockchip RK322x SoC (eMMC)
PreSerial: 2
DRAM:  2 GiB
Sysmem: init
Relocation Offset is: 00000000
MMC:   dwmmc@30000000: 1, dwmmc@30020000: 0
Using default environment
In:    serial@11030000
Out:   serial@11030000
Err:   serial@11030000
Model: Rockchip RK322x SoC (eMMC)
Bootdev(atags): mmc 0
mmc_init: -110, time 31
rockchip_get_bootdev: can't find dev_desc!
rockchip_get_boot_mode: dev_desc is NULL!
CLK: (sync kernel. arm: enter 600000 KHz, init 600000 KHz, kernel 0N/A)
 apll 600000 KHz
 dpll 660000 KHz
 cpll 500000 KHz
 gpll 594000 KHz
 armclk 600000 KHz
 aclk_bus 74250 KHz
 hclk_bus 37125 KHz
 pclk_bus 37125 KHz
 aclk_peri 74250 KHz
 hclk_peri 37125 KHz
 pclk_peri 37125 KHz
Net:   eth0: ethernet@30200000
Hit key to stop autoboot('CTRL+C'):  0
MMC: no card present
mmc_init: -123, time 2
mmc_init: -110, time 31
Device 0: FtlInit fffffffe
unknown device
starting USB...
USB0:   Core Release: 3.10a
scanning bus 0 for devices... 1 USB Device(s) found
      scanning usb for storage devices... 0 Storage Device(s) found
Device 0: unknown device
DMA reset timeout

Display More

Code

=> mmc list
dwmmc@30000000: 1
dwmmc@30020000: 0
mmc info
mmc_init: -110, time 3
=> mmc rescan
mmc_init: -110, time 31

#sdcard insered
=> mmc rescan
=> mmc dev 1
mmc_init: -110, time 19

Display More

If I boot Libreelec from SD card and force the boot from the eMMC : it's works! :

Code

I can see all mmc devices :
=> mmc list
dwmmc@30000000: 1 (SD)
dwmmc@30020000: 0

I can even boot from it:
devnum=0; run mmc_boot
and everything works fine...

So I'm having a problem with uboot at startup from eMMC, but I can't figure out what it is.

Any idea?

Thanks
