  • [RPi4] HDMI problems after upgrade to 12.2.1 + solution

    I upgraded the RPi4 from 12.0.2 to 12.2.1 and had HDMI problems.
    After first reboot the TV screen looked shifted. I the system settings only 1024x768, 800x600 and other typcal PC monitor resolutions were offered. The HDready resolution was not listed. HDMI audio did also not work and was not listed as an option.

    (my setup is an old Panasonic plasma TV with HDready resolution connected directly to the RPi4. The sound is played by the TV over the HDMI interface)

    Starting with the second reboot the TV did not show the KODI logo. Only, the "12.2.1" message is displayed - then the TV picture stayed dark.

    I flashed another µSD card with the old version 12.0.2 and booted this image. The "12.0.2" message was shown, but still the boot process seemed to stop (no KODI logo displayed and the TV stayed dark). - and this was the LibreELEC version that was used for months (of course with working TV and sound)!


    The solution for me.

    In the end I connected a 24" fullHD Samung PC monitor to the RPi4 with the 12.2.1 µSD card. (The old monitor just has VGA and DVI inputs - so, an DVI to HDMI adapter was used). The RPi4 successfully booted LibreELEC.
    Then the HDready TV was reconnected - and picture and HDMI sound work as expected.
    The kids use it for several days without a problem.

    I hope, this is of help for some LibreELEC users.

    Thank you for making LibreELEC.

    Michael

  • What does "100" inside a blue circle mean? RPi4 freezing

    Dear LibreELEC experts.

    A few weeks ago, my Raspberry Pi 4 (2GB, "Full Armor" case, original 3A power supply) started to freeze when playing (skipping through) h264 videos.

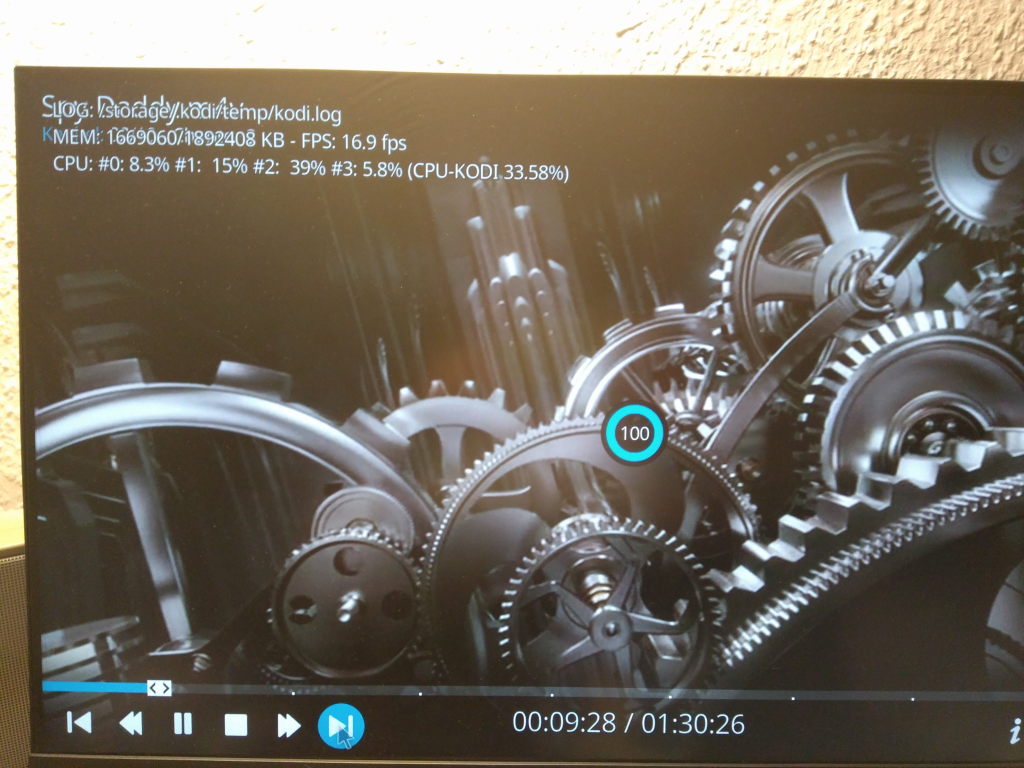

    It always starts with a white "100" and a blue circle around in the middle of the TV. Then, after a few seconds the picture+sound completely freezes and my remote ssh session is stopped ("Timeout, server libreelec not responding.").

    I could not find out (Wiki/search) what the "100" is telling me.

    Please, help.

    Michael

    PS: a few things that I tried.

    * The problem appears with LibreELEC versions 9.2.latest and 11.0.3

    * I copied the .m4v file to the µSD card and the freeze also happens when playing from smb (1GBit/s LAN; Ubuntu 22.04LTS fileserver) and when playing from µSD card of the RPi4

    * The .m4v file plays fine on a Windows 10 PC and a Linux notebook with VLC

    * I wrote (dd) the LibreELEC 11.0.3 image on a different SanDisk Ultra µSD card. The same freeze happens.

    * beeing logged in remotely via ssh I triggered by skipping through the .m4v (left-clicking with the mouse on the time bar) the "100" and the following freeze

    bcmstat.sh output

    bcmstat.sh

    LibreELEC:~/videos # bcmstat.sh

    Config: v0.5.5, args "", priority lowest (+19)

    Board: 4 x cores available, ondemand governor (Pi4 Model B rev 1.1, BCM2838 SoC with 2GB RAM by Sony UK)

    Memory: 1024MB (split 948MB ARM, 76MB GPU)

    HW Block: | ARM | Core | H264 | SDRAM |

    Min Freq: | 600MHz | 250MHz | 0MHz | 3180MHz |

    Max Freq: | 1500MHz | 500MHz | 500MHz | 3180MHz |

    Voltages: | 0, 0.8375V | +0, 1.2000V |

    Other: temp_limit=85

    Firmware: Apr 25 2023 18:26:56, version d7f9c2b4ef7e4a8c0b04374a879ce89d7a948453 (clean) (release) (start_x)

    Codecs: H264 MJPG PCM

    Booted: Fri Sep 29 19:22:04 2023

    Time ARM Core H264 Core Temp (Max) IRQ/s RX B/s TX B/s

    ======== ======= ======= ======= =============== ====== =========== ===========

    19:30:03 1500Mhz 500Mhz 500Mhz 42.84C (43.33C) 7,113 8,020 22,604

    19:30:05 1500Mhz 500Mhz 500Mhz 41.87C (43.33C) 2,949 151 114

    19:30:07 1500Mhz 500Mhz 500Mhz 41.87C (43.33C) 2,830 125 164

    19:30:09 700Mhz 500Mhz 278Mhz 42.35C (43.33C) 2,852 124 163

    19:30:11 800Mhz 500Mhz 278Mhz 42.84C (43.33C) 2,848 91 113

    19:30:13 1500Mhz 500Mhz 500Mhz 42.84C (43.33C) 3,026 92 113

    19:30:15 1500Mhz 500Mhz 500Mhz 43.33C (43.33C) 3,396 92 114

    19:30:17 900Mhz 500Mhz 333Mhz 42.84C (43.33C) 3,394 91 113

    19:30:19 1500Mhz 500Mhz 500Mhz 44.30C (44.30C) 17,228 91 113

    19:30:21 1500Mhz 500Mhz 500Mhz 43.82C (44.30C) 25,015 92 113

    19:30:23 900Mhz 300Mhz 333Mhz 42.84C (44.30C) 26,129 91 113

    19:30:25 1500Mhz 500Mhz 500Mhz 42.84C (44.30C) 23,570 92 113

    19:30:27 1500Mhz 500Mhz 500Mhz 43.33C (44.30C) 27,615 92 113

    19:30:29 1000Mhz 500Mhz 361Mhz 43.82C (44.30C) 26,568 217 113

    19:30:31 1500Mhz 500Mhz 500Mhz 43.82C (44.30C) 27,387 92 113

    19:30:33 1500Mhz 500Mhz 500Mhz 43.33C (44.30C) 28,562 92 113

    19:30:35 900Mhz 500Mhz 333Mhz 43.33C (44.30C) 24,747 91 113

    19:30:37 1500Mhz 500Mhz 500Mhz 43.82C (44.30C) 25,971 522 113

    19:30:39 1500Mhz 500Mhz 500Mhz 44.30C (44.30C) 26,957 522 113

    19:30:41 900Mhz 500Mhz 361Mhz 42.84C (44.30C) 24,648 91 113

    19:30:43 1500Mhz 500Mhz 500Mhz 43.33C (44.30C) 19,991 92 114

    19:30:45 1500Mhz 500Mhz 500Mhz 42.35C (44.30C) 22,099 92 113

    19:30:47 1500Mhz 500Mhz 500Mhz 42.35C (44.30C) 24,985 92 113

    19:30:49 1500Mhz 500Mhz 500Mhz 43.33C (44.30C) 25,776 121 113

    19:30:51 1500Mhz 500Mhz 500Mhz 42.84C (44.30C) 25,431 121 134

    19:30:53 900Mhz 500Mhz 333Mhz 43.82C (44.30C) 19,842 91 113

    19:30:55 1500Mhz 500Mhz 500Mhz 43.33C (44.30C) 26,524 214 113

    19:30:57 1500Mhz 500Mhz 500Mhz 43.82C (44.30C) 27,451 92 113Timeout, server libreelec not responding.


    top

    top

    top - 23:39:41 up 4 min, 1 user, load average: 1.22, 0.59, 0.25

    Tasks: 169 total, 1 running, 168 sleeping, 0 stopped, 0 zombie

    %Cpu(s): 1.3 us, 12.9 sy, 0.0 ni, 85.8 id, 0.0 wa, 0.0 hi, 0.0 si, 0.0 st

    MiB Mem : 1848.1 total, 1305.3 free, 203.5 used, 339.2 buff/cache

    MiB Swap: 0.0 total, 0.0 free, 0.0 used. 1557.6 avail Mem

    PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND

    799 root 20 0 561092 127124 61912 D 25.2 6.7 0:42.74 kodi.bin

    93 root 1 -19 0 0 0 S 13.2 0.0 0:03.10 vchiq-slot/0

    35 root 20 0 0 0 0 I 4.6 0.0 0:00.78 kworker/0:2-events

    92 root 20 0 0 0 0 D 3.6 0.0 0:00.33 kworker/3:1+events

    25 root 20 0 0 0 0 I 3.0 0.0 0:00.82 kworker/2:0-events_power_efficient

    50 root 20 0 0 0 0 I 2.6 0.0 0:00.25 kworker/2:1-events

    66 root 20 0 0 0 0 I 2.0 0.0 0:00.33 kworker/1:4-events

    94 root 1 -19 0 0 0 S 1.7 0.0 0:00.33 vchiq-recy/0

    20 root 20 0 0 0 0 I 0.3 0.0 0:00.61 kworker/1:0-events

    44 root 20 0 0 0 0 I 0.3 0.0 0:00.37 kworker/u8:2-events_unbound

    959 root 20 0 3284 1972 1556 R 0.3 0.1 0:00.63 top

    1 root 20 0 25344 6716 5372 S 0.0 0.4 0:01.34 systemd

    2 root 20 0 0 0 0 S 0.0 0.0 0:00.01 kthreadd

    3 root 0 -20 0 0 0 I 0.0 0.0 0:00.00 rcu_gp

    4 root 0 -20 0 0 0 I 0.0 0.0 0:00.00 rcu_par_gp

    5 root 0 -20 0 0 0 I 0.0 0.0 0:00.00 slub_flushwq

    6 root 0 -20 0 0 0 I 0.0 0.0 0:00.00 netns

    7 root 20 0 0 0 0 I 0.0 0.0 0:00.00 kworker/0:0-rcu_gp

    8 root 0 -20 0 0 0 I 0.0 0.0 0:00.00 kworker/0:0H-mmc_complete

    9 root 20 0 0 0 0 I 0.0 0.0 0:00.99 kworker/u8:0-loop0

    10 root 0 -20 0 0 0 I 0.0 0.0 0:00.00 mm_percpu_wq

    11 root 20 0 0 0 0 I 0.0 0.0 0:00.00 rcu_tasks_rude_kthread

    12 root 20 0 0 0 0 I 0.0 0.0 0:00.00 rcu_tasks_trace_kthread

    13 root 20 0 0 0 0 S 0.0 0.0 0:00.02 ksoftirqd/0

    14 root 20 0 0 0 0 I 0.0 0.0 0:00.20 rcu_sched

    15 root rt 0 0 0 0 S 0.0 0.0 0:00.00 migration/0

    16 root 20 0 0 0 0 S 0.0 0.0 0:00.00 cpuhp/0
