bootsmann · CEC issue with RPi4 and LibreELEC 11 bootsmann July 17, 2023 at 4:10 PM

*bad

Maybe helpful:

Code

##############################################
#                 LibreELEC                  #
#            https://libreelec.tv            #
##############################################

LibreELEC (official): 11.0.1 (RPi4.arm)
LibreELEC:~ # cec-client
No device type given. Using 'recording device'
CEC Parser created - libCEC version 4.0.7
no serial port given. trying autodetect:
 path:     /dev/cec0
 com port: Linux

opening a connection to the CEC adapter...
DEBUG:   [              59]     Broadcast (F): osd name set to 'Broadcast'
DEBUG:   [              59]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [              59]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [              59]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [              59]     could not open a connection (try 1)
DEBUG:   [              59]     CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            1059]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            1059]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            1059]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            1059]     could not open a connection (try 2)
DEBUG:   [            1059]     CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            2059]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            2059]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            2059]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            2059]     could not open a connection (try 3)
DEBUG:   [            2059]     CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            3060]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            3060]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            3060]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            3060]     could not open a connection (try 4)
DEBUG:   [            3060]     CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            4061]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            4061]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            4061]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            4061]     could not open a connection (try 5)
DEBUG:   [            4061]     CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            5062]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            5062]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            5062]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            5062]     could not open a connection (try 6)
DEBUG:   [            5062]     CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            6062]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            6063]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            6063]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            6063]     could not open a connection (try 7)
DEBUG:   [            6063]     CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            7063]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            7063]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            7063]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            7063]     could not open a connection (try 8)
DEBUG:   [            7063]     CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            8064]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            8064]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            8064]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            8064]     could not open a connection (try 9)
DEBUG:   [            8064]     CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            9064]     CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            9064]     CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            9064]     CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            9064]     could not open a connection (try 10)
DEBUG:   [            9064]     CLinuxCECAdapterCommunication::Close - m_fd=-1
unable to open the device on port Linux
NOTICE:  [           10065]     connection opened

Display More

bootsmann · CEC issue with RPi4 and LibreELEC 11 bootsmann July 17, 2023 at 1:37 PM

Hi

I am new here and I hope someone can help me

After installing and setup Libreelec 11 I have very often issues with CEC.

My old setup (RPi3>AV Receiver>TV) with Libreelec 8 runs perfectly.

But Libreelec on RPi4 (RPi4>micro hdmi/hdmi>AVR>hdmi TV) very often makes problems with CEC.

I have to turn off TV, turn on TV and hoping CEC is now working. But very often I have to reboot Libreelec, turn off AV receiver, turn on TV and turn on AVR and so on...

Is this issue only a "setting problem" or is it a cec driver issue/bug?

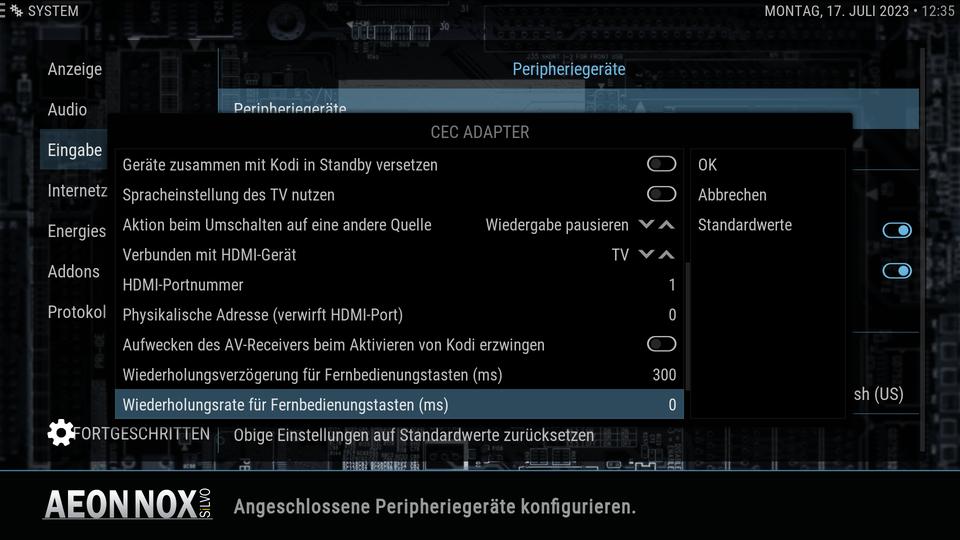

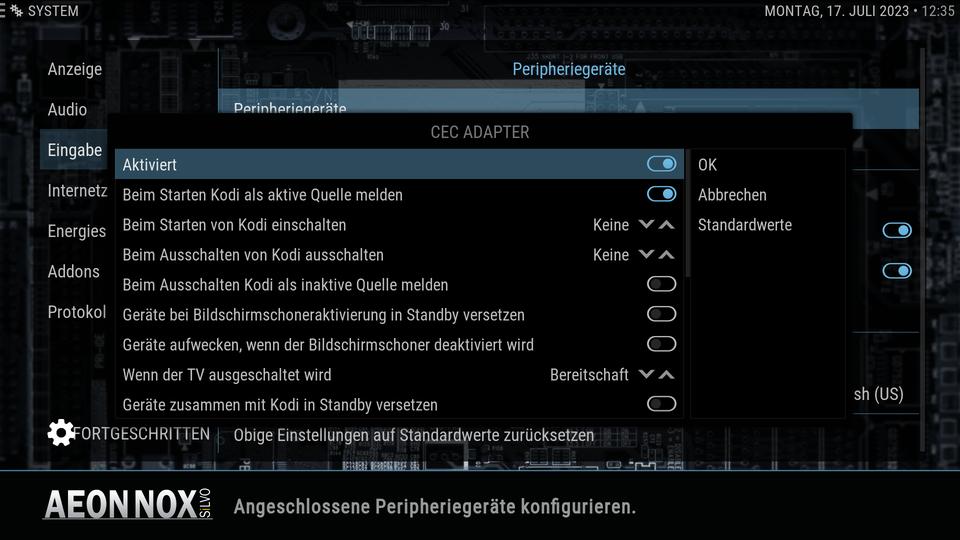

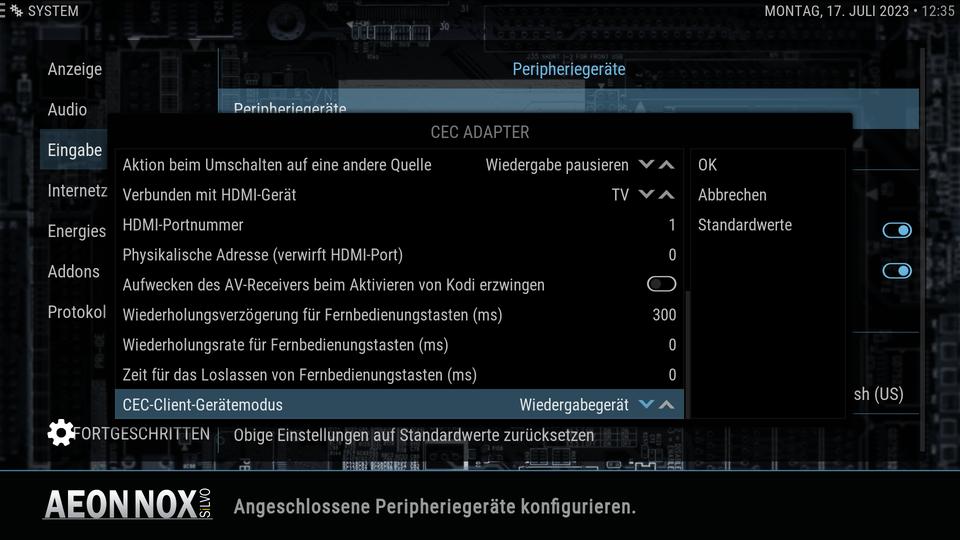

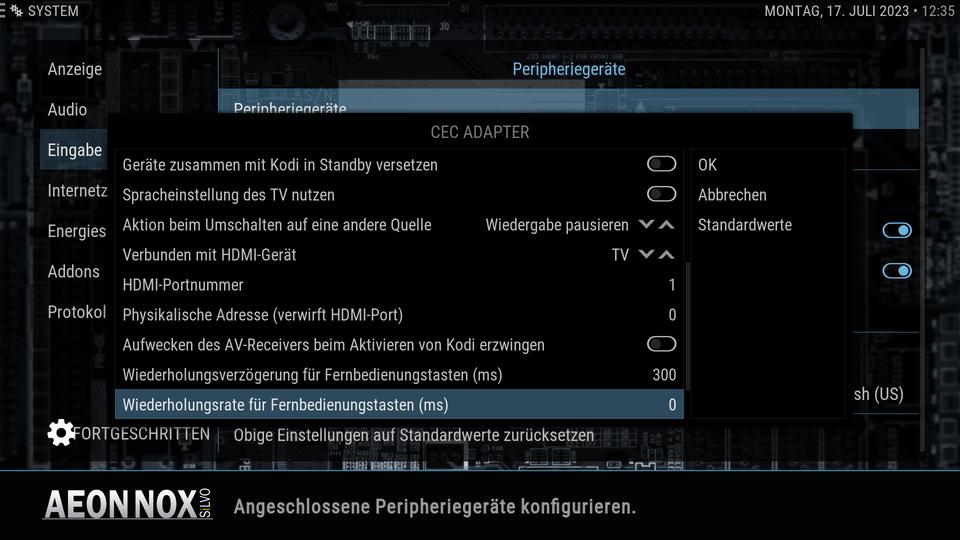

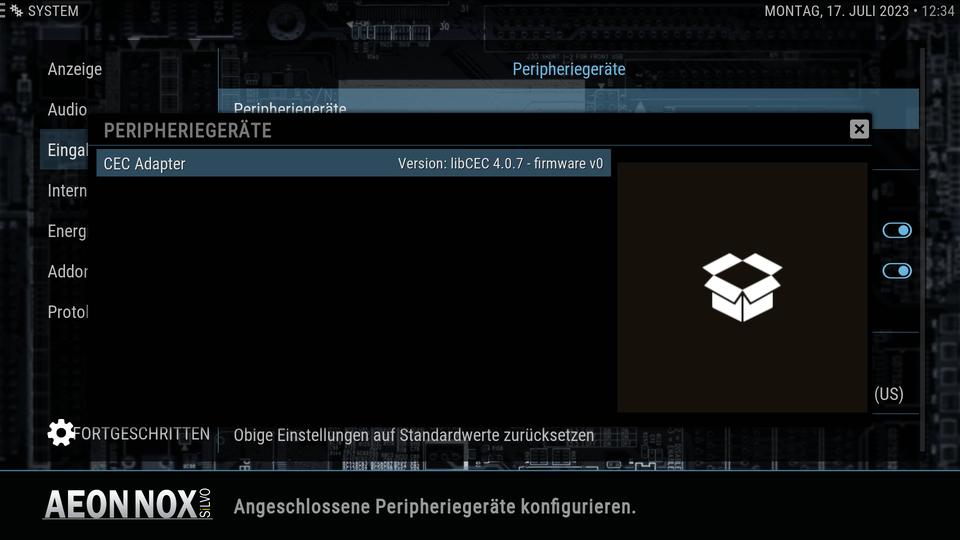

Attached my (german) settings:

PS:

sry for my band english
