yibaogang
Another approach:
I made two kernel images with the right dtb, please follow my description.
First, use this image again for prepare the SD card:
LibreELEC-MXIII-1G.arm-9.2.7.img.gz
Then download this, extract and overwrite the files on the card with these (kernel.img, kernel.img.md5, dtb.img):
LibreELEC-M8.arm-9.2.7-kernel.img+dtb.tar.gz
Then boot your box from this SD card and test the Ethernet.
If Ethernet still doesn't work, try this:
LibreELEC-S82.arm-9.2.7-kernel.img+dtb.tar.gz
Display More
Hi dtech , I took your example to test some combination dtb+kernel for my tv box. Without success
It seems that mmcblk0 device (sd card slot) on my tv box is booting in read only mode. So no way to make a LE successful first boot.
I'm playing with your S802/S812 images on http://libreelec.dtech.hu/images/3rdParty/
I burned MXIII-1G (S802) image on different SDCard capacity 4/8/16GB with exactly the same boot loop (read only) issue. As in your method, I'm testing different DTB/Kernel combinations but no much familiar with it and which variants or modifications I can try

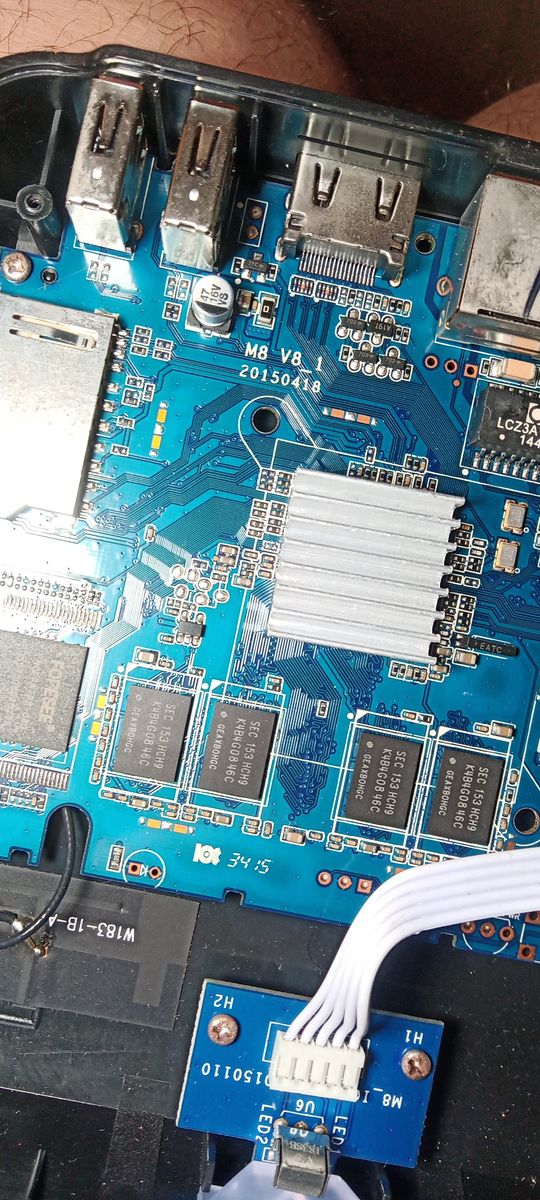

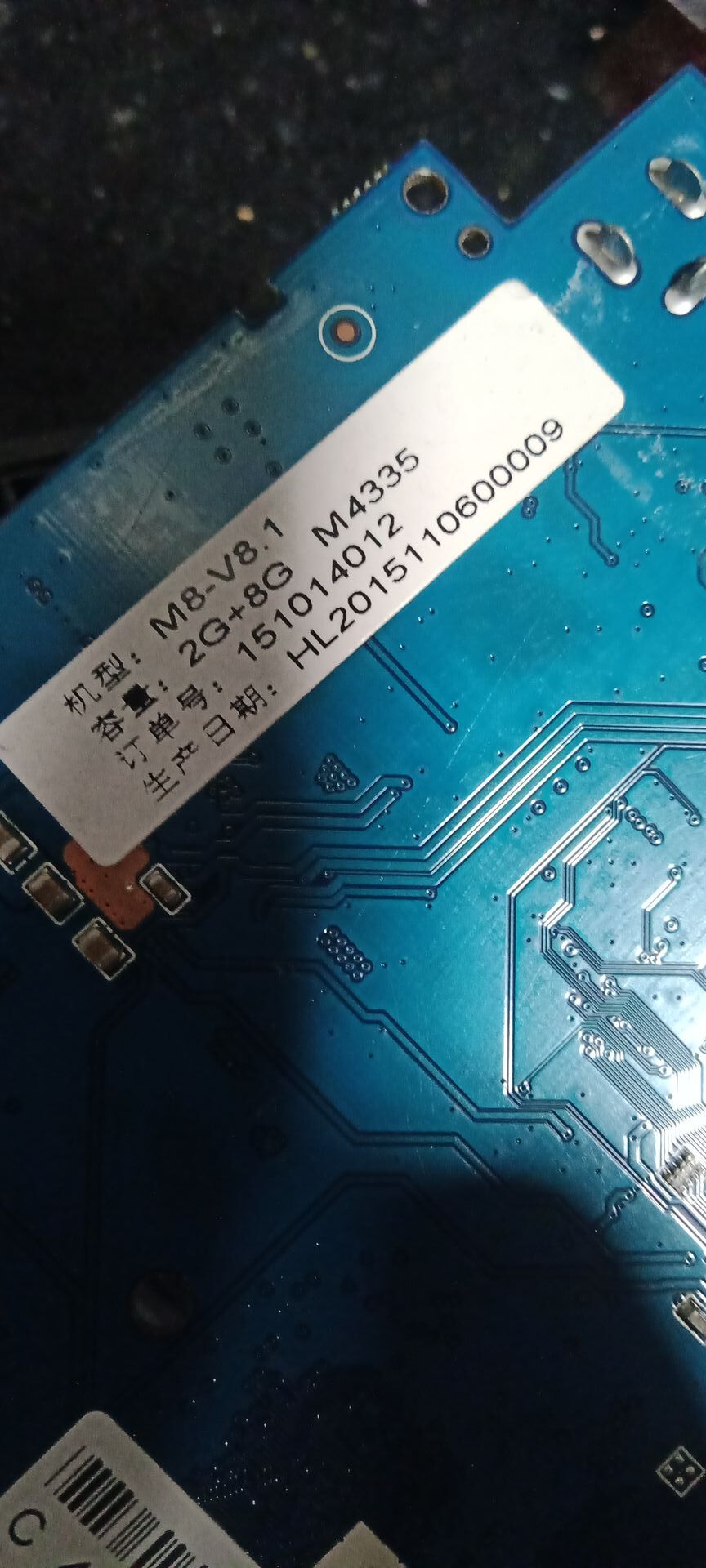

PCB: Number M8 V8_1 20150418
Internal storage: 8GB

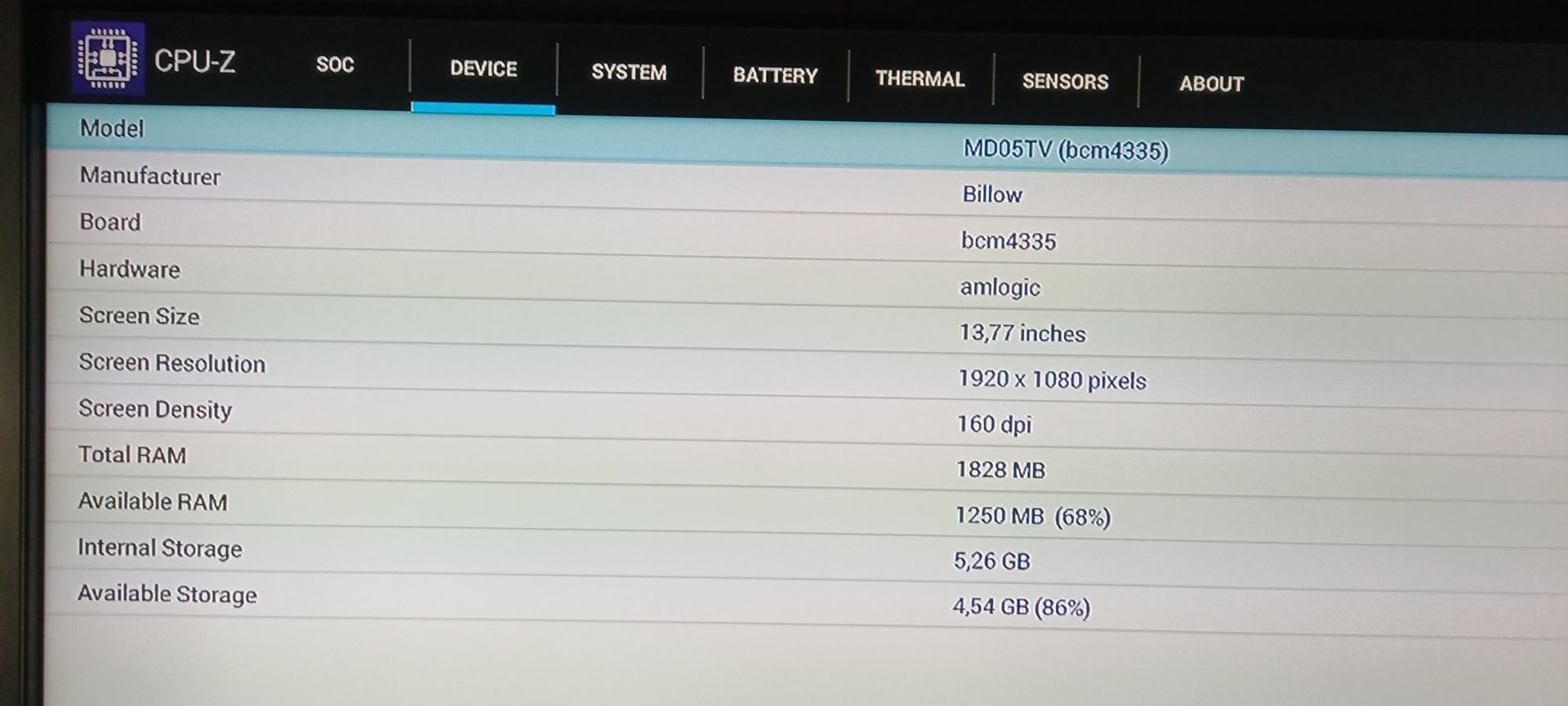

RAM: 1GB real amount (on Android was tricked to 2GB)

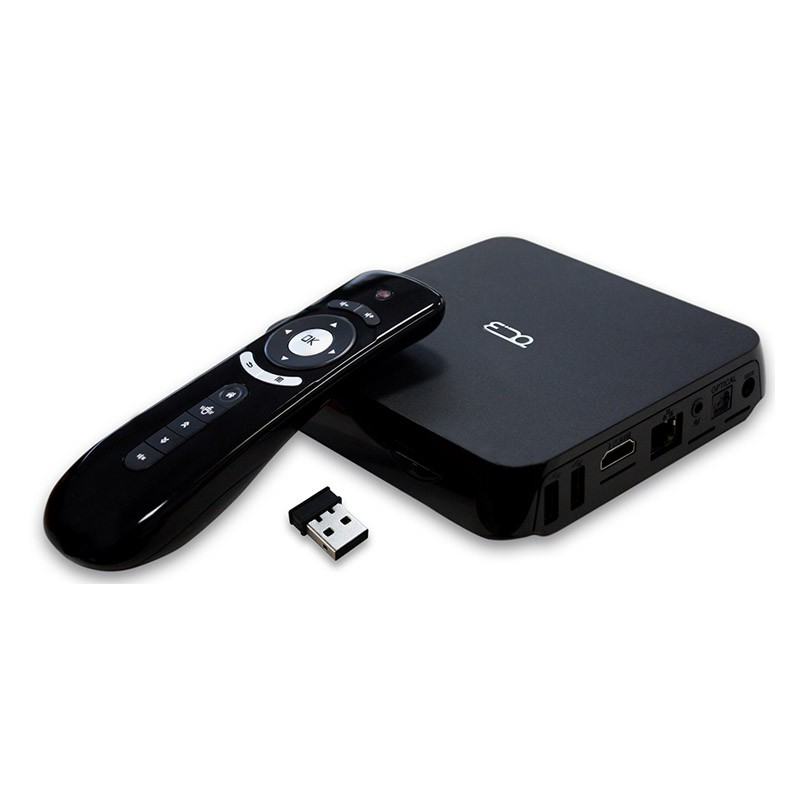

External Branding: Billow MD05TV (from Spain)
https://www.manualslib.com/manual/1054603/Billow-Md05tv.html - not much data about device architecture on these manuals, only for external aparence references

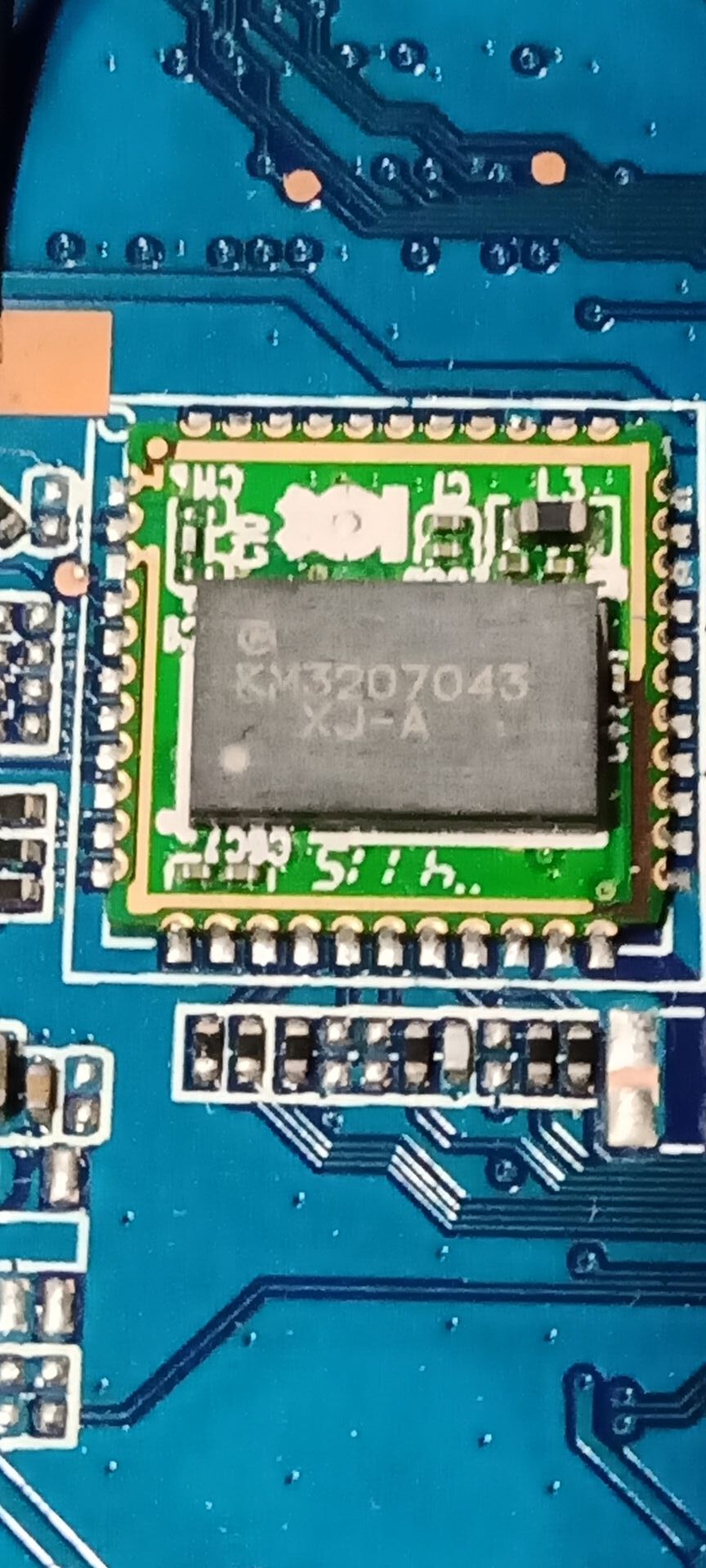

Wifi: BCM4335 (running on Stock Android Kitkat)
Certainly I'm not interested on making wireless to run (ethernet card will do it nice for me). Only installing and running LE9 from the Sdcard would me fantastic for me
Not sure if any specific driver or firmware preloaded on kernel boot that loads mmcblk0 features would be necessary. For a full access to writing operations on SDCard slot

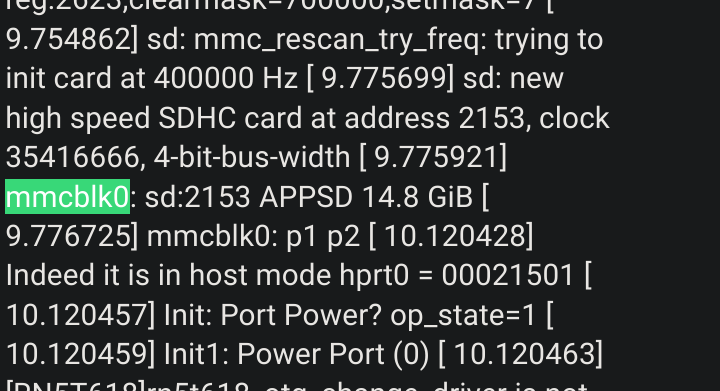

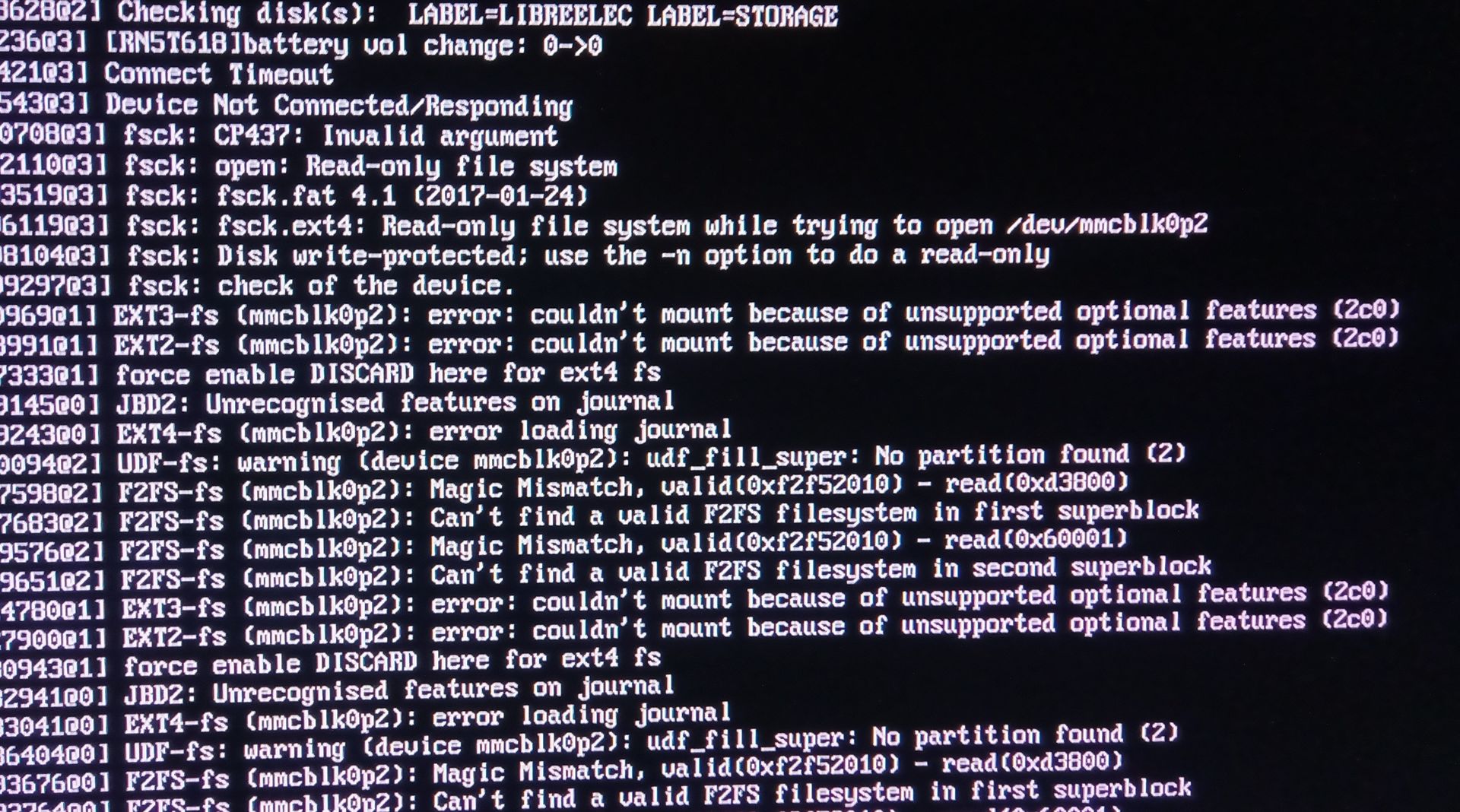

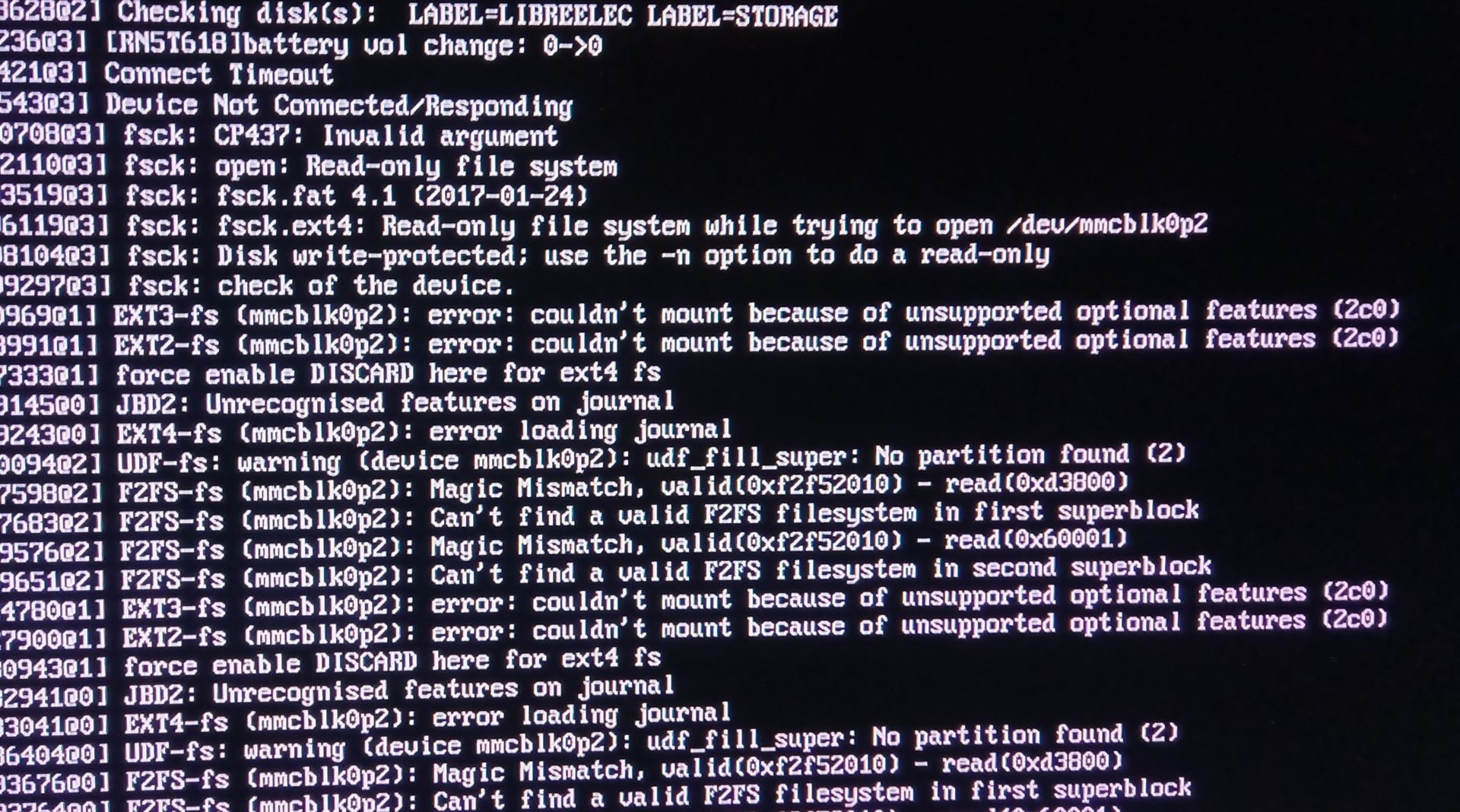

Some dmesg messages from the debug console on LE install attends:

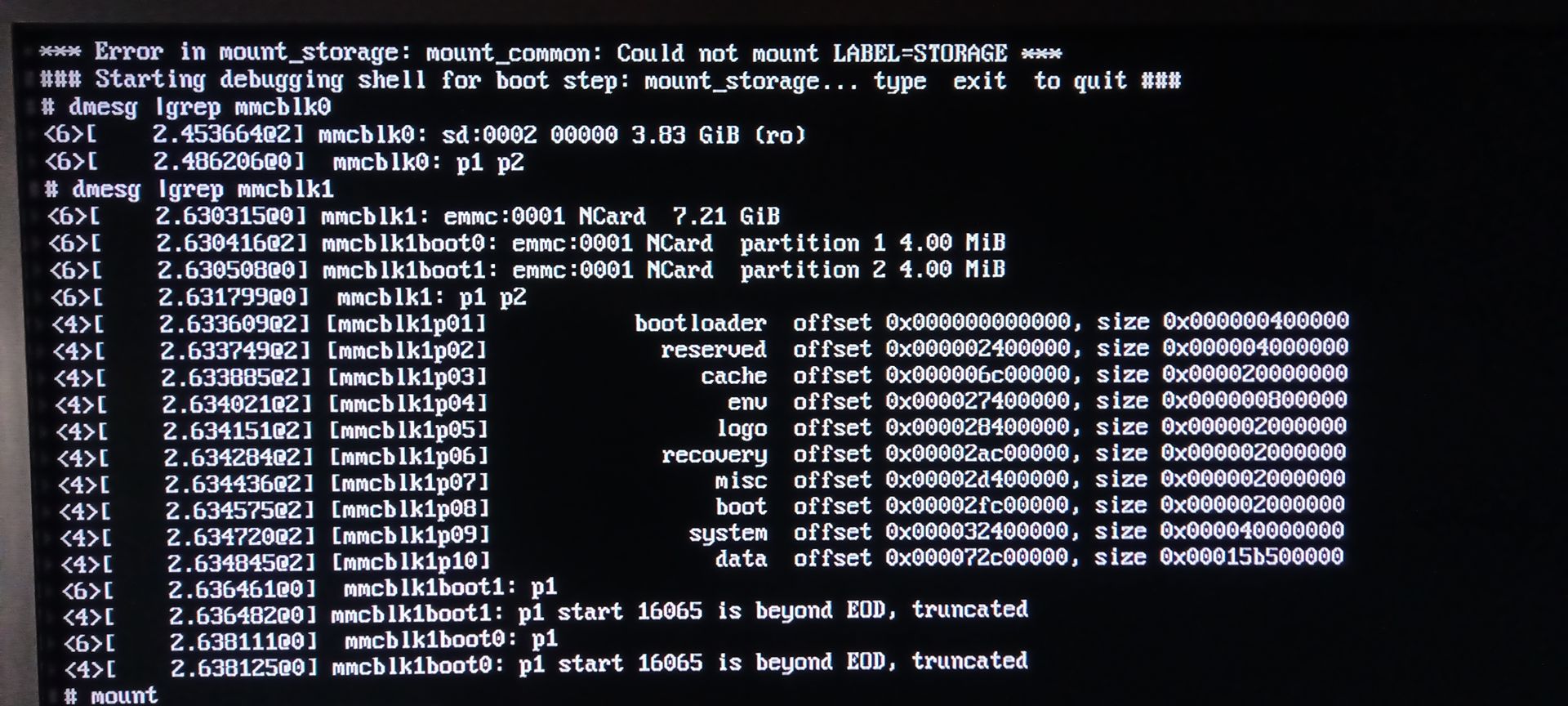

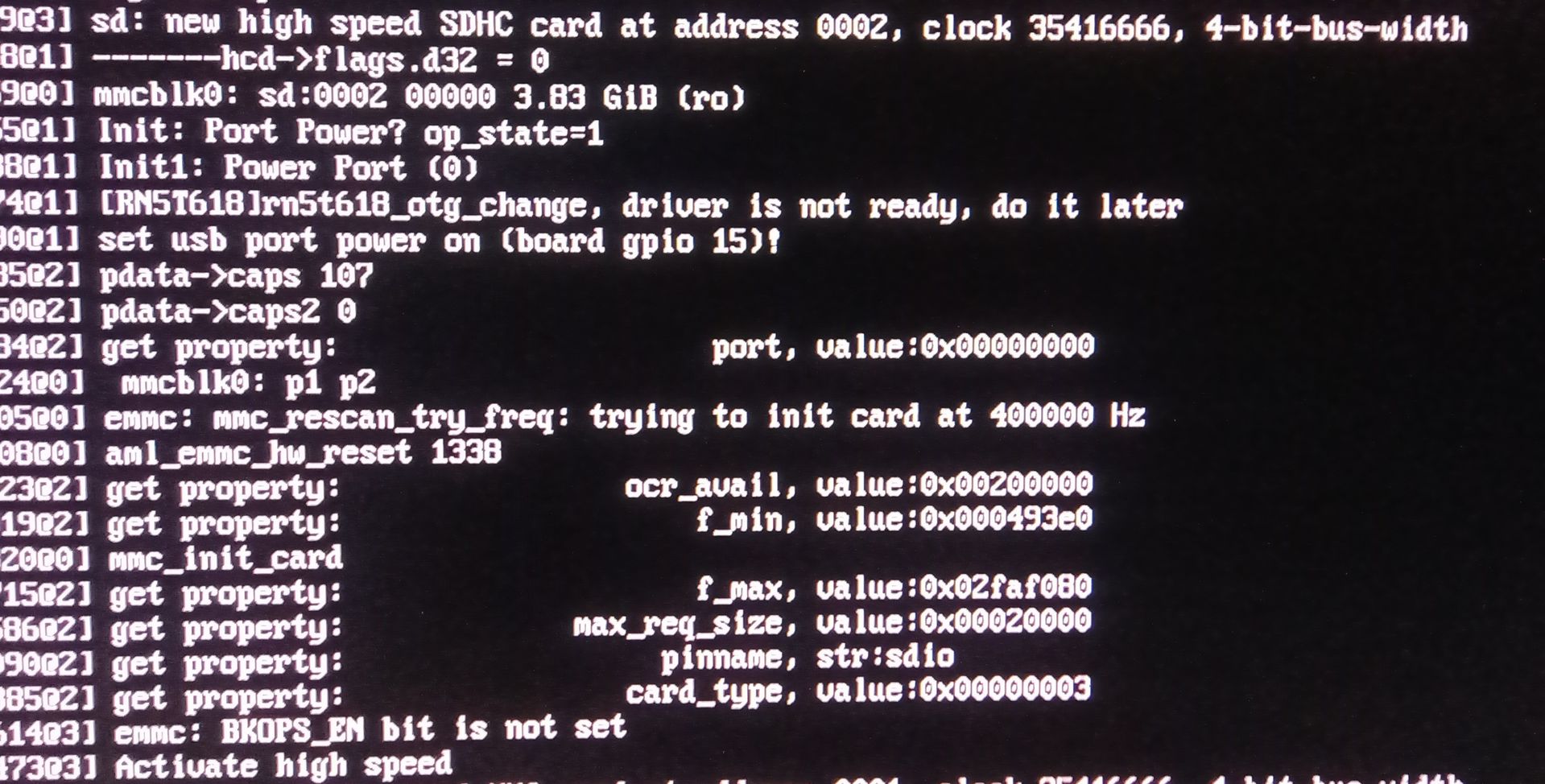

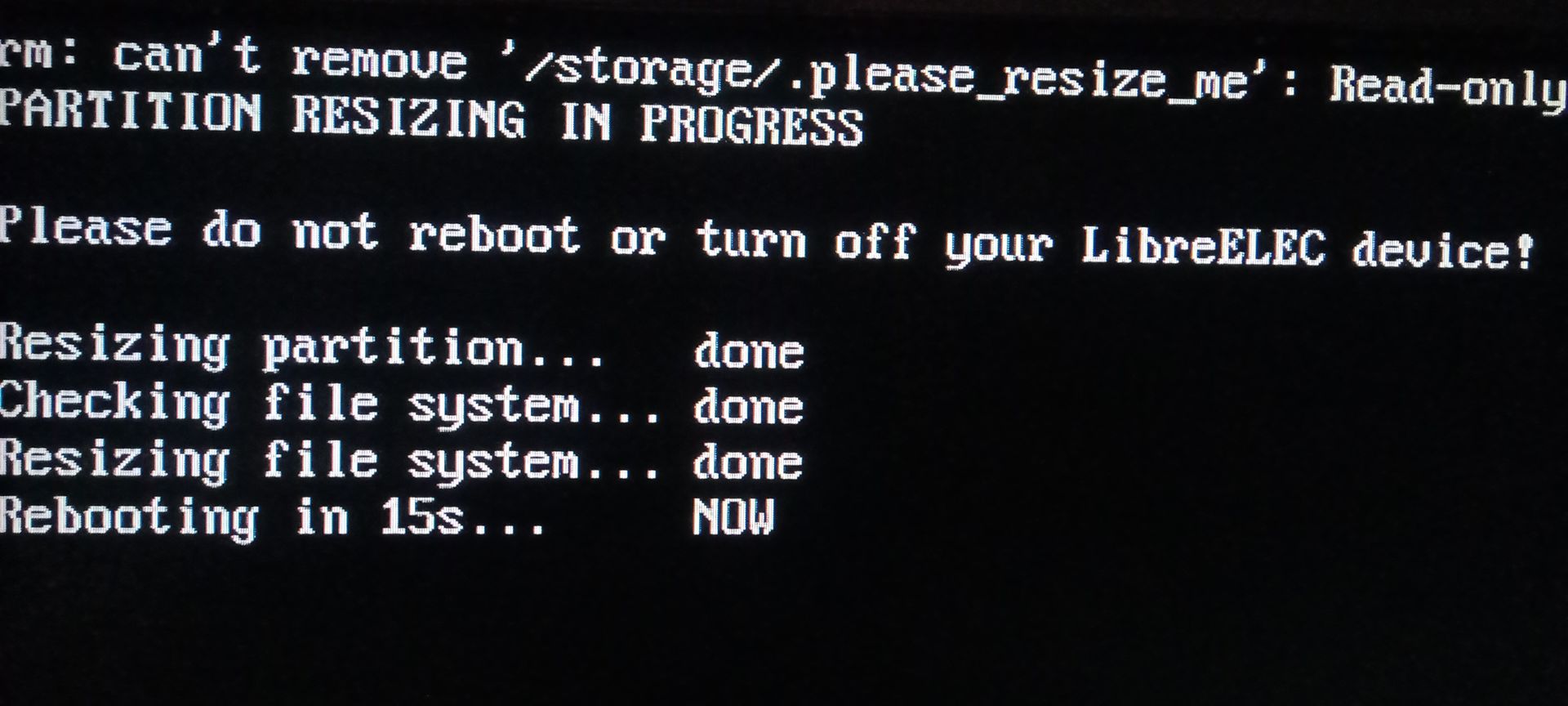

Img 1 and 2 "read only" messages

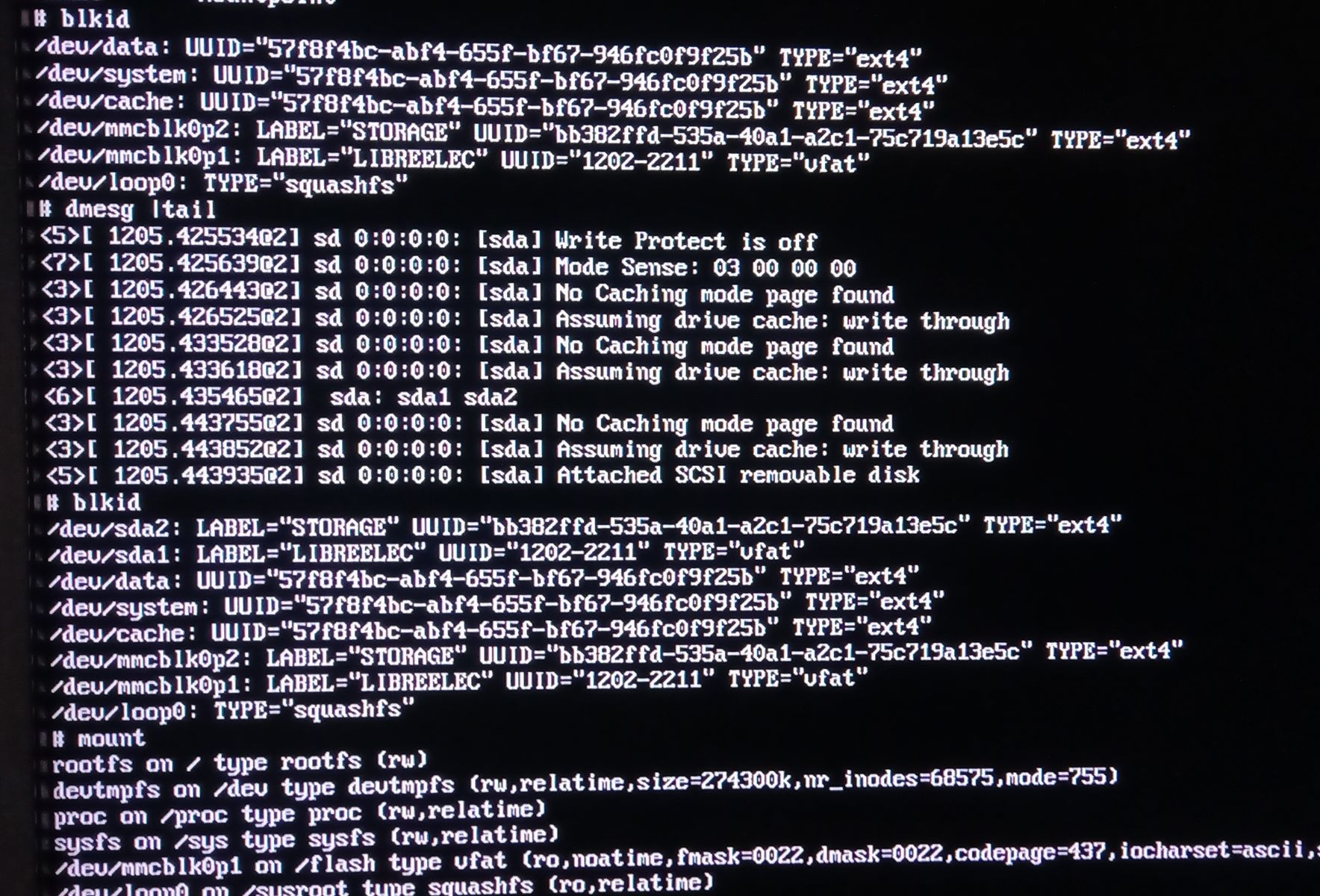

On third image I checked that write mode is enabled for both USB ports, but I couldn't boot any LE image from them (only boots from sdcard)

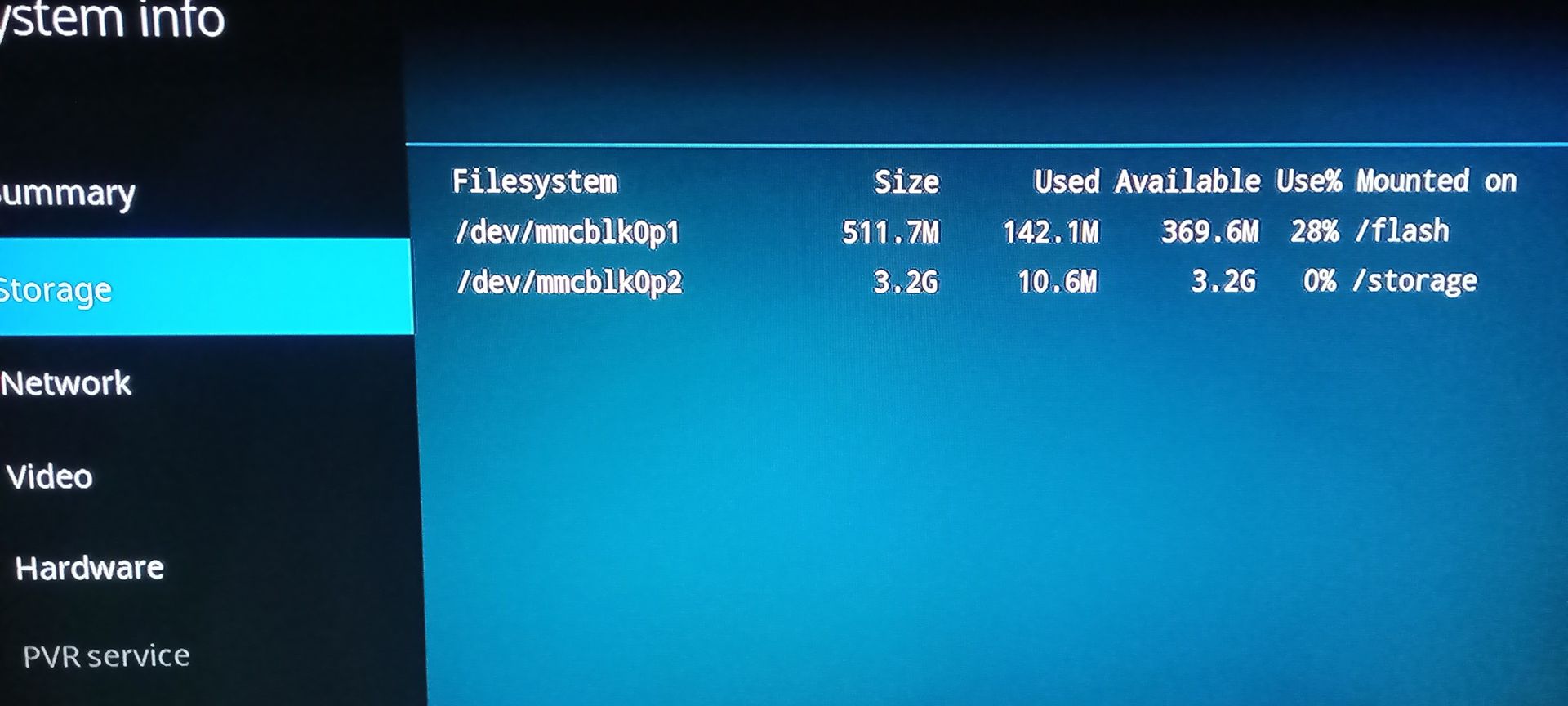

I tested too an Armbian image, based on Debian Stretch xfce on kernel 3.10.108. It managed to mount sdcard on writable mode, successful booted, and ran into desktop environment
More details of Armbian booting to this link http://ix.io/4pbS/

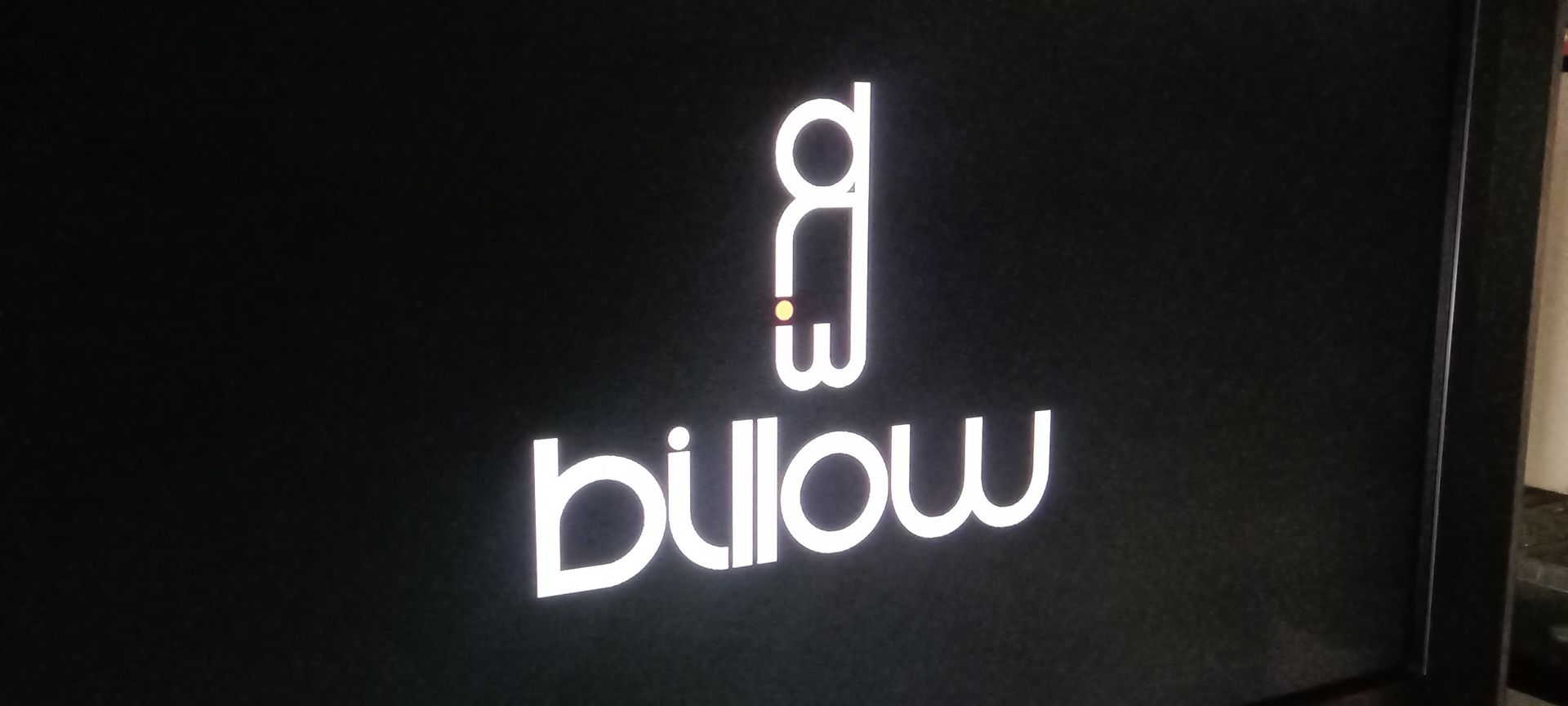

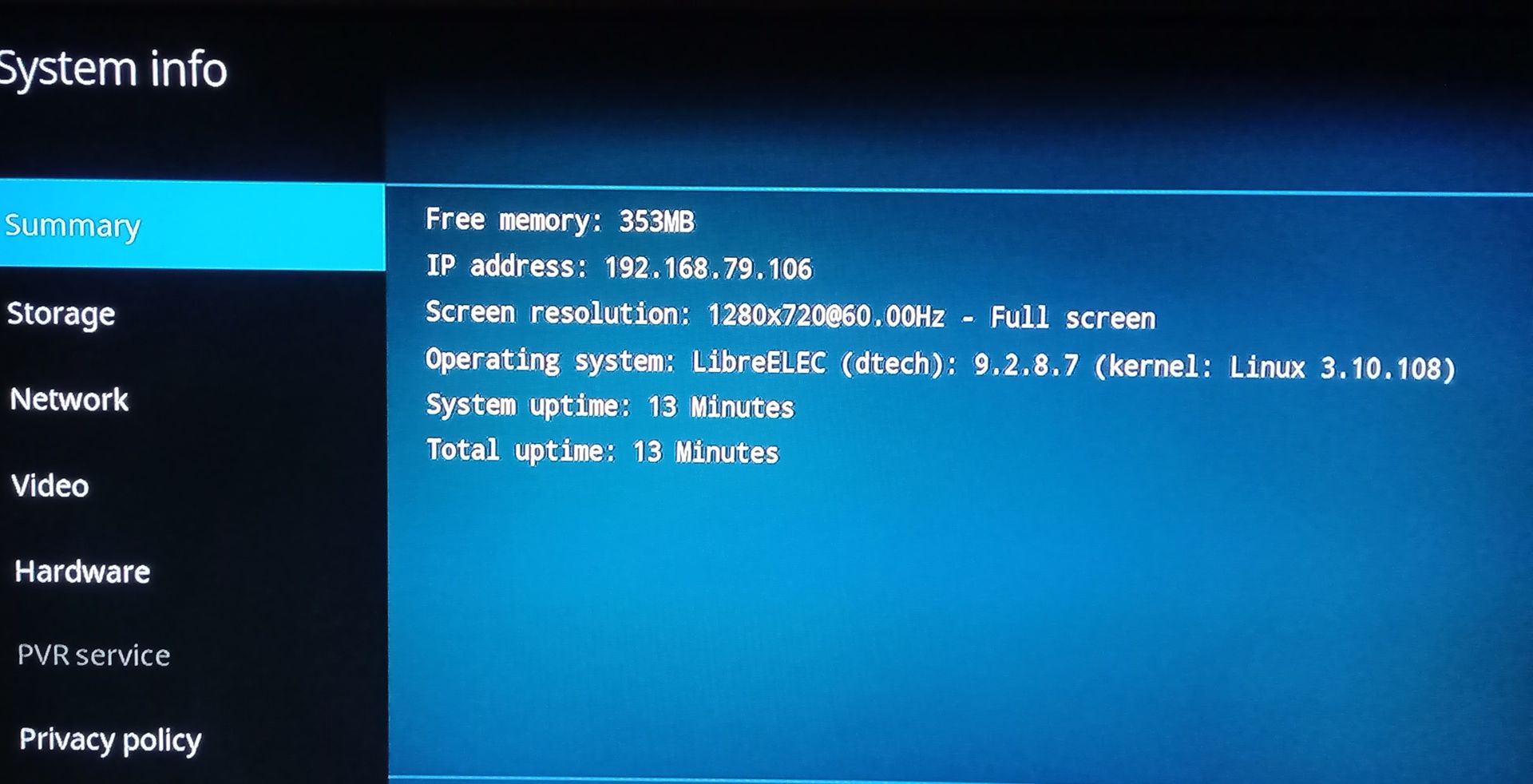

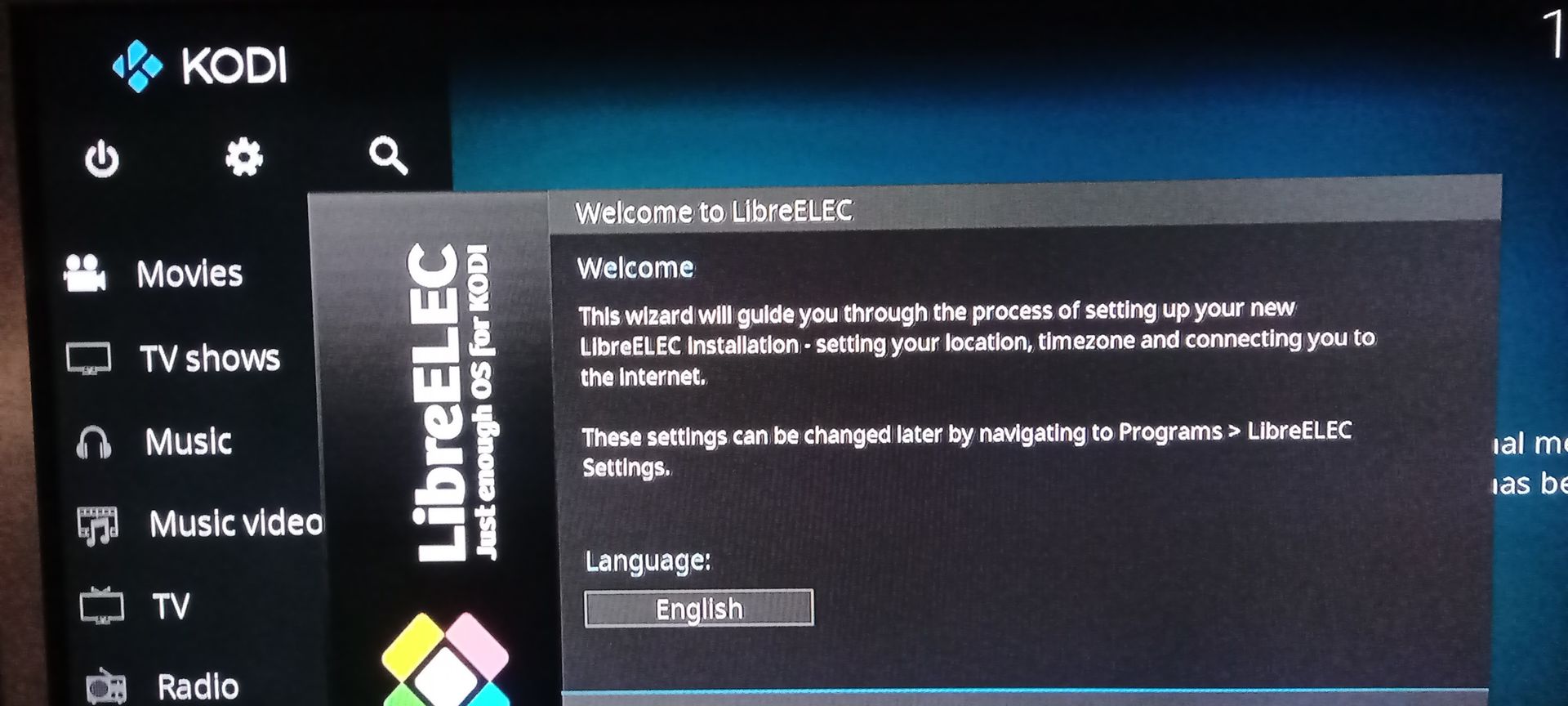

One more observation is that LE9 it only booted, entried on LE logo mode, from the 1GB image (MXIII-1GB). The others, black screen directly

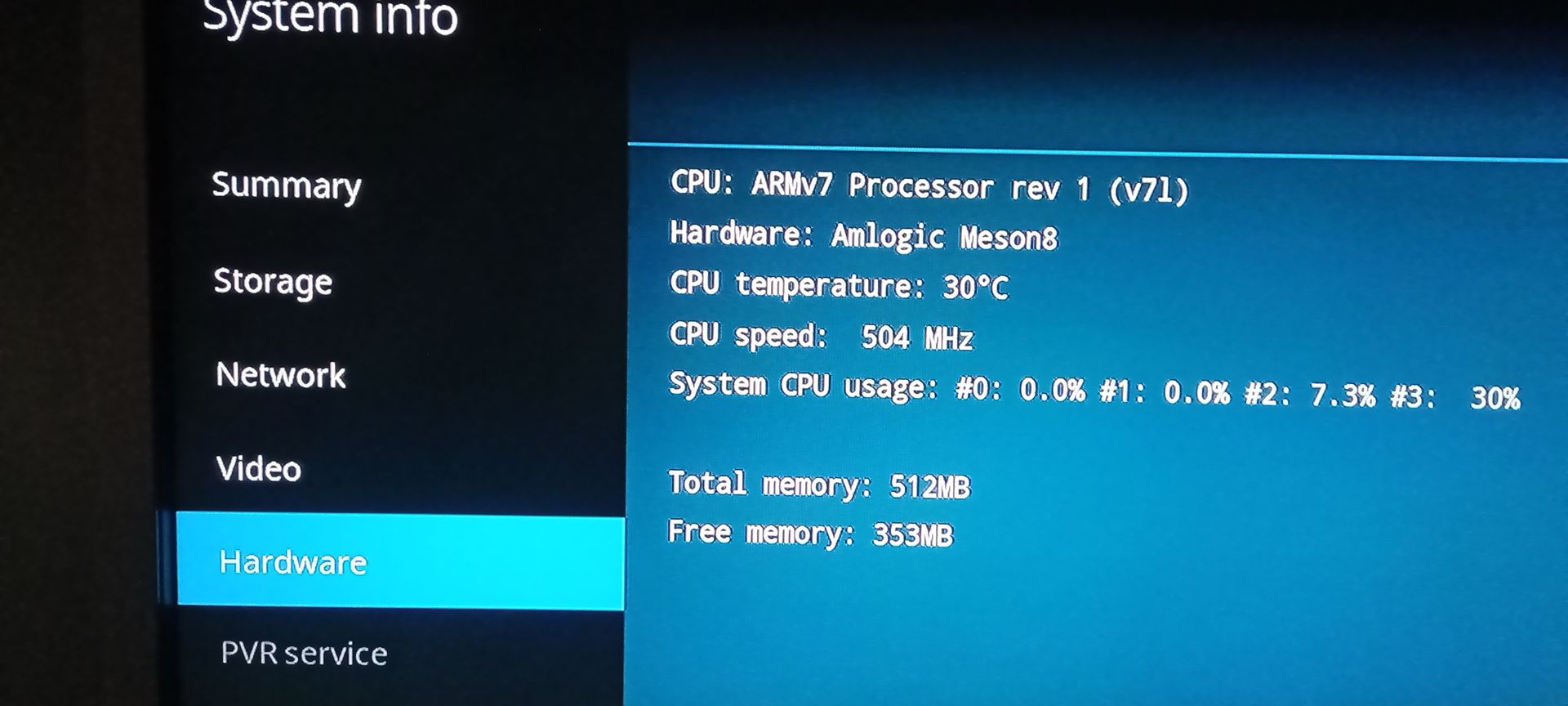

--UPDATE: From Armbian it booted from MXIII-Plus (2GB) dtb, defined by default on uEnv.ini file. I didn't change anything from the default selections. Although it detected the real 1GB of RAM
This is all info I tried to compile from a few test and error days
Thank you
