If I will install your LE build on my Wetek Play 1 would I be able to boot enigma2 from SD card? (I have official 9.0.2 LE in nand now but I cannot install anything from repos now)
Posts by richard_zorge
-
-
Please a create an autostart.sh file with the following content:
Code: autostart.shfw_printenv > ~/downloads/uboot_env.txtCopy it through Samba to the \\<IP-of-the-box>\Configfiles\ and then restart the box.
After the restart please copy and attach the \\<IP-of-the-box>\Downloads\uboot_env.txt file to this topic.
My assumption is that there is an uboot variable for display that is causing the problem.
Here it is.
Code
Display Moreaml_dt=m8b_m201_1G baudrate=115200 boardname=m8_board bootargs=init=/init console=ttyS0,115200n8 no_console_suspend ramoops.mem_address=0x04e00000 ramoops.mem_size=0x100000 ramoops.record_size=0x8000 ramoops.console_size=0x4000 enforcing=0 androidboot.selinux=permissive storage=2 cvbsdrv=0 vdaccfg=0xa000 logo=osd1,loaded,0x7900000,1080p,full hdmimode=1080p cvbsmode=576cvbs androidboot.firstboot=0 hdmitx= bootcmd=run startfromext; run storeboot bootdelay=1 bootfile=boot.img bootfromnand=0 bootm_low=0x00000000 bootm_size=0x80000000 bootpath=u-boot.bin bootsize=100000 bootstart=0 bootup_offset=0x1302c270 bootup_size=0x3f4848 check_rebootmode=get_rebootmode; clear_rebootmode; echo reboot_mode=${reboot_mode};if test ${reboot_mode} = factory_reset; then defenv; fi; chipname=8726m8 console=ttyS0,115200n8 cvbs_drv=0 cvbsmode=576cvbs digitaudiooutput=PCM:auto display_bpp=16 display_color_bg=0 display_color_fg=0xffff display_color_format_index=16 display_height=1080 display_layer=osd2 display_width=1920 ethact=Meson_Ethernet ethaddr=00:15:18:01:81:31 fb_addr=0x7900000 fb_height=1080 fb_width=1920 filesize=2BE firstboot=0 fuweib=if tftpboot 12000000 boot.img; then bootm; fi fuweiu=if tftpboot 12000000 u-boot.bin; then store rom_write 12000000 0 62000; fi gatewayip=192.168.1.1 get_dt=checkhw hdmimode=1080p hostname=arm_m8 initargs=init=/init console=ttyS0,115200n8 no_console_suspend ramoops.mem_address=0x04e00000 ramoops.mem_size=0x100000 ramoops.record_size=0x8000 ramoops.console_size=0x4000 enforcing=0 androidboot.selinux=permissive storage=2 initrd_high=60000000 ipaddr=192.168.3.47 loadaddr=0x12000000 loadaddr_logo=0x13000000 netmask=255.255.252.0 normalsize=400000 normalstart=1000000 outputmode=1080p p0path=uImage p0size=400000 p0start=1000000 p1path=android.rootfs p1size=8000000 p1start=1400000 partnum=2 preboot=run test_facreset;if itest ${upgrade_step} == 3; then run prepare; run storeargs; run update; fi; if itest ${upgrade_step} == 1; then defenv_reserve_env; setenv upgrade_step 2; saveenv;fi; run check_rebootmode;run prepare;run storeargs;run update_power_key; run update_ir; run switch_bootmode preloaddtb=imgread dtb boot ${loadaddr} prepare=logo size ${outputmode}; video open; video clear; video dev open ${outputmode};imgread pic logo bootup ${loadaddr_logo}; bmp display ${bootup_offset}; bmp scale; reboot_mode=charging recovery=echo enter recovery;setenv bootargs ${bootargs} wipeinstaboot;if mmcinfo; then if fatload mmc 0 ${loadaddr} recovery.img; then bootm;fi;fi; if usb start 0; then if fatload usb 0 ${loadaddr} recovery.img; then bootm; fi;fi;if imgread kernel recovery ${loadaddr}; then bootm; else echo no recovery in flash; fi; sdc_burning=sdc_burn ${sdcburncfg} sdcburncfg=aml_sdc_burn.ini serverip=192.168.1.121 startfromext=if test ${bootfromnand} = 1; then setenv bootfromnand 0; saveenv; exit; fi; if test ${reboot_mode} = switch_system; then exit; fi; run startfromsd; run startfromusb startfromsd=if mmcinfo; then if fatload mmc 0 ${loadaddr} kernel.img; then setenv bootargs ${bootargs} bootfromsd; bootm; fi; fi startfromusb=if usb start 0; then if fatload usb 0 ${loadaddr} kernel.img; then setenv bootargs ${bootargs} bootfromusb; bootm; fi; fi stderr=serial stdin=serial stdout=serial store=2 storeargs=setenv bootargs ${initargs} cvbsdrv=${cvbs_drv} vdaccfg=${vdac_config} logo=osd1,loaded,${fb_addr},${outputmode},full hdmimode=${hdmimode} cvbsmode=${cvbsmode} androidboot.firstboot=${firstboot} hdmitx=${cecconfig} storeboot=if test ${reboot_mode} = charging; then run try_auto_burn; fi;echo Booting...; if unifykey get usid; then setenv bootargs ${bootargs} androidboot.serialno=${usid};fi;if unifykey get mac; then setenv bootargs ${bootargs} mac=${mac};fi;imgread kernel boot ${loadaddr};bootm;run recovery switch_bootmode=if test ${reboot_mode} = factory_reset; then run recovery;else if test ${reboot_mode} = update; then run update;else if test ${reboot_mode} = usb_burning; then run usb_burning;else if test ${wipe_data} = failed; then echo wipe_data=${wipe_data}; run recovery;else fi;fi;fi;fi test_facreset=if test ${wipe_data} = failed; then echo -wipe_data=${wipe_data}; run prepare; run storeargs; run recovery;fi; if test ${wipe_cache} = failed; then echo -wipe_cache=${wipe_cache}; run prepare; run storeargs; run recovery;fi; testaddr=0x12400000 update=run usb_burning; if mmcinfo; then if fatexist mmc 0 ${sdcburncfg}; then run sdc_burning; else if fatload mmc 0 ${loadaddr} aml_autoscript; then autoscr ${loadaddr}; fi;run recovery;fi;else run recovery;fi; update_ir=if irdetect; then run update; fi update_power_key=if gset GPIOAO_6 get; then sleep 3; if gset GPIOAO_6 get; then echo update by key...; run update; fi;fi upgrade_step=2 usb_burning=update 1000 vdac_config=0xa000 video_dev=tvout wipe_cache=success wipe_data=successI did try to extract .dtb file from stock android firmware and replace dtb.img, box boots but still no img.
-
The situation looks like you have an output only on the CVBS output instead of HDMI.
Try to extract and copy the attached file under Samba to this location: \\<IP-of-the-box>\Configfiles\, and then restart.
Sadly, same issue with a bit of different message:
Code[ 0.865381@0] TV mode 576cvbs selected. [ 0.869190@0] tvoutc_setmode[505] [ 0.872467@0] cvbs performance type = 1, table = 0 [ 0.877196@0] tvoutc_setmode[516] mode is 8 [ 0.881350@0] mode is: 8 -
All patches are made for the latest kernel (3.10.108), so I would rather not undertake backward compatibility.
If you have an earlier working version based on kszaq's kernel, I would ask for a link. But I see it has never worked on this box before:
I got this in System.log Could not find any other proper information about anything related to hdmi/vout in logs.
Code[ 33.788809@0] tvmode set to null [ 33.788827@0] no matched vout mode [ 33.788842@0] tvmode set to 576cvbsIf you have an earlier working version based on kszaq's kernel, I would ask for a link
Yeah, none of libreelec builds did work on my box, I mea they did work, only without video out. I did manage to flash odroid-c1 firmware into my Minix X6 and it had video out when I used this in boot.ini
Codesetenv vout_mode "DVI"Maybe you can add DVI mode into LE builds? I did try to manualy insern vout_mode DVI into env but nothing changed.
-

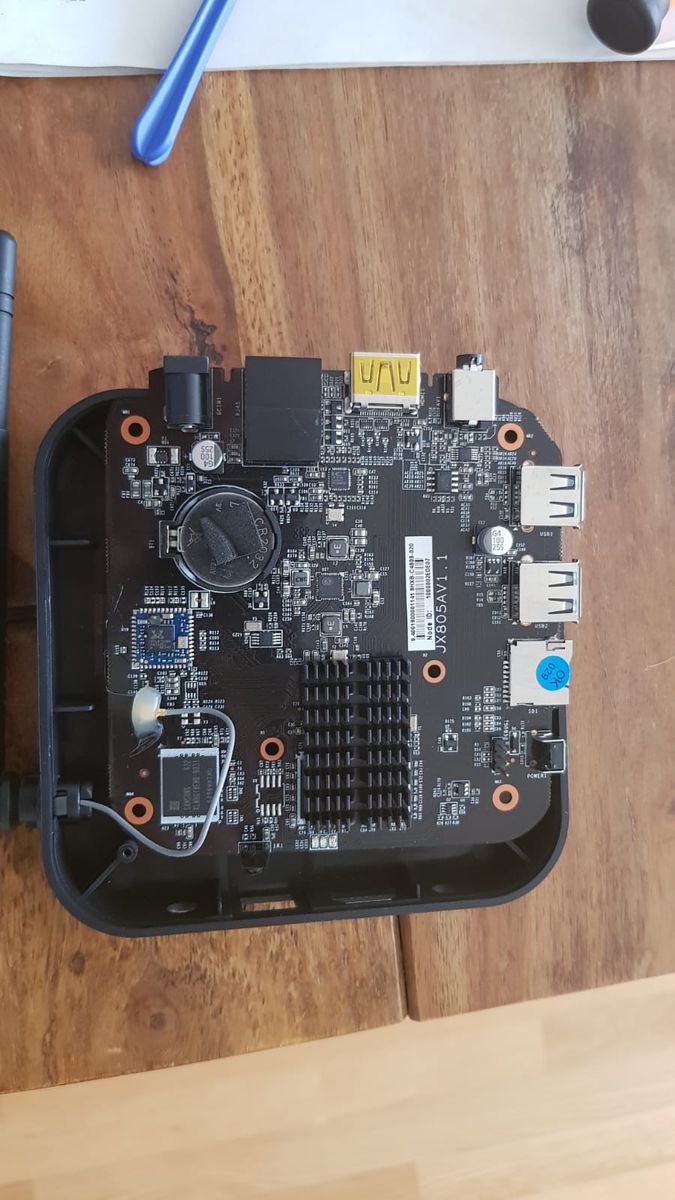

Hey there dtech , I cannot get LE working on my Minix X6 box (s805 amlogic). The systems start, I have acces to samba/ssh but no video output. It is just 'no signal'. Same was with Armbian Linux builds by balbes150 . I remember I found that on Armbian the 3.10.33 kernel had video output on my box and 3.10.108 did not, but I have no idea how to build kernel in libreelec. Maybe you have some builds with 3.10.33 kernels or have any clue why I dont have video output at all?
