I've just tried LibreELEC-RPi2.arm-11.0-nightly-20211122-fb8bd5c.img.gz first with Tvheadend 4.2, then with 4.3(Alpha) but in the both cases, the wizard offers only IP TV and not real TV adapter:
Posts by MAndreato
-
-
I bought my "Vilros Raspberry Pi 3 Complete Starter Kit--EU Plug Edition" in 2016 with the following characteristics and it has worked great so far, even connecting an external HDD (where I store my camera videos to whatch them with Kodi on TV):
- Includes The Raspberry Pi 3 Model B
- Vilros Raspberry Pi 3 Clear Transparent Case With Easy Access to all ports
- Sandisk Micro SD Card Preloaded With NOOBS --16GB (CLASS 10) & Micro SD-SD Adapter
- 2 Amp Eu Power Supply--Designed for Raspberry Pi
- HDMI Cabel--Set of 2 Heatsinks (1 Big 1 Small)
Now, attacching a "Raspberry PI TV Hat DVB-T/T2 PI TV Hat DVB-T/T2", the RPi still works as usual (Kodi) but the DVB not does not.
Do you think I've to upgrade the Power Supply? Which model should I buy?
Thanks in advance.
-
Other smartphone' power supplies in the house have less power than the RPi one, so I tried connecting the RPi to a PC USB (maybe it is even lower, I don't know).
Kodi worked well but shown a little yellow thunder near the clock.
Again no DVB tuner available.
-
I already did two tries with another clean SD before asking here: one installing Raspberry Pi OS and one installing LibreELEC. No USB device attached.
Maybe I'll return the Hat.
This is the power supply:
5V DC 2500mA.
-
Thank you CvH for the patience.
I've boot the RPi after unplugging the external HDD, but TVHeadend still doesn't see the tuner
.I'm pretty sure to have filled correctly the TV Hat pins thanks to the screw guides.
-
Thanks CvH,
I went to "LibreELEC Module Drivers" add-on then chose "LE default drivers" from DVB driver module (the dvd-latest was one test, forgot to reset it), then reboot.TVHeadend on "http://10.0.0.19:9981/" still have no TV adapters.
Here is the refreshed dmesg | pastebinit --> http://ix.io/3F9d:
Code
Display More[ 0.000000] Booting Linux on physical CPU 0x0 [ 0.000000] Linux version 4.19.127 (jenkins@tsuboi) (gcc version 8.3.0 (GCC)) #1 SMP Tue Jul 6 19:08:28 CEST 2021 [ 0.000000] CPU: ARMv7 Processor [410fd034] revision 4 (ARMv7), cr=10c5383d [ 0.000000] CPU: div instructions available: patching division code [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache [ 0.000000] OF: fdt: Machine model: Raspberry Pi 3 Model B Rev 1.2 [ 0.000000] Memory policy: Data cache writealloc [ 0.000000] cma: Reserved 8 MiB at 0x2f800000 [ 0.000000] On node 0 totalpages: 196608 [ 0.000000] Normal zone: 1728 pages used for memmap [ 0.000000] Normal zone: 0 pages reserved [ 0.000000] Normal zone: 196608 pages, LIFO batch:63 [ 0.000000] random: get_random_bytes called from start_kernel+0xb0/0x4ac with crng_init=0 [ 0.000000] percpu: Embedded 17 pages/cpu s37580 r8192 d23860 u69632 [ 0.000000] pcpu-alloc: s37580 r8192 d23860 u69632 alloc=17*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 194880 [ 0.000000] Kernel command line: coherent_pool=1M 8250.nr_uarts=0 bcm2708_fb.fbwidth=1824 bcm2708_fb.fbheight=984 bcm2708_fb.fbswap=1 vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000 boot=/dev/mmcblk0p1 disk=/dev/mmcblk0p2 quiet root=/dev/ram0 rdinit=/init usbcore.autosuspend=-1 [ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes) [ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes) [ 0.000000] Memory: 752516K/786432K available (9216K kernel code, 697K rwdata, 2012K rodata, 5120K init, 529K bss, 25724K reserved, 8192K cma-reserved) [ 0.000000] Virtual kernel memory layout: [ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB) [ 0.000000] fixmap : 0xffc00000 - 0xfff00000 (3072 kB) [ 0.000000] vmalloc : 0xb0800000 - 0xff800000 (1264 MB) [ 0.000000] lowmem : 0x80000000 - 0xb0000000 ( 768 MB) [ 0.000000] modules : 0x7f000000 - 0x80000000 ( 16 MB) [ 0.000000] .text : 0x(ptrval) - 0x(ptrval) (10208 kB) [ 0.000000] .init : 0x(ptrval) - 0x(ptrval) (5120 kB) [ 0.000000] .data : 0x(ptrval) - 0x(ptrval) ( 698 kB) [ 0.000000] .bss : 0x(ptrval) - 0x(ptrval) ( 530 kB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] ftrace: allocating 30004 entries in 88 pages [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 [ 0.000000] arch_timer: cp15 timer(s) running at 19.20MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x46d987e47, max_idle_ns: 440795202767 ns [ 0.000007] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 4398046511078ns [ 0.000018] Switching to timer-based delay loop, resolution 52ns [ 0.000276] Console: colour dummy device 80x30 [ 0.000301] console [tty0] enabled [ 0.000352] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.00 BogoMIPS (lpj=64000) [ 0.000370] pid_max: default: 32768 minimum: 301 [ 0.000625] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.000646] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.001574] CPU: Testing write buffer coherency: ok [ 0.002117] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000 [ 0.002935] Setting up static identity map for 0x100000 - 0x10003c [ 0.003118] rcu: Hierarchical SRCU implementation. [ 0.005880] smp: Bringing up secondary CPUs ... [ 0.006954] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001 [ 0.008060] CPU2: thread -1, cpu 2, socket 0, mpidr 80000002 [ 0.009100] CPU3: thread -1, cpu 3, socket 0, mpidr 80000003 [ 0.009243] smp: Brought up 1 node, 4 CPUs [ 0.009258] SMP: Total of 4 processors activated (153.00 BogoMIPS). [ 0.009268] CPU: All CPU(s) started in HYP mode. [ 0.009276] CPU: Virtualization extensions available. [ 0.010247] devtmpfs: initialized [ 0.025301] VFP support v0.3: implementor 41 architecture 3 part 40 variant 3 rev 4 [ 0.025576] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns [ 0.025601] futex hash table entries: 1024 (order: 4, 65536 bytes) [ 0.026237] pinctrl core: initialized pinctrl subsystem [ 0.027262] NET: Registered protocol family 16 [ 0.031370] DMA: preallocated 1024 KiB pool for atomic coherent allocations [ 0.036603] cpuidle: using governor ladder [ 0.036649] cpuidle: using governor menu [ 0.037280] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. [ 0.037291] hw-breakpoint: maximum watchpoint size is 8 bytes. [ 0.037521] Serial: AMBA PL011 UART driver [ 0.041570] bcm2835-mbox 3f00b880.mailbox: mailbox enabled [ 0.050204] raspberrypi-firmware soc:firmware: Attached to firmware from 2020-04-15 11:44, variant start_x [ 0.053550] raspberrypi-firmware soc:firmware: Firmware hash is 82f9bb929ce2186eb1824178c1ae82902ad6275c [ 0.095442] bcm2835-dma 3f007000.dma: DMA legacy API manager at (ptrval), dmachans=0x1 [ 0.097496] SCSI subsystem initialized [ 0.097734] usbcore: registered new interface driver usbfs [ 0.097795] usbcore: registered new interface driver hub [ 0.097915] usbcore: registered new device driver usb [ 0.099619] clocksource: Switched to clocksource arch_sys_counter [ 0.202995] FS-Cache: Loaded [ 0.214189] NET: Registered protocol family 2 [ 0.215022] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes) [ 0.215065] TCP established hash table entries: 8192 (order: 3, 32768 bytes) [ 0.215180] TCP bind hash table entries: 8192 (order: 4, 65536 bytes) [ 0.215370] TCP: Hash tables configured (established 8192 bind 8192) [ 0.215526] UDP hash table entries: 512 (order: 2, 16384 bytes) [ 0.215577] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes) [ 0.215846] NET: Registered protocol family 1 [ 0.216578] RPC: Registered named UNIX socket transport module. [ 0.216588] RPC: Registered udp transport module. [ 0.216598] RPC: Registered tcp transport module. [ 0.216607] RPC: Registered tcp NFSv4.1 backchannel transport module. [ 0.237523] hw perfevents: enabled with armv7_cortex_a7 PMU driver, 7 counters available [ 0.240093] Initialise system trusted keyrings [ 0.240320] workingset: timestamp_bits=14 max_order=18 bucket_order=4 [ 0.250594] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.251453] FS-Cache: Netfs 'nfs' registered for caching [ 0.252075] NFS: Registering the id_resolver key type [ 0.252116] Key type id_resolver registered [ 0.252126] Key type id_legacy registered [ 0.252146] nfs4filelayout_init: NFSv4 File Layout Driver Registering... [ 0.252633] FS-Cache: Netfs 'cifs' registered for caching [ 0.260809] Key type asymmetric registered [ 0.260824] Asymmetric key parser 'x509' registered [ 0.260897] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251) [ 0.260910] io scheduler noop registered (default) [ 0.260921] io scheduler deadline registered [ 0.261116] io scheduler cfq registered [ 0.261127] io scheduler mq-deadline registered [ 0.261138] io scheduler kyber registered [ 0.261308] io scheduler bfq registered [ 0.266120] bcm2708_fb soc:fb: FB found 1 display(s) [ 0.317087] Console: switching to colour frame buffer device 228x61 [ 0.347726] bcm2708_fb soc:fb: Registered framebuffer for display 0, size 1824x984 [ 0.350353] bcm2835-rng 3f104000.rng: hwrng registered [ 0.350796] vc-mem: phys_addr:0x00000000 mem_base=0x3ec00000 mem_size:0x40000000(1024 MiB) [ 0.351463] vc-sm: Videocore shared memory driver [ 0.364358] brd: module loaded [ 0.364513] loop: module loaded [ 0.387440] usbcore: registered new interface driver rtsx_usb [ 0.388294] Loading iSCSI transport class v2.0-870. [ 0.388809] iscsi: registered transport (tcp) [ 0.389301] libphy: Fixed MDIO Bus: probed [ 0.389345] tun: Universal TUN/TAP device driver, 1.6 [ 0.389660] usbcore: registered new interface driver lan78xx [ 0.389719] usbcore: registered new interface driver dm9601 [ 0.389794] usbcore: registered new interface driver smsc95xx [ 0.389840] dwc_otg: version 3.00a 10-AUG-2012 (platform bus) [ 0.417815] dwc_otg 3f980000.usb: base=(ptrval) [ 0.618142] Core Release: 2.80a [ 0.618155] Setting default values for core params [ 0.618187] Finished setting default values for core params [ 0.818574] Using Buffer DMA mode [ 0.818585] Periodic Transfer Interrupt Enhancement - disabled [ 0.818595] Multiprocessor Interrupt Enhancement - disabled [ 0.818606] OTG VER PARAM: 0, OTG VER FLAG: 0 [ 0.818631] Dedicated Tx FIFOs mode [ 0.819160] WARN::dwc_otg_hcd_init:1074: FIQ DMA bounce buffers: virt = af904000 dma = 0xef904000 len=9024 [ 0.819193] FIQ FSM acceleration enabled for : [ 0.819193] Non-periodic Split Transactions [ 0.819193] Periodic Split Transactions [ 0.819193] High-Speed Isochronous Endpoints [ 0.819193] Interrupt/Control Split Transaction hack enabled [ 0.819205] dwc_otg: Microframe scheduler enabled [ 0.819274] WARN::hcd_init_fiq:457: FIQ on core 1 [ 0.819283] WARN::hcd_init_fiq:458: FIQ ASM at 80730bb4 length 36 [ 0.819296] WARN::hcd_init_fiq:497: MPHI regs_base at b0810000 [ 0.819316] dwc_otg 3f980000.usb: DWC OTG Controller [ 0.819354] dwc_otg 3f980000.usb: new USB bus registered, assigned bus number 1 [ 0.819400] dwc_otg 3f980000.usb: irq 56, io mem 0x00000000 [ 0.819453] Init: Port Power? op_state=1 [ 0.819462] Init: Power Port (0) [ 0.819853] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 4.19 [ 0.819868] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 0.819883] usb usb1: Product: DWC OTG Controller [ 0.819896] usb usb1: Manufacturer: Linux 4.19.127 dwc_otg_hcd [ 0.819909] usb usb1: SerialNumber: 3f980000.usb [ 0.820603] hub 1-0:1.0: USB hub found [ 0.820682] hub 1-0:1.0: 1 port detected [ 0.821425] dwc_otg: FIQ enabled [ 0.821434] dwc_otg: NAK holdoff enabled [ 0.821444] dwc_otg: FIQ split-transaction FSM enabled [ 0.821458] Module dwc_common_port init [ 0.821785] usbcore: registered new interface driver usb-storage [ 0.821994] mousedev: PS/2 mouse device common for all mice [ 0.822437] i2c /dev entries driver [ 0.824357] bcm2835-wdt bcm2835-wdt: Broadcom BCM2835 watchdog timer [ 0.824634] bcm2835-cpufreq: min=600000 max=1200000 [ 0.825329] sdhci: Secure Digital Host Controller Interface driver [ 0.825338] sdhci: Copyright(c) Pierre Ossman [ 0.825861] mmc-bcm2835 3f300000.mmcnr: could not get clk, deferring probe [ 0.826588] sdhost-bcm2835 3f202000.mmc: could not get clk, deferring probe [ 0.826789] sdhci-pltfm: SDHCI platform and OF driver helper [ 0.828994] ledtrig-cpu: registered to indicate activity on CPUs [ 0.829108] hidraw: raw HID events driver (C) Jiri Kosina [ 0.830639] usbcore: registered new interface driver usbhid [ 0.830644] usbhid: USB HID core driver [ 0.831212] vchiq: vchiq_init_state: slot_zero = (ptrval), is_master = 0 [ 0.832433] [vc_sm_connected_init]: start [ 0.840289] [vc_sm_connected_init]: end - returning 0 [ 0.842503] NET: Registered protocol family 10 [ 0.843729] Segment Routing with IPv6 [ 0.843819] NET: Registered protocol family 17 [ 0.843965] Key type dns_resolver registered [ 0.844374] Registering SWP/SWPB emulation handler [ 0.845113] Loading compiled-in X.509 certificates [ 0.853636] uart-pl011 3f201000.serial: cts_event_workaround enabled [ 0.853735] 3f201000.serial: ttyAMA0 at MMIO 0x3f201000 (irq = 81, base_baud = 0) is a PL011 rev2 [ 0.856486] mmc-bcm2835 3f300000.mmcnr: mmc_debug:0 mmc_debug2:0 [ 0.856502] mmc-bcm2835 3f300000.mmcnr: DMA channel allocated [ 0.883121] sdhost: log_buf @ (ptrval) (ef907000) [ 0.922694] mmc1: queuing unknown CIS tuple 0x80 (2 bytes) [ 0.924460] mmc1: queuing unknown CIS tuple 0x80 (3 bytes) [ 0.926114] mmc1: queuing unknown CIS tuple 0x80 (3 bytes) [ 0.929088] mmc1: queuing unknown CIS tuple 0x80 (7 bytes) [ 0.930993] mmc0: sdhost-bcm2835 loaded - DMA enabled (>1) [ 0.932811] console [netcon0] enabled [ 0.932820] netconsole: network logging started [ 0.932831] of_cfs_init [ 0.932858] of_cfs_init: OK [ 0.949085] Freeing unused kernel memory: 5120K [ 0.960916] Run /init as init process [ 0.997962] mmc0: host does not support reading read-only switch, assuming write-enable [ 1.000643] mmc0: new high speed SDHC card at address 0007 [ 1.001736] mmcblk0: mmc0:0007 SL16G 14.5 GiB [ 1.003917] mmcblk0: p1 p2 [ 1.008121] random: fast init done [ 1.026378] Indeed it is in host mode hprt0 = 00021501 [ 1.046161] Checking disk(s): /dev/mmcblk0p1 /dev/mmcblk0p2 [ 1.112551] mmc1: new high speed SDIO card at address 0001 [ 1.209673] usb 1-1: new high-speed USB device number 2 using dwc_otg [ 1.209785] Indeed it is in host mode hprt0 = 00001101 [ 1.261567] fsck: CP437: Invalid argument [ 1.261704] fsck: fsck.fat 4.1 (2017-01-24) [ 1.261886] fsck: /dev/mmcblk0p1: 227 files, 18005/65501 clusters [ 1.262110] fsck: /dev/mmcblk0p2: clean, 59405/3659776 files, 3260150/14632960 blocks [ 1.413286] usb 1-1: New USB device found, idVendor=0424, idProduct=9514, bcdDevice= 2.00 [ 1.413300] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 1.413805] hub 1-1:1.0: USB hub found [ 1.413867] hub 1-1:1.0: 5 ports detected [ 1.600510] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null) [ 1.693009] usb 1-1.1: new high-speed USB device number 3 using dwc_otg [ 1.786566] usb 1-1.1: New USB device found, idVendor=0424, idProduct=ec00, bcdDevice= 2.00 [ 1.786580] usb 1-1.1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 1.789568] smsc95xx v1.0.6 [ 1.842545] smsc95xx 1-1.1:1.0 eth0: register 'smsc95xx' at usb-3f980000.usb-1.1, smsc95xx USB 2.0 Ethernet, b8:27:eb:2a:77:50 [ 2.115001] systemd[1]: System time before build time, advancing clock. [ 2.124322] systemd[1]: systemd 242 running in system mode. (-PAM -AUDIT -SELINUX -IMA -APPARMOR -SMACK +SYSVINIT -UTMP -LIBCRYPTSETUP -GCRYPT -GNUTLS -ACL -XZ -LZ4 -SECCOMP +BLKID -ELFUTILS +KMOD +IDN2 -IDN -PCRE2 default-hierarchy=hybrid) [ 2.124821] systemd[1]: Detected architecture arm. [ 2.128685] systemd[1]: Set hostname to <LibreELEC>. [ 2.130798] systemd[1]: Failed to bump fs.file-max, ignoring: Invalid argument [ 2.336261] random: systemd: uninitialized urandom read (16 bytes read) [ 2.336910] systemd[1]: Listening on Journal Socket (/dev/log). [ 2.337256] random: systemd: uninitialized urandom read (16 bytes read) [ 2.337426] systemd[1]: Started Forward Password Requests to Wall Directory Watch. [ 2.337477] random: systemd: uninitialized urandom read (16 bytes read) [ 2.339582] systemd[1]: Created slice User and Session Slice. [ 2.339664] usb 1-1.3: new high-speed USB device number 4 using dwc_otg [ 2.339954] systemd[1]: Listening on initctl Compatibility Named Pipe. [ 2.355150] systemd[1]: Listening on RPCbind Server Activation Socket. [ 2.355320] systemd[1]: Reached target RPC Port Mapper. [ 2.430387] usb 1-1.3: New USB device found, idVendor=2537, idProduct=1066, bcdDevice= 1.00 [ 2.430398] usb 1-1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3 [ 2.430405] usb 1-1.3: Product: NS1066X [ 2.430412] usb 1-1.3: Manufacturer: AUKEY [ 2.430418] usb 1-1.3: SerialNumber: 0123456789ABCDE [ 2.431030] usb-storage 1-1.3:1.0: USB Mass Storage device detected [ 2.431756] scsi host0: usb-storage 1-1.3:1.0 [ 2.561588] kernel-overlays-setup: setup base modules [ 2.628314] kernel-overlays-setup: added modules from /usr/lib/kernel-overlays/base/lib/modules/4.19.127 [ 2.668883] kernel-overlays-setup: added firmware from /usr/lib/kernel-overlays/base/lib/firmware [ 2.669084] kernel-overlays-setup: adding overlays from /storage/.cache/kernel-overlays [ 2.670333] kernel-overlays-setup: done [ 2.853847] systemd-journald[205]: Received request to flush runtime journal from PID 1 [ 2.877196] wireguard: WireGuard 1.0.20200908 loaded. See www.wireguard.com for information. [ 2.877207] wireguard: Copyright (C) 2015-2019 Jason A. Donenfeld <[email protected]>. All Rights Reserved. [ 3.609659] random: crng init done [ 3.609669] random: 7 urandom warning(s) missed due to ratelimiting [ 4.625884] Console: switching to colour dummy device 80x30 [ 4.880612] gpiomem-bcm2835 3f200000.gpiomem: Initialised: Registers at 0x3f200000 [ 5.153371] cfg80211: Loading compiled-in X.509 certificates for regulatory database [ 5.163847] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7' [ 5.408547] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43430-sdio for chip BCM43430/1 [ 5.408732] usbcore: registered new interface driver brcmfmac [ 5.586882] scsi 0:0:0:0: Direct-Access ATA WDC WD6400BEVT-8 1A01 PQ: 0 ANSI: 6 [ 5.597650] sd 0:0:0:0: [sda] 1250263728 512-byte logical blocks: (640 GB/596 GiB) [ 5.599148] sd 0:0:0:0: [sda] Write Protect is off [ 5.599163] sd 0:0:0:0: [sda] Mode Sense: 43 00 00 00 [ 5.599554] sd 0:0:0:0: [sda] Write cache: disabled, read cache: enabled, doesn't support DPO or FUA [ 5.622077] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43430-sdio for chip BCM43430/1 [ 5.622188] brcmfmac: brcmf_c_process_clm_blob: no clm_blob available (err=-2), device may have limited channels available [ 5.622913] brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM43430/1 wl0: Oct 23 2017 03:55:53 version 7.45.98.38 (r674442 CY) FWID 01-e58d219f [ 5.754737] uart-pl011 3f201000.serial: no DMA platform data [ 5.769049] smsc95xx 1-1.1:1.0 eth0: hardware isn't capable of remote wakeup [ 5.769350] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready [ 5.837213] sda: sda1 [ 5.841548] sd 0:0:0:0: [sda] Attached SCSI disk [ 6.634505] fuse init (API version 7.27) [ 7.284418] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready [ 7.285959] smsc95xx 1-1.1:1.0 eth0: link up, 100Mbps, full-duplex, lpa 0xDDE1 [ 7.303914] 8021q: 802.1Q VLAN Support v1.8 [ 10.436910] Bluetooth: Core ver 2.22 [ 10.436999] NET: Registered protocol family 31 [ 10.437004] Bluetooth: HCI device and connection manager initialized [ 10.437023] Bluetooth: HCI socket layer initialized [ 10.437033] Bluetooth: L2CAP socket layer initialized [ 10.437063] Bluetooth: SCO socket layer initialized [ 10.455014] Bluetooth: HCI UART driver ver 2.3 [ 10.455028] Bluetooth: HCI UART protocol H4 registered [ 10.455087] Bluetooth: HCI UART protocol Three-wire (H5) registered [ 10.455262] Bluetooth: HCI UART protocol Broadcom registered -
Hi, I use LibreELEC on my Pi as a media center connected to a Samsung TV via HDMI since 2016 (thanks for that!
).Now I want to use Kodi also for DVB-T2 so added a TV Hat and switched the aerial from TV to TV Hat.

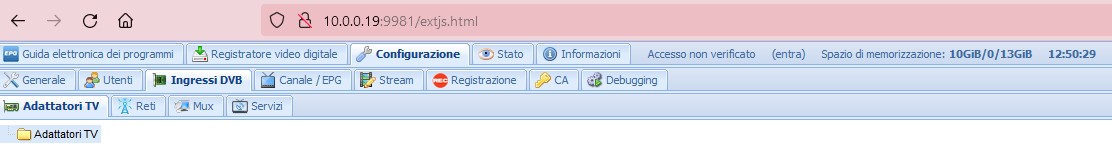

After installing the TVHeadend Server 4.2 add-on, on the Configuration web page, the DVB input tab shows no TV adapter.
dmesg | pastebinit returns http://ix.io/3F8G (copied below).
No Sony driver compares (which should be as learned from this forum) even if the green led on TV Hat is on and the antenna works well when connected to TV (the signal is strong).
Before bothering here, I've also tried with a Raspberry Pi OS brand new installation on another SD card but with the same result
.What am I doing wrong?
Code
Display More[ 0.000000] Booting Linux on physical CPU 0x0 [ 0.000000] Linux version 4.19.127 (jenkins@tsuboi) (gcc version 8.3.0 (GCC)) #1 SMP Tue Jul 6 19:08:28 CEST 2021 [ 0.000000] CPU: ARMv7 Processor [410fd034] revision 4 (ARMv7), cr=10c5383d [ 0.000000] CPU: div instructions available: patching division code [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache [ 0.000000] OF: fdt: Machine model: Raspberry Pi 3 Model B Rev 1.2 [ 0.000000] Memory policy: Data cache writealloc [ 0.000000] cma: Reserved 8 MiB at 0x2f800000 [ 0.000000] On node 0 totalpages: 196608 [ 0.000000] Normal zone: 1728 pages used for memmap [ 0.000000] Normal zone: 0 pages reserved [ 0.000000] Normal zone: 196608 pages, LIFO batch:63 [ 0.000000] random: get_random_bytes called from start_kernel+0xb0/0x4ac with crng_init=0 [ 0.000000] percpu: Embedded 17 pages/cpu s37580 r8192 d23860 u69632 [ 0.000000] pcpu-alloc: s37580 r8192 d23860 u69632 alloc=17*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 194880 [ 0.000000] Kernel command line: coherent_pool=1M 8250.nr_uarts=0 bcm2708_fb.fbwidth=1824 bcm2708_fb.fbheight=984 bcm2708_fb.fbswap=1 vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000 boot=/dev/mmcblk0p1 disk=/dev/mmcblk0p2 quiet root=/dev/ram0 rdinit=/init usbcore.autosuspend=-1 [ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes) [ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes) [ 0.000000] Memory: 752516K/786432K available (9216K kernel code, 697K rwdata, 2012K rodata, 5120K init, 529K bss, 25724K reserved, 8192K cma-reserved) [ 0.000000] Virtual kernel memory layout: [ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB) [ 0.000000] fixmap : 0xffc00000 - 0xfff00000 (3072 kB) [ 0.000000] vmalloc : 0xb0800000 - 0xff800000 (1264 MB) [ 0.000000] lowmem : 0x80000000 - 0xb0000000 ( 768 MB) [ 0.000000] modules : 0x7f000000 - 0x80000000 ( 16 MB) [ 0.000000] .text : 0x(ptrval) - 0x(ptrval) (10208 kB) [ 0.000000] .init : 0x(ptrval) - 0x(ptrval) (5120 kB) [ 0.000000] .data : 0x(ptrval) - 0x(ptrval) ( 698 kB) [ 0.000000] .bss : 0x(ptrval) - 0x(ptrval) ( 530 kB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] ftrace: allocating 30004 entries in 88 pages [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 [ 0.000000] arch_timer: cp15 timer(s) running at 19.20MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x46d987e47, max_idle_ns: 440795202767 ns [ 0.000007] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 4398046511078ns [ 0.000018] Switching to timer-based delay loop, resolution 52ns [ 0.000273] Console: colour dummy device 80x30 [ 0.000298] console [tty0] enabled [ 0.000348] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.00 BogoMIPS (lpj=64000) [ 0.000368] pid_max: default: 32768 minimum: 301 [ 0.000627] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.000647] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.001581] CPU: Testing write buffer coherency: ok [ 0.002125] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000 [ 0.002940] Setting up static identity map for 0x100000 - 0x10003c [ 0.003123] rcu: Hierarchical SRCU implementation. [ 0.005889] smp: Bringing up secondary CPUs ... [ 0.006967] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001 [ 0.008078] CPU2: thread -1, cpu 2, socket 0, mpidr 80000002 [ 0.009120] CPU3: thread -1, cpu 3, socket 0, mpidr 80000003 [ 0.009263] smp: Brought up 1 node, 4 CPUs [ 0.009278] SMP: Total of 4 processors activated (153.00 BogoMIPS). [ 0.009288] CPU: All CPU(s) started in HYP mode. [ 0.009297] CPU: Virtualization extensions available. [ 0.010270] devtmpfs: initialized [ 0.025332] VFP support v0.3: implementor 41 architecture 3 part 40 variant 3 rev 4 [ 0.025608] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns [ 0.025632] futex hash table entries: 1024 (order: 4, 65536 bytes) [ 0.026263] pinctrl core: initialized pinctrl subsystem [ 0.027288] NET: Registered protocol family 16 [ 0.031401] DMA: preallocated 1024 KiB pool for atomic coherent allocations [ 0.036630] cpuidle: using governor ladder [ 0.036675] cpuidle: using governor menu [ 0.037305] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. [ 0.037316] hw-breakpoint: maximum watchpoint size is 8 bytes. [ 0.037545] Serial: AMBA PL011 UART driver [ 0.041590] bcm2835-mbox 3f00b880.mailbox: mailbox enabled [ 0.050207] raspberrypi-firmware soc:firmware: Attached to firmware from 2020-04-15 11:44, variant start_x [ 0.053553] raspberrypi-firmware soc:firmware: Firmware hash is 82f9bb929ce2186eb1824178c1ae82902ad6275c [ 0.095432] bcm2835-dma 3f007000.dma: DMA legacy API manager at (ptrval), dmachans=0x1 [ 0.097487] SCSI subsystem initialized [ 0.097724] usbcore: registered new interface driver usbfs [ 0.097786] usbcore: registered new interface driver hub [ 0.097908] usbcore: registered new device driver usb [ 0.099616] clocksource: Switched to clocksource arch_sys_counter [ 0.202956] FS-Cache: Loaded [ 0.214119] NET: Registered protocol family 2 [ 0.214950] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes) [ 0.214993] TCP established hash table entries: 8192 (order: 3, 32768 bytes) [ 0.215108] TCP bind hash table entries: 8192 (order: 4, 65536 bytes) [ 0.215298] TCP: Hash tables configured (established 8192 bind 8192) [ 0.215453] UDP hash table entries: 512 (order: 2, 16384 bytes) [ 0.215504] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes) [ 0.215771] NET: Registered protocol family 1 [ 0.216526] RPC: Registered named UNIX socket transport module. [ 0.216536] RPC: Registered udp transport module. [ 0.216545] RPC: Registered tcp transport module. [ 0.216555] RPC: Registered tcp NFSv4.1 backchannel transport module. [ 0.237637] hw perfevents: enabled with armv7_cortex_a7 PMU driver, 7 counters available [ 0.240417] Initialise system trusted keyrings [ 0.240633] workingset: timestamp_bits=14 max_order=18 bucket_order=4 [ 0.250841] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.251699] FS-Cache: Netfs 'nfs' registered for caching [ 0.252340] NFS: Registering the id_resolver key type [ 0.252387] Key type id_resolver registered [ 0.252397] Key type id_legacy registered [ 0.252417] nfs4filelayout_init: NFSv4 File Layout Driver Registering... [ 0.252926] FS-Cache: Netfs 'cifs' registered for caching [ 0.261388] Key type asymmetric registered [ 0.261403] Asymmetric key parser 'x509' registered [ 0.261476] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251) [ 0.261489] io scheduler noop registered (default) [ 0.261500] io scheduler deadline registered [ 0.261690] io scheduler cfq registered [ 0.261702] io scheduler mq-deadline registered [ 0.261712] io scheduler kyber registered [ 0.261884] io scheduler bfq registered [ 0.266803] bcm2708_fb soc:fb: FB found 1 display(s) [ 0.317940] Console: switching to colour frame buffer device 228x61 [ 0.348643] bcm2708_fb soc:fb: Registered framebuffer for display 0, size 1824x984 [ 0.351268] bcm2835-rng 3f104000.rng: hwrng registered [ 0.351711] vc-mem: phys_addr:0x00000000 mem_base=0x3ec00000 mem_size:0x40000000(1024 MiB) [ 0.352361] vc-sm: Videocore shared memory driver [ 0.365248] brd: module loaded [ 0.365403] loop: module loaded [ 0.388247] usbcore: registered new interface driver rtsx_usb [ 0.389091] Loading iSCSI transport class v2.0-870. [ 0.389644] iscsi: registered transport (tcp) [ 0.390142] libphy: Fixed MDIO Bus: probed [ 0.390187] tun: Universal TUN/TAP device driver, 1.6 [ 0.390464] usbcore: registered new interface driver lan78xx [ 0.390521] usbcore: registered new interface driver dm9601 [ 0.390595] usbcore: registered new interface driver smsc95xx [ 0.390644] dwc_otg: version 3.00a 10-AUG-2012 (platform bus) [ 0.418606] dwc_otg 3f980000.usb: base=(ptrval) [ 0.618913] Core Release: 2.80a [ 0.618926] Setting default values for core params [ 0.618958] Finished setting default values for core params [ 0.819350] Using Buffer DMA mode [ 0.819362] Periodic Transfer Interrupt Enhancement - disabled [ 0.819371] Multiprocessor Interrupt Enhancement - disabled [ 0.819382] OTG VER PARAM: 0, OTG VER FLAG: 0 [ 0.819407] Dedicated Tx FIFOs mode [ 0.819952] WARN::dwc_otg_hcd_init:1074: FIQ DMA bounce buffers: virt = af904000 dma = 0xef904000 len=9024 [ 0.819981] FIQ FSM acceleration enabled for : [ 0.819981] Non-periodic Split Transactions [ 0.819981] Periodic Split Transactions [ 0.819981] High-Speed Isochronous Endpoints [ 0.819981] Interrupt/Control Split Transaction hack enabled [ 0.819992] dwc_otg: Microframe scheduler enabled [ 0.820059] WARN::hcd_init_fiq:457: FIQ on core 1 [ 0.820069] WARN::hcd_init_fiq:458: FIQ ASM at 80730bb4 length 36 [ 0.820080] WARN::hcd_init_fiq:497: MPHI regs_base at b0810000 [ 0.820096] dwc_otg 3f980000.usb: DWC OTG Controller [ 0.820134] dwc_otg 3f980000.usb: new USB bus registered, assigned bus number 1 [ 0.820178] dwc_otg 3f980000.usb: irq 56, io mem 0x00000000 [ 0.820229] Init: Port Power? op_state=1 [ 0.820238] Init: Power Port (0) [ 0.820587] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 4.19 [ 0.820602] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 0.820615] usb usb1: Product: DWC OTG Controller [ 0.820628] usb usb1: Manufacturer: Linux 4.19.127 dwc_otg_hcd [ 0.820641] usb usb1: SerialNumber: 3f980000.usb [ 0.821306] hub 1-0:1.0: USB hub found [ 0.821380] hub 1-0:1.0: 1 port detected [ 0.822105] dwc_otg: FIQ enabled [ 0.822115] dwc_otg: NAK holdoff enabled [ 0.822124] dwc_otg: FIQ split-transaction FSM enabled [ 0.822138] Module dwc_common_port init [ 0.822446] usbcore: registered new interface driver usb-storage [ 0.822657] mousedev: PS/2 mouse device common for all mice [ 0.823141] i2c /dev entries driver [ 0.825012] bcm2835-wdt bcm2835-wdt: Broadcom BCM2835 watchdog timer [ 0.825277] bcm2835-cpufreq: min=600000 max=1200000 [ 0.825986] sdhci: Secure Digital Host Controller Interface driver [ 0.825995] sdhci: Copyright(c) Pierre Ossman [ 0.826665] mmc-bcm2835 3f300000.mmcnr: could not get clk, deferring probe [ 0.827288] sdhost-bcm2835 3f202000.mmc: could not get clk, deferring probe [ 0.827487] sdhci-pltfm: SDHCI platform and OF driver helper [ 0.828980] ledtrig-cpu: registered to indicate activity on CPUs [ 0.829097] hidraw: raw HID events driver (C) Jiri Kosina [ 0.830635] usbcore: registered new interface driver usbhid [ 0.830640] usbhid: USB HID core driver [ 0.831204] vchiq: vchiq_init_state: slot_zero = (ptrval), is_master = 0 [ 0.832428] [vc_sm_connected_init]: start [ 0.840015] [vc_sm_connected_init]: end - returning 0 [ 0.842257] NET: Registered protocol family 10 [ 0.843534] Segment Routing with IPv6 [ 0.843623] NET: Registered protocol family 17 [ 0.843769] Key type dns_resolver registered [ 0.844178] Registering SWP/SWPB emulation handler [ 0.844919] Loading compiled-in X.509 certificates [ 0.853383] uart-pl011 3f201000.serial: cts_event_workaround enabled [ 0.853471] 3f201000.serial: ttyAMA0 at MMIO 0x3f201000 (irq = 81, base_baud = 0) is a PL011 rev2 [ 0.856106] mmc-bcm2835 3f300000.mmcnr: mmc_debug:0 mmc_debug2:0 [ 0.856121] mmc-bcm2835 3f300000.mmcnr: DMA channel allocated [ 0.882695] sdhost: log_buf @ (ptrval) (ef907000) [ 0.920154] mmc1: queuing unknown CIS tuple 0x80 (2 bytes) [ 0.921787] mmc1: queuing unknown CIS tuple 0x80 (3 bytes) [ 0.923456] mmc1: queuing unknown CIS tuple 0x80 (3 bytes) [ 0.926421] mmc1: queuing unknown CIS tuple 0x80 (7 bytes) [ 0.930522] mmc0: sdhost-bcm2835 loaded - DMA enabled (>1) [ 0.932298] console [netcon0] enabled [ 0.932308] netconsole: network logging started [ 0.932318] of_cfs_init [ 0.932343] of_cfs_init: OK [ 0.948791] Freeing unused kernel memory: 5120K [ 0.969327] Run /init as init process [ 1.006328] mmc0: host does not support reading read-only switch, assuming write-enable [ 1.009005] mmc0: new high speed SDHC card at address 0007 [ 1.010181] mmcblk0: mmc0:0007 SL16G 14.5 GiB [ 1.012291] mmcblk0: p1 p2 [ 1.015493] random: fast init done [ 1.026414] Indeed it is in host mode hprt0 = 00021501 [ 1.052110] Checking disk(s): /dev/mmcblk0p1 /dev/mmcblk0p2 [ 1.119131] mmc1: new high speed SDIO card at address 0001 [ 1.209667] usb 1-1: new high-speed USB device number 2 using dwc_otg [ 1.209784] Indeed it is in host mode hprt0 = 00001101 [ 1.409824] usb 1-1: New USB device found, idVendor=0424, idProduct=9514, bcdDevice= 2.00 [ 1.409834] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 1.410264] hub 1-1:1.0: USB hub found [ 1.410324] hub 1-1:1.0: 5 ports detected [ 1.689629] usb 1-1.1: new high-speed USB device number 3 using dwc_otg [ 1.779786] usb 1-1.1: New USB device found, idVendor=0424, idProduct=ec00, bcdDevice= 2.00 [ 1.779794] usb 1-1.1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 1.782148] smsc95xx v1.0.6 [ 1.832021] smsc95xx 1-1.1:1.0 eth0: register 'smsc95xx' at usb-3f980000.usb-1.1, smsc95xx USB 2.0 Ethernet, b8:27:eb:2a:77:50 [ 2.336296] usb 1-1.3: new high-speed USB device number 4 using dwc_otg [ 2.426838] usb 1-1.3: New USB device found, idVendor=2537, idProduct=1066, bcdDevice= 1.00 [ 2.426846] usb 1-1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3 [ 2.426853] usb 1-1.3: Product: NS1066X [ 2.426859] usb 1-1.3: Manufacturer: AUKEY [ 2.426865] usb 1-1.3: SerialNumber: 0123456789ABCDE [ 2.427275] usb-storage 1-1.3:1.0: USB Mass Storage device detected [ 2.427841] scsi host0: usb-storage 1-1.3:1.0 [ 4.077042] fsck: CP437: Invalid argument [ 4.077178] fsck: fsck.fat 4.1 (2017-01-24) [ 4.077354] fsck: /dev/mmcblk0p1: 227 files, 18005/65501 clusters [ 4.077574] fsck: /dev/mmcblk0p2: clean, 59407/3659776 files, 3260098/14632960 blocks [ 4.768955] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null) [ 5.282126] systemd[1]: System time before build time, advancing clock. [ 5.291298] systemd[1]: systemd 242 running in system mode. (-PAM -AUDIT -SELINUX -IMA -APPARMOR -SMACK +SYSVINIT -UTMP -LIBCRYPTSETUP -GCRYPT -GNUTLS -ACL -XZ -LZ4 -SECCOMP +BLKID -ELFUTILS +KMOD +IDN2 -IDN -PCRE2 default-hierarchy=hybrid) [ 5.291834] systemd[1]: Detected architecture arm. [ 5.295935] systemd[1]: Set hostname to <LibreELEC>. [ 5.298057] systemd[1]: Failed to bump fs.file-max, ignoring: Invalid argument [ 5.503560] random: systemd: uninitialized urandom read (16 bytes read) [ 5.508222] systemd[1]: Starting Show Version... [ 5.508581] random: systemd: uninitialized urandom read (16 bytes read) [ 5.509172] systemd[1]: Listening on udev Control Socket. [ 5.509333] random: systemd: uninitialized urandom read (16 bytes read) [ 5.524600] systemd[1]: Listening on RPCbind Server Activation Socket. [ 5.525070] systemd[1]: Started Forward Password Requests to Wall Directory Watch. [ 5.525767] systemd[1]: Listening on Journal Socket (/dev/log). [ 5.526823] systemd[1]: Created slice User and Session Slice. [ 5.586862] scsi 0:0:0:0: Direct-Access ATA WDC WD6400BEVT-8 1A01 PQ: 0 ANSI: 6 [ 5.587713] sd 0:0:0:0: [sda] 1250263728 512-byte logical blocks: (640 GB/596 GiB) [ 5.587939] sd 0:0:0:0: [sda] Write Protect is off [ 5.587948] sd 0:0:0:0: [sda] Mode Sense: 43 00 00 00 [ 5.588163] sd 0:0:0:0: [sda] Write cache: disabled, read cache: enabled, doesn't support DPO or FUA [ 5.716893] kernel-overlays-setup: setup base modules [ 5.782170] kernel-overlays-setup: added modules from /usr/lib/kernel-overlays/base/lib/modules/4.19.127 [ 5.819926] sda: sda1 [ 5.821194] sd 0:0:0:0: [sda] Attached SCSI disk [ 5.822090] kernel-overlays-setup: added firmware from /usr/lib/kernel-overlays/base/lib/firmware [ 5.822287] kernel-overlays-setup: adding overlays from /storage/.cache/kernel-overlays [ 5.823491] kernel-overlays-setup: processing conf /storage/.cache/kernel-overlays/50-driver.dvb.dvb-latest.conf [ 5.902555] kernel-overlays-setup: added modules from /usr/lib/kernel-overlays/driver.dvb.dvb-latest/lib/modules/4.19.127 [ 5.902690] kernel-overlays-setup: running depmod [ 8.769247] kernel-overlays-setup: done [ 8.804634] wireguard: WireGuard 1.0.20200908 loaded. See www.wireguard.com for information. [ 8.804643] wireguard: Copyright (C) 2015-2019 Jason A. Donenfeld <[email protected]>. All Rights Reserved. [ 8.957051] systemd-journald[212]: Received request to flush runtime journal from PID 1 [ 10.370849] random: crng init done [ 10.370860] random: 7 urandom warning(s) missed due to ratelimiting [ 13.091243] Console: switching to colour dummy device 80x30 [ 13.818013] fuse init (API version 7.27) [ 13.841739] smsc95xx 1-1.1:1.0 eth0: hardware isn't capable of remote wakeup [ 13.848689] 8021q: 802.1Q VLAN Support v1.8 [ 14.698123] gpiomem-bcm2835 3f200000.gpiomem: Initialised: Registers at 0x3f200000 [ 14.747985] cfg80211: Loading compiled-in X.509 certificates for regulatory database [ 14.760096] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7' [ 14.778404] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43430-sdio for chip BCM43430/1 [ 14.778649] usbcore: registered new interface driver brcmfmac [ 15.334227] smsc95xx 1-1.1:1.0 eth0: link up, 100Mbps, full-duplex, lpa 0xDDE1 [ 18.158665] uart-pl011 3f201000.serial: no DMA platform data [ 18.306015] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43430-sdio for chip BCM43430/1 [ 18.306161] brcmfmac: brcmf_c_process_clm_blob: no clm_blob available (err=-2), device may have limited channels available [ 18.307003] brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM43430/1 wl0: Oct 23 2017 03:55:53 version 7.45.98.38 (r674442 CY) FWID 01-e58d219f [ 22.816777] Bluetooth: Core ver 2.22 [ 22.816874] NET: Registered protocol family 31 [ 22.816880] Bluetooth: HCI device and connection manager initialized [ 22.816964] Bluetooth: HCI socket layer initialized [ 22.816977] Bluetooth: L2CAP socket layer initialized [ 22.817049] Bluetooth: SCO socket layer initialized [ 22.821882] Bluetooth: HCI UART driver ver 2.3 [ 22.821905] Bluetooth: HCI UART protocol H4 registered [ 22.822006] Bluetooth: HCI UART protocol Three-wire (H5) registered [ 22.822285] Bluetooth: HCI UART protocol Broadcom registered
