okay ... double negative ... I got that wrong ... Sorry
Anyway I changed the settings in syslinux.cfg. Let's give it a try.
For some other reasons I changed LE settings to wait 10sec for network ... After I did that changed the "BUG: soft lockup - CPU#0 stuck for 22s!" never appear again ... until now ... hope and wait ...
Many thanks !!
hi mglae,
i will give it a try ... but how can i make changes to /flash/syslinux.cfg ... for me it seems to read only ...
Anyway, I enabled persistent logging again (also did before, but I not found the "BUG: soft lockup - CPU#0 stuck for 22s!" in logs). Maybe i searched in the wrong logs ...
second ... I don't understand what you mean with "by not using the SATA interface" ... I only got the error message when it try to boot LE from a SATA boot device. I never get the the error when I try to boot LE from a USB boot device.
Thanks
Thanks for the reply ...
As you can see from the starting post, the issues is not related to a macmini3,1 only ...
I already enabled "debug" mode and check the logs, but it looks like the issue occurs before the looks will be written, or I'm doing something wrong ??
no comments ?? no suggestions ??
Hi all,
I recognized that the issue not appears when I boot the harddrive connected via USB and not via internal SATA bus.
So ...
Connect and boot HDD via internal SATA directly -> "BUG: soft lockup - CPU#0 stuck for 22s!" issue
No internal HDD and connect and boot via external USB HDD -> NO "BUG: soft lockup - CPU#0 stuck for 22s!" issue
Same SATA HDD ... I test with different installations and different HDD/SSD. All the same result.
Cheers
Sorry to report that the issue is not fixed in 10.0.1.
I used LibreELEC on a macmini3,1 and i have the same issue to report.
Version 9.2.6 is running without "BUG: soft lockup - CPU#0 stuck for 22s!" issue, but everything above will causes the "BUG: soft lockup - CPU#0 stuck for 22s!" error.
'dvb drivers from latest kernel' is disabled on my system. Sometime "BUG: soft lockup - CPU#0 stuck for 22s!" is followed by an Samba deamon failure as well, but even disabling Samba causes the "BUG: soft lockup - CPU#0 stuck for 22s!" error.
I know macmini3,1 is not the best Hardware to run LibreELEC ... but it's fancy
Cheers
Sorry ...
the atvclient solution works well with LE 10 too ...
Don't know what went wrong in the previous testing
and is this another bug/misconfiguration:
rsync: link_stat "/Synology3_1" (in Synology3_Backup) failed: No such file or directory (2)
no, this one is valid ... at that time the sync folder didn't exists and the process would create the directory in the next step ...
but failing because of access conditions ...
Many thanks to everybody for the support and helping to solve the issue !!
Wow ... thats the solution ...
use chroot = no (in Module section) works !!!
this is my updated rsync.conf ...
list = yes
port = 873
log file = /var/log/log.rsync
timeout = 300
[Synology3_Backup]
comment = Synology3 Video Backup
path = /storage/videos/
max connections = 0
use chroot = no
read only = false
hosts allow = 192.168.66.251
uid = root
gid = root
Okay, I post the rsync logs for two different systems ... one with LE 9.2.6 one with LE 10.0 ...
LE 9.2.6 ...
2021/09/22 09:53:04 [623] rsyncd version 3.1.3 starting, listening on port 873
2021/09/22 09:55:51 [688] connect from Synology3.fritz.box (192.168.66.251)
...
2021/09/22 09:59:42 [719] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:59:42 [719] rsync on Synology3_Backup/Synology3_1 from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:59:42 [719] building file list
2021/09/22 07:59:42 [719] rsync: link_stat "/Synology3_1" (in Synology3_Backup) failed: No such file or directory (2)
2021/09/22 07:59:42 [719] sent 109 bytes received 26 bytes total size 0
2021/09/22 09:59:42 [720] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:59:42 [720] rsync to Synology3_Backup/Synology3_1/ from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:59:42 [720] receiving file list
2021/09/22 07:59:42 [720] sent 28 bytes received 62 bytes total size 0
2021/09/22 07:59:42 [722] rsync to Synology3_Backup/Synology3_1/synobkpinfo.db from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:59:42 [722] receiving file list
2021/09/22 07:59:42 [722] sent 48 bytes received 12415 bytes total size 12288
2021/09/22 09:59:44 [725] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 09:59:44 [724] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 09:59:44 [726] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:59:44 [726] rsync on Synology3_Backup/Synology3_1/synobkpinfo.db from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:59:44 [726] building file list
2021/09/22 07:59:44 [726] sent 77 bytes received 43 bytes total size 12288
2021/09/22 09:59:44 [727] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:59:44 [727] rsync on Synology3_Backup/Synology3_1/ from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:59:44 [727] building file list
2021/09/22 07:59:44 [727] sent 12437 bytes received 97 bytes total size 12288LE 10.0 ...
2021/09/22 09:38:32 [1019] rsyncd version 8.95.002-6436-g4b15caf9 starting, listening on port 873
2021/09/22 09:46:41 [1107] connect from Synology3.fritz.box (192.168.66.251)
...
2021/09/22 09:47:03 [1116] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 09:47:03 [1116] rsync allowed access on module Synology3_Backup from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:03 [1116] rsync on Synology3_Backup/Synology3_1 from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:03 [1116] building file list
2021/09/22 07:47:03 [1116] rsync: [sender] link_stat "/Synology3_1" (in Synology3_Backup) failed: No such file or directory (2)
2021/09/22 07:47:03 [1116] sent 118 bytes received 26 bytes total size 0
2021/09/22 09:47:03 [1117] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 09:47:03 [1117] rsync allowed access on module Synology3_Backup from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:03 [1117] rsync to Synology3_Backup/Synology3_1/ from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:03 [1117] receiving file list
2021/09/22 07:47:04 [1117] sent 28 bytes received 48 bytes total size 0
2021/09/22 09:47:04 [1119] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 09:47:04 [1119] rsync allowed access on module Synology3_Backup from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:04 [1119] rsync to Synology3_Backup/Synology3_1/synobkpinfo.db from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:04 [1119] receiving file list
2021/09/22 07:47:04 [1119] rsync: [receiver] failed to set permissions on "/Synology3_1/.synobkpinfo.db.Di1ntS" (in Synology3_Backup): Operation not supported (95)
2021/09/22 09:47:04 [1121] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 09:47:04 [1121] rsync allowed access on module Synology3_Backup from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:04 [1121] rsync on Synology3_Backup/Synology3_1 from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:04 [1121] building file list
2021/09/22 07:47:04 [1121] sent 73 bytes received 43 bytes total size 0
2021/09/22 09:47:04 [1122] connect from Synology3.fritz.box (192.168.66.251)
2021/09/22 09:47:04 [1122] rsync allowed access on module Synology3_Backup from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:04 [1122] rsync to Synology3_Backup/ from Synology3.fritz.box (192.168.66.251)
2021/09/22 07:47:04 [1122] receiving file list
2021/09/22 07:47:04 [1122] sent 74 bytes received 115 bytes total size 0on LE 9.2.6 and LE 10.0 directory /storage/video/ do have the same file permissions ...
LE 9.2.6:
ShuttleX:~ # ls -la
total 72
drwxr-xr-x 16 root root 4096 May 24 18:23 .
drwxr-xr-x 12 root root 204 Oct 25 2020 ..
drwxr-xr-x 13 root root 4096 May 24 23:44 .cache
drwxr-xr-x 18 root root 4096 Sep 22 09:53 .config
drwxr-xr-x 4 root root 4096 May 24 18:23 .dvdcss
drwx------ 2 root root 4096 May 24 05:34 .fluxbox
drwxr-xr-x 8 root root 4096 Jul 4 22:34 .kodi
drwx------ 2 root root 4096 May 24 05:34 .ssh
drwxr-xr-x 2 root root 4096 May 24 05:34 .update
drwxr-xr-x 2 root root 4096 May 24 05:34 backup
drwx------ 2 root root 16384 May 24 05:29 lost+found
drwxr-xr-x 2 root root 4096 May 24 05:34 music
drwxr-xr-x 2 root root 4096 May 24 05:34 pictures
drwxr-xr-x 2 root root 4096 May 24 05:34 screenshots
drwxr-xr-x 2 root root 4096 May 24 05:34 tvshows
drwxr-xr-x 4 root root 4096 Sep 22 09:59 videosLE 10.0
LibreELEC:~ # ls -la
total 68
drwxr-xr-x 15 root root 4096 Sep 21 14:11 .
drwxr-xr-x 12 root root 204 Aug 10 20:01 ..
drwxr-xr-x 15 root root 4096 Sep 21 14:13 .cache
drwxr-xr-x 18 root root 4096 Sep 22 09:38 .config
drwx------ 2 root root 4096 Sep 21 14:11 .fluxbox
drwxr-xr-x 7 root root 4096 Sep 21 14:11 .kodi
drwx------ 2 root root 4096 Sep 21 14:11 .ssh
drwxr-xr-x 2 root root 4096 Sep 21 14:11 .update
drwxr-xr-x 2 root root 4096 Sep 21 14:11 backup
drwx------ 2 root root 16384 Sep 21 14:10 lost+found
drwxr-xr-x 2 root root 4096 Sep 21 14:11 music
drwxr-xr-x 2 root root 4096 Sep 21 14:11 pictures
drwxr-xr-x 2 root root 4096 Sep 21 14:11 screenshots
drwxr-xr-x 2 root root 4096 Sep 21 14:11 tvshows
drwxr-xr-x 2 root root 4096 Sep 22 09:45 videosI've no idea from that tool running on your NAS.
and couldn't find out what's the differences between the rsync versions are.
Hmm ... I just imagine that I did a test upgrading from LE 9.2.6 to LE 9.95 but before disabling autoupdate for "network tools".
After LE upgrade to LE 9.95 "network tools" (rsync v .104) where marked as "incompatible" !!!
So there must be a change !!!
Okay ... this is my "simple" configuration on the LE systems (I'm using this since OpenELEC 6.0,1 on my ATV1) ... It fits my requirements ...
I have a autostart.sh in /storage/.config/
#!/bin/sh
rsync --config=/storage/.config/rsyncd.conf --daemon
and ... the rsyncd.conf in /storage/.config/
list = yes
port = 873
log file = /var/log/log.rsync
timeout = 300
[Synology3_Backup]
comment = Synology3 Video Backup
path = /storage/videos/
max connections = 0
read only = false
hosts allow = 192.168.66.251
uid = root
gid = root
... so no rocket technology ...
when the rsync server connects to the rsync client "module" (Synology3_Backup) than it creates a directory inside the module to store the files (/storage/videos/Synology3bak ... Synology3bak = name given by me in the setup of the rsync job on Synology NAS) and its "indexdb (synobkpinfo.db)".
have you tried to create the directory and the file "synobkpinfo.db" in it (maybe an old synobkpinfo.db from LE 9.x copied) ?
This is not really possible ... the "synobkpinfo.db" depends on the job on the server ... means they have a kind of validator (or something like that). Rsync job on rsync server and synobkpinfo.db do need to have the same validator. But if you upgrade from LE 9.2.6 to LE 10.0, the rsync module is marked as valid on rsync server (because indexdb and job do have the same identifier) and it is possible to start the rsync job, but failing because of authentication/authorization issues.
But nevertheless I can manually create folders in /storage/videos/ and place a file there ... no issues from any computer (no need to use root/libreelec credentials).
I'm more thinking in the smb (Samba) implementation on LE 10 ... I know that the support for smb1 is discontinued on most systems, but in LE Configuration smb1 is still available, but nevertheless I doubt that there be a change in the smb implementation starting with 9.95 or so (the configuration in LE Configuration for smb in LE 9.2.6 and LE 10 is exactly the same ...
I'm running multiple rsync jobs from Synology NAS, also to different LibreELEC hosts, but only systems with LE 10.0 fail ...
it seems the second picture is uncomplete.
Sorry, no more options. Just the setting to configure the scheduler ...
Dear all,
sure ... ssh is working, system is rebooted, rsync is running, configuration is the same in LE 9.2.6 and LE 10.0 ...
rsync deamon on LE 10.0 is running and its configured/started with rsyncd.conf from /.config.
When the Server (Synology NAS) connects to the client (LE 10.0) I use root/libreelec credentials to connect.
After that I needed to select my rsync module ... and from pop-up windows the right rsync module is shown and i can select the module as well.
In case of rsync issues or in case of connection issues ... The pop-up window would be empty ... So it's working !!!
After selecting the rsync sources for backup I need to save the configuration and I should be able to run the first test.

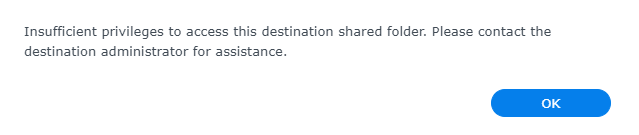

But unfortunately after pressing the save button and error message appears ...
"Insufficient privileges to access this destination shared folder. Please contact the destination administrator for assistance"
This is due the fact that the rsync process will create the destination share and store its rsync notes (synobkpinfo.db) inside.
Again .. all the same in LE 9.2.6 (working) and LE 10.0 (not working).
The issue is reproduceable on any system for me ...
Cheers
Many thanks for the support again !!
After some testing I figured out that the solution is working well, but some of the "feature" keymapping needed to be adapted. Ex. When you watch a movie, fast forward with remote is not working/configured. But I guess some smarter guys will be able to adapt the keymap.xml for more advanced behavior.
Navigation works fine with the mentioned keymaps.
Because of some other reasons, I decided to run LE 9.2 on my macmini3,1 for the moment, and I decided to use the atvclient solution mentioned in the other post as well (works little smarter for me, but I know that this solution is outdated and not supported).
-> Create a new directory /storage/bin
-> Copy the atvclient file to the directory /storage/bin/
-> Copy the atvclient.service file to the directory /storage/.config/system.d/
Run the following two commands to enable the service:
Code
systemctl enable atvclient.service
systemctl start atvclient.serviceFurthermore I recognized that the atvclient solution unfortunately not works with LE 10.0 (just a quick) run.
Cheers
Hi Joe,
thanks for the reply ...
and have you also tested a "first sync run" with LE 10 ?
Yes ... i tested to setup with fresh LE 10 installation and i tested the run with LE 10 upgrade from (running) LE 9.2.6 installation
and could also mean old addon's for LE 9.2 running on LE 10 (?!)
did you also upgrade the addon's for LE 10 ?
No ... in LE 9.2.6 Network-tools are version .104
in LE 10 (both fresh installation) Network-tools .110
in Version 9.5 and 9.7 network tools are not available in official repository
are both boxes pingable ? (LE 10 <=> second box)
sure both boxes are pingable
Again ... LE 9.26 is working without issues ...
LE 10.0 didn't allow the Rsync Server (Synology NAS) to create the rsync folder configured in the "rsync module" in rsync.conf on Rsync Client (LibreELEC).
Dear all,
I use rsync from "network tools" add-on to backup some of my videos from my Synology NAS to a second device.
I'm not 100% sure when i tested this the last time, but after reinstallation of one LE Mediacenter to v10 i recognized that I got some "unauthorized privilege" when i try to safe the rsync configuration on my NAS.
To make a deeper Test, i installed LE 9.2 from scratch on the same server and try to configure rsync on my NAS again. The rsync.conf on my LE is always the same.
With LE 9.2 i was able to setup rsync without any issue ... Also the the first "sync run" was successful. So far so good ... next i updated my box to LE 10.0 again ... means same configuration ...
Next I test if i'm able to run the same rsync job again ... but again ... logfiles reports some authentication issues ...
What have changed on the network integration in LE 10 or is there a change in the rsync bin from "network tools".
The values in LE/services for network setting is still untouched and the same than in 9.2 ...
So ....
Rsync in LE 9.2 is working (and I doubt 9.5 as well)
RSync in LE 10.0 is not working (both fresh installation and upgrade from working LE 9.2 installation)
Solutions are appreciated
finally I managed, based on the other description, to setup the Apple Remote (silver and white).
Summary ... LIRC is not required, System Tools not required, atvclient not available beginning from Libreelec 9.2, Apple Remote is supported since LE 9.2 out of the Box, but keymapping is different and needed to be adapted.
The solution is quite simple (but some documentations confusing a lot ...).
Just place a customized keymap.xml in ... .kodi/userdata/keymaps/ ... is required.
I used the recommended settings, and it works best for me with all versions above LE 9.2
<keymap>
<global>
<keyboard>
<browser_back>Left</browser_back>
<browser_forward>Right</browser_forward>
<volume_up>Up</volume_up>
<volume_down>Down</volume_down>
<key id="61952">Back</key>
</keyboard>
</global>
<Visualisation>
<keyboard>
<volume_up>VolumeUp</volume_up>
<volume_down>VolumeDown</volume_down>
</keyboard>
</Visualisation>
<FullscreenVideo>
<keyboard>
<volume_up>VolumeUp</volume_up>
<volume_down>VolumeDown</volume_down>
</keyboard>
</FullscreenVideo>
</keymap>Many thanks for the great support !!!
Cheers
