I was looking for adding permissions but im unsure where to look at.

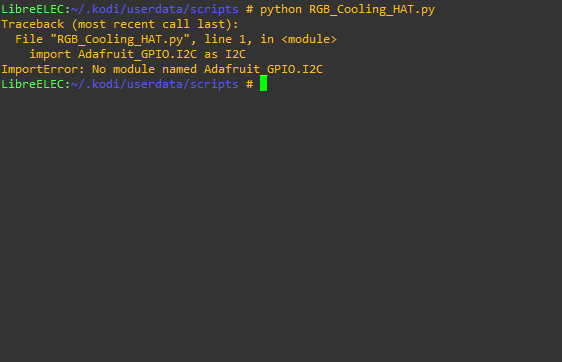

import Adafruit_GPIO.I2C as I2C
import time
import os
import smbus
bus = smbus.SMBus(1)
import Adafruit_SSD1306
from PIL import Image
from PIL import ImageDraw
from PIL import ImageFont
import subprocess
hat_addr = 0x0d
rgb_effect_reg = 0x04
fan_reg = 0x08
fan_state = 2
count = 0
# Raspberry Pi pin configuration:
RST = None # on the PiOLED this pin isnt used
# 128x32 display with hardware I2C:
disp = Adafruit_SSD1306.SSD1306_128_32(rst=RST)
# Initialize library.
disp.begin()
# Clear display.
disp.clear()
disp.display()
# Create blank image for drawing.
# Make sure to create image with mode '1' for 1-bit color.
width = disp.width
height = disp.height
image = Image.new('1', (width, height))
# Get drawing object to draw on image.
draw = ImageDraw.Draw(image)
# Draw a black filled box to clear the image.
draw.rectangle((0,0,width,height), outline=0, fill=0)
# Draw some shapes.
# First define some constants to allow easy resizing of shapes.
padding = -2
top = padding
bottom = height-padding
# Move left to right keeping track of the current x position for drawing shapes.
x = 0
# Load default font.
font = ImageFont.load_default()
# Alternatively load a TTF font. Make sure the .ttf font file is in the same directory as the python script!
# Some other nice fonts to try: http://www.dafont.com/bitmap.php
# font = ImageFont.truetype('Minecraftia.ttf', 8)
def setFanSpeed(speed):
bus.write_byte_data(hat_addr, fan_reg, speed&0xff)
def setRGBEffect(effect):
bus.write_byte_data(hat_addr, rgb_effect_reg, effect&0xff)
def getCPULoadRate():
f1 = os.popen("cat /proc/stat", 'r')
stat1 = f1.readline()
count = 10
data_1 = []
for i in range (count):
data_1.append(int(stat1.split(' ')[i+2]))
total_1 = data_1[0]+data_1[1]+data_1[2]+data_1[3]+data_1[4]+data_1[5]+data_1[6]+data_1[7]+data_1[8]+data_1[9]
idle_1 = data_1[3]
time.sleep(1)
f2 = os.popen("cat /proc/stat", 'r')
stat2 = f2.readline()
data_2 = []
for i in range (count):
data_2.append(int(stat2.split(' ')[i+2]))
total_2 = data_2[0]+data_2[1]+data_2[2]+data_2[3]+data_2[4]+data_2[5]+data_2[6]+data_2[7]+data_2[8]+data_2[9]
idle_2 = data_2[3]
total = int(total_2-total_1)
idle = int(idle_2-idle_1)
usage = int(total-idle)
print("idle:"+str(idle)+" total:"+str(total))
usageRate =int(float(usage * 100/ total))
print("usageRate:%d"%usageRate)
return "CPU:"+str(usageRate)+"%"
def setOLEDshow():
# Draw a black filled box to clear the image.
draw.rectangle((0,0,width,height), outline=0, fill=0)
#cmd = "top -bn1 | grep load | awk '{printf \"CPU:%.0f%%\", $(NF-2)*100}'"
#CPU = subprocess.check_output(cmd, shell = True)
CPU = getCPULoadRate()
cmd = os.popen('vcgencmd measure_temp').readline()
CPU_TEMP = cmd.replace("temp=","Temp:").replace("'C\n","C")
global g_temp
g_temp = float(cmd.replace("temp=","").replace("'C\n",""))
cmd = "free -m | awk 'NR==2{printf \"RAM:%s/%s MB \", $2-$3,$2}'"
MemUsage = subprocess.check_output(cmd, shell = True)
cmd = "df -h | awk '$NF==\"/\"{printf \"Disk:%d/%dMB\", ($2-$3)*1024,$2*1024}'"
Disk = subprocess.check_output(cmd, shell = True)
cmd = "hostname -I | cut -d\' \' -f1"
IP = subprocess.check_output(cmd, shell = True)
# Write two lines of text.
draw.text((x, top), str(CPU), font=font, fill=255)
draw.text((x+56, top), str(CPU_TEMP), font=font, fill=255)
draw.text((x, top+8), str(MemUsage), font=font, fill=255)
draw.text((x, top+16), str(Disk), font=font, fill=255)
draw.text((x, top+24), "wlan0:" + str(IP), font=font, fill=255)
# Display image.
disp.image(image)
disp.display()
time.sleep(.1)
setFanSpeed(0x00)
setRGBEffect(0x03)
while True:
setOLEDshow()
if g_temp >= 55:
if fan_state != 1:
setFanSpeed(0x01)
fan_state = 1
elif g_temp <= 48:
if fan_state != 0:
setFanSpeed(0x00)
fan_state = 0
if count == 10:
setRGBEffect(0x04)
elif count == 20:
setRGBEffect(0x02)
elif count == 30:
setRGBEffect(0x01)
elif count == 40:
setRGBEffect(0x03)
count = 0
count += 1
time.sleep(.5)
Display More
