Well, I'm out of ideas
Never mind
Until someone comes for it, I work through DP.
* 034851 works well so far.
Does not restart, HDR OK.
Well thank you
Posts by audiosat
-
-
-
In both logs I see that it is connected to a Marantz AVR.
Can you connect it directly to the TV, reboot, and post kodi.log?
Directly TV
-
Bios is definitely up to date. Through Windows 10, the HDMI output is in the order of 4K @ 60.
Connected DP http://ix.io/3ts7
Connected HDMI http://ix.io/3ts8
Thank you
-
Display More

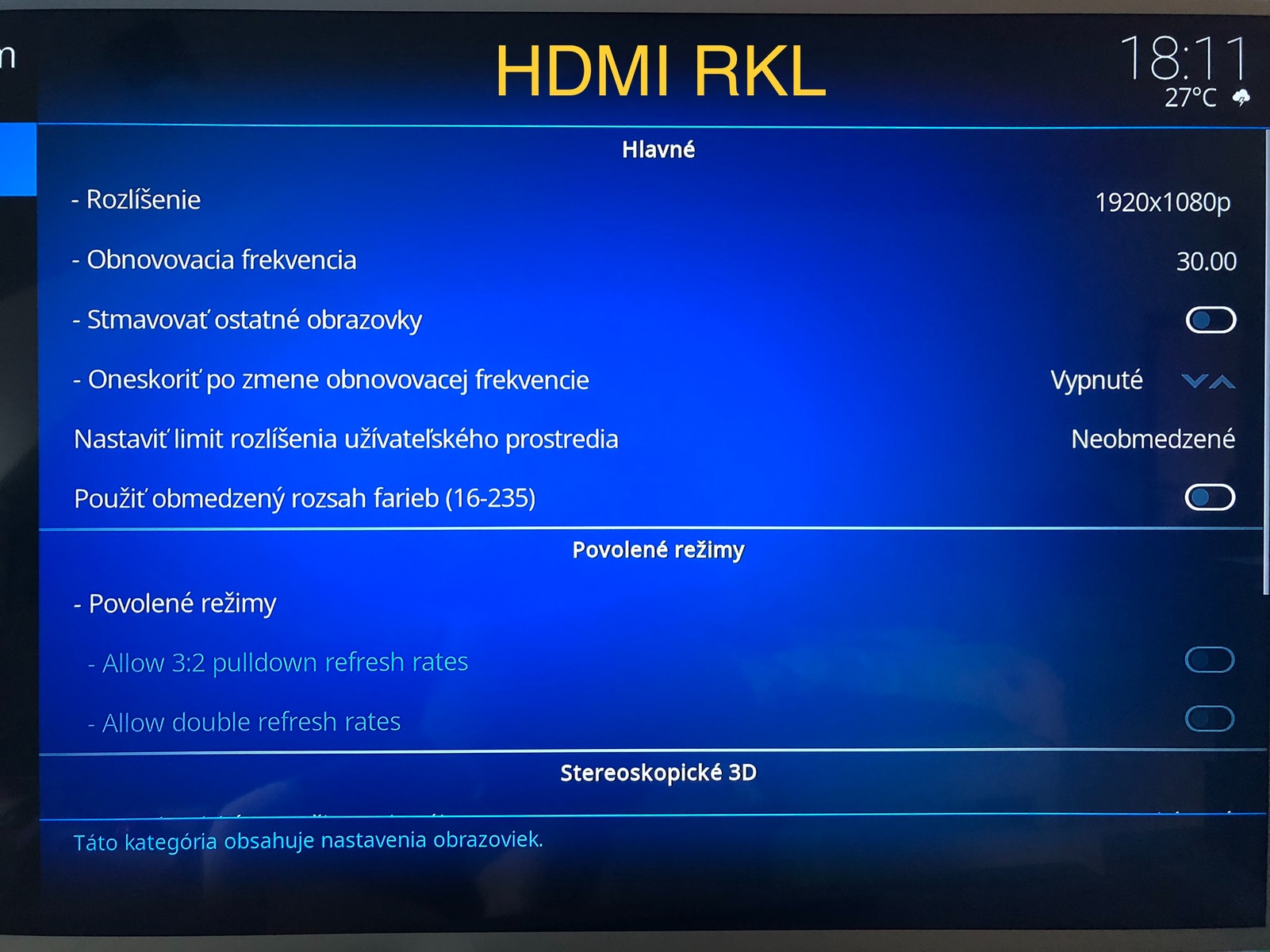

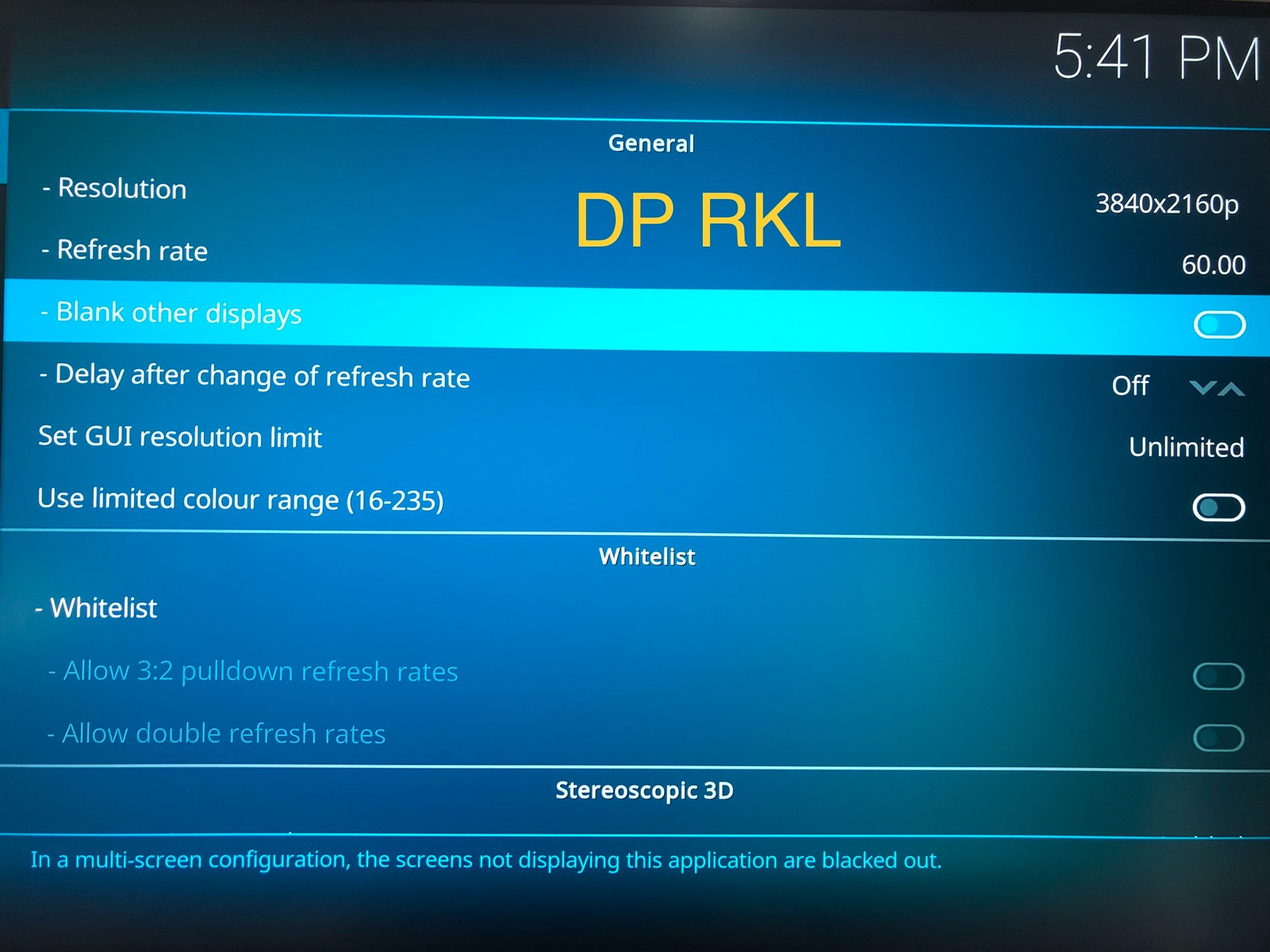

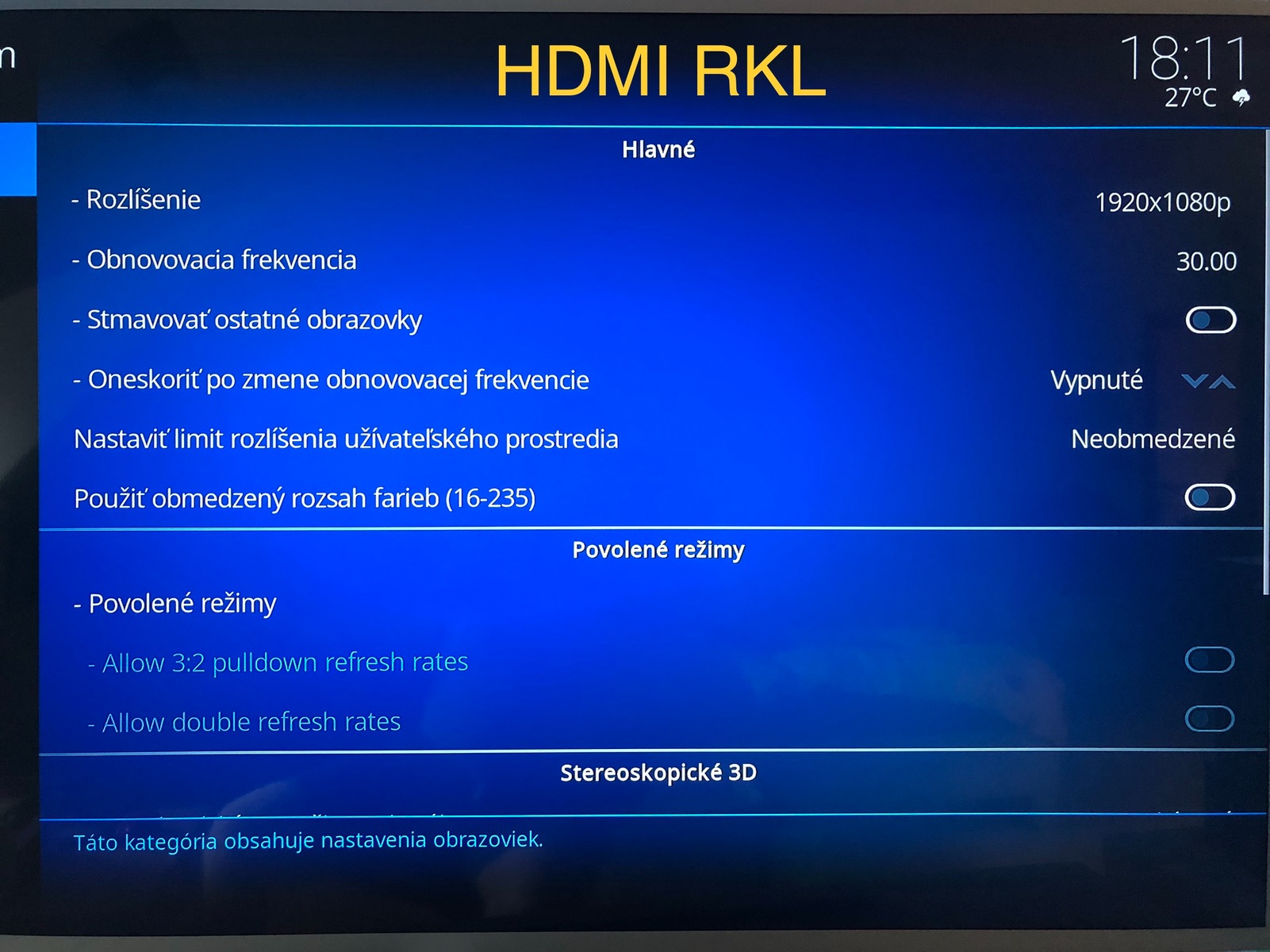

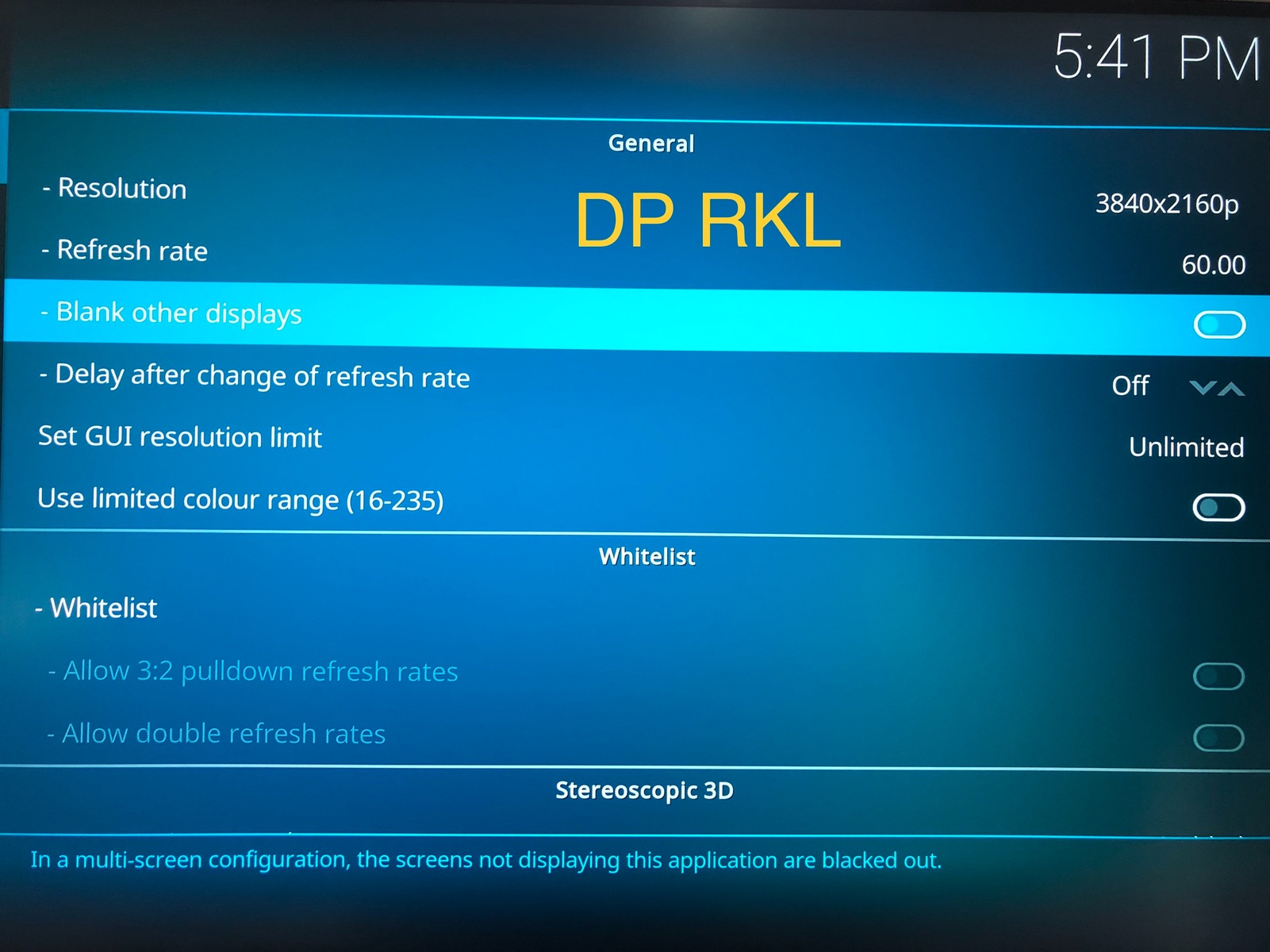

I found out that via DP on the LG monitor it works fine 4K@60.
It is also strange that it is not possible to select another output in the video output settings. (at least HDMI / DP or default)
I have a TV and a projector connected to the Asrock J5005 and it works there.
Is it unrelated to the fact that the HDMI 2.0 native 4K@60 is on the RKL?
I have Asrock Z370 and i3-9100 and there is an integrated LSPCON DP to HDMI 2.0 chip.
The question is whether it is possible to adjust the Libreelec settings so that the 4K signal is on the native HDMI 2.0 output.

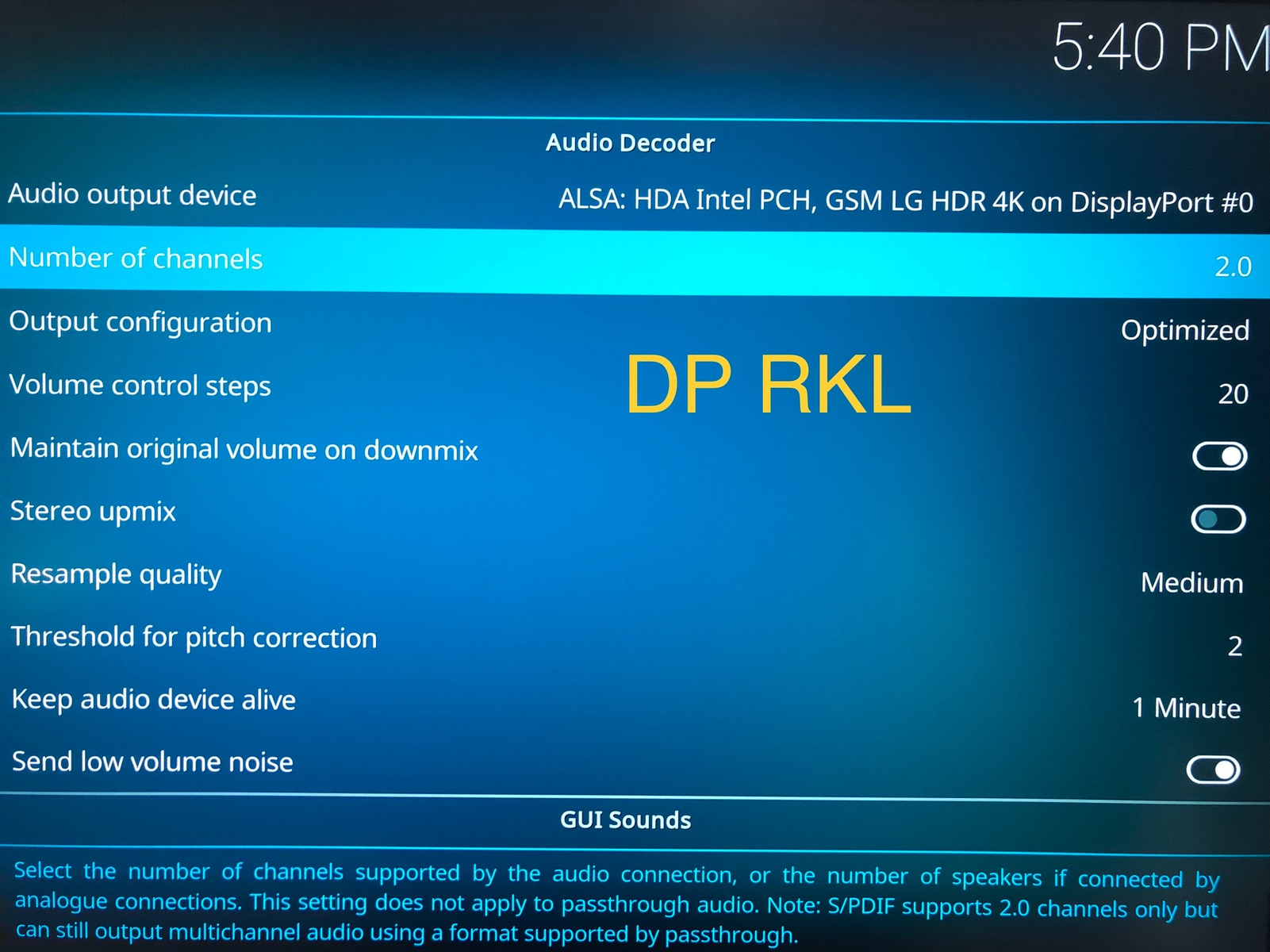

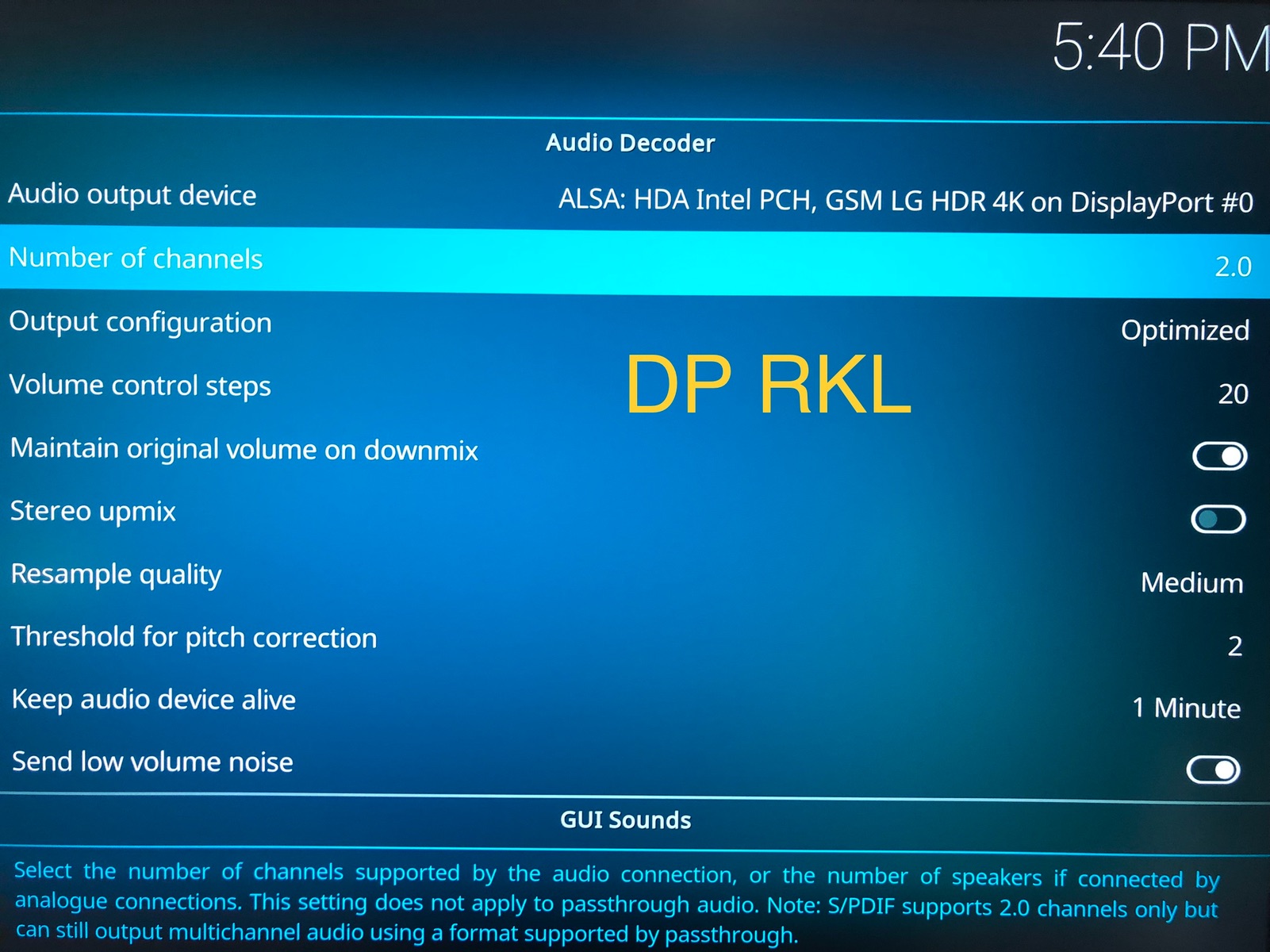

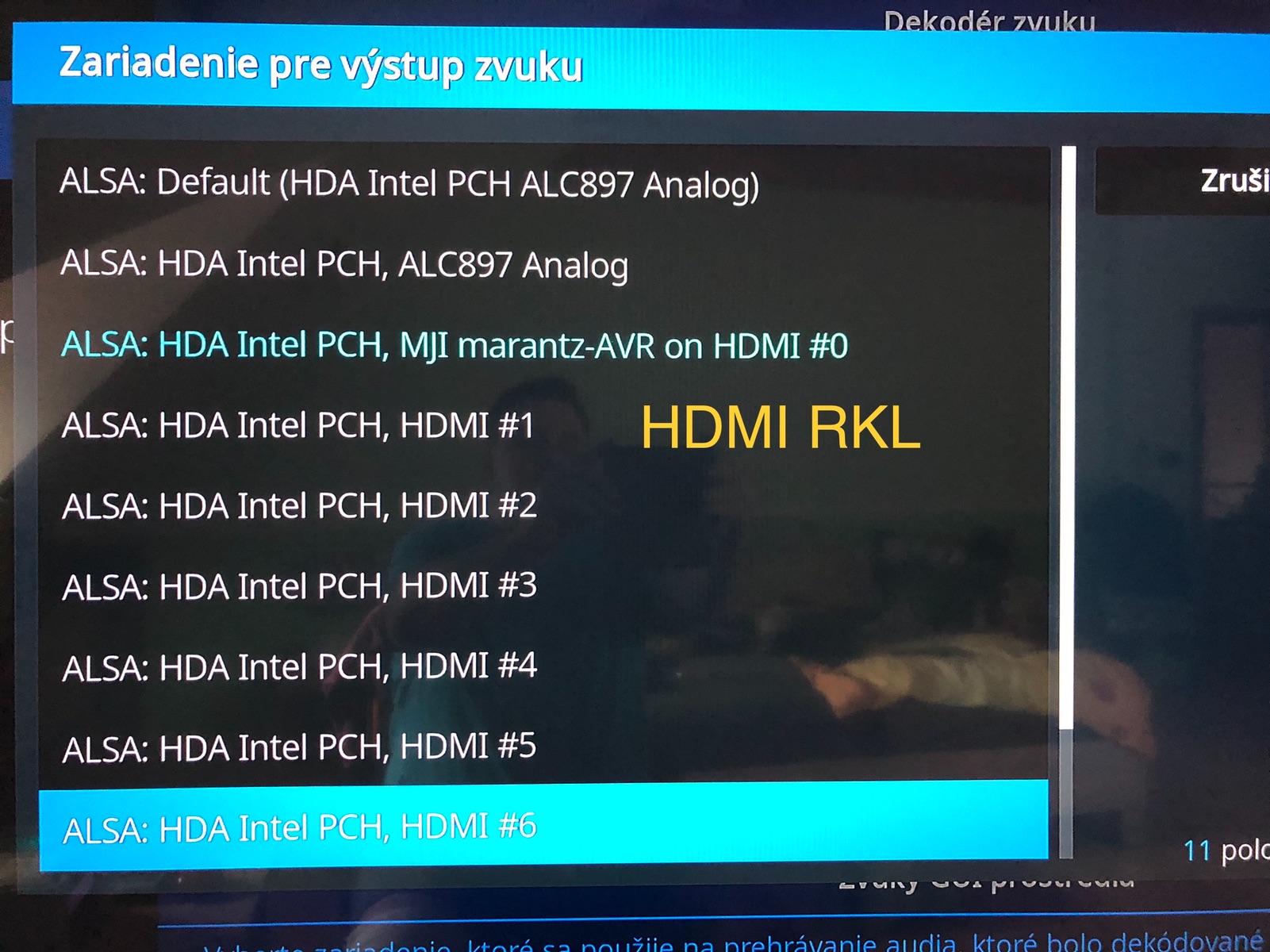

According to the sound output, I feel that it's HDMI#0 as in the picture.
/I tested KODI on RKL 11600 + ASRock H570m via Win10, and it goes via HDMI 2.0 4K@60/
smp Please is there really no way to change that output from DP to HDMI 4K @ 60 as I described in this post?
-
No, it is kernel i915 driver. Mesa is OpenGL/GLES stuff. Kernel 5.13 should properly support RKL, so I'm not sure what the issue is.
I found out that via DP on the LG monitor it works fine 4K@60.
It is also strange that it is not possible to select another output in the video output settings. (at least HDMI / DP or default)
I have a TV and a projector connected to the Asrock J5005 and it works there.
Is it unrelated to the fact that the HDMI 2.0 native 4K@60 is on the RKL?
I have Asrock Z370 and i3-9100 and there is an integrated LSPCON DP to HDMI 2.0 chip.
The question is whether it is possible to adjust the Libreelec settings so that the 4K signal is on the native HDMI 2.0 output.
According to the sound output, I feel that it's HDMI#0 as in the picture.
/I tested KODI on RKL 11600 + ASRock H570m via Win10, and it goes via HDMI 2.0 4K@60/
-
EDID looks ok, no idea why Kodi is limiting to 1080. Try a clean install.
Yes, I did everything as a clean installation ...
Am I to understand that the problems around the intel 750 graphics drivers have already been solved?

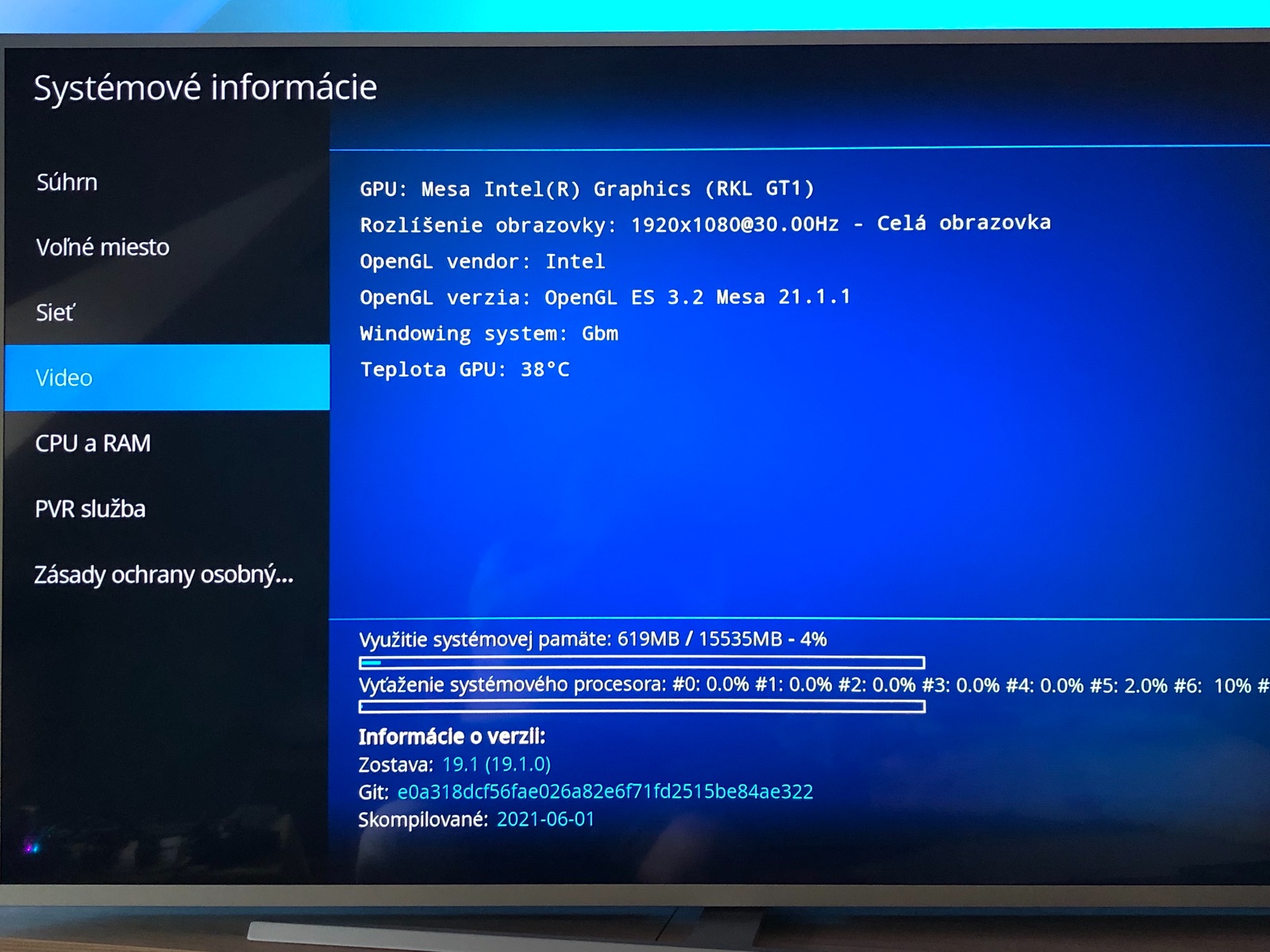

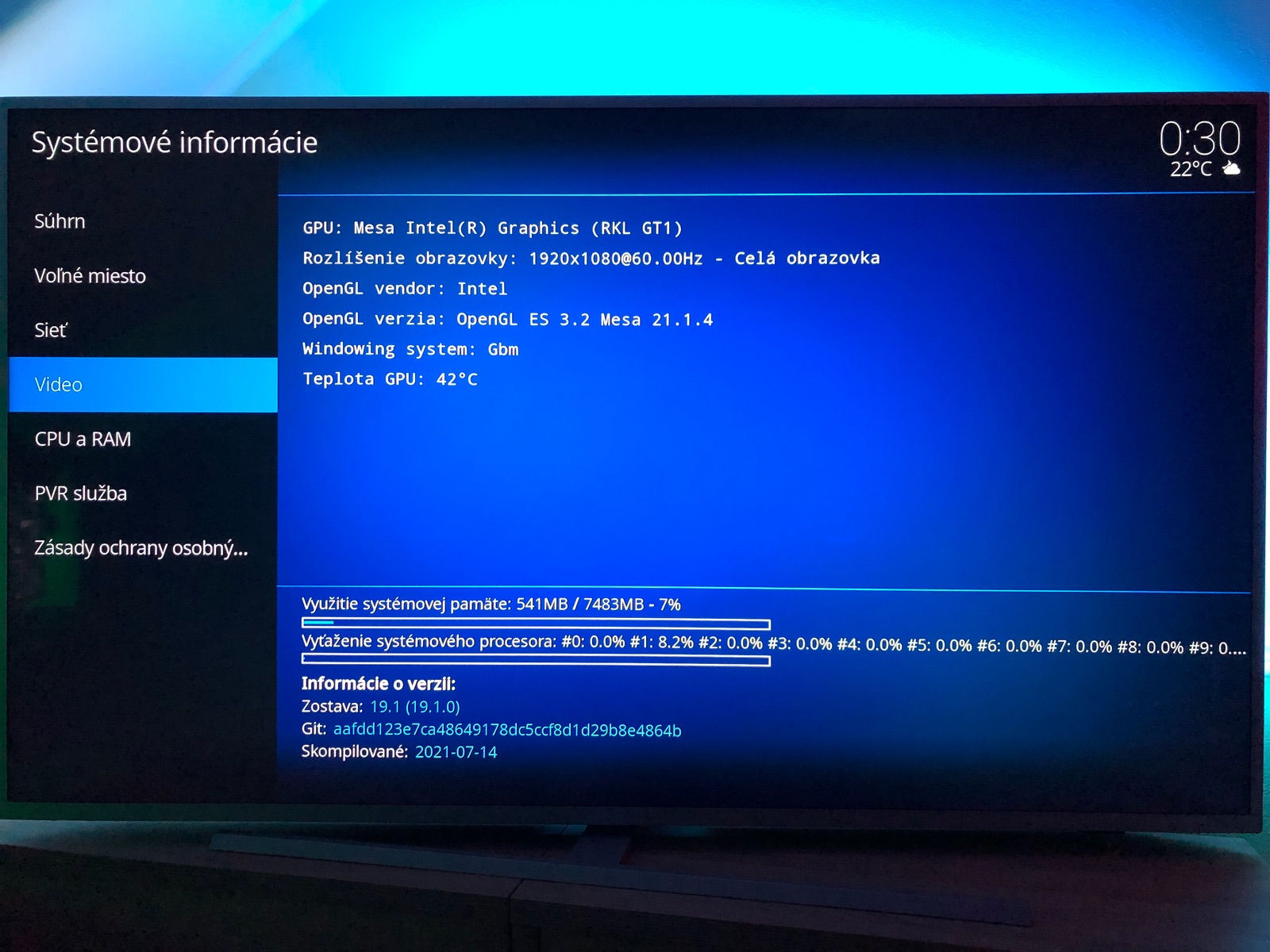

Is Mesa Intel Graphics (RKL GT1) a driver that should support 4K @ 60? Does it work for anyone?
I don't know if it's worth mentioning, but the official version of libreelec won't even start. Lists the missing graphics driver.
-

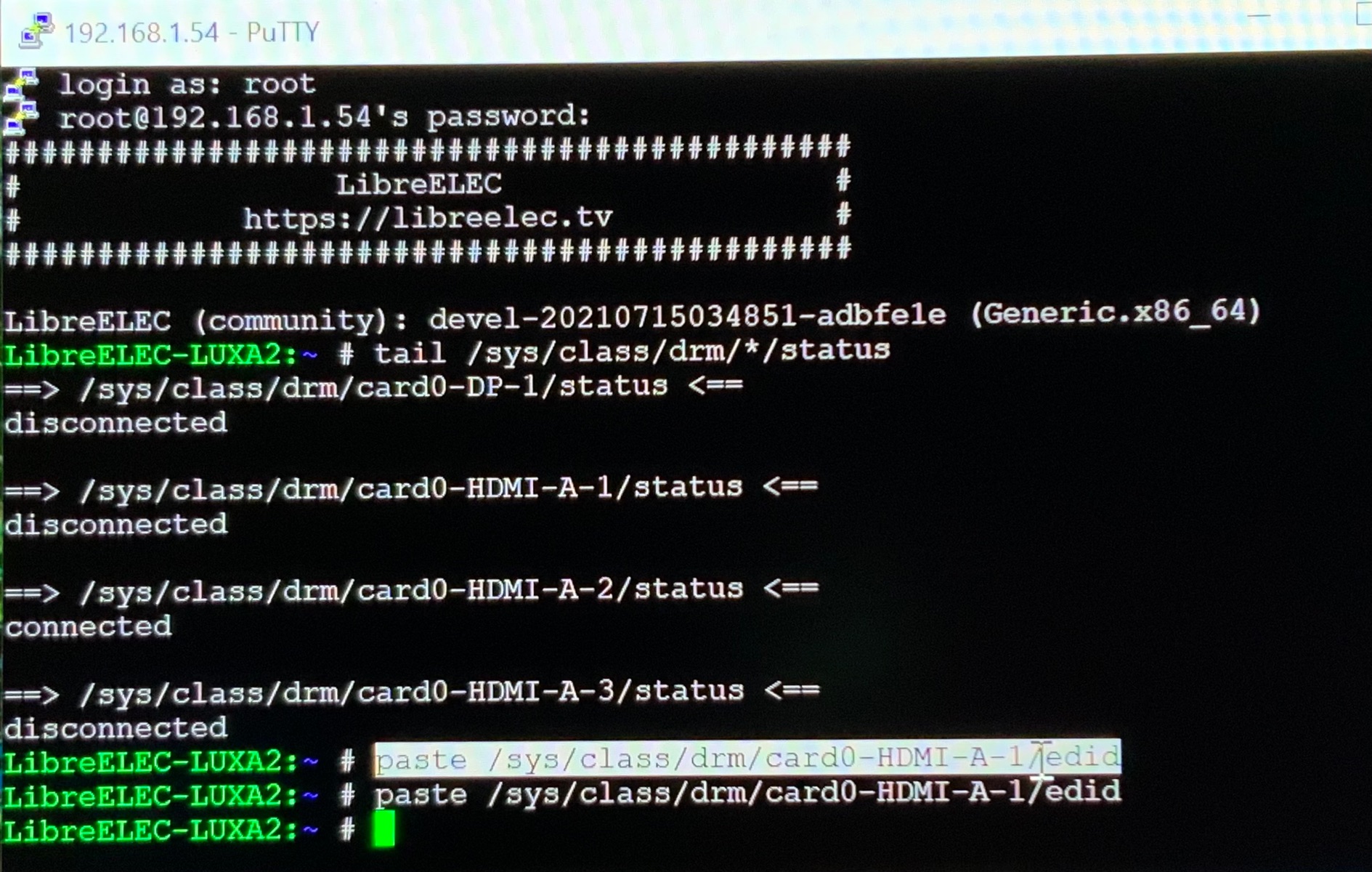

Run
paste /sys/class/drm/card0-HDMI-A-2/edid
and post the ix.io link here.
Sorry I fell asleep
-
Display More
I compiled a new build with the following changes:
- AV1 VAAPI hardware decode (owners of TGL/RKL please test)
- added unmerged AV1 ffmpeg fixes:
github.com/intel-media-ci/ffmpeg/pull/403
github.com/intel-media-ci/ffmpeg/pull/412
LibreELEC-Generic.x86_64-10.0-devel-20210715034851-adbfe1e.img.gz
Yes, I also tried it directly on TV.

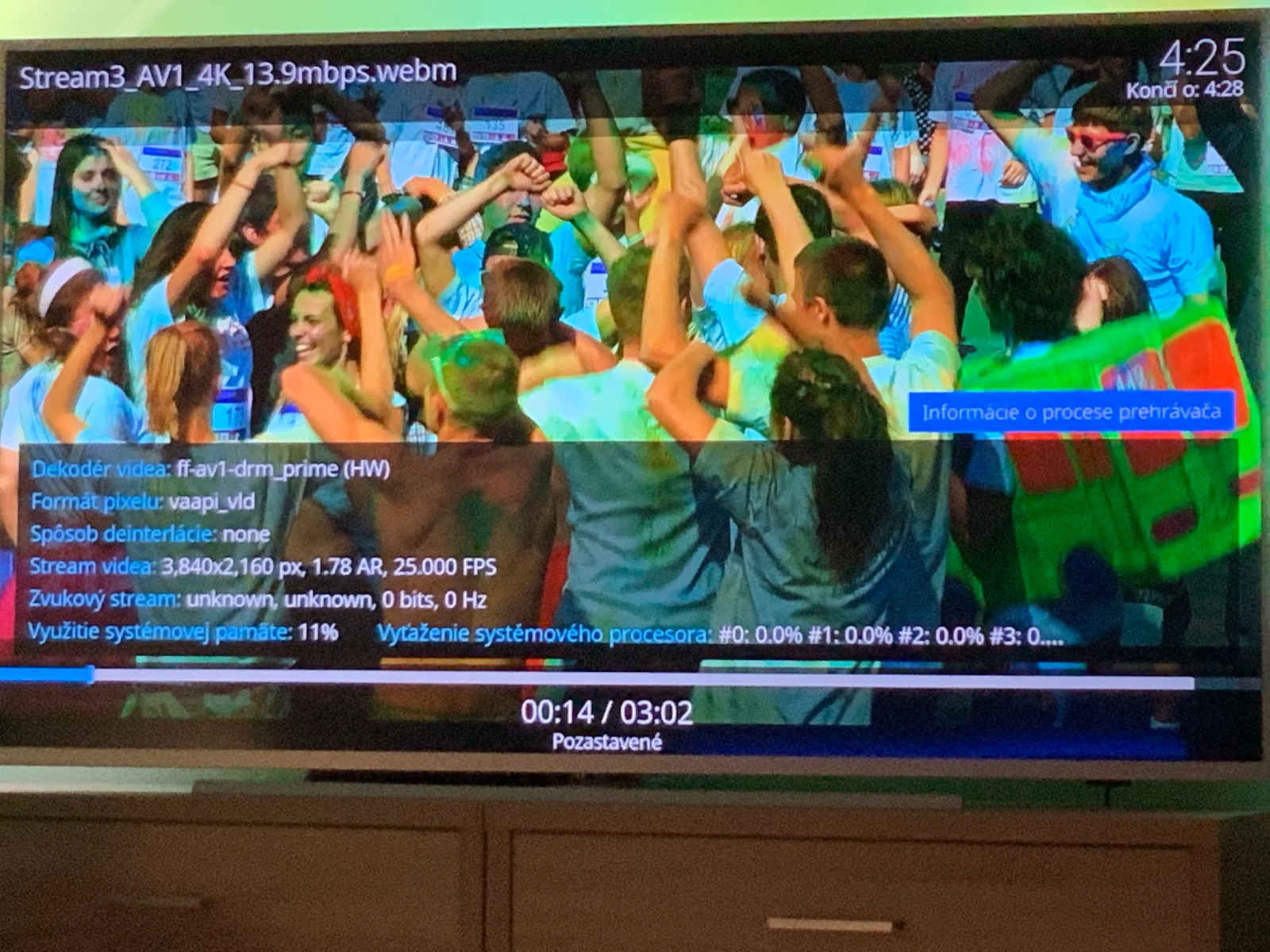

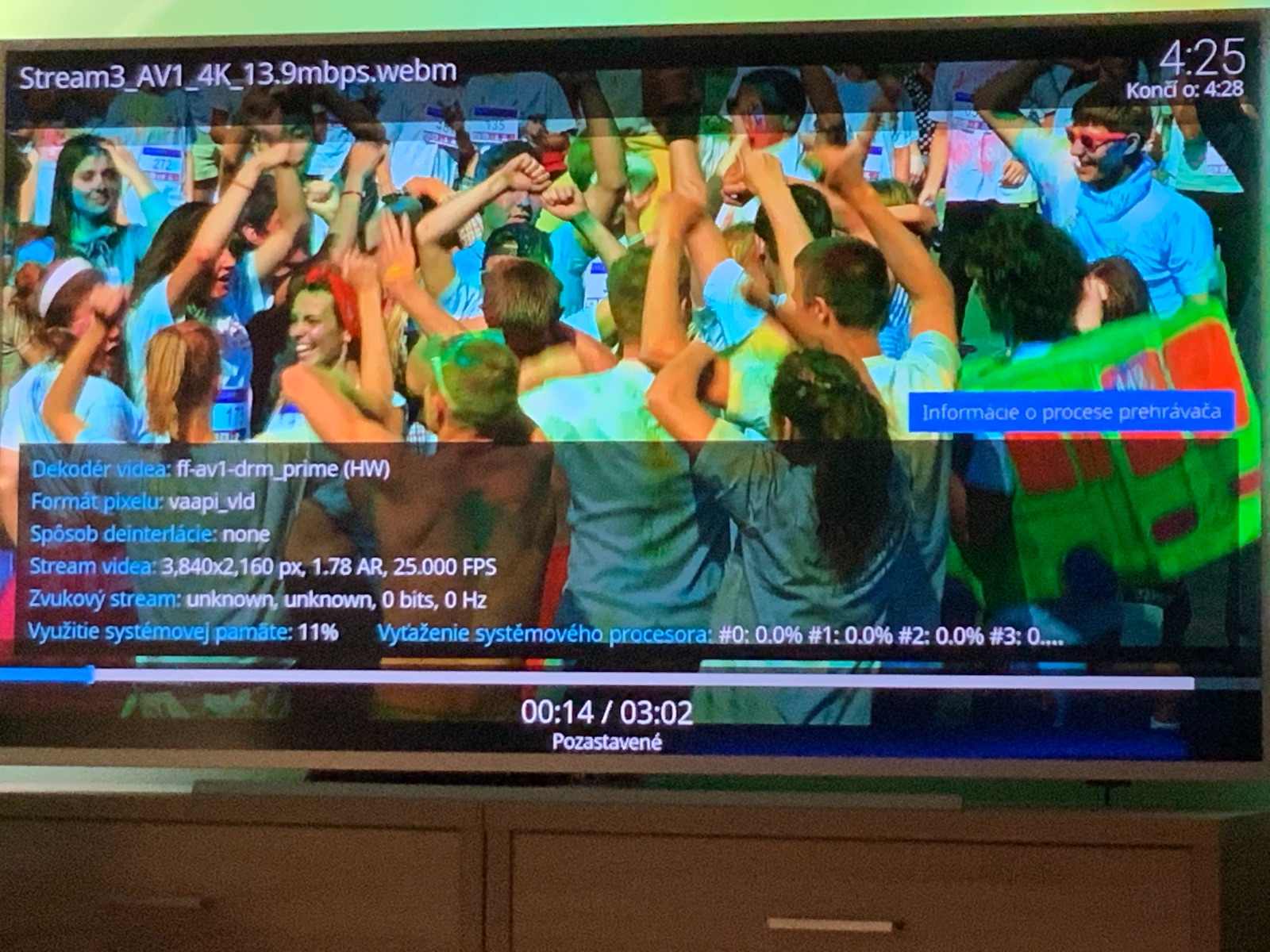

AV1 VAAPI 4K 25FPS video test OK, no sound yet
I will try other videos…New build - no change in resolution.
-
Display More
Zostavil som ďalšiu zostavu Kodi 19 GBM.
- ovládač média 29d5f8f. dúfajme, že opraví problémy s RKL ([user = '26517'] audiosat [/ user] prosím otestujte)
- Linux 5.13.1
- Mesa 21.1.4
- HDR náplasti od lrusaku
LibreELEC-Generic.x86_64-10.0-devel-20210714070936-adbfe1e.img.gz? Dl = 1
Hi, super!
Thank you, I'll try and let you know

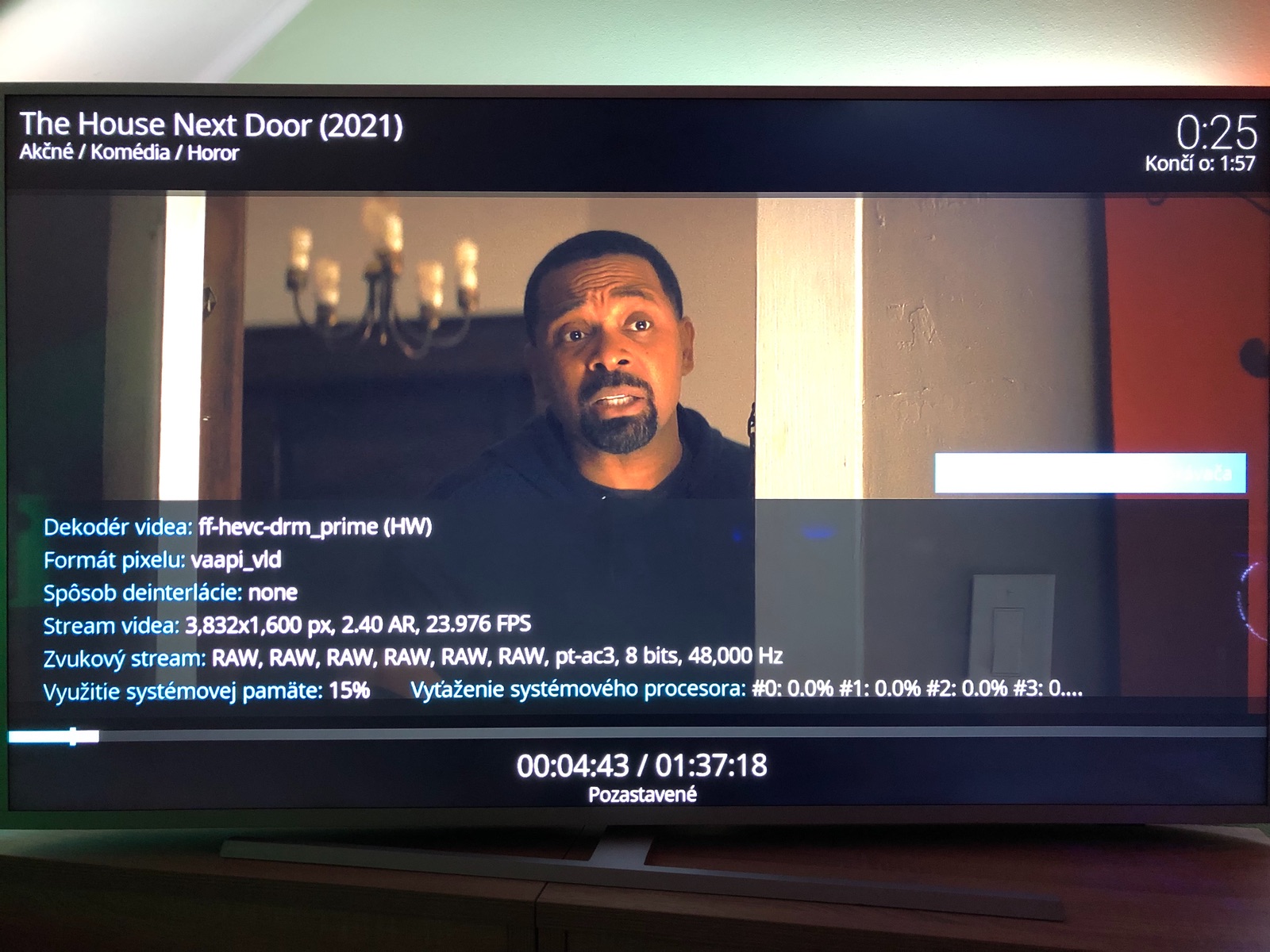

VAAPI hardware acceleration works
(DRM PRIME - Direct To Plane)
HDR works

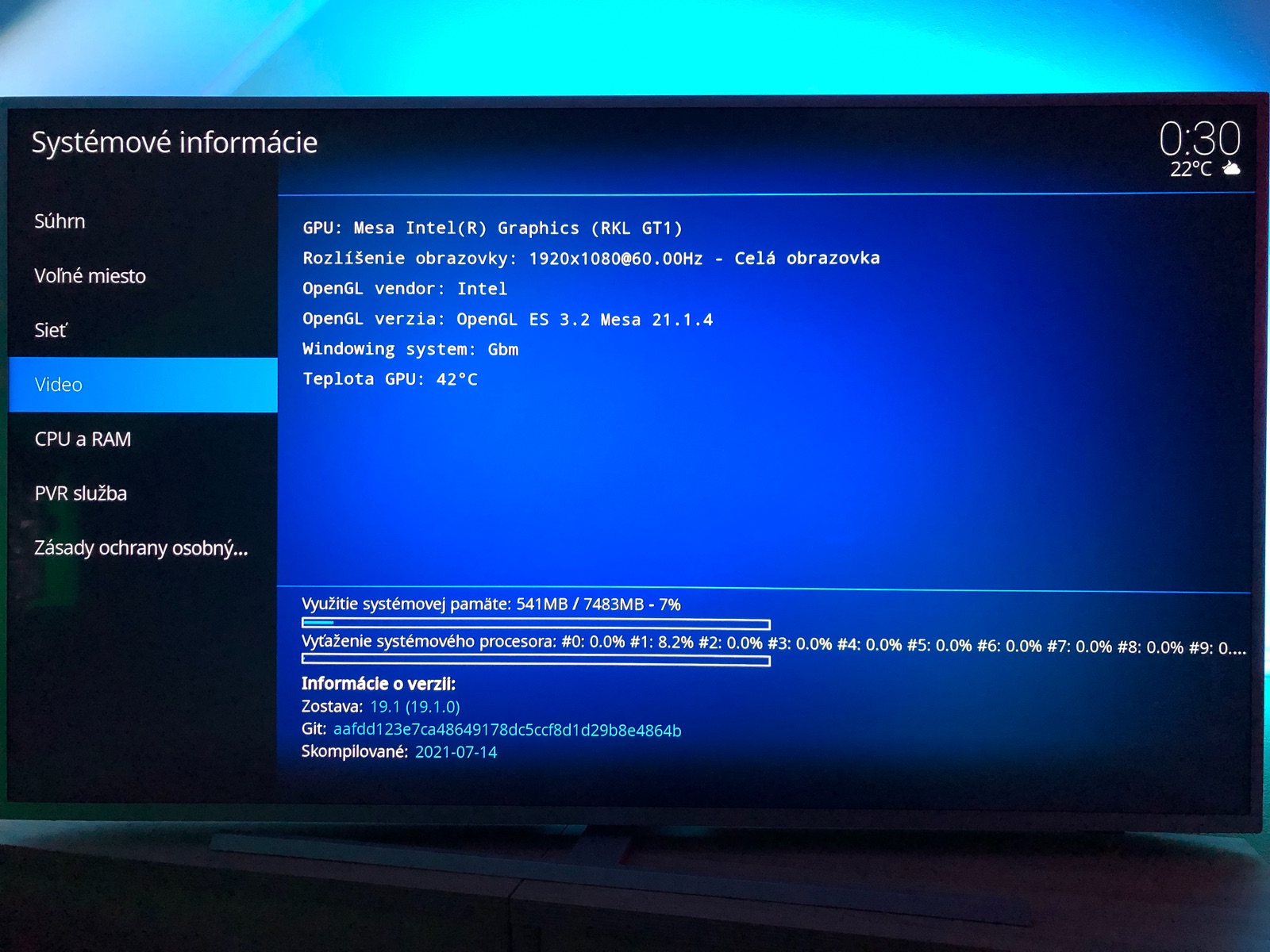

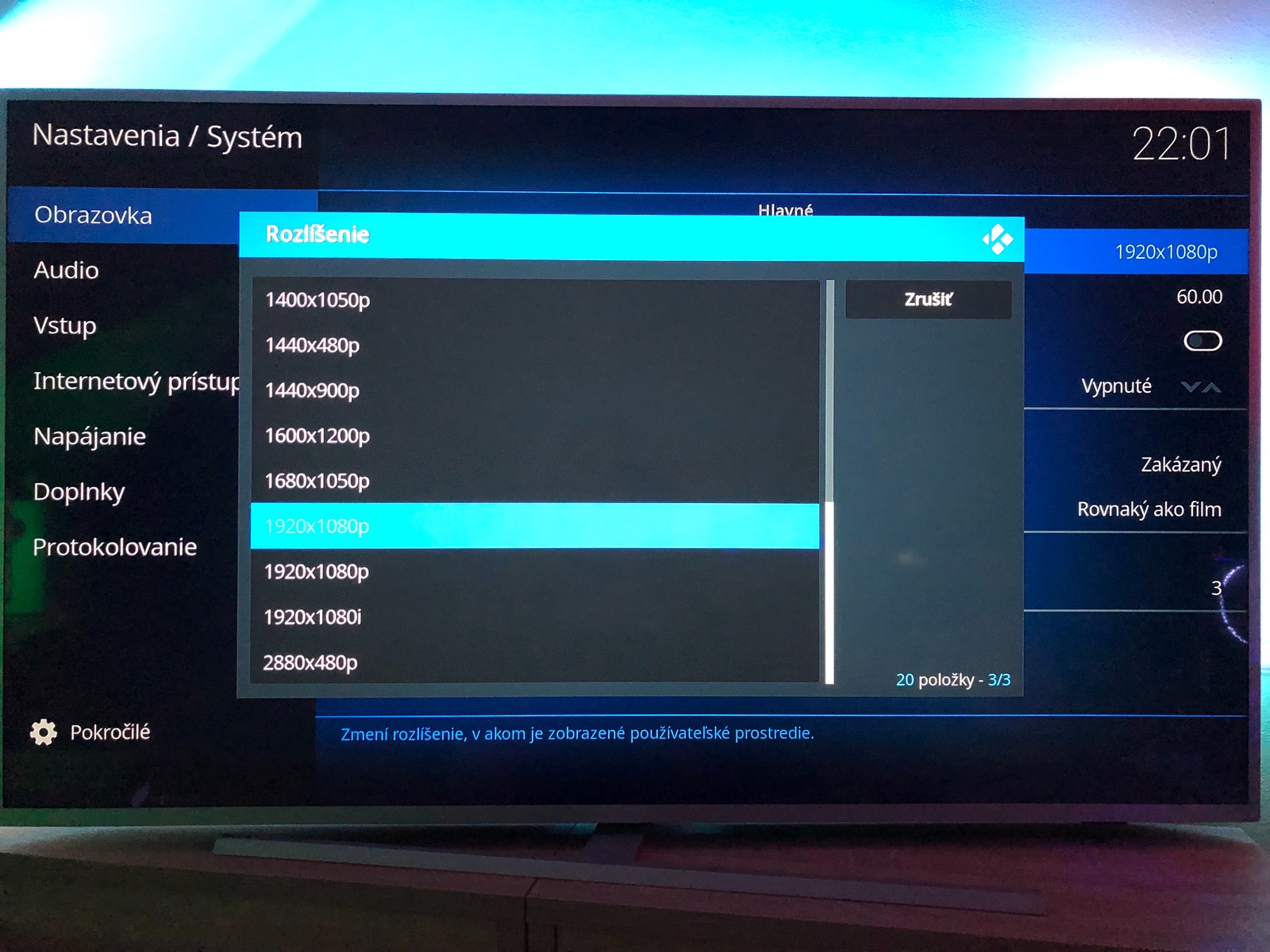

But the maximum resolution is only 1080 @ 30/60
Thank’s smp
-
I do not understand
Rocket lake are the new processors with native HDMI 2.0b 4K @ 60 support and I have a feeling that no one is happy.
If I could run it at least 4K. 11600 has enough power even with the vaapi off
Isn't there anyone here who can do it?
-
I already had it at the end of the line because it seemed logical to me
And I read the discussion about rocket lake all around, but I don't understand anything.
Thanks
I like libreelec on intel platform for its speed. I use an asrock board with hdmi 2.0 and i3-9100.
But by introducing rocket lake, I wanted to finally try native hdmi 2.0 on the processor
-
I'm sorry, I'm doing this for the first time…:)
Where should it be located?
I have already made 10 attempts and nothing happened after the restart.
Thank you.
-
Thank you very much.

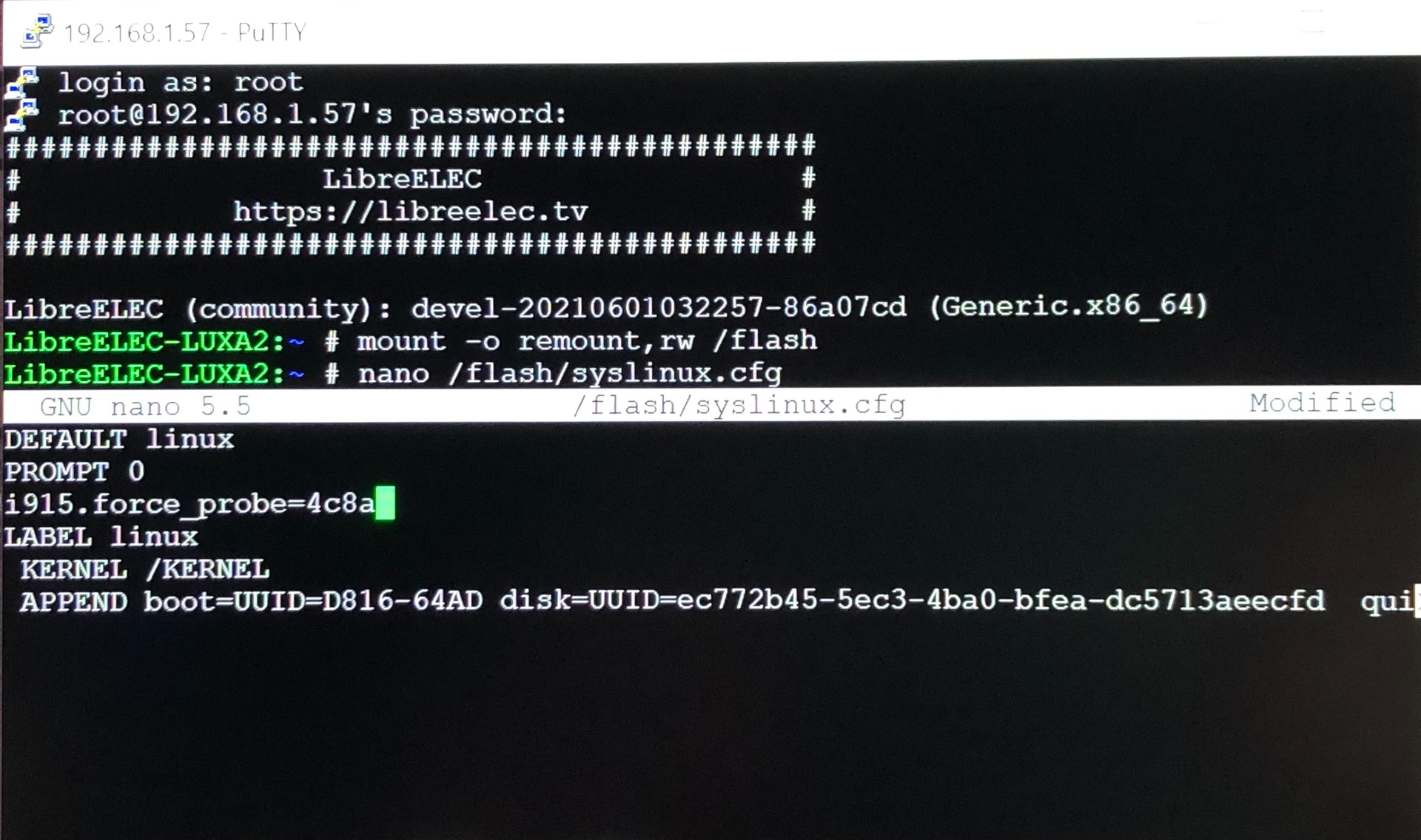

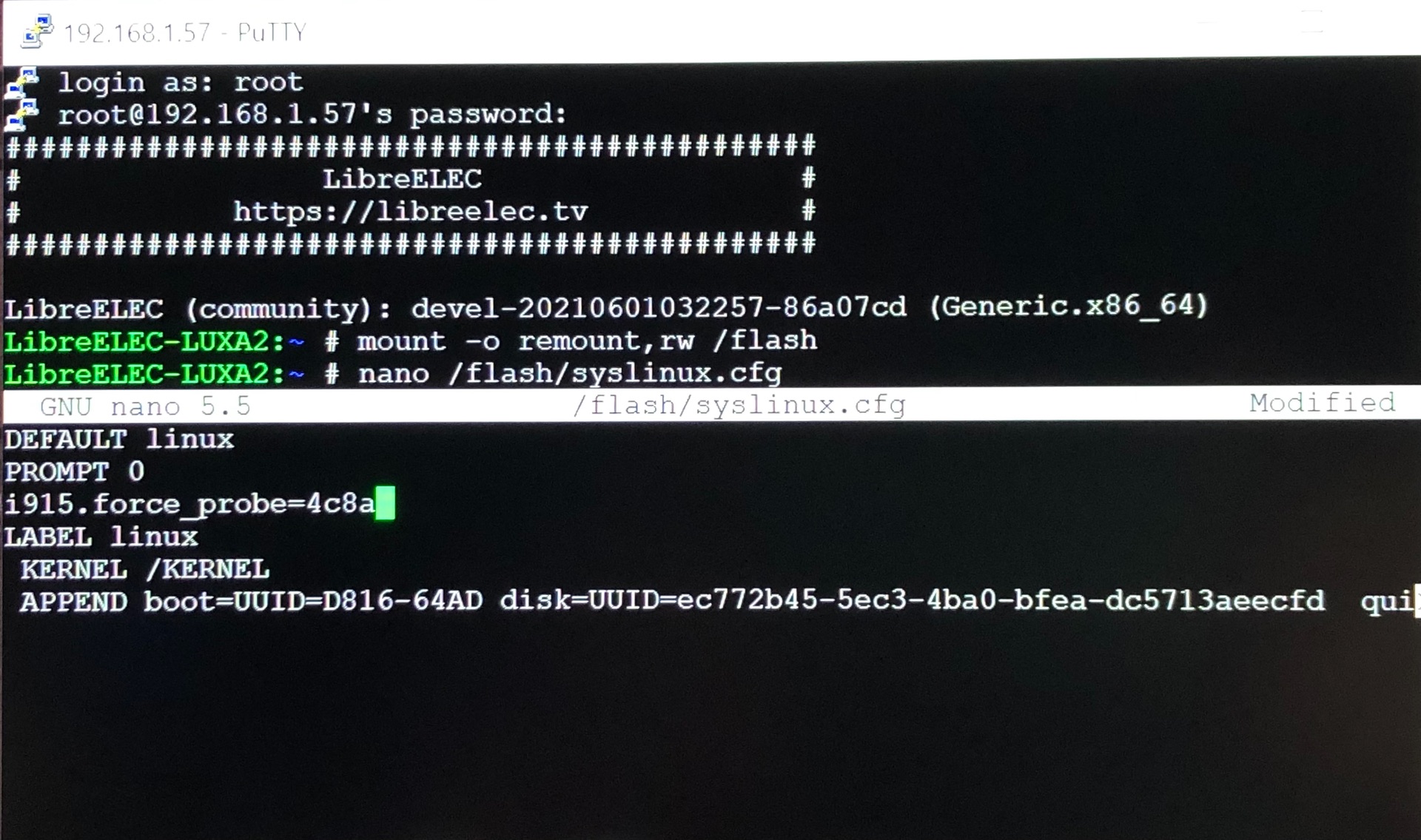

I downloaded syslinux.cfg to the text editor and added the line i915.force_probe = 4c8a, but I can't save or delete the modified syslinux.cfg.
It's probably write-protected.
How do I get there?
Well thank you.
The graphics drivers are build into the kernel and not loaded via modprobe.
Technically you have to add the parameter i915.force_probe=4c8a to the kernel command line in /flash/syslinux.cfg.
-
Okrúhly prsteň s kvetinovým vzorom.
ahh asrock...never again
Anywhos, it's a very new cpu ymmv with SMPs build. He would know.
But! without going in to too much detail you could try adding:
echo "options i915 force_probe=4c8a" >> /etc/modprobe.d/i915-fingerscrossed.confand reboot to see if that works.
Thanks for the tip.
I tried to send it via PuTTY ssh command line, but nothing happened after the restart.
I also created the folder etc/modprobe.d and in it "config i915-fingerscrossed.conf"
with line: options i915 force_probe = 4c8a
and no change.
When I turn off VAAPI hardware acceleration in the player, I get a 1080p image.
I use LibreELEC devel-20210601032257
Thank you.
-

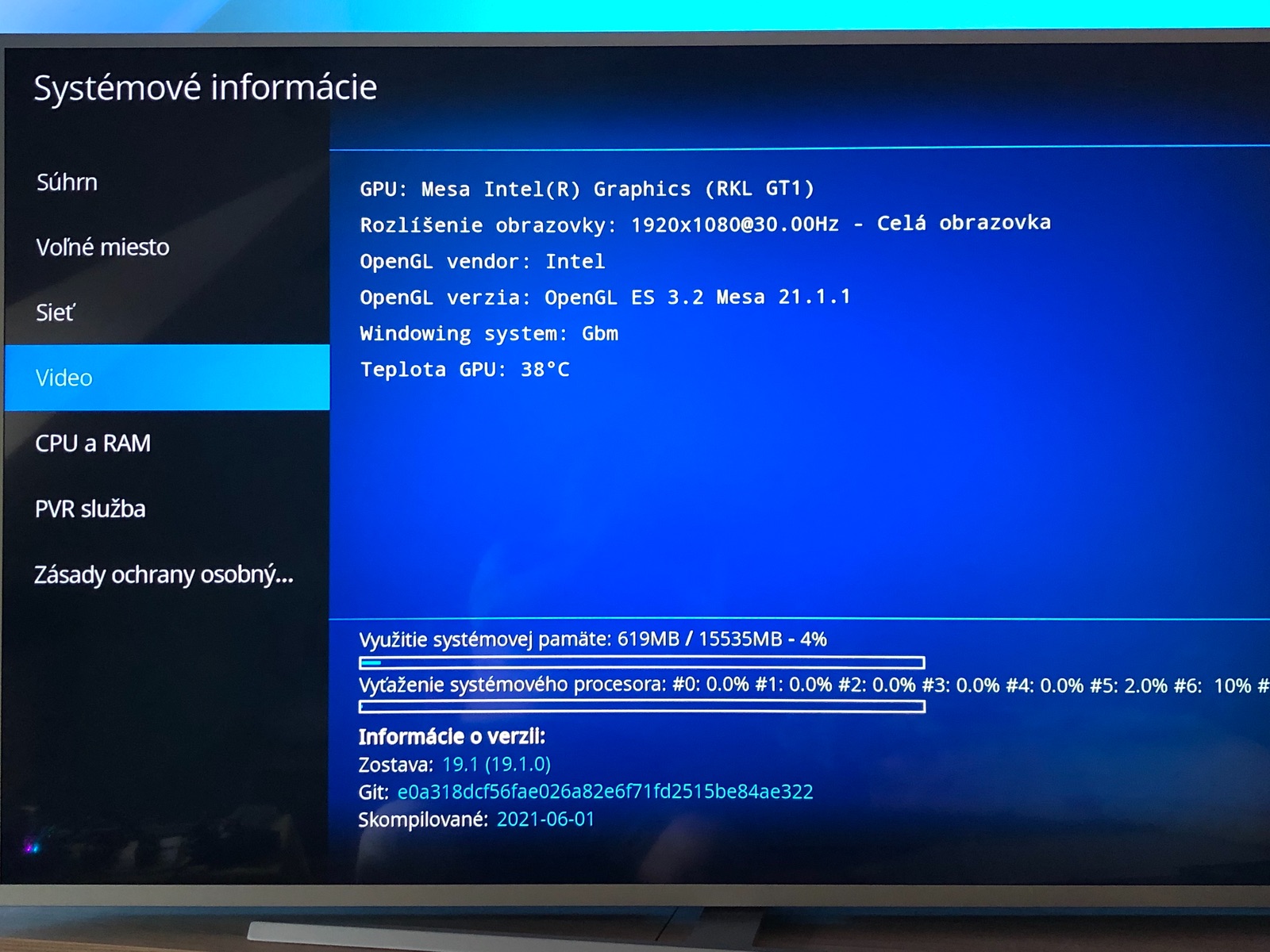

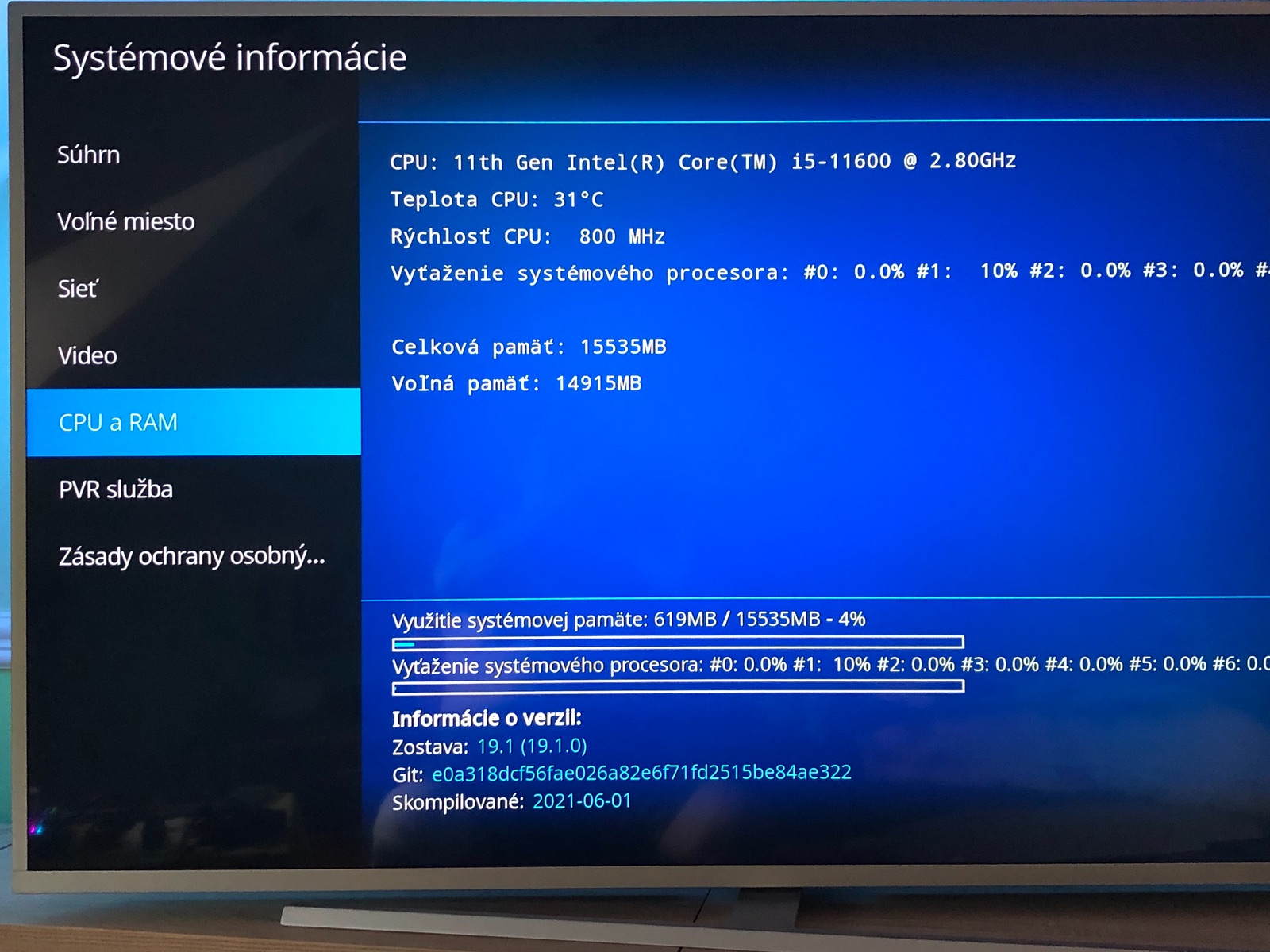

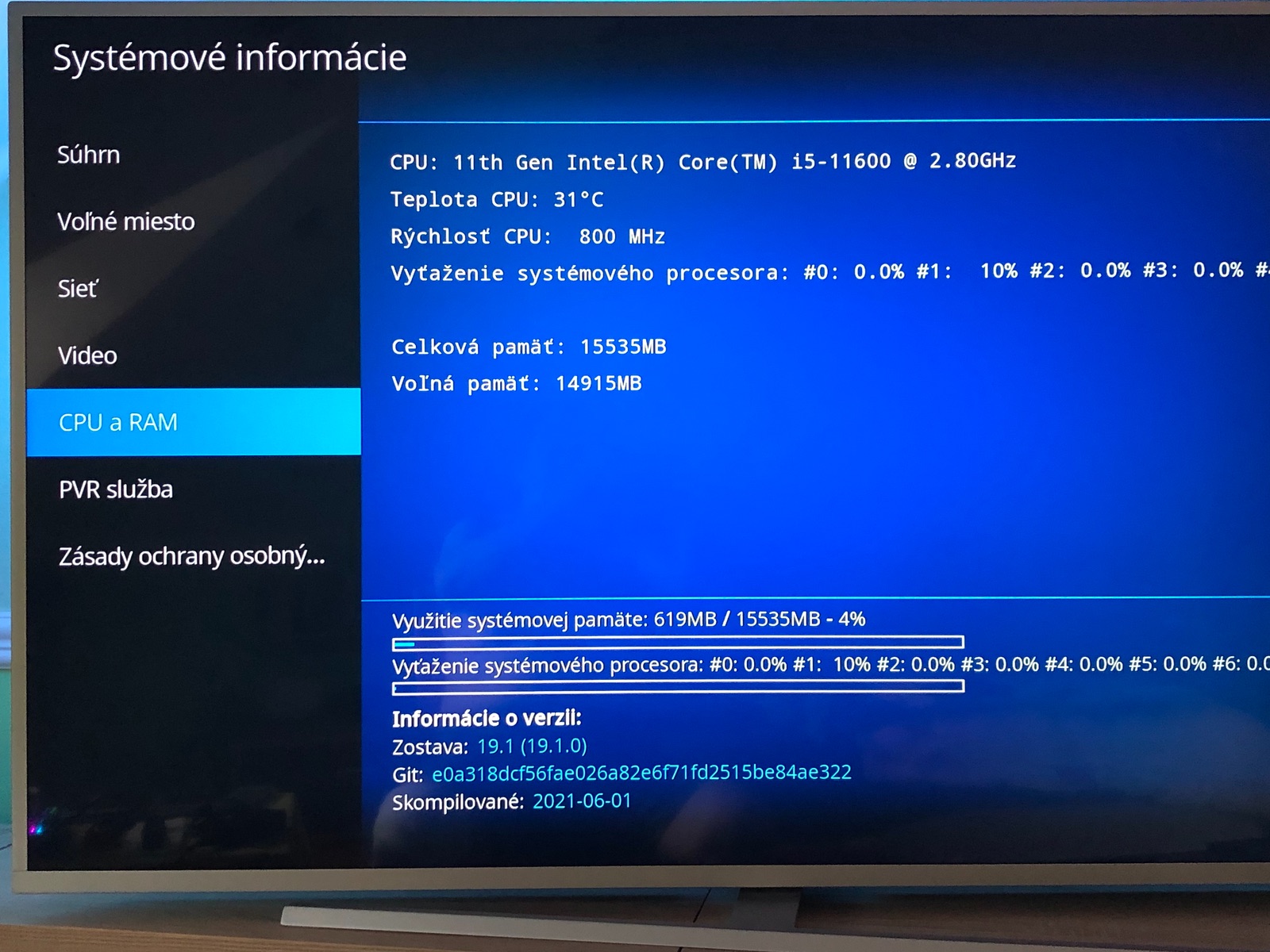

I tried the Asrock H570M-ITX and the new Intel i5-11600 processor, but there is probably no driver for the new GPU 750. Libreelec will run, in max. 1080p resolution, but nothing can be played. (black screen)
The official version 9.95.4 does not work.
Is there a chance it could work?
Thank you.
-
Hi
I confirm functionality # 698 on my i3-9100 + ASROCK Fatal1ty Z370 Gaming-ITX, which has HDMI 4k@60, but I set the output to 4@30, because then my Philips TV works on 12-bit colour depth. I watch movies mainly 24FPS.
Gemini J5005 also works without problems for me
BIG thanks smp !
(sorry for my gooenglish:)
I went a little crazy and I'm looking at 11600 and ITX B560m mainly for native 2.0, but I'll probably still wait
