Posts by freenix

    freenix I just tested latest LE master image on my OrangePi Win on a freshly unpacked SD card and it still works fine for me.


    At this point it would be useful to get Kodi log and output of dmesg command. You can do that either over ssh or serial terminal. Ssh is easier, if you don't have it already enabled, just append ssh at the end of APPEND line in extlinux config on SD card. If that doesn't work, you'll have to connect serial dongle to the board and enable it in extlinux conf by modifying APPEND line - switch console parameters around and append systemd.debug-shell=1 at the end. In either case, please provide output of dmesg command and content of .kodi/temp/kodi.log

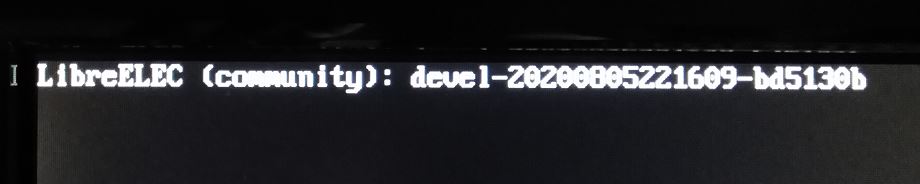

    LibreELEC-A64.arm-9.80-devel-20200805221609-bd5130b-orangepi-win.img.gz


    U-Boot SPL 2020.04 (Aug 05 2020 - 19:54:16 +0200)

    DRAM: 2048 MiB

    Trying to boot from MMC1

    NOTICE: BL31: v2.2(release):9.0.0-3780-geabee4a8a97c-dirty

    NOTICE: BL31: Built : 21:12:59, Aug 4 2020

    NOTICE: BL31: Detected Allwinner A64/H64/R18 SoC (1689)

    NOTICE: BL31: Found U-Boot DTB at 0x40800e0, model: OrangePi Win/Win Plus

    NOTICE: BL31: PMIC: Detected AXP803 on RSB.



    U-Boot 2020.04 (Aug 05 2020 - 19:54:16 +0200) Allwinner Technology


    CPU: Allwinner A64 (SUN50I)

    Model: OrangePi Win/Win Plus

    DRAM: 2 GiB

    MMC: [email protected]: 0, [email protected]: 1

    Loading Environment from FAT... *** Warning - bad CRC, using default environment


    In: [email protected]

    Out: [email protected]

    Err: [email protected]

    Net: No ethernet found.

    starting USB...

    No working controllers found

    Hit any key to stop autoboot: 0

    switch to partitions #0, OK

    mmc0 is current device

    Scanning mmc 0:1...

    Found /extlinux/extlinux.conf

    Retrieving file: /extlinux/extlinux.conf

    183 bytes read in 5 ms (35.2 KiB/s)

    1: LibreELEC

    Retrieving file: /KERNEL

    21524488 bytes read in 1128 ms (18.2 MiB/s)

    append: boot=UUID=0508-1625 disk=UUID=084266b3-ef42-4473-85a7-fbf6d8269ca8 quiet console=ttyS0,115200 console=tty1 systemd.debug-shell=1

    Retrieving file: /sun50i-a64-orangepi-win.dtb

    30039 bytes read in 5 ms (5.7 MiB/s)

    ## Flattened Device Tree blob at 4fa00000

    Booting using the fdt blob at 0x4fa00000

    Loading Device Tree to 0000000049ff5000, end 0000000049fff556 ... OK


    Starting kernel ...


    [ 0.198532] sun50i-de2-bus 1000000.bus: Error couldn't map SRAM to device

    [ 0.199304] sun4i-usb-phy 1c19400.phy: Couldn't request ID GPIO

    [ 0.395076] sun8i-dw-hdmi 1ee0000.hdmi: Couldn't get regulator

    [ 0.395586] sun4i-drm display-engine: Couldn't bind all pipelines components

    [ 0.410605] sun4i-usb-phy 1c19400.phy: Couldn't request ID GPIO

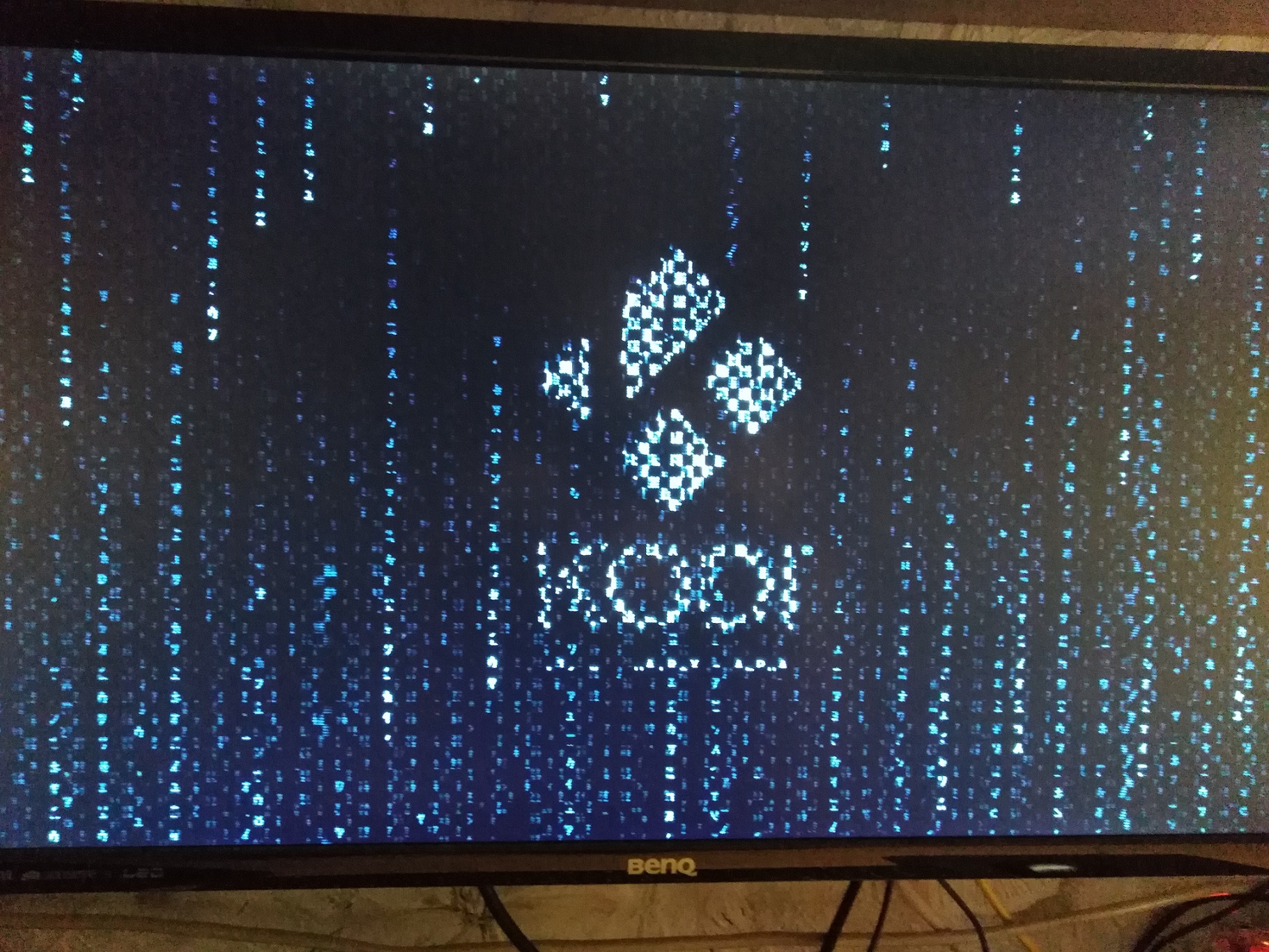

    and it's all from the console.......................


    LibreELEC-A64.arm-9.80-nightly-20200808-63dfb3b-orangepi-win.img.gz

    replaced file


    system booted

    these are logs

    log-2020-08-09-12.25.56.zip
