Posts by tode

OK,

I finally managed to see the low resolution screen with the logs enabled.

The log is https://paste.libreelec.tv/rational-crane.log

This is the xrandr output:

# xrandr
Screen 0: minimum 8 x 8, current 1024 x 768, maximum 32767 x 32767
DP1 connected primary 1024x768+0+0 (normal left inverted right x axis y axis) 1330mm x 750mm
  1920x1080     60.00 +  50.00    59.94    30.00    24.00    29.97    23.98
  1920x1080i    60.00    50.00    59.94
  1600x900      60.00
  1280x1024     60.02
  1280x720      60.00    50.00    59.94
  1024x768      60.00*
  800x600       60.32
  720x576       50.00
  720x480       60.00    59.94
  640x480       60.00    59.94
DP2 disconnected (normal left inverted right x axis y axis)
HDMI1 disconnected (normal left inverted right x axis y axis)
VIRTUAL1 disconnected (normal left inverted right x axis y axis)

The problem happens randomly, when I start Kodi with AV Receiver and TV off,
thanks for help,
tode

After a week I can say the problem of the black screen at boot is gone.
Thanks again for the support.

But now I have another problem...

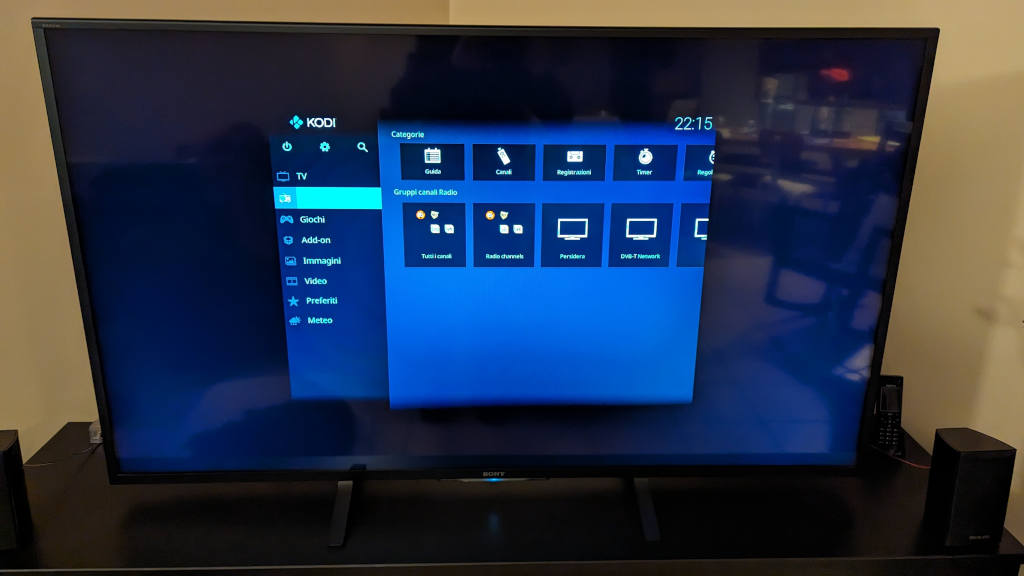

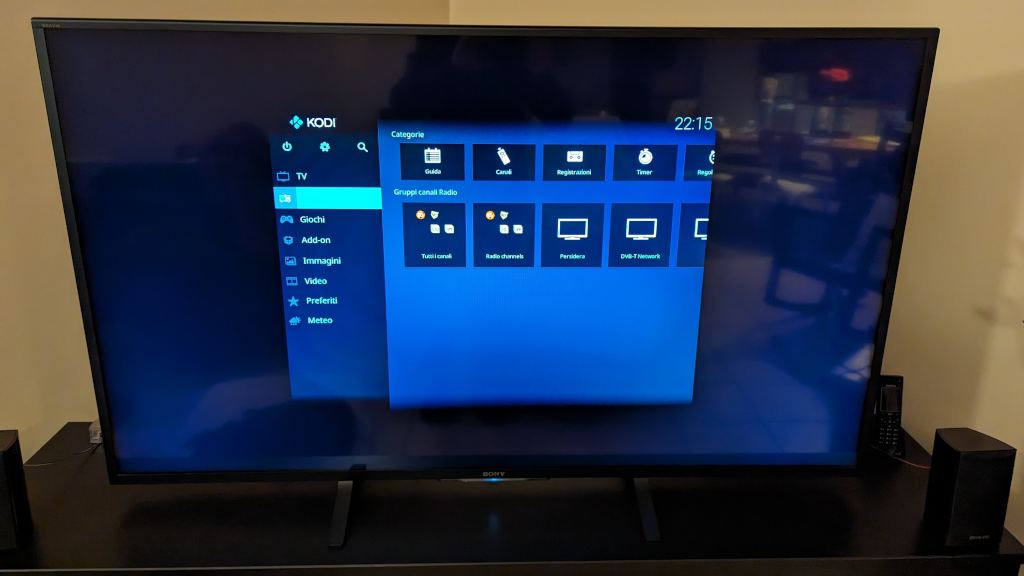

Sometimes I get a readable screen but at a wrong resolution (see attachment).

It's not a big problem, can be fixed with a reboot.
I think is not related to EDID; can be fixed with an additional grub parameter?

tode

I think is correct now

grub:

menuentry "LibreELEC edid" {
   search --no-floppy --set=root --fs-uuid e2a66b6d-8b16-44a0-b051-2396c0db69b3
   linux /KERNEL boot=UUID=e2a66b6d-8b16-44a0-b051-2396c0db69b3 disk=UUID=3310112e-be99-4319-81ac-571af07148af quiet drm.edid_firmware=DP-1:edid/edid.bin video=DP-1:D
   initrd /edid.cpio
}

dmesg:

# dmesg | grep edid
[    0.000000] Command line: BOOT_IMAGE=/KERNEL boot=UUID=e2a66b6d-8b16-44a0-b051-2396c0db69b3 disk=UUID=3310112e-be99-4319-81ac-571af07148af quiet drm.edid_firmware=DP-1:edid/edid.bin video=DP-1:D
[    0.044354] Kernel command line: root=/dev/ram0 rdinit=/init usbcore.autosuspend=-1 BOOT_IMAGE=/KERNEL boot=UUID=e2a66b6d-8b16-44a0-b051-2396c0db69b3 disk=UUID=3310112e-be99-4319-81ac-571af07148af quiet drm.edid_firmware=DP-1:edid/edid.bin video=DP-1:D
[    0.635263] [drm] Got external EDID base block and 1 extension from "edid/edid.bin" for connector "DP-1"
[    0.843937] [drm] Got external EDID base block and 1 extension from "edid/edid.bin" for connector "DP-1"
[    0.891825] [drm] Got external EDID base block and 1 extension from "edid/edid.bin" for connector "DP-1"
[    7.939040] [drm] Got external EDID base block and 1 extension from "edid/edid.bin" for connector "DP-1"

Thank you mglae ,
I'm going to test it in few days and i'll give feedback,
tode

Hi,
thanks for help.

mglae : I rebuilt the "edit.cpio" archive (in attach) but the problem persists (see dmesg in attach)

Da Flex : the debug file is https://paste.libreelec.tv/mint-foal.log (with the new generated edid.cpio)

tode

Thanks mglae ,

in attach my complete dmesg and the edid.cpio I put in "/flash/" dir.

I also have the "edid.bin" file in "/storage/.config/firmware/edid/edid.bin": I think this is the one found at time 14.104286 in dmesg.

# find / | grep edid.bin
/run/kernel-overlays/firmware/edid/edid.bin
/storage/cpio/lib/firmware/edid/edid.bin
/storage/.config/firmware/edid/edid.bin

The problem I have is occurring randomly: this boot I didn't have the black screen.

Thanks for help,
tode

Hi,

I have a dual-boot (Ubuntu + LibreElec 11.0.4) NUC8i5BEK system with Yamaha AV Receiver and Sony Full-HD TV.
When I boot I have all devices turned off: the NUC turn all on via USB-CEC adapter.
But i get (randomly) a blank screen; to see LE screen I need to reboot (via Kore).

So I think I need a custom EDID file to load on boot. I followed the official instructions at https://wiki.libreelec.tv/configuration/edid :

• find connected device (card0-DP-1)
• create edid.cpio file
• save edid.cpio in /flash/

but then I need to load it via grub, configured in ubuntu partition.

This is my grub setup:

menuentry "LibreELEC edid" {
   search --no-floppy --set=root --fs-uuid e2a66b6d-xxxx-2396c0db69b3
   linux /KERNEL boot=UUID=e2a66b6d-xxxx-2396c0db69b3 disk=UUID=3310112e-xxxx-571af07148af quiet initrd=/edid.cpio drm_kms_helper.edid_firmware=DP-1:edid/edid.bin video=DP-1:D
}

but the edid file is not loaded.
This is the dmesg log:

# dmesg | grep edid
[    0.000000] Command line: BOOT_IMAGE=/KERNEL boot=UUID=e2a66b6d-8b16-44a0-b051-2396c0db69b3 disk=UUID=3310112e-be99-4319-81ac-571af07148af quiet initrd=/edid.cpio drm_kms_helper.edid_firmware=DP-1:edid/edid.bin video=DP-1:D
[    0.044097] Kernel command line: root=/dev/ram0 rdinit=/init usbcore.autosuspend=-1 BOOT_IMAGE=/KERNEL boot=UUID=e2a66b6d-8b16-44a0-b051-2396c0db69b3 disk=UUID=3310112e-be99-4319-81ac-571af07148af quiet initrd=/edid.cpio drm_kms_helper.edid_firmware=DP-1:edid/edid.bin video=DP-1:D
[    0.044174] [drm] drm_kms_helper.edid_firmware is deprecated, please use drm.edid_firmware instead.
[    0.645010] platform DP-1: Direct firmware load for edid/edid.bin failed with error -2
[    0.645033] [drm:edid_load] *ERROR* Requesting EDID firmware "edid/edid.bin" failed (err=-2)
[    0.868059] platform DP-1: Direct firmware load for edid/edid.bin failed with error -2
[    0.868079] [drm:edid_load] *ERROR* Requesting EDID firmware "edid/edid.bin" failed (err=-2)
[    0.949504] platform DP-1: Direct firmware load for edid/edid.bin failed with error -2
[    0.949525] [drm:edid_load] *ERROR* Requesting EDID firmware "edid/edid.bin" failed (err=-2)
[   13.499042] [drm] Got external EDID base block and 1 extension from "edid/edid.bin" for connector "DP-1"

Any help?

Thanks a lot,
tode

Quote from blueribb

After enabling mouse support in Kodi, my K400 touchpad works just fine with my 3rd gen Intel NUC

Thank you, it worked,

tode

Just connected a Logitech K400 Plus keyboard with touchpad: the touchpad/mouse doesn't work.

It works with other PC Linux or Windows.

In attach my dmesg.

The device is recognized with no problem:

[    3.420008] logitech-djreceiver 0003:046D:C52B.0003: hiddev96,hidraw0: USB HID v1.11 Device [Logitech USB Receiver] on usb-0000:00:14.0-1/input2
...
[    3.542920] input: Logitech K400 Plus as /devices/pci0000:00/0000:00:14.0/usb1/1-1/1-1:1.2/0003:046D:C52B.0003/0003:046D:404D.0004/input/input4
[    3.543011] logitech-hidpp-device 0003:046D:404D.0004: input,hidraw1: USB HID v1.11 Keyboard [Logitech K400 Plus] on usb-0000:00:14.0-1:1

Could it be a conflict with libcec, recognized as mouse?

[    3.798435] hid-generic 0003:2548:1002.0005: input,hidraw2: USB HID v1.10 Mouse [Pulse-Eight USB-CEC Adapter] on usb-0000:00:14.0-4/input2

My configuration:

• Intel NUC NUC8i5BEK
• LibreElec 9.2.3 (Generic.x86_64)

Thanks for help,

tode
