Posts by zixelmike

    Find that Kodi not see

    m_sampleRates and m_channels

    I found out that when loading the sound parameters did not apply or something was wrong, since

    Alsamixer does not show the necessary settings After command "alsaucm -c chtnau8824 set _verb HiFi set _disdev Speaker" s
    ettings in alsamixer appeared, and the sound works.


    The sound in Kodi is severely distorted, goes hoarse and interrupted.
    Sound through the console with the aplay command works PERFECTLY

    Sound in PPSSPP works PERFECTLY

    The sound in RETROARCH works PERFECTLY



    As I understand it, Kodi processes the sound with its filters, can this be turned off?

    I found out that when loading the sound parameters did not apply or something was wrong, since
    Alsamixer does not show the necessary settings After command "alsaucm -c chtnau8824
    set _verb HiFi set _disdev Speaker" s
    ettings in alsamixer appeared, and the sound

    works.

    The sound in Kodi is severely distorted, goes hoarse and interrupted.

    Sound through the console with the aplay command works PERFECTLY

    Sound in PPSSPP works PERFECTLY

    The sound in RETROARCH works PERFECTLY



    On Ubuntu 19.04 Sound in Kodi works perfectly


    I make a script with options like Ubuntu and now I HEAR A NOISE!!!


    when I move around the kodi menu the noise changes and sometimes the real sounds of the menu are heard .... I think what should be my next step? =)

    AND

    NORMAL VOICE VIA CONSOLE

    LibreELEC:~ # systemctl stop kodi

    LibreELEC:~ # aplay -D plughw:1,0 /storage/Front_Left.wav

    Playing WAVE '/storage/Front_Left.wav' : Signed 16 bit Little Endian, Rate 48000 Hz, Mono

    LibreELEC:~ #

    In Kodi When I play video, wheezing and very fast talk



    Well I wasn't expecting working audio I just wanted to be sure that it does not work in recent master based builds & I did not screw up something.


    So which audio output did you chose in Kodi? Have you tried each one? Because I google a bit and looks like the usual stuff you need to make it work is in place. The kernel module is included, the ucm files are installed & the card is detected by the kernel. :/



    I tried every output, Yes you are right, everything is determined, but there is no sound, I have a suspicion that the ucm chtnau8824 files do not load, because after a reboot the sound settings are reset to 0 and on ubuntu there is some level after loading. I tried to change the ucm files in the assembly, the results were unsuccessful.

    aplay -D plughw:1,0 /usr/share/sounds/alsa/Front_Right.wav
    Playing WAVE '/usr/share/sounds/alsa/Front_Right.wav' : Signed 16 bit Little Endian, Rate 48000 Hz, Mono
    aplay: set_params:1403: Unable to install hw params:
    ACCESS: RW_INTERLEAVED
    FORMAT: S16_LE
    SUBFORMAT: STD
    SAMPLE_BITS: 16
    FRAME_BITS: 16
    CHANNELS: 1
    RATE: 48000
    PERIOD_TIME: 125000
    PERIOD_SIZE: 6000
    PERIOD_BYTES: 12000
    PERIODS: 4
    BUFFER_TIME: 500000
    BUFFER_SIZE: 24000
    BUFFER_BYTES: 48000
    TICK_TIME: 0


    LibreELEC:~ # lspci -nnk | grep -iA2 audio | paste

    LibreELEC:~ # lspci -nnk | grep -iA2 audio

    LibreELEC:~ # lspci -nnk

    00:00.0 Host bridge [0600]: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series SoC Transaction Register [8086:2280] (rev 36)

    Subsystem: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series SoC Transaction Register [8086:7270]

    Kernel driver in use: iosf_mbi_pci

    00:02.0 VGA compatible controller [0300]: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Integrated Graphics Controller [8086:22b0] (rev 36)

    DeviceName: Onboard IGD

    Subsystem: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Integrated Graphics Controller [8086:7270]

    Kernel driver in use: i915

    00:03.0 Multimedia controller [0480]: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series Imaging Unit [8086:22b8] (rev 36)

    Subsystem: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series Imaging Unit [8086:7270]

    Kernel driver in use: intel_atomisp2_pm

    00:0b.0 Signal processing controller [1180]: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series Power Management Controller [8086:22dc] (rev 36)

    Subsystem: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series Power Management Controller [8086:7270]

    00:14.0 USB controller [0c03]: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series USB xHCI Controller [8086:22b5] (rev 36)

    Subsystem: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series USB xHCI Controller [8086:7270]

    Kernel driver in use: xhci_hcd

    00:1a.0 Encryption controller [1080]: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series Trusted Execution Engine [8086:2298] (rev 36)

    Subsystem: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series Trusted Execution Engine [8086:7270]

    00:1f.0 ISA bridge [0601]: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series PCU [8086:229c] (rev 36)

    Subsystem: Intel Corporation Atom/Celeron/Pentium Processor x5-E8000/J3xxx/N3xxx Series PCU [8086:7270]

    LibreELEC:~ #


    Pentium Processor x5-E8000???? 8| I have Z8350

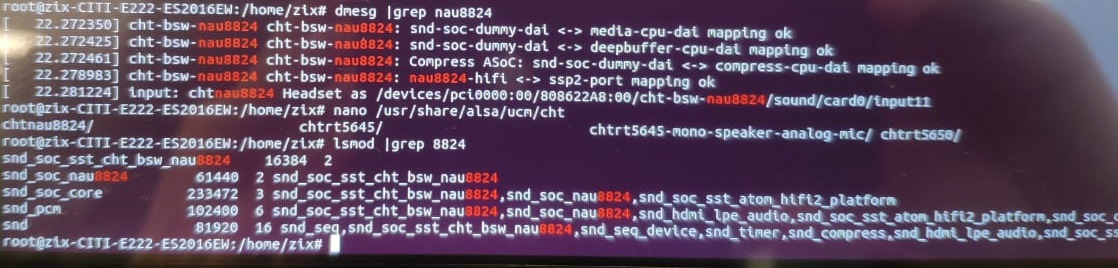

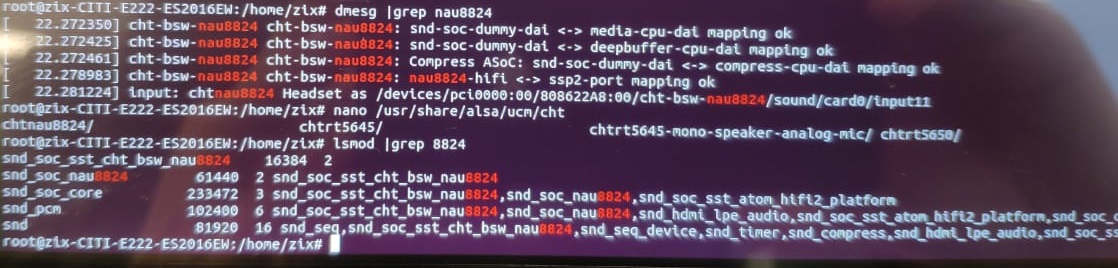

    on Ubuntu a have same output and sound working

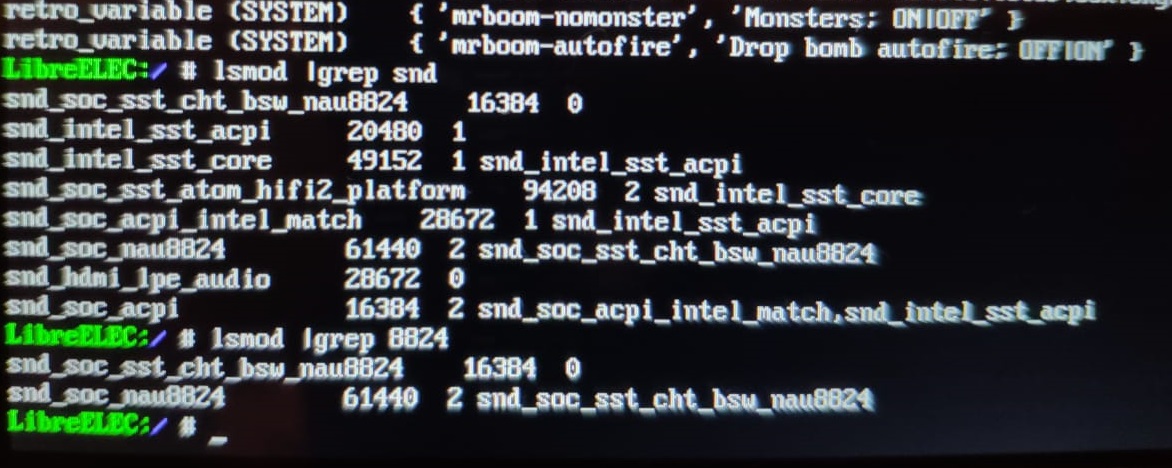

    And a have not this module snd_soc_skl

    Get me this file & I'll see what I can do. This is probably linked to some rubbish out-of-tree audio driver ://shrug

    Provide Log File [LibreELEC.wiki]

    Yes? i have several logs in this dir, it was test build, but sound not working too(

    Good afternoon, I installed LibreELEC-Generic.x86_64-9.1.501 on the Charry Trail netbook Intel Atom X8350, everything works except for sound, aplay -l view and HDMI and chtnau8824, kodi sees it too, but the sound does not go through the code or from the console, ucm files are available, on ubuntu 19.04 the sound works immediately, through alsamixer I see the settings and sound levels, but there is no sound itself.There are some additional sound modules on ubuntu, but they are not in Libreelec. and I can not find them in linux.x86_64.conf


    What logs can I provide?


    Have any ideas? =) Please Help)||

    Well does it work with any stock/vanilla LE version? If not it's a matter of LE and not really for this build only. So please check this first and if it doesn't work in other LE builds e.g. libreelec-generic.x86_64-9.1.501.img.gz then it has to solved upstream.


    Btw. to generate nice logs just enter your command whatever args | paste and you'll get a link which contains the output. And while your at it read the start post again how to grab the logfile.zip and post it here.

    Code
    1. Yes, you're right, I tried the official assembly and there is no sound either, tell me where to write? I can show the logs, but what exactly is not clear.
    Code
    1. Good afternoon, I installed your assembly on the Charry trail netbook Intel Atom X8350, everything works except for sound, aplay -l view and HDMI and chtnau8824, kodi sees it too, but the sound does not go through the code or from the console, ucm files are available, on ubuntu 19.04 the sound works immediately, through alsamixer I see the settings and sound levels, but there is no sound itself.
    2. There are some additional sound modules on ubuntu, but they are not in Libreelec. and I can not find them in linux.x86_64.conf
    3. Have any ideas? =) Please Help)
