spk-uke · Librespot Add-on spk-uke August 16, 2023 at 3:59 PM

Quote from scorgn

I'm not sure if this is something that happens with everyone or if it's intentional or if it even is happening for everyone, so I thought I would post here to see.

After some time of inactivity, my Kodi device will stop showing up on the list of Spotify Connect devices I have locally. It seems that going to the settings and re-saving them (without making any changes) will refresh the service and make it start showing up there again.

It would be awesome if I didn't have to update the settings of the plugin every time I wanted to connect. I will probably end up writing a plugin that automatically triggers the onSettingsChanged event every 30 minutes, or something along those lines, but I wanted to just double check to see if anyone else had any better solutions before doing that.

Anyone else dealing with this or have any suggestions?

Display More

I don't have a suggestion, but I can second your impression. My guess before was that Librespot stops working when I don't explicitly disconnect from it but just leave the network.

Is there a different version to install or can the plugin be restarted over a cron job or something? What can I do to help?
Thanks for your help!

spk-uke

Thanks everybody. Maybe I'll try another cable and a different PSU, though I read it's recommended to use the original one...

I just realized.. I have one more problem that I had for ages already and it corresponds to my CEC problem:

When switching to a different HDMI source on the TV and back, the CEC remote stopped working. Only when I play a media file, the functionality comes back.

Here the cec-client log:

Code

LibreELEC:~ # cec-client
No device type given. Using 'recording device'
CEC Parser created - libCEC version 4.0.7
no serial port given. trying autodetect:
 path:     /dev/cec0
 com port: Linux

opening a connection to the CEC adapter...
DEBUG:   [              51]    Broadcast (F): osd name set to 'Broadcast'
DEBUG:   [              51]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [              51]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [              51]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [              51]    could not open a connection (try 1)
DEBUG:   [              51]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            1051]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            1051]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            1051]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            1051]    could not open a connection (try 2)
DEBUG:   [            1051]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            2052]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            2052]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            2052]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            2052]    could not open a connection (try 3)
DEBUG:   [            2052]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            3052]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            3052]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            3053]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            3053]    could not open a connection (try 4)
DEBUG:   [            3053]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            4054]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            4055]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            4055]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            4056]    could not open a connection (try 5)
DEBUG:   [            4057]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            5058]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            5058]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            5058]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            5059]    could not open a connection (try 6)
DEBUG:   [            5059]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            6060]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            6060]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            6061]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            6061]    could not open a connection (try 7)
DEBUG:   [            6061]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            7062]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            7062]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            7063]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            7063]    could not open a connection (try 8)
DEBUG:   [            7063]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            8064]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            8065]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            8065]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            8065]    could not open a connection (try 9)
DEBUG:   [            8065]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            9066]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            9067]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            9067]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            9067]    could not open a connection (try 10)
DEBUG:   [            9067]    CLinuxCECAdapterCommunication::Close - m_fd=-1
NOTICE:  [           10068]    connection opened
ERROR:   [           10068]    could not start CEC communications
unable to open the device on port Linux

Display More

This is the log after I started playing a media file and CEC remote worked again:

Code

LibreELEC:~ # cec-client
No device type given. Using 'recording device'
CEC Parser created - libCEC version 4.0.7
no serial port given. trying autodetect:
 path:     /dev/cec0
 com port: Linux

opening a connection to the CEC adapter...
DEBUG:   [              33]    Broadcast (F): osd name set to 'Broadcast'
DEBUG:   [              33]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [              33]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [              33]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [              33]    could not open a connection (try 1)
DEBUG:   [              33]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            1033]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            1033]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            1033]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            1033]    could not open a connection (try 2)
DEBUG:   [            1033]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            2034]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            2034]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            2034]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            2034]    could not open a connection (try 3)
DEBUG:   [            2034]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            3034]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            3034]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            3034]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            3034]    could not open a connection (try 4)
DEBUG:   [            3034]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            4035]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            4035]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            4035]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            4035]    could not open a connection (try 5)
DEBUG:   [            4035]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            5036]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            5036]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            5036]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            5036]    could not open a connection (try 6)
DEBUG:   [            5036]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            6037]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            6037]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            6037]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            6037]    could not open a connection (try 7)
DEBUG:   [            6037]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            7037]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            7037]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            7037]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            7037]    could not open a connection (try 8)
DEBUG:   [            7037]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            8038]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            8038]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            8038]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            8038]    could not open a connection (try 9)
DEBUG:   [            8038]    CLinuxCECAdapterCommunication::Close - m_fd=-1
DEBUG:   [            9038]    CLinuxCECAdapterCommunication::Open - m_fd=3 bStartListening=1
ERROR:   [            9038]    CLinuxCECAdapterCommunication::Open - ioctl CEC_S_MODE failed - errno=16
DEBUG:   [            9038]    CLinuxCECAdapterCommunication::Close - m_fd=3
ERROR:   [            9038]    could not open a connection (try 10)
DEBUG:   [            9038]    CLinuxCECAdapterCommunication::Close - m_fd=-1
unable to open the device on port Linux
NOTICE:  [           10039]    connection opened

Display More

Is there a setting I have to change?

/edit: SOLUTION

I added hdmi_force_hotplug=1 to /flash/config.txt and no it kinda works. Needs some time to get activated (about 5 seconds).

spk-uke

Quote from spk-uke

3.
GPOI IQaudio DAC+
Adding this line to /flash/config.txt worked on 10.0.2:
dtoverlay=iqaudio-dacplus
This does not work on 10.0.3 anymore. The audio device won't show up in the list.

Okay I found the problem:

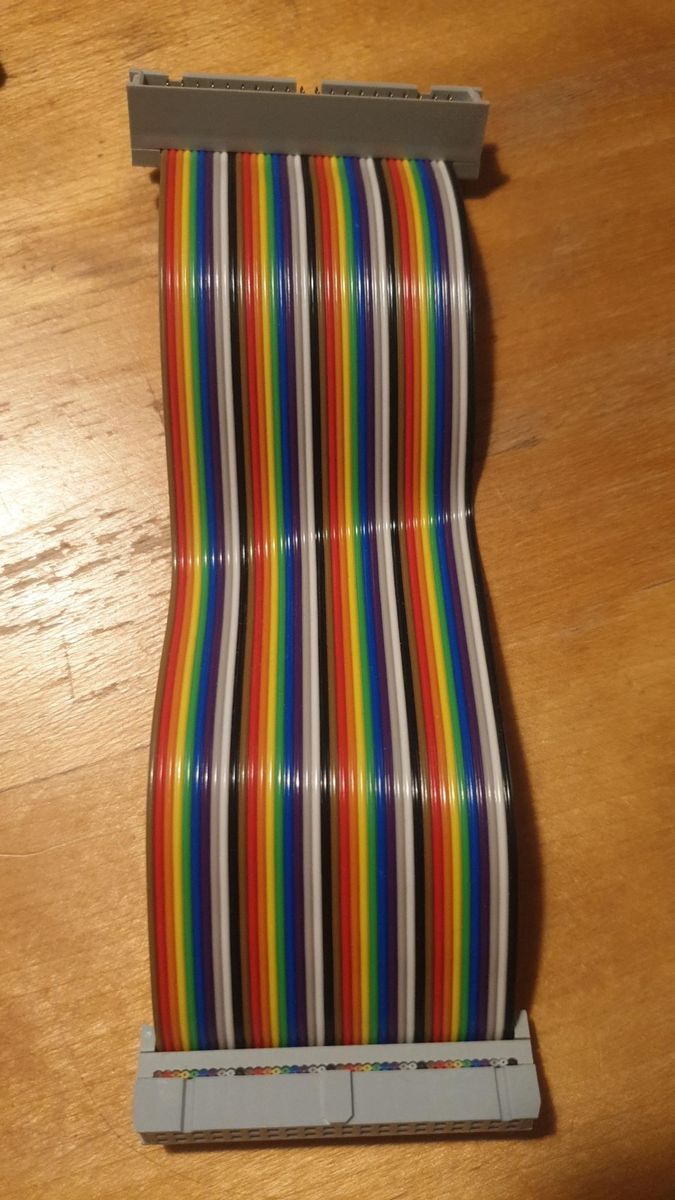

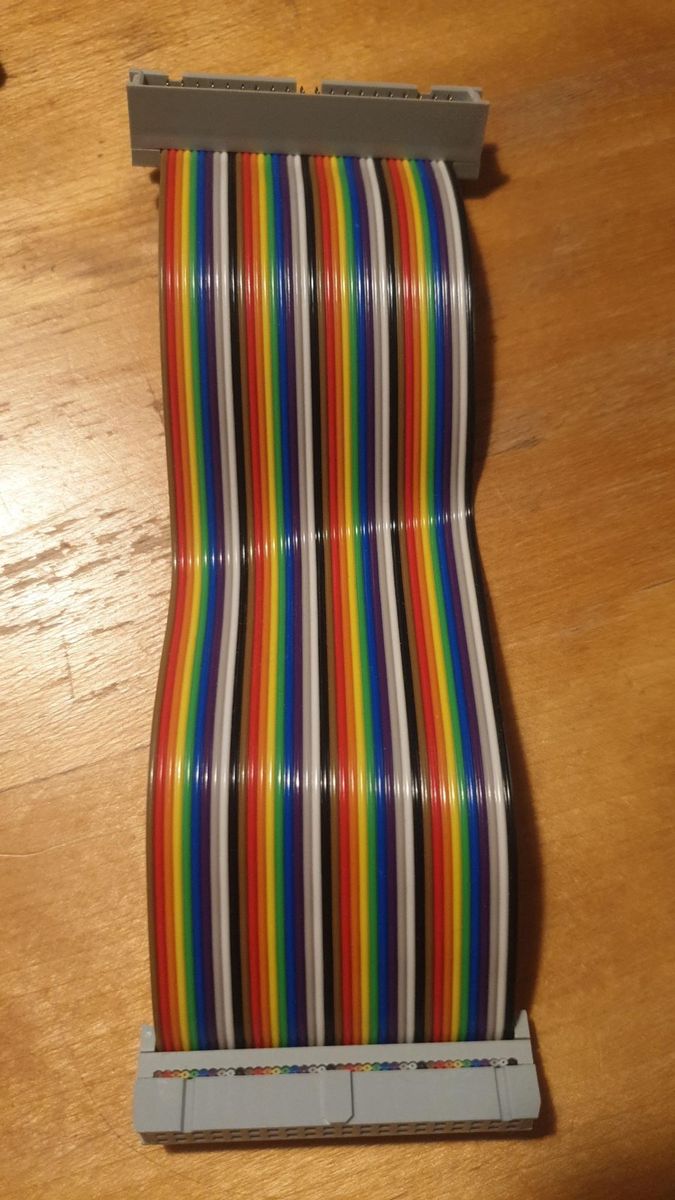

Because of the cooling chassis I wanted to use an GPIO extension cable (see image).

That caused the DAC to fail. It does work without the cable sitting on a GPIO stack expander (not ideal).

Is this a known issue with RPis GPIO and extension cables?

spk-uke

Quote

1.
No video output past rainbow splash screen
Switching sources back and forth brings back the Kodi login screen.
On 10.0.2 I had this working line in my /flash/cmdline.txt:
drm.edid_firmware=HDMI-A-1:edid/edid-HDMI-A-1.bin video=HDMI-A-1:D
This does not work anymore.
I ssh'ed into the machine checked the file for existing lines and fired the 'getedid create' command and it added the same line as above.
Original RPi HDMI Adapter, used port close to power plug.
Switched HDMI cables eventhough on 10.0.2 the existing cable worked fine.
What else can I do?

Display More

Okay, I found a workaround (thx yullaw ) [0]:

Added the following to /flash/distroconfig.txt

Code

hdmi_group=1
hdmi_mode=20

Still this is a temp solution because if I understand correctly, distroconfig.txt will be overwritten bei updates.

I have no idea what those values mean but is there a different way to add these settings permanently?

Source: RE: LE 10.0.1 / Rpi4 / No picture after update from LE 10.0.0

spk-uke

Hi guys,

I updated manually from 10.0.2 to 10.0.3 and have a couple of nasty problems:

No video output past rainbow splash screen
Switching sources back and forth brings back the Kodi login screen.
On 10.0.2 I had this working line in my /flash/cmdline.txt:
drm.edid_firmware=HDMI-A-1:edid/edid-HDMI-A-1.bin video=HDMI-A-1:D
This does not work anymore.
I ssh'ed into the machine checked the file for existing lines and fired the 'getedid create' command and it added the same line as above.
Original RPi HDMI Adapter, used port close to power plug.
Switched HDMI cables eventhough on 10.0.2 the existing cable worked fine.
What else can I do?
WORKAROUND in Post #2
CEC Problem
Since the upgade I have to toggle CEC Plugin off and on again to make it work.
WORKAROUND from Post #2 seems to fix this as well.
GPOI IQaudio DAC+
Adding this line to /flash/config.txt worked on 10.0.2:
dtoverlay=iqaudio-dacplus
This does not work on 10.0.3 anymore. The audio device won't show up in the list.
ROOT CAUSE of the problem in post #4

My update process was a little rocky: I updated placing the update.img.gz in the .update folder but because I didn't get an image I did a full reset and clean install. After that I restored the whole /STORAGE/ partition from the 10.0.2 version.

Model : Raspberry Pi 4 Model B Rev 1.1
TV: LG 42LW4500

Help would be appreciated. Thank you.

spk-uke · safe mode, and now? spk-uke August 5, 2019 at 9:49 PM

I just ran into the same problem. My profiles.xml was 0 bytes in size and directly after renaming it, LE booted up.

Posts by spk-uke

Librespot Add-on

Problems after update 10.0.2 > 10.0.3: Image on boot, CEC, GPIO DAC

Problems after update 10.0.2 > 10.0.3: Image on boot, CEC, GPIO DAC

Problems after update 10.0.2 > 10.0.3: Image on boot, CEC, GPIO DAC

Problems after update 10.0.2 > 10.0.3: Image on boot, CEC, GPIO DAC

safe mode, and now?
