Look like need recompile drivers addon
sorry crazycat, could it be the case also for Xbox Dvb Tuner on LE 9.0? full details in this post thx
Look like need recompile drivers addon
sorry crazycat, could it be the case also for Xbox Dvb Tuner on LE 9.0? full details in this post thx
I have a look, I guess something is going wrong here - need to check local.
sorry, have you take any step forward in your investigation or should we lose our expectations about Xbox dvb tuner with LE 9.0? thx
Display Morenb - I just posted this below on an old thread. It suggested a new thread so I am reposting here as this is more current. Please excuse the double up.
Hello all!
Thanks to all the devs for Libreelec! I am loving it! : )
It has allowed me to resurrect (and upgrade) a broken android tv box!
Can anyone give advice to get the xboxone adapter to work for me?
I have version 8.2.3.1
Architecture: S905.arm
I installed
LibreELEC-S905.arm-8.2-8.2.3.1.img.gz
onto a A95X box
-Amalogic Quad core Cortex A53, Quad-core Mali-450 GPU, Ram 2GB, ROM 16GB, 4K
I have installed:
PVR client Tvheadend HTSP Client
Tvheadend Server 4.2
Tvheadend Setup for Kodi
I have the box set to my region.
I have put in the TVheadend configuration the IP address of the Libreelec box.
I have the Tvheadend Username and Tvheadend Password empty - do I need to add one here??
In the adapters config I have two(?) devices:
Panasonic MN88472#0: DVB-C #0
Panasonic MN88472#0: DVB-T #0
-there is no xboxone adapter? Has it mistaken the adapter or are the above just generic identifiers?
-I enabled both Panasonic adapters.
It says I have 6 muxes - ?
When I scan channels it says:
New services found: 0
There are no new services to map to channels.
I cannot get reception or epg.
nb Australia
Any advice for a novice?
Thanks.
Hello, i'm not an expert but as far as i know the model named in the adapter's page of tvh is a kind of "best opiton" for the dongle, in terms of drivers (recognized by LE), as also mine is named as Panasonic and it's working properly, then i would say the name is not relevant.
for tvh conf i followed the steps mentioned in This Post (on first Mega share there's a good pdf guide) using the wrxtasy release (very good by the way).
good luck
my Xbox One DVB stick works ootb, what image do you use ?
Hello CvH,
i can confirm mine also is working ootb on LE 8.2.5
i just tryed latest LE release 8.95.003 for amlogic device from your annuncement, but still no luck.
what i see is it's trying to use the same driver (dvb_usb_dib0700) that was working on LE 8.2.5 but on 8.95 no way, tvh shows no connector available:
[ [email protected]] dvb-usb: found a 'Microsoft Xbox One Digital TV Tuner' in warm state.
[ [email protected]] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer.
[ [email protected]] dvbdev: DVB: registering new adapter (Microsoft Xbox One Digital TV Tuner)
[ [email protected]] usb 1-1.2: media controller created
[ [email protected]] dvbdev: dvb_create_media_entity: media entity 'dvb-demux' registered.
[ [email protected]] IR RC6 protocol handler initialized
[ [email protected]] mn88472 1-0018: Panasonic MN88472 successfully identified
[ [email protected]] dvb-usb: no frontend was attached by 'Microsoft Xbox One Digital TV Tuner'
[ [email protected]] dvb-usb: Microsoft Xbox One Digital TV Tuner successfully initialized and connected.
[ [email protected]] usbcore: registered new interface driver dvb_usb_dib0700
is it something related to Amlogic platform and new LE releases? if not, any idea if the above line could be the root cause or do you have any hint i could try?
thanks in advance
i prefer to stick with LE
by the way I had more time to investigate today and:
i can see crazycat mentioned in dmesg | paste log.
maybe the message "no frontend was attached by 'Microsoft Xbox One Digital TV Tuner'" could lead to the issue?
working:
....
[ [email protected]] dvb-usb: found a 'Microsoft Xbox One Digital TV Tuner' in cold state, will try to load a firmware
[ [email protected]] dvb-usb: downloading firmware from file 'dvb-usb-dib0700-1.20.fw'
....
[ [email protected]] dvb-usb: found a 'Microsoft Xbox One Digital TV Tuner' in warm state.
[ [email protected]] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer.
[ [email protected]] dvbdev: DVB: registering new adapter (Microsoft Xbox One Digital TV Tuner)
[ [email protected]] usb 1-1.2: media controller created
[ [email protected]] dvbdev: dvb_create_media_entity: media entity 'dvb-demux' registered.
[ [email protected]] mn88472 1-0018: Panasonic MN88472 successfully identified
[ [email protected]] tda18250 1-0060: NXP TDA18250BHN/M successfully identified
[ [email protected]] usb 1-1.2: DVB: registering adapter 0 frontend 0 (Panasonic MN88472)...
[ [email protected]] dvbdev: dvb_create_media_entity: media entity 'Panasonic MN88472' registered.
[ [email protected]] dvb-usb: Microsoft Xbox One Digital TV Tuner successfully initialized and connected.
[ [email protected]] usbcore: registered new interface driver dvb_usb_dib0700
....
[ [email protected]] mn88472 1-0018: downloading firmware from file 'dvb-demod-mn88472-02.fw'
[ [email protected]] usb 1-1.2: DVB: adapter 0 frontend 0 frequency 0 out of range (42000000..870000000)
not working (http://ix.io/1yCW
....
[ [email protected]] kernel-overlays-setup: processing conf /storage/.cache/kernel-overlays/50-driver.dvb.crazycat_aml.conf
[ [email protected]] kernel-overlays-setup: added modules from /usr/lib/kernel-overlays/driver.dvb.crazycat_aml/lib/modules/3.14.29
....
[ [email protected]] dvb-usb: found a 'Microsoft Xbox One Digital TV Tuner' in warm state.
[ [email protected]] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer.
[ [email protected]] dvbdev: DVB: registering new adapter (Microsoft Xbox One Digital TV Tuner)
[ [email protected]] usb 1-1.2: media controller created
[ [email protected]] dvbdev: dvb_create_media_entity: media entity 'dvb-demux' registered.
....
[ [email protected]] mn88472 1-0018: Panasonic MN88472 successfully identified
[ [email protected]] dvb-usb: no frontend was attached by 'Microsoft Xbox One Digital TV Tuner'
[ [email protected]] dvb-usb: Microsoft Xbox One Digital TV Tuner successfully initialized and connected.
[ [email protected]] usbcore: registered new interface driver dvb_usb_dib0700
....
.... if any idea, very appreciate, thx
hmm thats 2 different systems/iamges in use so i guess the driver is not there/working ?
yes, right, the working one is Kszaq legacy's image from wrxtasy (8.2.5) while the not "recognizing" one is 8.95.002.
Searching between forum(s) i found here kodi.tv #4899 and here OE 8.95.2 some links betwee CrazyCat drivers and Xbox One Tuner
so i thought it was included in 8.95.002 image and only to switch on by the addon, isn't so? if not is there any way activate it in 8.95.002 (or any key post to learn hot to)? thx
nope thats what I mean, but dmesg | paste might help here (enter via ssh)
best case if you can enter it at an working and a not working state and post both links here
maybe the driver is crashing for some reason, this is shown at dmesg pretty nice
the dongle seems recognized in one case not in the other one, but not very clear to me :
by the way usb port and the overall configuration is exaclty the same, in both cases loading LE via SD, the only difference is LE image.
thanks again for your time
All our releases (besides Wetek Core and Play1) have still the crazy cat drivers shipped. Pls have a look at the announcement at libreelec.tv there it is described how it works. You need to activate it at the driver chooser addon.

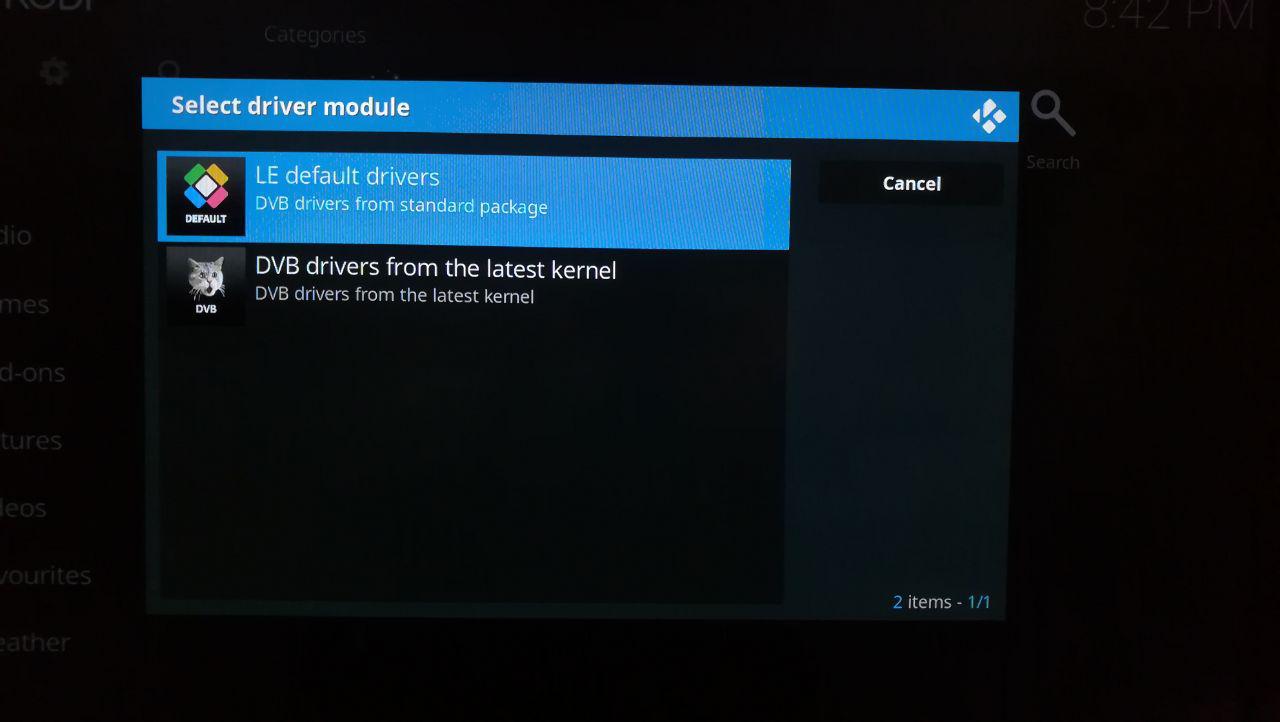

thanks for your reply. i already checked the information at post #1 and also watch the video but the only options i see in the "LibreELEC Module Drivers" AddOn are the following:

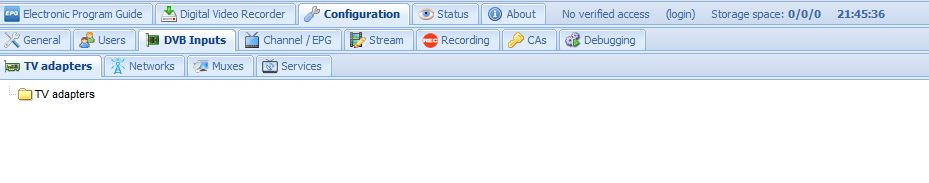

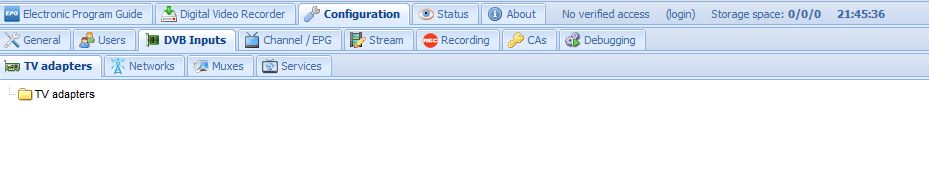

and i tried both of them but still after rebooting no adapters:
wile with 8.2.5 image they were shown.
that's why i was wondering if in the image "LibreELEC-S905.arm-8.95.002.img.gz" those drivers were not included or if i was missing something. Anyway just to double check, is this the procedure to "activate" the drivers you were referring to, right? can i check something else?
thanks
Hello,
thank you for the great job done.
i have XBOX ONE DVB-T dongle which is working fine on LibreELEC 8.2.5 and TvHeadEnd 4.2. on my tronsmart telos android box (Amlogic s905)
i'm now trying to upgrade to LibreELEC 9.0 and i tried several releases up to latest (semi official) 8.95.002 but no luck as the tv adapter is no longer beeing recognized, so maybe it could be a driver issue i suppose rather than a TvHeadEnd issue.
i tried to switch between all available options in drivers addon, so both "LE default drivers" and "DVB drivers from the latest kernel", whic are the only 2 options i can see, but again no luck.
reading between libreELEC forum threads, i saw that for previous LE releases, the magic in the paste, was done by CrazyCat drivers (by CvH), does this could mean that driver will no longer be available for LE 9.0 or maybe in a close future it will be?
many thanks
