coldstorage · Xbox One tuner failure coldstorage September 26, 2020 at 1:24 PM

Hello, I've come to the only place I think can offer some answers - would appreciate the help of CvH and friends!

After working fine with libreelec and tvheadend for years, my 3 Xbox tuners have stopped working. They no longer worked in fresh installs on x86 and pi3. I guessed they must have burned out from being in a confined space over a hot summer. There were no updates or software changes made.

Mysteriously, I bought a new Xbox tuner and it was exactly the same. Able to scan EPG but not tune to a channel. Tried again on pi3, x86, tvheadend add-on and in docker, nextpvr, ubuntu, the lot. All the same, recognised, driver loaded, but not able to tune a channel. No helpful debug log clues I have found

So I guessed: another burned tuner? (Because I am crazy) I bought a 5th tuner (they are so cheap). Brand new, sealed, fresh. Same again.

My setup

LibreELEC 9.0.2 - have tried updating to 9.2.4 - same result

NUC7PJYH Pentium J5005 Gemini Lake

Xbox One DVB-T2 tuners x5, as above - I know they are not perfect but worked great for me

Geniatech DVB-S2 reciever - working as normal

Reasonable aerial signal strength that has been unchanged, my TV and Vbox can still tune from it

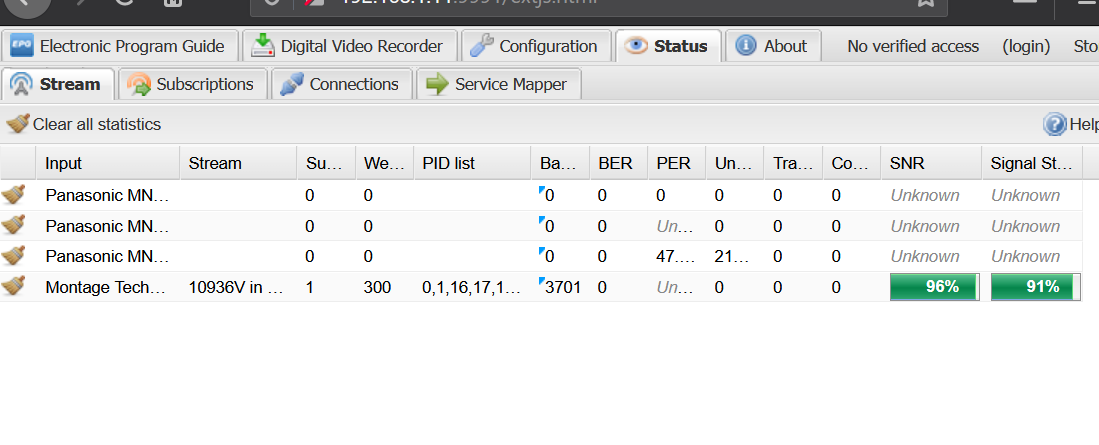

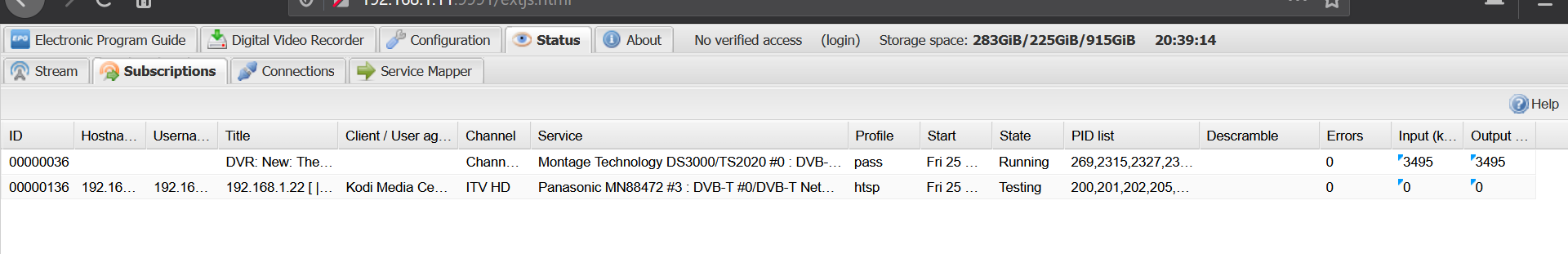

Screenshots

Logs

Code

LibreELEC:~ # dmesg | grep dvb
[ 5.902813] kernel-overlays-setup: processing conf
/storage/.cache/kernel-overlays/50-driver.dvb.crazycat.conf
[ 5.925044] kernel-overlays-setup: added modules
from /usr/lib/kernel-overlays/driver.dvb.crazycat/lib/modules/4.19.36
[ 7.536764] dvb-usb: found a 'Microsoft Xbox One
Digital TV Tuner' in cold state, will try to load a firmware
[ 7.540381] dvb-usb: downloading firmware from file
'dvb-usb-dib0700-1.20.fw'
[ 8.268002] dvb-usb: found a 'Microsoft Xbox One
Digital TV Tuner' in warm state.
[ 8.268212] dvb-usb: will pass the complete MPEG2
transport stream to the software demuxer.
[ 8.268661] dvbdev: DVB: registering new adapter
(Microsoft Xbox One Digital TV Tuner)
[ 8.269104] dvbdev: dvb_create_media_entity: media
entity 'dvb-demux' registered.
[ 8.458982] dvbdev: dvb_create_media_entity: media
entity 'Panasonic MN88472' registered.
[ 8.459287] dvb-usb: Microsoft Xbox One Digital TV
Tuner successfully initialized and connected.
[ 8.459727] dvb-usb: found a 'Microsoft Xbox One
Digital TV Tuner' in cold state, will try to load a firmware
[ 8.459789] dvb-usb: downloading firmware from file
'dvb-usb-dib0700-1.20.fw'
[ 9.041326] dvb-usb: found a 'Microsoft Xbox One
Digital TV Tuner' in warm state.
[ 9.041513] dvb-usb: will pass the complete MPEG2
transport stream to the software demuxer.
[ 9.041854] dvbdev: DVB: registering new adapter
(Microsoft Xbox One Digital TV Tuner)
[ 9.042097] dvbdev: dvb_create_media_entity: media
entity 'dvb-demux' registered.
[ 9.233901] dvbdev: dvb_create_media_entity: media
entity 'Panasonic MN88472' registered.
[ 9.234262] dvb-usb: Microsoft Xbox One Digital TV
Tuner successfully initialized and connected.
[ 9.234531] dvb-usb: found a 'Microsoft Xbox One
Digital TV Tuner' in cold state, will try to load a firmware
[ 9.234582] dvb-usb: downloading firmware from file
'dvb-usb-dib0700-1.20.fw'
[ 9.844687] dvb-usb: found a 'Microsoft Xbox One
Digital TV Tuner' in warm state.
[ 9.844859] dvb-usb: will pass the complete MPEG2
transport stream to the software demuxer.
[ 9.845294] dvbdev: DVB: registering new adapter
(Microsoft Xbox One Digital TV Tuner)
[ 9.845546] dvbdev: dvb_create_media_entity: media
entity 'dvb-demux' registered.
[ 10.039048] dvbdev: dvb_create_media_entity: media
entity 'Panasonic MN88472' registered.
[ 10.039341] dvb-usb: Microsoft Xbox One Digital TV
Tuner successfully initialized and connected.
[ 10.039428] usbcore: registered new interface
driver dvb_usb_dib0700
[ 14.110952] mn88472 5-0018: downloading firmware
from file 'dvb-demod-mn88472-02.fw'
[ 92.925236] mn88472 6-0018: downloading firmware
from file 'dvb-demod-mn88472-02.fw'
[ 93.107604] mn88472 4-0018: downloading firmware
from file 'dvb-demod-mn88472-02.fw'
LibreELEC:~ # dmesg | grep DVB
[ 8.268661] dvbdev: DVB: registering new adapter
(Microsoft Xbox One Digital TV Tuner)
[ 8.458976] usb 1-3.2: DVB: registering adapter 0
frontend 0 (Panasonic MN88472)...
[ 9.041854] dvbdev: DVB: registering new adapter
(Microsoft Xbox One Digital TV Tuner)
[ 9.233894] usb 1-3.3: DVB: registering adapter 1
frontend 0 (Panasonic MN88472)...
[ 9.845294] dvbdev: DVB: registering new adapter
(Microsoft Xbox One Digital TV Tuner)
[ 10.039041] usb 1-3.4: DVB: registering adapter 2
frontend 0 (Panasonic MN88472)...
[ 93.069932] usb 1-3.4: DVB: adapter 2 frontend 0
frequency 0 out of range (42000000..870000000)
[ 93.104873] usb 1-3.3: DVB: adapter 1 frontend 0
frequency 0 out of range (42000000..870000000)
[ 93.254849] usb 1-3.2: DVB: adapter 0 frontend 0
frequency 0 out of range (42000000..870000000)

Display More

Can anyone help me debug this?

coldstorage

As requested here's the relevant dmesg from my working setup, there's an Xbox tuner in there as well

Code

[    6.051588] kernel-overlays-setup: processing conf /storage/.cache/kernel-ove                                                                                                                                                             rlays/50-driver.dvb.crazycat.conf
[    6.134301] kernel-overlays-setup: added modules from /usr/lib/kernel-overlay                                                                                                                                                             s/driver.dvb.crazycat/lib/modules/4.14.69
[    9.053145] dvb-usb: found a 'SU3000HD DVB-S USB2.0' in warm state.
[    9.053547] dvb-usb: will pass the complete MPEG2 transport stream to the sof                                                                                                                                                             tware demuxer.
[    9.054084] dvbdev: DVB: registering new adapter (SU3000HD DVB-S USB2.0)
[    9.059342] dvb-usb: found a 'Microsoft Xbox One Digital TV Tuner' in cold st                                                                                                                                                             ate, will try to load a firmware
[    9.060077] dvb-usb: MAC address: 00:af:78:66:2e:e3
[    9.060800] dvbdev: dvb_create_media_entity: media entity 'dvb-demux' registe                                                                                                                                                             red.
[    9.094124] dvb-usb: downloading firmware from file 'dvb-usb-dib0700-1.20.fw'
[    9.395281] dvbdev: dvb_create_media_entity: media entity 'Montage Technology                                                                                                                                                              DS3000/TS2020' registered.
[    9.431970] dvb-usb: schedule remote query interval to 150 msecs.
[    9.431980] dvb-usb: SU3000HD DVB-S USB2.0 successfully initialized and conne                                                                                                                                                             cted.
[    9.731460] dvb-usb: found a 'Microsoft Xbox One Digital TV Tuner' in warm st                                                                                                                                                             ate.
[    9.731709] dvb-usb: will pass the complete MPEG2 transport stream to the sof                                                                                                                                                             tware demuxer.
[    9.732543] dvbdev: DVB: registering new adapter (Microsoft Xbox One Digital                                                                                                                                                              TV Tuner)
[    9.733283] dvbdev: dvb_create_media_entity: media entity 'dvb-demux' registe                                                                                                                                                             red.
[    9.936500] dvbdev: dvb_create_media_entity: media entity 'Panasonic MN88472'                                                                                                                                                              registered.
[    9.937377] dvb-usb: Microsoft Xbox One Digital TV Tuner successfully initial                                                                                                                                                             ized and connected.
[    9.938541] usbcore: registered new interface driver dvb_usb_dib0700
[   14.044374] mn88472 4-0018: downloading firmware from file 'dvb-demod-mn88472                                                                                                                                                             -02.fw'
[   14.275876] ds3k_firmware_ondemand: Waiting for firmware upload (dvb-fe-ds310                                                                                                                                                             3.fw)...
[   15.406233] ds3k_firmware_ondemand: Waiting for firmware upload (dvb-fe-ds310                                                                                                                                                             3.fw)...
[  144.019251] ds3k_firmware_ondemand: Waiting for firmware upload (dvb-fe-ds310                                                                                                                                                             3.fw)...
[  145.150180] ds3k_firmware_ondemand: Waiting for firmware upload (dvb-fe-ds310                                                                                                                                                             3.fw)...

Display More

coldstorage

The dev build above, with CrazyCat drivers enabled in add-ons->services, and a "B" chip mygica HDStar is working for me! Watching DVB-S on LibreElec for the first time.

CrazyCat, CvH - thanks so much for your hard work on this one!

coldstorage · Freeze on stopping PVR stream coldstorage August 18, 2018 at 8:29 PM

Whoops - I had MMAL enabled there - OMXplayer works ok - but 1. costs the Pi MPEG2 license and 2. does not repect the " adjust framerate on start/stop"

coldstorage · Freeze on stopping PVR stream coldstorage August 18, 2018 at 9:47 AM

(Raspberry Pi 3 running LE 8.2.5 and TVheadend as service + client)

Hello. For a while now I have random freezes when stopping PVR live channels or recordings (last frame of video displayed, no response to input, SSH still working). The same happens when changing stream.

I found the line:

Code

CMMALVideo::dec_control_port_cb Error (status=3 EINVAL)

which happens sometimes, a short time after a stream starts - once this happens, playback continues fine - I can still access everything - until I press stop - then the freeze described above. I do have auto framerate adjustment enabled but it happens with it off as well. I have tried disabling MMAL and using OMXPLAYER instead.

My full kodi log is here:

Code

05:31:35.069 T:1945178112  NOTICE: special://profile/ is mapped to: special://masterprofile/
05:31:35.069 T:1945178112  NOTICE: -----------------------------------------------------------------------
05:31:35.069 T:1945178112  NOTICE: Starting Kodi (17.6 Git:a9a7a20). Platform: Linux ARM 32-bit
05:31:35.069 T:1945178112  NOTICE: Using Release Kodi x32 build (version for Raspberry Pi)
05:31:35.069 T:1945178112  NOTICE: Kodi compiled Apr 13 2018 by GCC 6.2.0 for Linux ARM 32-bit version 4.9.80 (264528)
05:31:35.069 T:1945178112  NOTICE: Running on LibreELEC (official): 8.2.5, kernel: Linux ARM 32-bit version 4.9.80
05:31:35.069 T:1945178112  NOTICE: FFmpeg version/source: ffmpeg-3.1-kodi
05:31:35.069 T:1945178112  NOTICE: Host CPU: ARMv7 Processor rev 4 (v7l), 4 cores available
05:31:35.069 T:1945178112  NOTICE: ARM Features: Neon enabled
05:31:35.069 T:1945178112  NOTICE: special://xbmc/ is mapped to: /usr/share/kodi/
05:31:35.069 T:1945178112  NOTICE: special://xbmcbin/ is mapped to: /usr/lib/kodi
05:31:35.069 T:1945178112  NOTICE: special://xbmcbinaddons/ is mapped to: /usr/lib/kodi/addons
05:31:35.069 T:1945178112  NOTICE: special://masterprofile/ is mapped to: /storage/.kodi/userdata
05:31:35.069 T:1945178112  NOTICE: special://envhome/ is mapped to: /storage
05:31:35.069 T:1945178112  NOTICE: special://home/ is mapped to: /storage/.kodi
05:31:35.070 T:1945178112  NOTICE: special://temp/ is mapped to: /storage/.kodi/temp
05:31:35.070 T:1945178112  NOTICE: special://logpath/ is mapped to: /storage/.kodi/temp
05:31:35.070 T:1945178112  NOTICE: The executable running is: /usr/lib/kodi/kodi.bin
05:31:35.070 T:1945178112  NOTICE: Local hostname: LibreELEC
05:31:35.070 T:1945178112  NOTICE: Log File is located: /storage/.kodi/temp//kodi.log
05:31:35.070 T:1945178112  NOTICE: -----------------------------------------------------------------------
05:31:35.144 T:1945178112   ERROR: DBus: Error org.freedesktop.DBus.Error.ServiceUnknown - The name org.freedesktop.UPower was not provided by any .service files
05:31:35.153 T:1945178112  NOTICE: load settings...
05:31:35.297 T:1945178112  NOTICE: Found 2 Lists of Devices
05:31:35.297 T:1945178112  NOTICE: Enumerated PI devices:
05:31:35.297 T:1945178112  NOTICE:     Device 1
05:31:35.297 T:1945178112  NOTICE:         m_deviceName      : HDMI
05:31:35.297 T:1945178112  NOTICE:         m_displayName     : HDMI
05:31:35.297 T:1945178112  NOTICE:         m_displayNameExtra:
05:31:35.297 T:1945178112  NOTICE:         m_deviceType      : AE_DEVTYPE_HDMI
05:31:35.297 T:1945178112  NOTICE:         m_channels        : FL,FR
05:31:35.297 T:1945178112  NOTICE:         m_sampleRates     : 8000,11025,16000,22050,24000,32000,44100,48000,88200,96000,176400,192000
05:31:35.297 T:1945178112  NOTICE:         m_dataFormats     : AE_FMT_FLOAT,AE_FMT_S32NE,AE_FMT_S16NE,AE_FMT_S32LE,AE_FMT_S16LE,AE_FMT_FLOATP,AE_FMT_S32NEP,AE_FMT_S16NEP,AE_FMT_RAW
05:31:35.298 T:1945178112  NOTICE:         m_streamTypes     : STREAM_TYPE_AC3,STREAM_TYPE_EAC3,STREAM_TYPE_DTSHD_CORE,STREAM_TYPE_DTS_2048,STREAM_TYPE_DTS_1024,STREAM_TYPE_DTS_512
05:31:35.298 T:1945178112  NOTICE:     Device 2
05:31:35.298 T:1945178112  NOTICE:         m_deviceName      : Analogue
05:31:35.298 T:1945178112  NOTICE:         m_displayName     : Analogue
05:31:35.298 T:1945178112  NOTICE:         m_displayNameExtra:
05:31:35.298 T:1945178112  NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
05:31:35.298 T:1945178112  NOTICE:         m_channels        : FL,FR
05:31:35.298 T:1945178112  NOTICE:         m_sampleRates     : 48000
05:31:35.298 T:1945178112  NOTICE:         m_dataFormats     : AE_FMT_FLOAT,AE_FMT_S32LE,AE_FMT_S16LE,AE_FMT_FLOATP,AE_FMT_S32NEP,AE_FMT_S16NEP
05:31:35.298 T:1945178112  NOTICE:         m_streamTypes     : No passthrough capabilities
05:31:35.298 T:1945178112  NOTICE:     Device 3
05:31:35.298 T:1945178112  NOTICE:         m_deviceName      : Both
05:31:35.298 T:1945178112  NOTICE:         m_displayName     : HDMI and Analogue
05:31:35.298 T:1945178112  NOTICE:         m_displayNameExtra:
05:31:35.298 T:1945178112  NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
05:31:35.298 T:1945178112  NOTICE:         m_channels        : FL,FR
05:31:35.298 T:1945178112  NOTICE:         m_sampleRates     : 48000
05:31:35.298 T:1945178112  NOTICE:         m_dataFormats     : AE_FMT_FLOAT,AE_FMT_S32LE,AE_FMT_S16LE,AE_FMT_FLOATP,AE_FMT_S32NEP,AE_FMT_S16NEP
05:31:35.298 T:1945178112  NOTICE:         m_streamTypes     : No passthrough capabilities
05:31:35.298 T:1945178112  NOTICE: Enumerated PULSE devices:
05:31:35.298 T:1945178112  NOTICE:     Device 1
05:31:35.298 T:1945178112  NOTICE:         m_deviceName      : Default
05:31:35.298 T:1945178112  NOTICE:         m_displayName     : Default
05:31:35.298 T:1945178112  NOTICE:         m_displayNameExtra: Bluetooth Audio (PULSEAUDIO)
05:31:35.298 T:1945178112  NOTICE:         m_deviceType      : AE_DEVTYPE_PCM
05:31:35.298 T:1945178112  NOTICE:         m_channels        : FL,FR
05:31:35.298 T:1945178112  NOTICE:         m_sampleRates     : 5512,8000,11025,16000,22050,32000,44100,48000,64000,88200,96000,176400,192000,384000
05:31:35.298 T:1945178112  NOTICE:         m_dataFormats     : AE_FMT_U8,AE_FMT_S16NE,AE_FMT_S24NE3,AE_FMT_S24NE4,AE_FMT_S32NE,AE_FMT_FLOAT
05:31:35.298 T:1945178112  NOTICE:         m_streamTypes     : No passthrough capabilities
05:31:35.317 T:1945178112  NOTICE: Loaded settings file from special://xbmc/system/advancedsettings.xml
05:31:35.318 T:1945178112  NOTICE: Contents of special://xbmc/system/advancedsettings.xml are...
                                            <?xml version="1.0" encoding="UTF-8" ?>
                                            <advancedsettings>
                                              <showexitbutton>false</showexitbutton>
                                              <remotedelay>1</remotedelay>
                                              <fanartres>720</fanartres>
                                              <imageres>540</imageres>
                                              <samba>
                                                <clienttimeout>30</clienttimeout>
                                              </samba>
                                            </advancedsettings>
05:31:35.319 T:1945178112  NOTICE: No settings file to load (special://masterprofile/advancedsettings.xml)
05:31:35.319 T:1945178112  NOTICE: Default Video Player: VideoPlayer
05:31:35.319 T:1945178112  NOTICE: Default Audio Player: paplayer
05:31:35.319 T:1945178112  NOTICE: Disabled debug logging due to GUI setting. Level 0.
05:31:35.319 T:1945178112  NOTICE: Log level changed to "LOG_LEVEL_NORMAL"
05:31:35.319 T:1945178112  NOTICE: CMediaSourceSettings: loading media sources from special://masterprofile/sources.xml
05:31:35.321 T:1945178112  NOTICE: Loading player core factory settings from special://xbmc/system/playercorefactory.xml.
05:31:35.322 T:1945178112  NOTICE: Loaded playercorefactory configuration
05:31:35.323 T:1945178112  NOTICE: Loading player core factory settings from special://masterprofile/playercorefactory.xml.
05:31:35.323 T:1945178112  NOTICE: special://masterprofile/playercorefactory.xml does not exist. Skipping.
05:31:35.421 T:1945178112  NOTICE: Running database version Addons27
05:31:35.618 T:1945178112  NOTICE: ADDONS: Using repository repository.kodi.game
05:31:35.618 T:1945178112  NOTICE: ADDONS: Using repository repository.libreelec.tv
05:31:35.618 T:1945178112  NOTICE: ADDONS: Using repository repository.xbmc.org
05:31:35.684 T:1945178112  NOTICE: Raspberry PI firmware version: Apr  6 2018 18:05:06
                                            Copyright (c) 2012 Broadcom
                                            version 6e5c0b2ea66e88157068fc38184b31a05a022892 (clean) (release)
05:31:35.684 T:1945178112  NOTICE: ARM mem: 768MB GPU mem: 256MB MPG2:0 WVC1:0
05:31:35.684 T:1945178112  NOTICE: cache.memorysize: 20MB libass.cache: 0MB
05:31:35.684 T:1945178112  NOTICE: Config:
                                            arm_freq=1200
                                            audio_pwm_mode=514
                                            config_hdmi_bo*st=5
                                            core_freq=400
                                            desired_osc_freq=0x36ee80
                                            disable_commandline_tags=2
                                            disable_l2cache=1
                                            display_hdmi_rotate=-1
                                            display_lcd_rotate=-1
                                            force_eeprom_read=1
                                            force_pwm_open=1
                                            framebuffer_ignore_alpha=1
                                            framebuffer_swap=1
                                            gpu_freq=300
                                            hdmi_channel_map=8
                                            hdmi_force_cec_address=65535
                                            hdmi_ignore_cec_init=1
                                            init_uart_clock=0x2dc6c00
                                            lcd_framerate=60
                                            over_voltage_avs=0x2dc6c
                                            overscan_bottom=48
                                            overscan_left=48
                                            overscan_right=48
                                            overscan_top=48
                                            pause_burst_frames=1
                                            program_serial_random=1
                                            sdram_freq=450
05:31:35.684 T:1945178112  NOTICE: Config:
                                            device_tree=-
05:31:35.685 T:1945178112  NOTICE: InitWindowSystem: Using EGL Implementation: raspberrypi
05:31:35.687 T:1945178112  NOTICE: Found resolution 640 x 480 for display 0 with 640 x 480 @ 60.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 640 x 480 for display 0 with 640 x 480 @ 59.940063 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 800 x 600 for display 0 with 800 x 600 @ 60.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 800 x 600 for display 0 with 800 x 600 @ 59.940063 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1024 x 768 for display 0 with 1024 x 768 @ 60.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1024 x 768 for display 0 with 1024 x 768 @ 59.940063 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1280 x 1024 for display 0 with 1280 x 1024 @ 60.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1280 x 1024 for display 0 with 1280 x 1024 @ 59.940063 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 720 x 480 for display 0 with 720 x 480 @ 60.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 720 x 480 for display 0 with 720 x 480 @ 59.940063 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1280 x 720 for display 0 with 1280 x 720 @ 60.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1280 x 720 for display 0 with 1280 x 720 @ 59.940063 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 60.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 59.940063 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 720 x 576 for display 0 with 720 x 576 @ 50.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1280 x 720 for display 0 with 1280 x 720 @ 50.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 50.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 24.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 23.976025 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 25.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 30.000000 Hz
05:31:35.687 T:1945178112  NOTICE: Found resolution 1920 x 1080 for display 0 with 1920 x 1080 @ 29.970032 Hz
05:31:35.687 T:1945178112  NOTICE: Found ([email protected]) at 28, setting to RES_DESKTOP at 16
05:31:35.687 T:1945178112  NOTICE: Checking resolution 16
05:31:35.960 T:1945178112  NOTICE: GL_VENDOR = Broadcom
05:31:35.961 T:1945178112  NOTICE: GL_RENDERER = VideoCore IV HW
05:31:35.961 T:1945178112  NOTICE: GL_VERSION = OpenGL ES 2.0
05:31:35.961 T:1945178112  NOTICE: GL_SHADING_LANGUAGE_VERSION = OpenGL ES GLSL ES 1.00
05:31:35.961 T:1945178112  NOTICE: GL_EXTENSIONS = GL_OES_compressed_ETC1_RGB8_texture GL_OES_compressed_paletted_texture GL_OES_texture_npot GL_OES_depth24 GL_OES_vertex_half_float GL_OES_EGL_image GL_OES_EGL_image_external GL_EXT_discard_framebuffer GL_OES_rgb8_rgba8 GL_OES_depth32 GL_OES_mapbuffer GL_EXT_texture_format_BGRA8888 GL_APPLE_rgb_422 GL_EXT_debug_marker
05:31:36.870 T:1858073504  NOTICE: Running database version Addons27
05:31:36.876 T:1858073504  NOTICE: Running database version ViewModes6
05:31:36.878 T:1858073504  NOTICE: Running database version Textures13
05:31:36.895 T:1858073504  NOTICE: Running database version MyMusic60
05:31:36.914 T:1858073504  NOTICE: Running database version MyVideos107
05:31:36.918 T:1858073504  NOTICE: Running database version TV29
05:31:36.924 T:1858073504  NOTICE: Running database version Epg11
05:31:36.929 T:1945178112  NOTICE: start dvd mediatype detection
05:31:37.038 T:1816130464  NOTICE: Register - new cec device registered on cec->RPI: CEC Adapter (2708:1001)
05:31:37.503 T:1945178112 WARNING: JSONRPC: Could not parse type "Setting.Details.SettingList"
05:31:38.013 T:1945178112  NOTICE: initialize done
05:31:38.013 T:1945178112  NOTICE: Running the application...
05:31:38.046 T:1945178112  NOTICE: starting zeroconf publishing
05:31:38.047 T:1945178112  NOTICE: CWebServer[8080]: Started
05:31:38.048 T:1945178112  NOTICE: starting upnp client
05:31:38.065 T:1945178112  NOTICE: starting upnp renderer
05:31:38.086 T:1577055136  NOTICE: ES: Starting UDP Event server on port 9777
05:31:38.089 T:1577055136  NOTICE: UDP: Listening on port 9777 (ipv6 : true)
05:31:38.600 T:1693025184 WARNING: CSkinInfo: failed to load skin settings
05:31:41.651 T:1788867488   ERROR: CecLogMessage - RegisterLogicalAddress - vc_cec_set_logical_address(1) returned device is busy (3)
05:31:41.764 T:1753215904  NOTICE: Start - EPG thread started
05:33:27.985 T:1945178112  NOTICE: Samba is idle. Closing the remaining connections
08:56:03.523 T:1945178112  NOTICE: VideoPlayer: Opening: pvr://channels/tv/All channels/pvr.hts_895895193.pvr
08:56:03.524 T:1945178112 WARNING: CDVDMessageQueue(player)::Put MSGQ_NOT_INITIALIZED
08:56:03.525 T:1387262880  NOTICE: Creating InputStream
08:56:03.581 T:1387262880  NOTICE: Creating Demuxer
08:56:06.999 T:1387262880  NOTICE: Opening stream: 1 source: 256
08:56:06.999 T:1387262880  NOTICE: Creating video codec with codec id: 28
08:56:07.013 T:1387262880  NOTICE: Creating video thread
08:56:07.013 T:1370485664  NOTICE: running thread: video_thread
08:56:07.013 T:1387262880  NOTICE: Opening stream: 2 source: 256
08:56:07.013 T:1387262880  NOTICE: Finding audio codec for: 86018
08:56:07.024 T:1387262880  NOTICE: Creating audio thread
08:56:07.024 T:1387262880  NOTICE: Opening stream: 4 source: 256
08:56:07.024 T:1353708448  NOTICE: running thread: CVideoPlayerAudio::Process()
08:56:07.042 T:1353708448  NOTICE: Creating audio stream (codec id: 86018, channels: 2, sample rate: 48000, no pass-through)
08:56:07.066 T:1387262880  NOTICE: Opening stream: 1 source: 256
08:56:07.066 T:1387262880  NOTICE: Creating video codec with codec id: 28
08:56:07.076 T:1387262880  NOTICE: Opening stream: 2 source: 256
08:56:07.077 T:1387262880  NOTICE: Closing stream player 3
08:56:07.077 T:1387262880  NOTICE: Opening stream: 4 source: 256
08:56:07.882 T:1370485664 WARNING: CRenderManager::WaitForBuffer - timeout waiting for buffer
08:56:12.568 T:1945178112 WARNING: Previous line repeats 4 times.
08:56:12.569 T:1945178112  NOTICE: Display resolution ADJUST : 1920x1080 (1920x1080) @ 50.00 - Full Screen (32) (w*ight: 0.000)
08:56:12.720 T:1945178112  NOTICE: VideoPlayer: OnLostDisplay received
08:56:12.935 T:1945178112  NOTICE: VideoPlayer: OnResetDisplay received
08:56:23.420 T:1753215904   ERROR: GetDirectory - Error getting
08:56:35.373 T:1370485664   ERROR: Previous line repeats 2 times.
08:56:35.373 T:1370485664 WARNING: CRenderManager::WaitForBuffer - timeout waiting for buffer
08:58:46.538 T:1753215904 WARNING: Previous line repeats 8 times.
08:58:46.538 T:1753215904   ERROR: GetDirectory - Error getting
08:59:00.396 T:1945178112   ERROR: Previous line repeats 1 times.
08:59:00.396 T:1945178112  NOTICE: CVideoPlayer::CloseFile()
08:59:00.397 T:1945178112  NOTICE: VideoPlayer: waiting for threads to exit
08:59:00.775 T:1370485664 WARNING: CRenderManager::WaitForBuffer - timeout waiting for buffer
08:59:01.390 T:1387262880 WARNING: Previous line repeats 2 times.
08:59:01.390 T:1387262880  NOTICE: CVideoPlayer::OnExit()
08:59:01.390 T:1387262880  NOTICE: Closing stream player 1
08:59:01.390 T:1387262880  NOTICE: Waiting for audio thread to exit
08:59:01.408 T:1353708448  NOTICE: thread end: CVideoPlayerAudio::OnExit()
08:59:01.408 T:1387262880  NOTICE: Closing audio device
08:59:01.455 T:1387262880  NOTICE: Deleting audio codec
08:59:01.455 T:1387262880  NOTICE: Closing stream player 2
08:59:01.455 T:1387262880  NOTICE: waiting for video thread to exit
08:59:01.456 T:1370485664  NOTICE: thread end: video_thread
08:59:01.458 T:1387262880  NOTICE: deleting video codec
08:59:01.478 T:1387262880  NOTICE: Closing stream player 3
08:59:01.543 T:1945178112  NOTICE: VideoPlayer: finished waiting
08:59:01.597 T:1945178112  NOTICE: VideoPlayer: Opening: pvr://recordings/tv/active/Grenfell/Grenfell%20Documentary%20filmed%20throughout%20the%20year%20hearing%20from%20those%20directly%20affected%20by%20the%20most%20devastating%20tower%20block%20fire%20in%20British%20history.%20Contains%20upsetting%20scenes.%20%20Also%20in%20HD.%20%5bAD%2cS%5d, TV%20(BBC%20ONE%20HD), 20180611_193000, 875829070.pvr
08:59:01.597 T:1362097056  NOTICE: Creating InputStream
08:59:01.600 T:1362097056  NOTICE: Creating Demuxer
08:59:02.379 T:1362097056  NOTICE: Opening stream: 0 source: 256
08:59:02.380 T:1362097056  NOTICE: Creating video codec with codec id: 28
08:59:02.380 T:1362097056  NOTICE: CDVDVideoCodecFFmpeg::Open() Using codec: H.264 / AVC / MPEG-4 AVC / MPEG-4 part 10
08:59:02.381 T:1362097056  NOTICE: Creating video thread
08:59:02.381 T:1362097056  NOTICE: Opening stream: 1 source: 256
08:59:02.381 T:1353708448  NOTICE: running thread: video_thread
08:59:02.381 T:1362097056  NOTICE: Finding audio codec for: 86066
08:59:02.383 T:1362097056  NOTICE: Creating audio thread
08:59:02.384 T:1362097056  NOTICE: Opening stream: 3 source: 256
08:59:02.384 T:1335882656  NOTICE: running thread: CVideoPlayerAudio::Process()
08:59:02.620 T:1362097056  NOTICE: Opening stream: 0 source: 256
08:59:02.620 T:1362097056  NOTICE: Creating video codec with codec id: 28
08:59:02.630 T:1362097056  NOTICE: Opening stream: 1 source: 256
08:59:02.630 T:1362097056  NOTICE: Closing stream player 3
08:59:02.630 T:1362097056  NOTICE: Opening stream: 3 source: 256
08:59:02.637 T:1335882656  NOTICE: Creating audio stream (codec id: 86066, channels: 2, sample rate: 48000, no pass-through)
08:59:02.810 T:1945178112  NOTICE: Display resolution ADJUST : 1920x1080 (1920x1080) @ 50.00 - Full Screen (32) (w*ight: 0.000)
08:59:03.286 T:1353708448 WARNING: CRenderManager::WaitForBuffer - timeout waiting for buffer
08:59:04.905 T:1335882656 WARNING: Previous line repeats 3 times.
08:59:04.906 T:1335882656   ERROR: CDVDAudio::AddPacketsRenderer - timeout adding data to renderer
08:59:05.326 T:1353708448 WARNING: CRenderManager::WaitForBuffer - timeout waiting for buffer
08:59:06.716 T:1335882656 WARNING: Previous line repeats 2 times.
08:59:06.716 T:1335882656   ERROR: CDVDAudio::AddPacketsRenderer - timeout adding data to renderer
08:59:06.886 T:1353708448 WARNING: CRenderManager::WaitForBuffer - timeout waiting for buffer
08:59:08.526 T:1335882656 WARNING: Previous line repeats 2 times.
08:59:08.526 T:1335882656   ERROR: CDVDAudio::AddPacketsRenderer - timeout adding data to renderer
08:59:08.846 T:1353708448 WARNING: CRenderManager::WaitForBuffer - timeout waiting for buffer
08:59:08.855 T:1362097056  NOTICE: Opening stream: 0 source: 256
08:59:08.855 T:1362097056  NOTICE: Opening stream: 1 source: 256
08:59:08.855 T:1362097056  NOTICE: Closing stream player 3
08:59:08.855 T:1362097056  NOTICE: Opening stream: 3 source: 256
08:59:08.870 T:1945178112  NOTICE: Display resolution ADJUST : 1920x1080 (1920x1080) @ 50.00 - Full Screen (32) (w*ight: 0.000)
08:59:09.966 T:1353708448  NOTICE: Previous line repeats 1 times.
08:59:09.966 T:1353708448 WARNING: CRenderManager::WaitForBuffer - timeout waiting for buffer
09:00:34.292 T:1753215904 WARNING: Previous line repeats 2 times.
09:00:34.292 T:1753215904   ERROR: GetDirectory - Error getting
09:00:41.647 T:1353708448 WARNING: CRenderManager::WaitForBuffer - timeout waiting for buffer
09:00:44.512 T:1945178112 WARNING: Previous line repeats 3 times.
09:00:44.512 T:1945178112  NOTICE: Display resolution ADJUST : 1920x1080 (1920x1080) @ 50.00 - Full Screen (32) (w*ight: 0.000)
09:05:04.379 T:1247802272   ERROR: CMMALVideo::dec_control_port_cb Error (status=3 EINVAL)
09:17:44.683 T:1945178112  NOTICE: CVideoPlayer::CloseFile()
09:17:44.686 T:1945178112  NOTICE: VideoPlayer: waiting for threads to exit
09:17:44.692 T:1362097056  NOTICE: CVideoPlayer::OnExit()
09:17:44.692 T:1362097056  NOTICE: Closing stream player 1
09:17:44.693 T:1362097056  NOTICE: Waiting for audio thread to exit
09:17:44.734 T:1335882656  NOTICE: thread end: CVideoPlayerAudio::OnExit()
09:17:44.734 T:1362097056  NOTICE: Closing audio device
09:17:44.788 T:1362097056  NOTICE: Deleting audio codec
09:17:44.789 T:1362097056  NOTICE: Closing stream player 2
09:17:44.789 T:1362097056  NOTICE: waiting for video thread to exit
09:17:44.833 T:1353708448  NOTICE: thread end: video_thread
09:17:44.835 T:1362097056  NOTICE: deleting video codec

Display More

Any suggestions?

coldstorage

Sounds like same issue here with a brand new Mygica HDStar DVB-S2 USB. Not appearing in TVheadend tuner list under both LibreElec 8.2.5 official and Ubuntu server 18.04 with kernel 4.16. Relevant section of dmesg from Ubuntu below:

Code

[    6.377164] rc_core: IR Remote Control driver registered, major 241
[    6.409476] dw2102: su3000_identify_state
[    6.409477] dvb-usb: found a 'SU3000HD DVB-S USB2.0' in warm state.
[    6.409481] dw2102: su3000_power_ctrl: 1, initialized 0
[    6.415812] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer.
[    6.417118] dvbdev: DVB: registering new adapter (SU3000HD DVB-S USB2.0)
[    6.430334] dvb-usb: MAC address: 00:af:78:66:2e:e3
[    6.441954] RAPL PMU: API unit is 2^-32 Joules, 3 fixed counters, 10737418240 ms ovfl timer
[    6.441955] RAPL PMU: hw unit of domain pp0-core 2^-0 Joules
[    6.441956] RAPL PMU: hw unit of domain package 2^-0 Joules
[    6.441957] RAPL PMU: hw unit of domain dram 2^-16 Joules
[    6.449846] EDAC sbridge: Seeking for: PCI ID 8086:2fa0
[    6.449851] EDAC sbridge:  Ver: 1.1.2
[    6.518088] dvb-usb: found a 'Microsoft Xbox One Digital TV Tuner' in warm state.
[    6.518185] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer.
[    6.519651] dvbdev: DVB: registering new adapter (Microsoft Xbox One Digital TV Tuner)
[    6.742436] mn88472 1-0018: Panasonic MN88472 successfully identified
[    6.762593] tda18250 1-0060: NXP TDA18250BHN/M successfully identified
[    6.769791] Invalid probe, probably not a DS3000
[    6.771175] dvb-usb: no frontend was attached by 'SU3000HD DVB-S USB2.0'
[    6.777638] usb 1-1: DVB: registering adapter 1 frontend 0 (Panasonic MN88472)...
[    6.777701] dvb-usb: Microsoft Xbox One Digital TV Tuner successfully initialized and connected.
[    6.781334] usbcore: registered new interface driver dvb_usb_dib0700
[    6.816055] Registered IR keymap rc-su3000
[    6.816136] rc rc0: SU3000HD DVB-S USB2.0 as /devices/pci0000:00/0000:00:07.7/usb1/1-2/rc/rc0
[    6.816189] input: SU3000HD DVB-S USB2.0 as /devices/pci0000:00/0000:00:07.7/usb1/1-2/rc/rc0/input5
[    6.816340] rc rc0: lirc_dev: driver dw2102 registered at minor = 0
[    6.816342] dvb-usb: schedule remote query interval to 150 msecs.
[    6.816345] dw2102: su3000_power_ctrl: 0, initialized 1
[    6.816345] dvb-usb: SU3000HD DVB-S USB2.0 successfully initialized and connected.
[    6.816382] usbcore: registered new interface driver dw2102
[    7.330403] audit: type=1400 audit(1532605277.527:2): apparmor="STATUS" operation="profile_load" profile="unconfined" name="/usr/bin/lxc-start" pid=774 comm="apparmor_parser"
[    7.331836] audit: type=1400 audit(1532605277.527:3): apparmor="STATUS" operation="profile_load" profile="unconfined" name="/snap/core/4917/usr/lib/snapd/snap-confine" pid=773 comm="apparmor_parser"
[    7.331840] audit: type=1400 audit(1532605277.527:4): apparmor="STATUS" operation="profile_load" profile="unconfined" name="/snap/core/4917/usr/lib/snapd/snap-confine//mount-namespace-capture-helper" pid=773 comm="apparmor_parser"
[    7.338433] audit: type=1400 audit(1532605277.535:5): apparmor="STATUS" operation="profile_load" profile="unconfined" name="lxc-container-default" pid=771 comm="apparmor_parser"
[    7.338436] audit: type=1400 audit(1532605277.535:6): apparmor="STATUS" operation="profile_load" profile="unconfined" name="lxc-container-default-cgns" pid=771 comm="apparmor_parser"
[    7.338438] audit: type=1400 audit(1532605277.535:7): apparmor="STATUS" operation="profile_load" profile="unconfined" name="lxc-container-default-with-mounting" pid=771 comm="apparmor_parser"
[    7.338441] audit: type=1400 audit(1532605277.535:8): apparmor="STATUS" operation="profile_load" profile="unconfined" name="lxc-container-default-with-nesting" pid=771 comm="apparmor_parser"
[    7.339113] audit: type=1400 audit(1532605277.535:9): apparmor="STATUS" operation="profile_load" profile="unconfined" name="/usr/lib/snapd/snap-confine" pid=781 comm="apparmor_parser"
[    7.339117] audit: type=1400 audit(1532605277.535:10): apparmor="STATUS" operation="profile_load" profile="unconfined" name="/usr/lib/snapd/snap-confine//mount-namespace-capture-helper" pid=781 comm="apparmor_parser"
[    7.341974] audit: type=1400 audit(1532605277.539:11): apparmor="STATUS" operation="profile_load" profile="unconfined" name="/usr/bin/man" pid=780 comm="apparmor_parser"
[    8.330095] new mount options do not match the existing superblock, will be ignored
[    8.995793] mn88472 1-0018: downloading firmware from file 'dvb-demod-mn88472-02.fw'
[    8.996301] dvb-usb: recv bulk message failed: -110
[    8.996978] dw2102: i2c transfer failed.
[    9.277248] usb 1-1: DVB: adapter 1 frontend 0 frequency 0 out of range (42000000..870000000)
[    9.588311] random: crng init done
[  367.249949] perf: interrupt took too long (2610 > 2500), lowering kernel.perf_event_max_sample_rate to 76500

Display More

and lsusb -v:

Code

Bus 001 Device 004: ID 0627:0001 Adomax Technology Co., Ltd
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               2.00
  bDeviceClass            0 (Defined at Interface level)
  bDeviceSubClass         0
  bDeviceProtocol         0
  bMaxPacketSize0        64
  idVendor           0x0627 Adomax Technology Co., Ltd
  idProduct          0x0001
  bcdDevice            0.00
  iManufacturer           1 QEMU
  iProduct                3 QEMU USB Tablet
  iSerial                 5 42
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength           34
    bNumInterfaces          1
    bConfigurationValue     1
    iConfiguration          7 HID Tablet
    bmAttributes         0xa0
      (Bus Powered)
      Remote Wakeup
    MaxPower              100mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           1
      bInterfaceClass         3 H#man Interface Device #LE forum does not allow word h#man
      bInterfaceSubClass      0 No Subclass
      bInterfaceProtocol      0 None
      iInterface              0
        HID Device Descriptor:
          bLength                 9
          bDescriptorType        33
          bcdHID               0.01
          bCountryCode            0 Not supported
          bNumDescriptors         1
          bDescriptorType        34 Report
          wDescriptorLength      74
         Report Descriptors:
           ** UNAVAILABLE **
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0008  1x 8 bytes
        bInterval               4
Device Qualifier (for other device speed):
  bLength                10
  bDescriptorType         6
  bcdUSB               1.00
  bDeviceClass            0 (Defined at Interface level)
  bDeviceSubClass         0
  bDeviceProtocol         0
  bMaxPacketSize0         8
  bNumConfigurations      1
Device Status:     0x0000
  (Bus Powered)

Bus 001 Device 003: ID 1f4d:3000 G-Tek Electronics Group
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               2.00
  bDeviceClass            0 (Defined at Interface level)
  bDeviceSubClass         0
  bDeviceProtocol         0
  bMaxPacketSize0        64
  idVendor           0x1f4d G-Tek Electronics Group
  idProduct          0x3000
  bcdDevice            0.00
  iManufacturer           1 Max
  iProduct                2 USB Stick
  iSerial                 3 080116
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength          219
    bNumInterfaces          1
    bConfigurationValue     1
    iConfiguration          4 Def
    bmAttributes         0x80
      (Bus Powered)
    MaxPower              500mA
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           3
      bInterfaceClass       255 Vendor Specific Class
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0200  1x 512 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x01  EP 1 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0200  1x 512 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0200  1x 512 bytes
        bInterval               0
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       1
      bNumEndpoints           3
      bInterfaceClass       255 Vendor Specific Class
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               3
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x01  EP 1 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0200  1x 512 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x13f2  3x 1010 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       2
      bNumEndpoints           3
      bInterfaceClass       255 Vendor Specific Class
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               3
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x01  EP 1 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0200  1x 512 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x12d6  3x 726 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       3
      bNumEndpoints           3
      bInterfaceClass       255 Vendor Specific Class
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               3
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x01  EP 1 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0200  1x 512 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x12ae  3x 686 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       4
      bNumEndpoints           3
      bInterfaceClass       255 Vendor Specific Class
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               3
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x01  EP 1 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0200  1x 512 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x03ca  1x 970 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       5
      bNumEndpoints           3
      bInterfaceClass       255 Vendor Specific Class
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               3
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x01  EP 1 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0200  1x 512 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x02ac  1x 684 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       6
      bNumEndpoints           3
      bInterfaceClass       255 Vendor Specific Class
      bInterfaceSubClass      1
      bInterfaceProtocol      1
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0040  1x 64 bytes
        bInterval               3
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x01  EP 1 OUT
        bmAttributes            2
          Transfer Type            Bulk
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0200  1x 512 bytes
        bInterval               0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x82  EP 2 IN
        bmAttributes            1
          Transfer Type            Isochronous
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x03ac  1x 940 bytes
        bInterval               1
Device Qualifier (for other device speed):
  bLength                10
  bDescriptorType         6
  bcdUSB               2.00
  bDeviceClass            0 (Defined at Interface level)
  bDeviceSubClass         0
  bDeviceProtocol         0
  bMaxPacketSize0        64
  bNumConfigurations      1
Device Status:     0x0000
  (Bus Powered)

Display More

And in /dev/dvb:

Code

~$ ls /dev/dvb/adapter0
demux0  dvr0  net0 #mygica dvbs2
~$ ls /dev/dvb/adapter1
demux0  dvr0  frontend0  net0 #Xbox One tuner

Have tried with dvb-fe-ds3000.fw in /lib/firmware. Are we waiting for new drivers or firmware for these devices then? Is there a good thread to follow for progress on this issue? Let me know if there's more info anyone needs as I'm not a linux expert myself. Also want to thank everyone here for lots of help over the past 2 years!

Posts by coldstorage

Xbox One tuner failure

Geniatech Mygica HDStar DVB-S2 USB HD not working

Geniatech Mygica HDStar DVB-S2 USB HD not working

Freeze on stopping PVR stream

Freeze on stopping PVR stream

Geniatech Mygica HDStar DVB-S2 USB HD not working
