Hello!

Any solution for this problem? Latest libreelec

https://paste.libreelec.tv/composed-bedbug.log

Thanks!

[   12.927309] brcmfmac: F1 signature read @0x18000000=0x15264345
[   12.936441] brcmfmac: brcmf_fw_alloc_request: using brcm/brcmfmac43455-sdio for chip BCM4345/6
[   12.936741] brcmfmac mmc2:0001:1: Direct firmware load for brcm/brcmfmac43455-sdio.amlogic,q201.bin failed with error -2
[   13.038142] brcmfmac mmc2:0001:1: Direct firmware load for brcm/brcmfmac43455-sdio.clm_blob failed with error -2
[   13.125730] meson8b-dwmac c9410000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0
[   13.191257] meson8b-dwmac c9410000.ethernet eth0: PHY [mdio_mux-0.1:08] driver [Meson GXL Internal PHY] (irq=33)
[   13.198951] meson8b-dwmac c9410000.ethernet eth0: No Safety Features support found
[   13.199010] meson8b-dwmac c9410000.ethernet eth0: PTP not supported by HW
[   13.201355] meson8b-dwmac c9410000.ethernet eth0: configuring for phy/rmii link mode
[   13.221841] brcmfmac_wcc: brcmf_wcc_attach: executing
[   13.239915] Bluetooth: Core ver 2.22
[   13.240280] NET: Registered PF_BLUETOOTH protocol family
[   13.240292] Bluetooth: HCI device and connection manager initialized
[   13.240852] Bluetooth: HCI socket layer initialized
[   13.240894] Bluetooth: L2CAP socket layer initialized
[   13.241817] Bluetooth: SCO socket layer initialized
[   13.275829] brcmfmac: brcmf_c_process_clm_blob: no clm_blob available (err=-2), device may have limited channels available
[   13.275883] brcmfmac: brcmf_c_process_txcap_blob: no txcap_blob available (err=-2)
[   13.279686] brcmfmac: brcmf_c_preinit_dcmds: Firmware: BCM4345/6 wl0: Aug 25 2015 18:58:57 version 7.45.69 (r581703) FWID 01-24037f6e
[   13.370369] IR NEC protocol handler initialized
[   13.442599] IR RC6 protocol handler initialized
[   13.580119] input: eventlircd as /devices/virtual/input/input1
[   31.850100] panfrost d00c0000.gpu: GPU Fault 0x00000088 (GPU_SHAREABILITY_FAULT) at 0x0000007f65ffde70
[   31.957374] panfrost d00c0000.gpu: AS_ACTIVE bit stuck
[   32.059765] panfrost d00c0000.gpu: AS_ACTIVE bit stuck
[   32.162158] panfrost d00c0000.gpu: AS_ACTIVE bit stuck
[   32.165339] panfrost d00c0000.gpu: shader power transition timeout
[   32.167380] panfrost d00c0000.gpu: tiler power transition timeout
[   32.169394] panfrost d00c0000.gpu: l2 power transition timeout

The Coolest

VFD say : oot instead boot, first character disappeared.

The Coolest Thanks, replied in linked topic.

Tap 1 2GB S905X (AZW/Beelink)

Remote cant working and when enable HDMI CEC (easylink) in TV it freeze/reboot. Any advice?

The Coolest

I tried, but i have problems with TAP 1 + 8.90.6 , rebooting/freeze with HDMI CEC remote and no remote without that. So i disabled HDMI CEC and can't went throu initial settings (not possible), ssh in, copied your file to .config directory and set chmod 644 then reboot. Still only "boot" in vfd, maybe becouse i cant set up correctly the box...:/

Copied again, VFD changed to "oot" instead "boot"

8.90.6 - Qodi Tap 1 (S905X, 2GB, Beelink/AZW) continosuly turn off / freeze when HDMI-CEC tv remote become active after starting, anyone have same problem?

Yep, i have that box. At the moment with OSMC becouse testing Astrometa DVB-C tuner (under 8.2.x it cant working properly, 8.90.x rebooting when HDMI-CEC remote become active like factory Android 6.0.... under custom OSMC from Csicsóka it working, but cant scan over 5-600MHz) but i will flash what version you want.

The Coolest Trying to post links but waiting for moderator approve....

Tried LE8.9, it working but cant able to scan channels over 5-600MHz. Astrometa stick and cables are OK with PC, so maybe LE cant activate something in tuner (proper initialize some LNA?).

The Coolest

Sorry, wrong link posted, thats seems ok: guestaccess

But uploaded to my MEGA acc too with extracted dtb.

Many firmware files found HERE for other boxes, for later use.

I have a Qodi Tap 1 box (Beelink, S905x, 2GB) and an Astrometa tuner. I cant able to use with LE8.2.3.1, after reboot it visible but cant able to tune, and after then only the SDR part staying and others are gone...any hint? Im speechless.

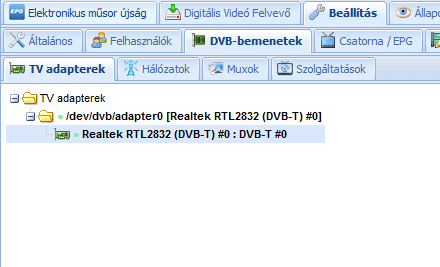

With dvb-fe-tools it visible and able to change mode, but cant see in tvheadend....

LibreELEC:~ # dvb-fe-tool -a 0 -f 1

Device Panasonic MN88473 (/dev/dvb/adapter0/frontend1) capabilities:

CAN_2G_MODULATION

CAN_FEC_1_2

CAN_FEC_2_3

CAN_FEC_3_4

CAN_FEC_5_6

CAN_FEC_7_8

CAN_FEC_AUTO

CAN_GUARD_INTERVAL_AUTO

CAN_HIERARCHY_AUTO

CAN_INVERSION_AUTO

CAN_MULTISTREAM

CAN_MUTE_TS

CAN_QAM_16

CAN_QAM_32

CAN_QAM_64

CAN_QAM_128

CAN_QAM_256

CAN_QAM_AUTO

CAN_QPSK

CAN_TRANSMISSION_MODE_AUTO

DVB API Version 5.10, Current v5 delivery system: DVBT

Supported delivery systems:

[DVBT]

DVBT2

DVBC/ANNEX_A

LibreELEC:~ # dvb-fe-tool -a 0 -f 1 -d DVBC/ANNEX_A

Changing delivery system to: DVBC/ANNEX_A

LibreELEC:~ # dvb-fe-tool -a 0 -f 1

Device Panasonic MN88473 (/dev/dvb/adapter0/frontend1) capabilities:

CAN_2G_MODULATION

CAN_FEC_1_2

CAN_FEC_2_3

CAN_FEC_3_4

CAN_FEC_5_6

CAN_FEC_7_8

CAN_FEC_AUTO

CAN_GUARD_INTERVAL_AUTO

CAN_HIERARCHY_AUTO

CAN_INVERSION_AUTO

CAN_MULTISTREAM

CAN_MUTE_TS

CAN_QAM_16

CAN_QAM_32

CAN_QAM_64

CAN_QAM_128

CAN_QAM_256

CAN_QAM_AUTO

CAN_QPSK

CAN_TRANSMISSION_MODE_AUTO

DVB API Version 5.10, Current v5 delivery system: DVBC/ANNEX_A

Supported delivery systems:

DVBT

DVBT2

[DVBC/ANNEX_A]

LibreELEC:~ #

Quote from samura

I bought a TAPI or TAP1 S905X 1G. I've booted to android and I'm trying to extract its DTB, but is impossible because I don't have the /dev/dtb folder. Is this normal?

Qodi (Beelink) Tap 1 android image (i see dtb within)
