viper4le · Many black screen on Wetek Play 2 viper4le February 15, 2019 at 9:40 AM

Quote from derfelot

From my understanding of how these whitelists work, Kodi will directly output the media in 4k if the 4k mode is whitelisted (but I'll check my logs to be sure). You can also do the same with lower modes and it will directly output in 720p for example. There's a bit of information about it in the PR for whitelists:

Mode whitelist by lrusak · Pull Request #13274 · xbmc/xbmc · GitHub

Edit: And if you haven't set a 720p whitelist, it kodi should upscale to whatever is set in settings (1080p)

I tested it and it works in general. But this is a workaround only, because the black screens only occur on 4K with 50 and 60 Hz refresh rates in my case.

And if I set Kodi to 1080p @ 60 Hz, automatic refresh rate changes enabled and whitelist all 4K and 1080p refresh rates (1080p is needed to set Kodi itself to 1080p) then I never get 4K@50Hz or 60 Hz, because I have no 4K video with such a high refresh rate.

In addition to confirm: a 720p video is upscaled by Kodi to 1080p and a 4K video is outputted in 4k in this case.

I further checked my TV and WeTek box for the HDMI specification, both have 2.0. That means they are able to handle up to 3840 × 2160p @ 60 Hz, just to rule that out.

viper4le

I have a WeTek Play 2, connected via HDMI to a TV and the optical out is connected to a Pioneer receiver for the audio signals.

Then used a LE9 fresh install.

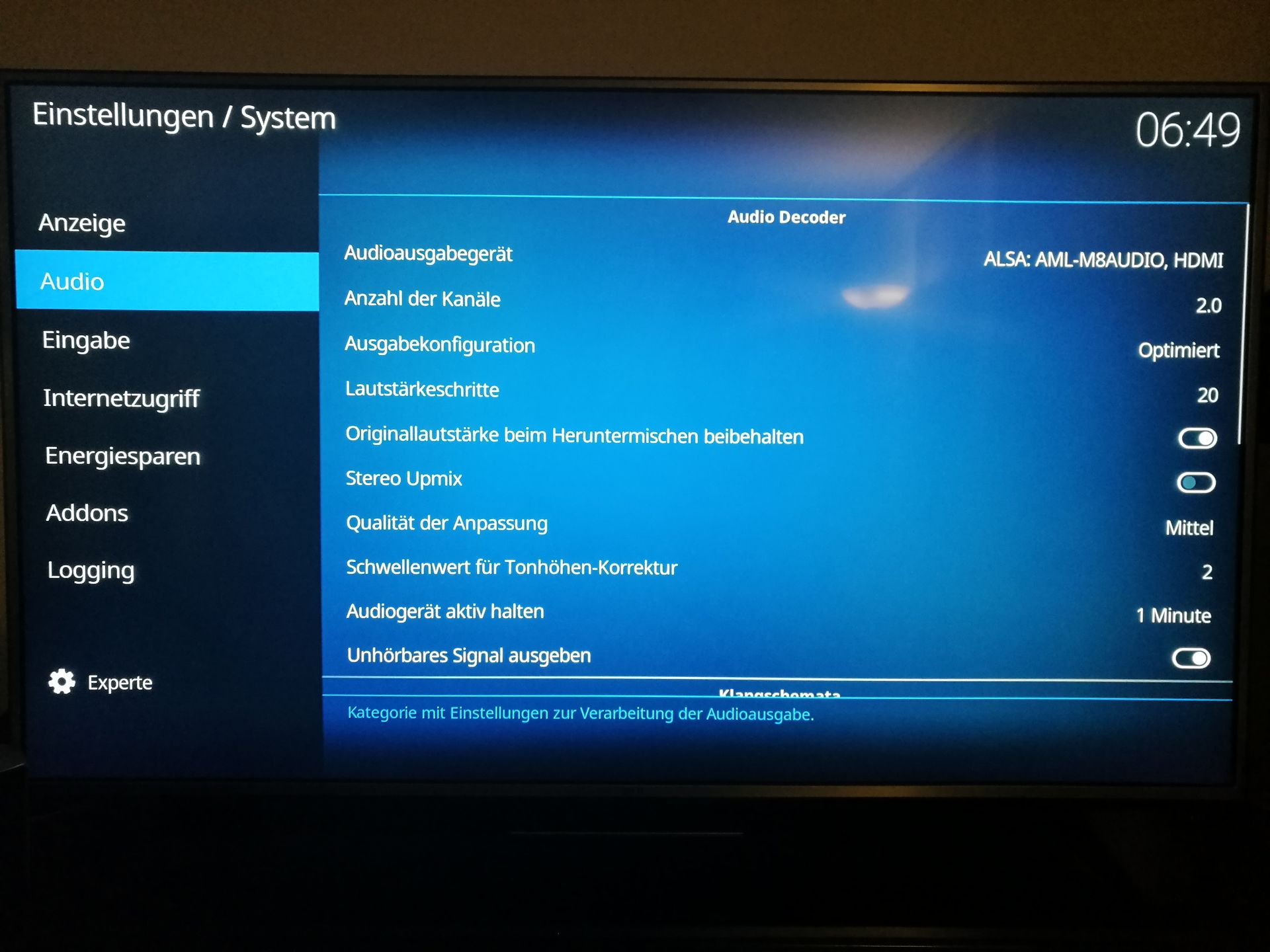

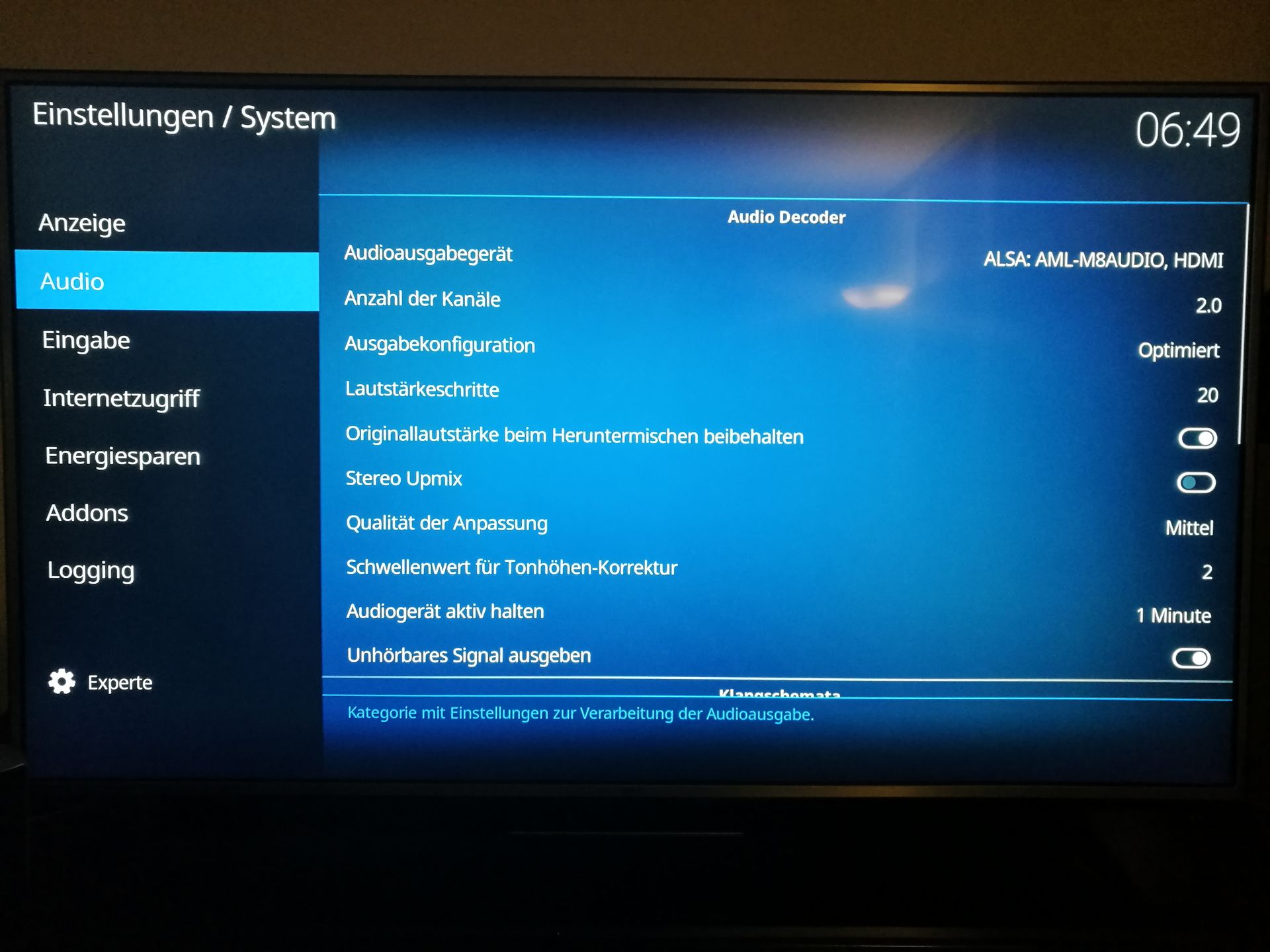

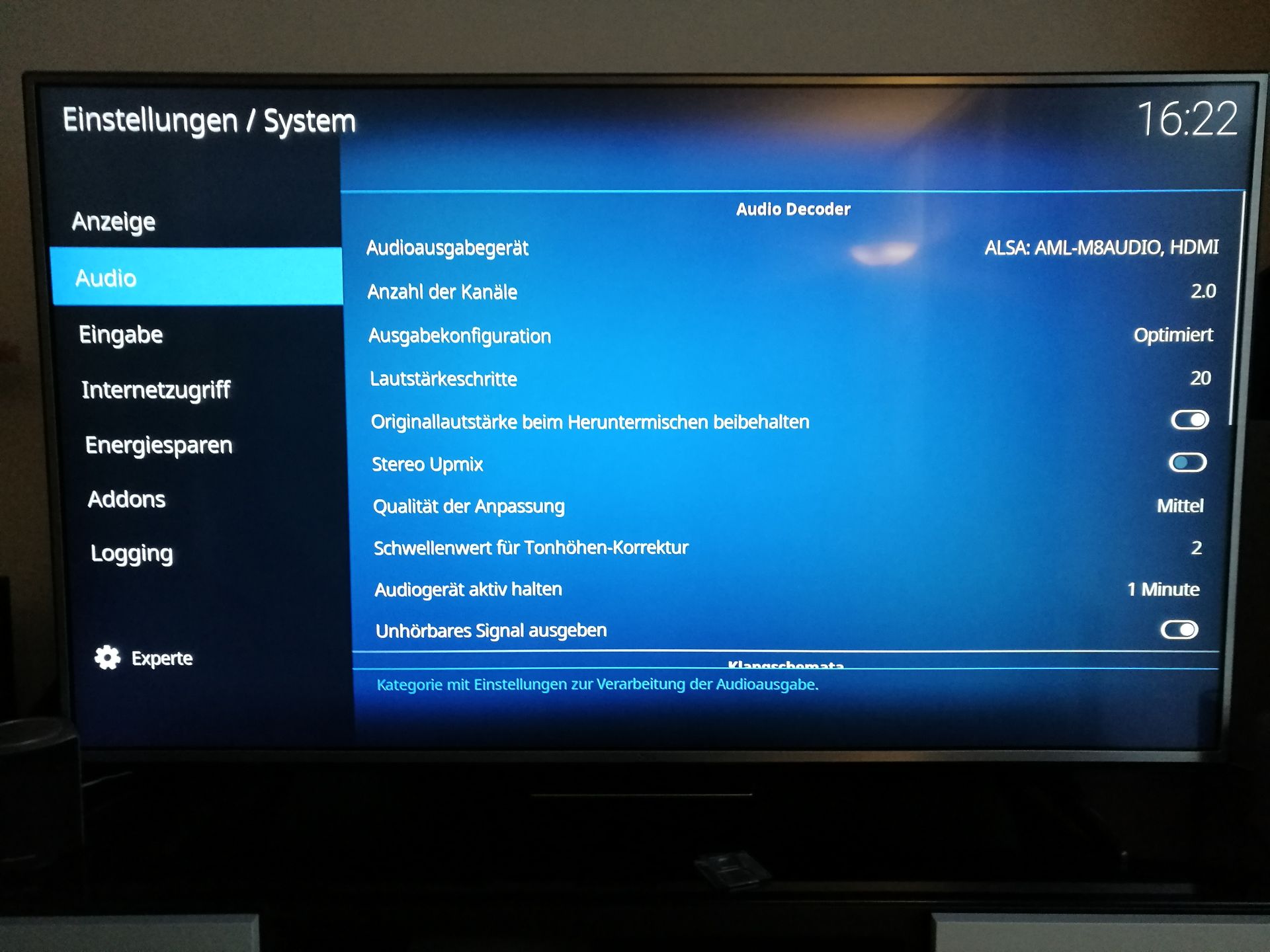

Kodi settings:

- audio device AML-M8AUDIO HDMI

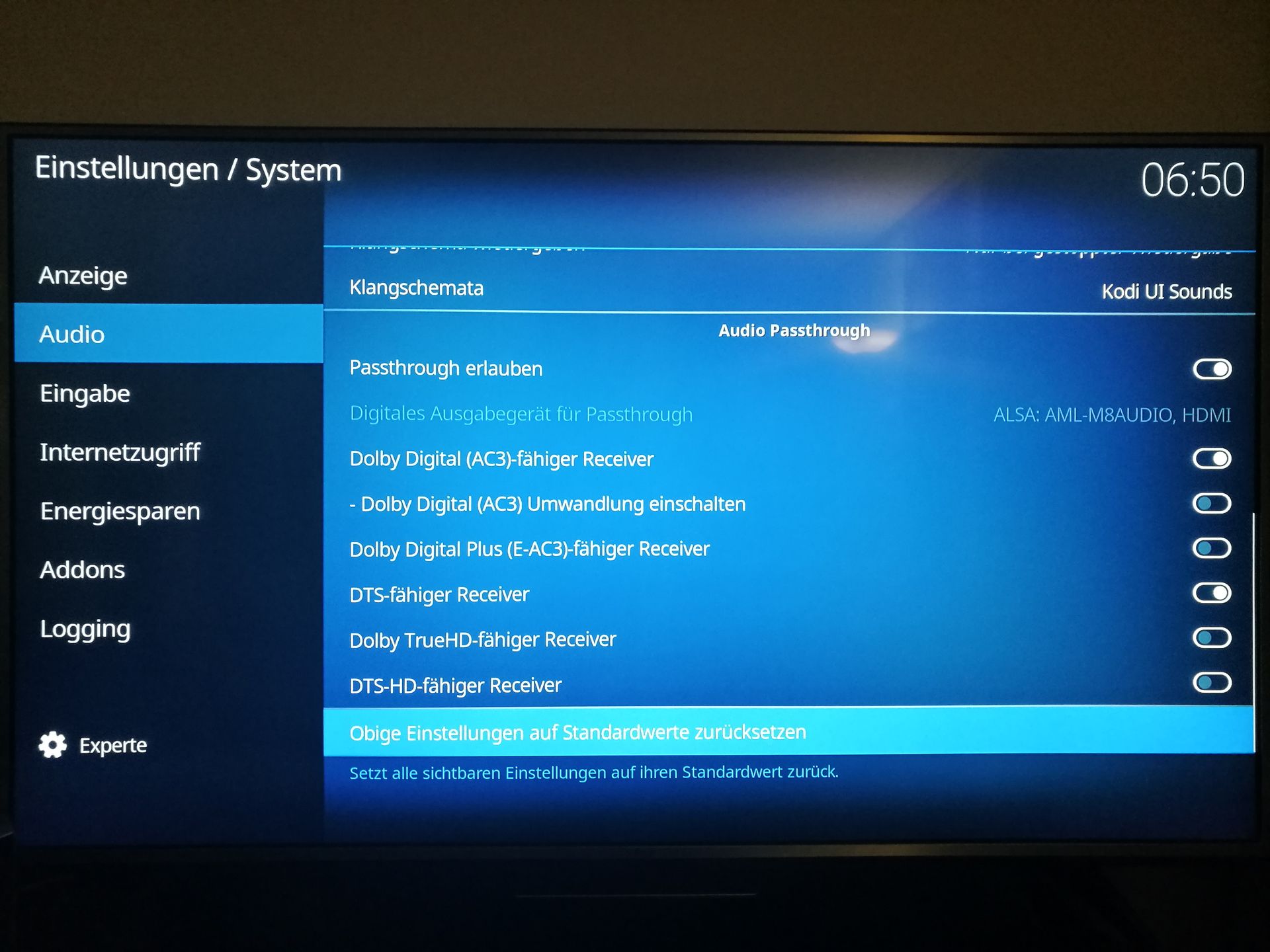

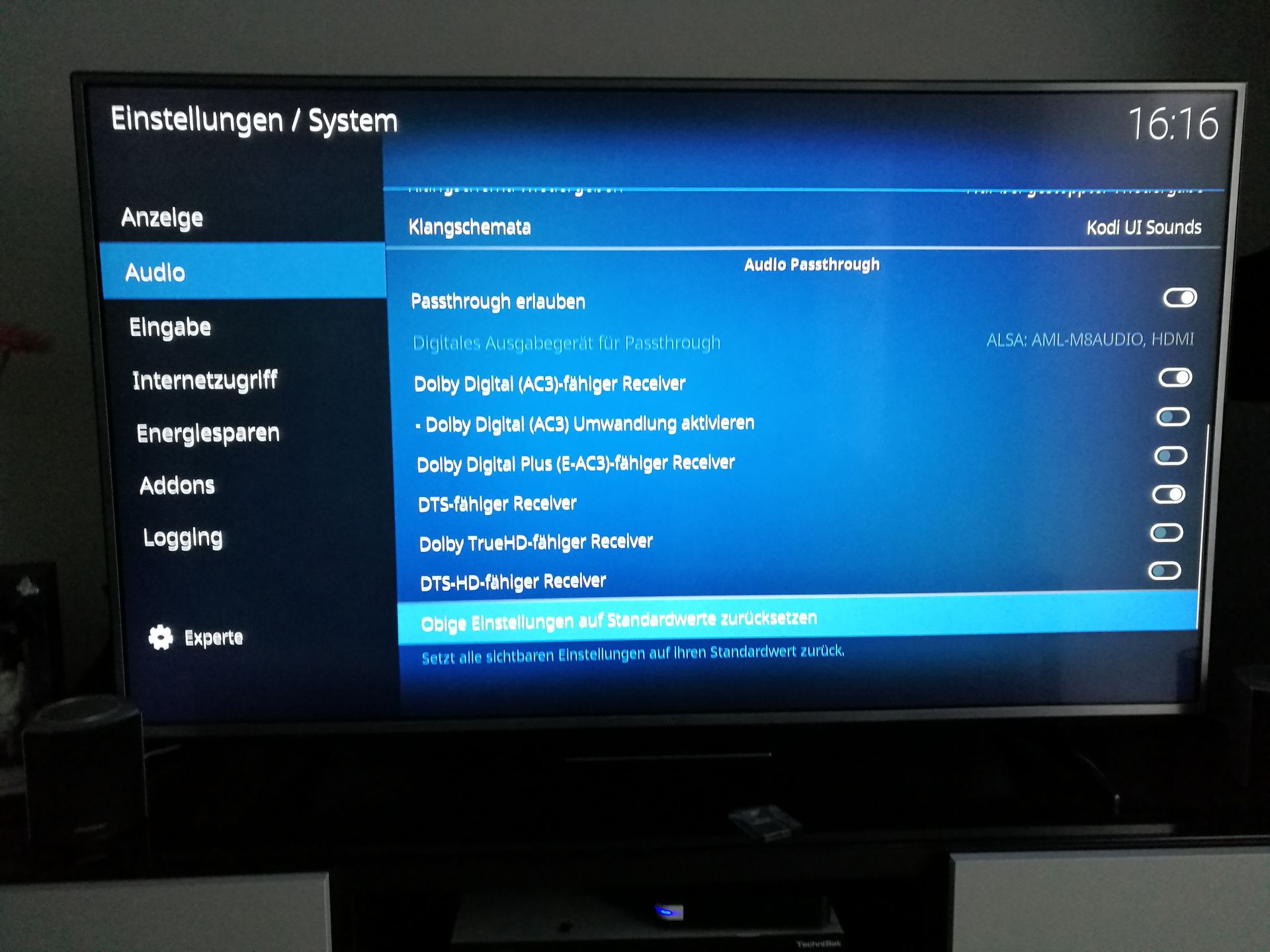

- AC3 and DTS passthrough enabled

- other settings -> Screenhots

All videos with AC3 and DTS have no problem, because of the direct passthrough.

Other videos with an audio sample rate of 44.1 kHz also seem to work, tested 2 files with it.

For all other videos where the audio stream has a sample rate of 48 kHz I get no audio, tested videos with audio codecs AAC or mp3.

I saw the following difference for the same video file between 8.2.5 und 9.0.0 in the debug log. I don't know if this is an indication.

8.2.5 - working:

Code

20:10:50.801 T:547734155488   DEBUG:   Output Device : AML-M8AUDIO
20:10:50.801 T:547734155488   DEBUG:   Sample Rate   : 48000
20:10:50.801 T:547734155488   DEBUG:   Sample Format : AE_FMT_S32NE
20:10:50.801 T:547734155488   DEBUG:   Channel Count : 2
20:10:50.801 T:547734155488   DEBUG:   Channel Layout: FL,FR
20:10:50.801 T:547734155488   DEBUG:   Frames        : 256
20:10:50.801 T:547734155488   DEBUG:   Frame Size    : 8

9.0.0 fresh installation - not working

Code

19:02:21.905 T:4058620784   DEBUG:   Output Device : AML-M8AUDIO
19:02:21.905 T:4058620784   DEBUG:   Sample Rate   : 48000
19:02:21.905 T:4058620784   DEBUG:   Sample Format : AE_FMT_S16NE
19:02:21.905 T:4058620784   DEBUG:   Channel Count : 2
19:02:21.906 T:4058620784   DEBUG:   Channel Layout: FL, FR
19:02:21.906 T:4058620784   DEBUG:   Frames        : 256
19:02:21.906 T:4058620784   DEBUG:   Frame Size    : 4

debug_logs.zip - filenames masked

viper4le · Many black screen on Wetek Play 2 viper4le February 14, 2019 at 11:39 AM

Quote from derfelot

I also had a bit of a wonky experience with the play 2 on a 4k LG. In the end, I just changed the resolution in the settings to 1080p and whitelisted the 4k modes. There isn't much point running the GUI in 4k anyway. When I start a 4k video, the resolution correctly switches to 4k and back again after stopping.

Maybe you can give this a shot.

But what happens with a 720p video then?
If the setting is on 4K Kodi outputs it in 4K, at least that's what the log says in my post above.

In this case it would mean that Kodi is doing the complete upscaling to 4K.

What happens if you set it to 1080p like you said. Kodi upscales to 1080p and the TV from 1080p to 4K? Or is Kodi directly upscaling to 4K, too?

viper4le

I tested with a fresh LE9 installation yesterday.

And there I have not the same problem(UPDATE 16.02.: that is incorrect, tested again, both have a problem with 48kHz sample rate) .

First of all the new installation sets the audio device default to "AML-M8AUDIO Analog" on my WeTek Play 2. The Box is connected via optical out to a Pioneer receiver.

I switched it to "AML-M8AUDIO, HDMI".

It was then possible to play a video file with AAC 2.0 (Details from VLC: AAC 44100Hz stereo 96kbps, 32 Bit per Sample ), mmmhh interesting.

I switched then the SD card to the upgraded LE9, problem still there.

I changed the audio device to "AML-M8AUDIO Analog", played the video with AAC 2.0 and audio was there -> cunfusion, why did I get audio on a digital output if the audio device is setup to "Analog"?

Then I started a video with DTS and the passthrough was also working. I was happy then, but unfortunately too early.

I started the video with AAC 2.0 again and now the audio was "dull", played in lower frequency and cuts every few seconds.

Further the "click" sounds in the main menu had this dull sound, too. I had to switch the audio device to bring the menu sound back to the normal sounds.

In result I can choose between 2 problems:
- no audio for stereo streams if the audio device is set to "AML-M8AUDIO, HDMI"

- corrupted audio for stereo streams if the audio device is set to "AML-M8AUDIO Analog"

Log for the "no audio" case:

Code

19:56:25.727 T:4092575664  NOTICE: VideoPlayer::OpenFile: smb://*******************.720p.mp4
19:56:25.732 T:3701764976  NOTICE: Creating InputStream
19:56:25.827 T:3701764976  NOTICE: Creating Demuxer
19:56:25.994 T:3701764976  NOTICE: Opening stream: 0 source: 256
19:56:25.995 T:3701764976  NOTICE: Display resolution ADJUST : 3840x2160 @ 50.00 - Full Screen (40) (wéight: 0.000)
19:56:26.005 T:3701764976  NOTICE: Creating video codec with codec id: 27
19:56:26.008 T:3701764976  NOTICE: Creating video thread
19:56:26.008 T:3498173296  NOTICE: running thread: video_thread
19:56:26.009 T:3701764976  NOTICE: Opening stream: 1 source: 256
19:56:26.009 T:3701764976  NOTICE: Finding audio codec for: 86018
19:56:26.010 T:3701764976  NOTICE: CDVDAudioCodecFFmpeg::Open() Successful opened audio decoder aac
19:56:26.010 T:3701764976  NOTICE: Creating audio thread
19:56:26.010 T:3668194160  NOTICE: running thread: CVideoPlayerAudio::Process()
19:56:26.021 T:3668194160  NOTICE: Creating audio stream (codec id: 86018, channels: 2, sample rate: 48000, no pass-through)
19:56:26.026 T:3498173296  NOTICE: CAMLCodec::OpenDecoder - using V4L2 pts format: 64Bit
19:56:26.241 T:4092575664  NOTICE: Display resolution ADJUST : 3840x2160 @ 50.00 - Full Screen (40) (wéight: 0.000)
19:56:33.168 T:4092575664  NOTICE: CVideoPlayer::CloseFile()
19:56:33.168 T:4092575664  NOTICE: VideoPlayer: waiting for threads to exit
19:56:33.178 T:3701764976  NOTICE: CVideoPlayer::OnExit()
19:56:33.178 T:3701764976  NOTICE: Closing stream player 1
19:56:33.178 T:3701764976  NOTICE: Waiting for audio thread to exit
19:56:33.179 T:3668194160  NOTICE: thread end: CVideoPlayerAudio::OnExit()
19:56:33.179 T:3701764976  NOTICE: Closing audio device
19:56:33.188 T:3701764976  NOTICE: Deleting audio codec
19:56:33.188 T:3701764976  NOTICE: Closing stream player 2
19:56:33.189 T:3701764976  NOTICE: waiting for video thread to exit
19:56:33.189 T:3498173296  NOTICE: thread end: video_thread
19:56:33.191 T:3701764976  NOTICE: deleting video codec
19:56:33.220 T:4092575664  NOTICE: VideoPlayer: finished waiting
19:56:33.221 T:4092575664  NOTICE: CVideoPlayer::CloseFile()
19:56:33.221 T:4092575664  NOTICE: VideoPlayer: waiting for threads to exit
19:56:33.221 T:4092575664  NOTICE: VideoPlayer: finished waiting

Display More

Log for the corrupted audio case:

Code

19:59:02.811 T:4092575664  NOTICE: VideoPlayer::OpenFile: smb://****************.720p.mp4
19:59:02.812 T:3557815152  NOTICE: Creating InputStream
19:59:02.894 T:3557815152  NOTICE: Creating Demuxer
19:59:03.057 T:3557815152  NOTICE: Opening stream: 0 source: 256
19:59:03.059 T:3557815152  NOTICE: Display resolution ADJUST : 3840x2160 @ 50.00 - Full Screen (40) (wéight: 0.000)
19:59:03.072 T:3557815152  NOTICE: Creating video codec with codec id: 27
19:59:03.074 T:3557815152  NOTICE: Creating video thread
19:59:03.074 T:3531744112  NOTICE: running thread: video_thread
19:59:03.075 T:3557815152  NOTICE: Opening stream: 1 source: 256
19:59:03.075 T:3557815152  NOTICE: Finding audio codec for: 86018
19:59:03.077 T:3557815152  NOTICE: CDVDAudioCodecFFmpeg::Open() Successful opened audio decoder aac
19:59:03.077 T:3557815152  NOTICE: Creating audio thread
19:59:03.077 T:3523351408  NOTICE: running thread: CVideoPlayerAudio::Process()
19:59:03.090 T:3523351408  NOTICE: Creating audio stream (codec id: 86018, channels: 2, sample rate: 48000, no pass-through)
19:59:03.096 T:3531744112  NOTICE: CAMLCodec::OpenDecoder - using V4L2 pts format: 64Bit
19:59:03.523 T:4092575664  NOTICE: Display resolution ADJUST : 3840x2160 @ 50.00 - Full Screen (40) (wéight: 0.000)
19:59:09.409 T:4069774192 WARNING: ActiveAE - large audio sync error: -1000.888044
19:59:09.419 T:4069774192 WARNING: ActiveAE - large audio sync error: -1006.003794
19:59:10.700 T:4069774192 WARNING: ActiveAE - large audio sync error: -1006.039863
19:59:10.710 T:4069774192 WARNING: ActiveAE - large audio sync error: -1010.125404
19:59:10.721 T:4069774192 WARNING: ActiveAE - large audio sync error: -1016.249946
19:59:10.731 T:4069774192 WARNING: ActiveAE - large audio sync error: -1021.335446
19:59:10.742 T:4069774192 WARNING: ActiveAE - large audio sync error: -1027.445446
19:59:10.753 T:4069774192 WARNING: ActiveAE - large audio sync error: -1031.553154
19:59:10.763 T:4069774192 WARNING: ActiveAE - large audio sync error: -1036.662029
19:59:10.775 T:4069774192 WARNING: ActiveAE - large audio sync error: -1042.774405
19:59:10.785 T:4069774192 WARNING: ActiveAE - large audio sync error: -1047.869404
19:59:10.796 T:4069774192 WARNING: ActiveAE - large audio sync error: -1052.983404
19:59:10.806 T:4069774192 WARNING: ActiveAE - large audio sync error: -1058.064404
19:59:10.817 T:4069774192 WARNING: ActiveAE - large audio sync error: -1064.181320
19:59:12.097 T:4069774192 WARNING: ActiveAE - large audio sync error: -1004.799980
19:59:12.108 T:4069774192 WARNING: ActiveAE - large audio sync error: -1010.894314
19:59:12.118 T:4069774192 WARNING: ActiveAE - large audio sync error: -1016.007897
19:59:12.129 T:4069774192 WARNING: ActiveAE - large audio sync error: -1021.100064
19:59:12.139 T:4069774192 WARNING: ActiveAE - large audio sync error: -1026.221064
19:59:12.150 T:4069774192 WARNING: ActiveAE - large audio sync error: -1032.447981
19:59:12.161 T:4069774192 WARNING: ActiveAE - large audio sync error: -1038.465897
19:59:12.171 T:4069774192 WARNING: ActiveAE - large audio sync error: -1041.561356
19:59:12.183 T:4069774192 WARNING: ActiveAE - large audio sync error: -1047.685856
19:59:12.193 T:4069774192 WARNING: ActiveAE - large audio sync error: -1052.759813
19:59:12.204 T:4069774192 WARNING: ActiveAE - large audio sync error: -1058.881022
19:59:12.214 T:4069774192 WARNING: ActiveAE - large audio sync error: -1062.976564
19:59:12.225 T:4069774192 WARNING: ActiveAE - large audio sync error: -1069.052342
19:59:12.295 T:4092575664  NOTICE: CVideoPlayer::CloseFile()
19:59:12.295 T:4092575664  NOTICE: VideoPlayer: waiting for threads to exit
19:59:12.305 T:3557815152  NOTICE: CVideoPlayer::OnExit()
19:59:12.305 T:3557815152  NOTICE: Closing stream player 1
19:59:12.305 T:3557815152  NOTICE: Waiting for audio thread to exit
19:59:12.321 T:3523351408  NOTICE: thread end: CVideoPlayerAudio::OnExit()
19:59:12.321 T:3557815152  NOTICE: Closing audio device
19:59:12.334 T:3557815152  NOTICE: Deleting audio codec
19:59:12.335 T:3557815152  NOTICE: Closing stream player 2
19:59:12.335 T:3557815152  NOTICE: waiting for video thread to exit
19:59:12.379 T:3531744112  NOTICE: thread end: video_thread
19:59:12.383 T:3557815152  NOTICE: deleting video codec
19:59:12.420 T:4092575664  NOTICE: VideoPlayer: finished waiting
19:59:12.420 T:4092575664  NOTICE: CVideoPlayer::CloseFile()
19:59:12.421 T:4092575664  NOTICE: VideoPlayer: waiting for threads to exit
19:59:12.421 T:4092575664  NOTICE: VideoPlayer: finished waiting

Display More

viper4le · Many black screen on Wetek Play 2 viper4le February 14, 2019 at 7:55 AM

I think I have the same problem as Xianghua.

I tested a little bit more yesterday with a fresh installation, where the problem also occurs.

And yes it happens after refresh rate changes.

In Settings -> System -> Video the display is configured to 3840x2160 @ 60 Hz.

I have the automatic refresh rate switching enabled under Settings->Player, which is configured to "everytime" (I have it on german, don't exactly know which it is in english).

If I then open a video with 25 fps (Details: MPEG4 Video (H264) 1280x720 25fps 3167kbps [V: German [deu] (h264 main L3.1, yuv420p, 1280x720, 3167 kb/s)]) Kodi switches to 50 Hz and the following happens:

Video

There are generated no log entries in the standard kodi.log when the black screens occur ("wéight" is censored by the forum, I changed it this way/ Samba share is masked):

Code

17:01:05.391 T:4090601392  NOTICE: VideoPlayer::OpenFile: smb://***********.720p.mp4
17:01:05.391 T:3748352880  NOTICE: Creating InputStream
17:01:05.458 T:3748352880  NOTICE: Creating Demuxer
17:01:05.562 T:3748352880  NOTICE: Opening stream: 0 source: 256
17:01:05.564 T:3748352880  NOTICE: Display resolution ADJUST : 3840x2160 @ 50.00 - Full Screen (40) (wéight: 0.000)
17:01:05.777 T:4090601392  NOTICE: VideoPlayer: OnLostDisplay received
17:01:05.777 T:4090601392 WARNING: CDVDMessageQueue(audio)::Put MSGQ_NOT_INITIALIZED
17:01:05.777 T:4090601392 WARNING: CDVDMessageQueue(video)::Put MSGQ_NOT_INITIALIZED
17:01:05.995 T:4090601392  NOTICE: VideoPlayer: OnResetDisplay received
17:01:05.996 T:4090601392 WARNING: CDVDMessageQueue(audio)::Put MSGQ_NOT_INITIALIZED
17:01:05.996 T:4090601392 WARNING: CDVDMessageQueue(video)::Put MSGQ_NOT_INITIALIZED
17:01:05.999 T:3748352880  NOTICE: Creating video codec with codec id: 27
17:01:06.000 T:3748352880  NOTICE: Creating video thread
17:01:06.000 T:3962565488  NOTICE: running thread: video_thread
17:01:06.001 T:3748352880  NOTICE: Opening stream: 1 source: 256
17:01:06.001 T:3748352880  NOTICE: Finding audio codec for: 86018
17:01:06.002 T:3748352880  NOTICE: CDVDAudioCodecFFmpeg::Open() Successful opened audio decoder aac
17:01:06.002 T:3748352880  NOTICE: Creating audio thread
17:01:06.002 T:3707761520  NOTICE: running thread: CVideoPlayerAudio::Process()
17:01:06.013 T:3707761520  NOTICE: Creating audio stream (codec id: 86018, channels: 2, sample rate: 44100, no pass-through)
17:01:06.018 T:3962565488  NOTICE: CAMLCodec::OpenDecoder - using V4L2 pts format: 64Bit
17:01:06.273 T:4090601392  NOTICE: Display resolution ADJUST : 3840x2160 @ 50.00 - Full Screen (40) (wéight: 0.000)
17:02:52.495 T:4090601392  NOTICE: CVideoPlayer::CloseFile()
17:02:52.495 T:4090601392  NOTICE: VideoPlayer: waiting for threads to exit
17:02:52.502 T:3748352880  NOTICE: CVideoPlayer::OnExit()
17:02:52.502 T:3748352880  NOTICE: Closing stream player 1
17:02:52.502 T:3748352880  NOTICE: Waiting for audio thread to exit
17:02:52.503 T:3707761520  NOTICE: thread end: CVideoPlayerAudio::OnExit()
17:02:52.503 T:3748352880  NOTICE: Closing audio device
17:02:52.553 T:3748352880  NOTICE: Deleting audio codec
17:02:52.553 T:3748352880  NOTICE: Closing stream player 2
17:02:52.554 T:3748352880  NOTICE: waiting for video thread to exit
17:02:52.556 T:3962565488  NOTICE: thread end: video_thread
17:02:52.559 T:3748352880  NOTICE: deleting video codec
17:02:52.597 T:4090601392  NOTICE: VideoPlayer: finished waiting
17:02:52.597 T:4090601392  NOTICE: CVideoPlayer::CloseFile()
17:02:52.597 T:4090601392  NOTICE: VideoPlayer: waiting for threads to exit
17:02:52.597 T:4090601392  NOTICE: VideoPlayer: finished waiting

Display More

If I stop the playback then the black screens further occur in the main menu.

The black screens not happen if playing a 24 fps movie. But when stopping the playback the video signal is often completely lost and I have to switch the TV to another HDMI input and back again.

Further if I disable the automatic refresh rate switching the black screens not occur, only if I manually change the refresh rate in the video settings from 60 to 50 Hz for example. Then it occurs directly in the main menu without starting a playback. 24Hz seems to have no problem.

These problems not happen with LE 8.2.5.

I have a LG 4K TV.

That is all I have so far.
Next step is to higher the log level to debug and further check dmesg, maybe they show more.

@Xianghua: can you confirm if it is the same problem?

viper4le · Many black screen on Wetek Play 2 viper4le February 13, 2019 at 11:50 AM

Sorry, had not enough time for further troubleshooting and collect log data.
No audio for stereo streams and these black screens, that was not acceptable for a productive system, sorry
I reverted my system back to 8.2.5. for the moment.

If I find time I will use a second SD card with a fresh installation and check again.

viper4le · Many black screen on Wetek Play 2 viper4le February 13, 2019 at 10:54 AM

Maybe it has something to do with the new DRM feature which supports input streams for netflix for example.
And maybe there were changes around HDCP which now producing such problems.

But that's just a guess.

viper4le · Many black screen on Wetek Play 2 viper4le February 13, 2019 at 9:54 AM

Same problem here with WeTek Play 2 and a HDMI connected LG 4K TV.
Display setting on 4K.

viper4le

I have a similar problem after upgrading to 9.0:
A WeTek Play 2, connected via optical out to a pioneer receiver.

AC3 and DTS passthrough enabled in the Kodi settings. AC3/DTS works, but all other audio not. Tested with TV streams from TVHeadend and other video files.
In 8.2.5 there was no problem with the following settings (it is in german, sorry):

Posts by viper4le

Many black screen on Wetek Play 2

WeTek Play 2: no audio via optical out with 48kHz sample rate

Many black screen on Wetek Play 2

Stereo passthrough issue in L9 and Odroid C2

Many black screen on Wetek Play 2

Many black screen on Wetek Play 2

Many black screen on Wetek Play 2

Many black screen on Wetek Play 2

Stereo passthrough issue in L9 and Odroid C2
