not for me, i get stucked in the coreelec logo and i can't go ahead....any idea? What should I do?

Thanks, .

Glad to here all this, seems the problem has now been discovered

Thanks

Quote from caligari

Do you mean that driver doesn't have capability to manage serial data transfer or, is it a problem of pin assignments? Is the last DTB you have sent correct?

What about this patch? (it solved the problem with the Android kernel version) Could be it applied to the S912 project?

afl1 did you read the previous post? In Khadas forum they can provide you free physical samples, it has been commented here: DVB/DTV Extension Board for VIM2 (VTV) - Hardware and Peripherals - Khadas Community

We need to unlock this issue asap, as there are many people waiting for a fix.

Regards.

Quote from afl1

You can create kernel debug for dvb driver.

Enable debug with following commands:

Code

echo 15 > /sys/module/r848a/parameters/debug
echo 15 > /sys/module/avl6862/parameters/debug_avl
echo 15 > /sys/module/aml/parameters/debug_dvb
echo 15 > /sys/module/aml/parameters/debug_dmx

Start logging ssh session and submit following command watch -tn 1 dmesg -c

Start scanning in tvh.

Find attached my log. Why is it failing?

In tvheadend I can see:

2018-01-19 23:30:47.463 mpegts: 12551.5V in Red DVB-S - tuning on Availink avl6862 #0 : DVB-S #0

2018-01-19 23:30:47.501 subscription: 0003: "scan" subscribing to mux "12551.5V", weightt: 6, adapter: "Availink avl6862 #0 : DVB-S #0", network: "Red DVB-S", service: "Raw PID Subscription"

2018-01-19 23:30:48.467 linuxdvb: Availink avl6862 #0 : DVB-S #0 - poll TIMEOUT

2018-01-19 23:30:48.715 linuxdvb: Availink avl6862 #0 : DVB-S #0 - retune nodata

2018-01-19 23:30:56.126 linuxdvb: Availink avl6862 #0 : DVB-S #0 - poll TIMEOUT

2018-01-19 23:30:56.765 linuxdvb: Availink avl6862 #0 : DVB-S #0 - retune nodata

2018-01-19 23:30:57.463 mpegts: 12551.5V in Red DVB-S - scan no data, failed

2018-01-19 23:30:57.464 subscription: 0003: "scan" unsubscribing

Quote from Shoog

Can confirm that this setup works with an external HD Star sat receiver.

Shoog

With external tunners this libreelec +dtb has always work. The aim is to make it work for the internat dtv board.

Regards

Quote from afl1

Another test version for internal dvb driver.

Install or upgrade to LE 8.90.2. For dtb use gxm_kvim2.zip.

Install addon driver.dvb.crazycat-9.0.101-kvim2.zip.

Hi @af1 . Our tests seems to fail and fail again. Do you have any more updates about this issue? Regards

Quote from afl1

I fixed reset and power pins in dtb.

gxm_kvim2.zip

Hi @af1, maybe this can help you to find out whats happening:

LibreELEC for the VIM2 - Khadas VIM2 - Khadas Community

Take a look at Frank last post from Khadas team.

Regards

Quote from caligari

Thank afl1

I am trying that DTB with LE-8.2.2.3 from kszaq and it seems to scan, but not tunning. I attach the TVH log for DVB-S and DVB-T.

By the way, the predefined muxes configuration for Astra19.2E in the TVH 4.2.5 from LibreELEC repo 8.2.113 is wrong and I have had to manually add 3 in order to test (I think data is right, from kingofsat listings).

they previously said us that we have to test in libreelec 9.x . Driver won't work at all for 8.2.2.3

So...do we have to install this addon in LE 9.0?

Or only with the dtb will be enough?

Regards

Quote from kszaq

You don't understand me.

Khadas VIM2 with DVB board is supported since 8.1.10-rc1 build. Drivers are included in system image by default.

I only told you that you cannot install DVB driver addons, they are meant only for 8.9 builds.

kszaq then how are we going to resolve our original problem reported in the first post? We can see in libreelec TV adapters but channels can't be opened....any idea of how to resolve it? We all have this problem: "I can see the /dev/dvb/adapter0 device tree. However, neither VDR nor TVHeadend can tune a DVB-S channel."

Regards

Quote from afl1

Sorry for delay. I was busy.

Install modified driver addon driver.dvb.crazycat-9.0.100x.zip and let me know.

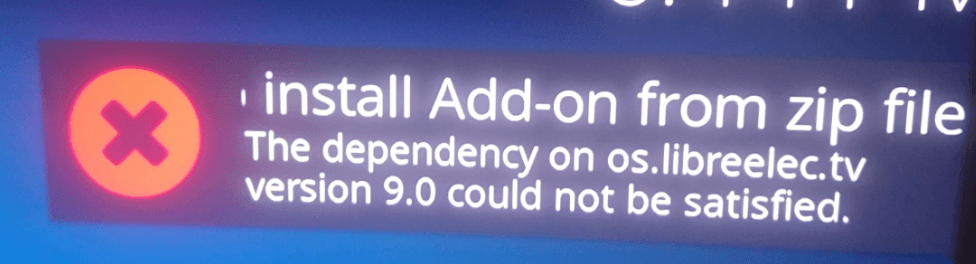

Hi afl1, same problem here. Please check image attached in last version of libreelec (8.2.2.3): "the dependency on os.libreelec.tv version 9.0 could not be satisfied".

Regards.

Quote from afl1

Sorry for delay. I was busy.

Install modified driver addon driver.dvb.crazycat-9.0.100x.zip and let me know.

Thank you for this afk1, I'm now working out of home but this afternoon I will try as soon as I arrive home. Many thanks

Regards

Quote from afl1

DTB is correct. Driver successfully started. Tomorrow I'll build driver with slightly modified i2c control for testing.

Thank you afk1, just let us know which are the next tests that should be done

Quote from afl1

THX for log files. My changes in dtb are incorrect. Pls send me log for original dtb. You simple publish link from dmesg | paste

Here you have

Quote from sch61

# dmesg | paste

<html>

<head>

<title>500 Internal Server Error</title>

</head>

<body>

<h1>500 Internal Server Error</h1>

The server has either erred or is incapable of performing the requested operation.<br /><br />

</body>

</html>

In configuration Tvheadend tree of TV adapters is empty.

Display More

Use dmesg > output.log and attach this file getting it in the directory where you are (with winscp for example). You can also use only dmesg command and paste all the lines in a new file.

Regards.

Quote from sch61

Thanx, Maybe tomorrow. We have night already.

Hi af1,

Find here the output of the dmesg command in libreelec with this new dtb file.

I have tried to install tvheadend with this new dtb.img and is even worst now, as they aren't appearing any tv adapters.

Regards.

Quote from afl1

Are you able to send me dbt.img from android? You can find it in android upgrade image or submit ssh command:dd if=/dev/dtb of=/storage/dtb-kvim2.img bs=1k count=256

Hi af1, let me now if this file attached above by sch61 is enough to find a fix. Regards.

I'm out right now and I can' t help you with this query (I hope someone else can provide you this file).

Just in case it helps, you can find the android rom we are adding in emmc here: VIM2_Nougat_vTV_V171024

This afternoon I could send you the file you are asking for if this doesn't help at all

Here you can see all the vTV versions available: Firmware - Khadas Docs

This is the last one: VIM2_Nougat_vTV_V171024

Regards
