Raspberry Pi VNC or TigerVNC?
I have to admit that I never tried other keyboard layouts than US/UK because this is all I have.

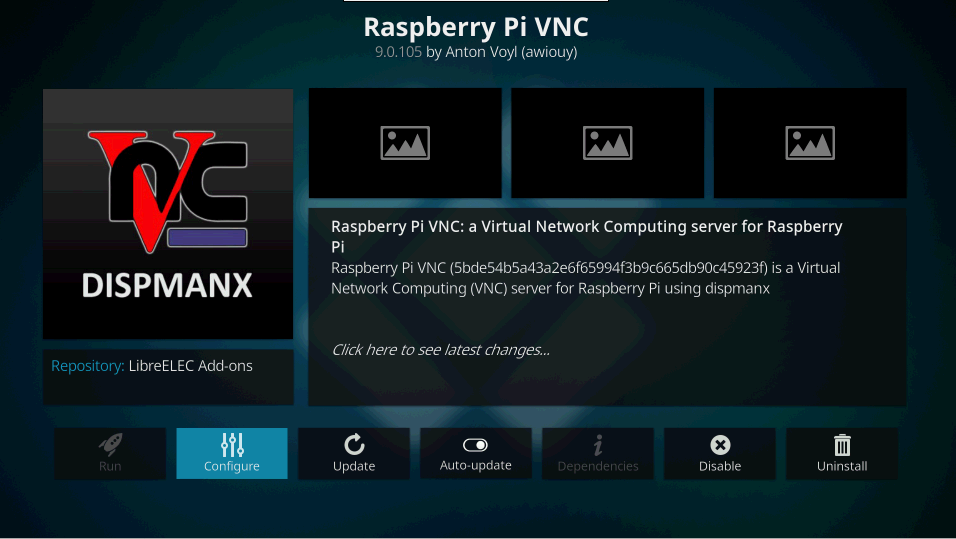

Raspberry PI VNC
Posts by actionjack
-
-
I tried all the vnc-clients I could find (real, tight, tiger, turbo), tried different keyboards and changing system keymaps of libreelec and ui language/keymaps but nothing helped. Copy, paste seems broken, nothing is being pasted.
I connect from Win 10 pro with de_DE keymap set on the local machine. Currently using real VNC-Viewer.
LibreELEC Version: devel-20181130210330-#1130
Currently LibreELEC is setup like so:
Interface language: english
Character set: default
Keyboard layouts: German QWERTZ
Region default format: Central Europe
LibreELEC keyboard Layout: de-latin1-nodeadkeys
locale(set through official locale addon): de_DE
Some of the chars I get when connected with any vnc client:
SHIFT+"='Ä'
SHIFT+#='Ä'
#=3
SHIFT+6=/
ALTGR+ß=#
SHIFT+:=Ö
-
- ssh root@your-rasp-ip
- cd /storage/.kodi/docker && wget master.zip && unzip master.zip
- cp /storage/.kodi/docker/docker-logitechmediaserver-rpi2-master/getlms.sh .
- ./getlms.sh
I just updated this, should be working fine.
-
Alright. I figured it out.
1. ssh to rapi/libreelec
2. mkdir -p /storage/.kodi/docker/arm32v7/lms
3. cd /storage/.kodi/docker/arm32v7/lms
4. wget master.zip && unzip master.zip
5. move all files from master.zip directly into the folder we just created /storage/.kodi/docker/arm32v7/lms
6. Replace the existing Dockerfile with the following:
FROM arm32v7/debian:stretch-slim
ENV SQUEEZE_VOL /srv/squeezebox
ENV LANG C.UTF-8
ENV DEBIAN_FRONTEND noninteractive
ENV PACKAGE_VERSION_URL=http://downloads.slimdevices.com/nightly/7.9/sc…5659378_arm.deb
RUN apt-get update && \
apt-get -y install curl wget faad flac lame sox libio-socket-ssl-perl && \
apt-get clean
RUN url=$PACKAGE_VERSION_URL && \
curl -Lsf -o /tmp/logitechmediaserver.deb $url && \
dpkg -i /tmp/logitechmediaserver.deb && \
rm -f /tmp/logitechmediaserver.deb && \
apt-get clean
# This will be created by the entrypoint script.
RUN userdel squeezeboxserver
VOLUME $SQUEEZE_VOL
EXPOSE 3483 3483/udp 9000 9090
COPY entrypoint.sh /entrypoint.sh
COPY start-squeezebox.sh /start-squeezebox.sh
RUN chmod 755 /entrypoint.sh /start-squeezebox.sh
ENTRYPOINT ["/entrypoint.sh"]
7. still inside the folder /storage/.kodi/docker/arm32v7/lms do: docker build -t arm32v7/lms /storage/.kodi/docker/arm32v7/lms
8. After creation is done > cd /storage/.kodi/addons/service.system.docker/examples
9. nano logitech-media-server.service
10. paste:
[Unit]
Description=logitech-media-server container
Requires=service.system.docker.service
After=service.system.docker.service
[Service]
Restart=always
RestartSec=10s
TimeoutStartSec=0
ExecStartPre=-/bin/sh -c "mkdir -p /storage/.kodi/userdata/Apps/LMS"
ExecStart=/storage/.kodi/addons/service.system.docker/bin/docker run \
--rm \
--name=logitech-media-server \
--hostname=libreelec-logitech-media-server \
-p 9000:9000 \
-p 3483:3483 \
-p 3483:3483/udp \
-e TZ=Europe/Berlin \
-v /storage/.kodi/userdata/Apps/LMS:/srv/squeezebox \
-v /var/media:/srv/music \
arm32v7-lms
ExecStop=/storage/.kodi/addons/service.system.docker/bin/docker stop logitech-media-server
[Install]
WantedBy=multi-user.target
11. systemctl enable /storage/.kodi/addons/service.system.docker/examples/logitech-media-server.service
12. systemctl start logitech-media-server.service
13. journalctl -u logitech-media-server should show the service has started
14. open your browser and open your server...
-
Alright. I figured it out.
1. ssh to rapi/libreelec
2. mkdir -p /storage/.kodi/docker/arm32v7/lms
3. cd /storage/.kodi/docker/arm32v7/lms
4. wget master.zip && unzip master.zip
5. move all files from master.zip directly into the folder we just created /storage/.kodi/docker/arm32v7/lms
6. Replace the existing Dockerfile with the following:
FROM arm32v7/debian:stretch-slim
ENV SQUEEZE_VOL /srv/squeezebox
ENV LANG C.UTF-8
ENV DEBIAN_FRONTEND noninteractive
ENV PACKAGE_VERSION_URL=http://downloads.slimdevices.com/nightly/7.9/sc…5659378_arm.deb
RUN apt-get update && \
apt-get -y install curl wget faad flac lame sox libio-socket-ssl-perl && \
apt-get clean
RUN url=$PACKAGE_VERSION_URL && \
curl -Lsf -o /tmp/logitechmediaserver.deb $url && \
dpkg -i /tmp/logitechmediaserver.deb && \
rm -f /tmp/logitechmediaserver.deb && \
apt-get clean
# This will be created by the entrypoint script.
RUN userdel squeezeboxserver
VOLUME $SQUEEZE_VOL
EXPOSE 3483 3483/udp 9000 9090
COPY entrypoint.sh /entrypoint.sh
COPY start-squeezebox.sh /start-squeezebox.sh
RUN chmod 755 /entrypoint.sh /start-squeezebox.sh
ENTRYPOINT ["/entrypoint.sh"]
7. still inside the folder /storage/.kodi/docker/arm32v7/lms do: docker build -t arm32v7/lms /storage/.kodi/docker/arm32v7/lms
8. After creation is done > cd /storage/.kodi/addons/service.system.docker/examples
9. nano logitech-media-server.service
10. paste:
[Unit]
Description=logitech-media-server container
Requires=service.system.docker.service
After=service.system.docker.service
[Service]
Restart=always
RestartSec=10s
TimeoutStartSec=0
ExecStartPre=-/bin/sh -c "mkdir -p /storage/.kodi/userdata/Apps/LMS"
ExecStart=/storage/.kodi/addons/service.system.docker/bin/docker run \
--rm \
--name=logitech-media-server \
--hostname=libreelec-logitech-media-server \
-p 9000:9000 \
-p 3483:3483 \
-p 3483:3483/udp \
-e TZ=Europe/Berlin \
-v /storage/.kodi/userdata/Apps/LMS:/srv/squeezebox \
-v /var/media:/srv/music \
arm32v7-lms
ExecStop=/storage/.kodi/addons/service.system.docker/bin/docker stop logitech-media-server
[Install]
WantedBy=multi-user.target
11. systemctl enable /storage/.kodi/addons/service.system.docker/examples/logitech-media-server.service
12. systemctl start logitech-media-server.service
13. journalctl -u logitech-media-server should show the service has started
14. open your browser and open your server...
-
OK to make clear what i did:
0. ssh to my rapi3 with libreelec 8.2.2 installed
1. docker pull larsks/logitech-media-server
2. /storage/.kodi/addons/service.system.docker/bin/docker run \
-p 9000:9000 \
-p 3483:3483 \
-p 3483:3483/udp \
-e TZ=Europe/Berlin \
-v /storage/.kodi/userdata/Apps/LMS:/srv/squeezebox \
-v /var/media:/srv/music \
larsks/logitech-media-server
and i get standard_init_linux.go:178: exec user process caused "exec format error"
-
I Just cant get this working. I copied your service file, enabled and started it. then journalctl -u gives me:
-- Logs begin at Sat 2017-12-16 01:37:55 CET, end at Sat 2018-01-13 18:31:41 CET. --
Jan 13 18:28:40 LibreELEC systemd[1]: Starting logitech-media-server container...
-- Logs begin at Sat 2017-12-16 01:37:55 CET, end at Sat 2018-01-13 18:31:41 CET. --
Jan 13 18:28:40 LibreELEC systemd[1]: Starting logitech-media-server container...
Jan 13 18:28:40 LibreELEC systemd[1]: Started logitech-media-server container.
Jan 13 18:28:42 LibreELEC docker[661]: standard_init_linux.go:178: exec user process caused "exec format error"
Jan 13 18:28:43 LibreELEC systemd[1]: logitech-media-server.service: Main process exited, code=exited, status=1/FAILURE
Jan 13 18:28:43 LibreELEC docker[860]: Error response from daemon: No such container: logitech-media-server
Jan 13 18:28:43 LibreELEC systemd[1]: logitech-media-server.service: Control process exited, code=exited status=1
Jan 13 18:28:43 LibreELEC systemd[1]: logitech-media-server.service: Unit entered failed state.
Jan 13 18:28:43 LibreELEC systemd[1]: logitech-media-server.service: Failed with result 'exit-code'.
Jan 13 18:28:53 LibreELEC systemd[1]: logitech-media-server.service: Service hold-off time over, scheduling restart.
Jan 13 18:28:53 LibreELEC systemd[1]: Stopped logitech-media-server container.
Jan 13 18:28:53 LibreELEC systemd[1]: Starting logitech-media-server container...
Jan 13 18:28:53 LibreELEC systemd[1]: Started logitech-media-server container.
Jan 13 18:28:54 LibreELEC docker[947]: standard_init_linux.go:178: exec user process caused "exec format error"
Jan 13 18:28:55 LibreELEC systemd[1]: logitech-media-server.service: Main process exited, code=exited, status=1/FAILURE
Jan 13 18:28:55 LibreELEC docker[1087]: Error response from daemon: No such container: logitech-media-server
Jan 13 18:28:55 LibreELEC systemd[1]: logitech-media-server.service: Control process exited, code=exited status=1
Jan 13 18:28:55 LibreELEC systemd[1]: logitech-media-server.service: Unit entered failed state.
Jan 13 18:28:55 LibreELEC systemd[1]: logitech-media-server.service: Failed with result 'exit-code'.
Jan 13 18:29:05 LibreELEC systemd[1]: logitech-media-server.service: Service hold-off time over, scheduling restart.
Jan 13 18:29:05 LibreELEC systemd[1]: Stopped logitech-media-server container.
Jan 13 18:29:05 LibreELEC systemd[1]: Starting logitech-media-server container...
Jan 13 18:29:05 LibreELEC systemd[1]: Started logitech-media-server container.
Jan 13 18:29:06 LibreELEC docker[1100]: standard_init_linux.go:178: exec user process caused "exec format error"
Jan 13 18:29:06 LibreELEC systemd[1]: logitech-media-server.service: Main process exited, code=exited, status=1/FAILURE
Jan 13 18:29:07 LibreELEC docker[1243]: Error response from daemon: No such container: logitech-media-server
Jan 13 18:29:07 LibreELEC systemd[1]: logitech-media-server.service: Control process exited, code=exited status=1
Jan 13 18:29:07 LibreELEC systemd[1]: logitech-media-server.service: Unit entered failed state.
Jan 13 18:29:07 LibreELEC systemd[1]: logitech-media-server.service: Failed with result 'exit-code'.
-
I found this: [Request] Logitech Media Server docker
But I don't fully understand how to set it up. Maybe someone can write a little step by step howto?
