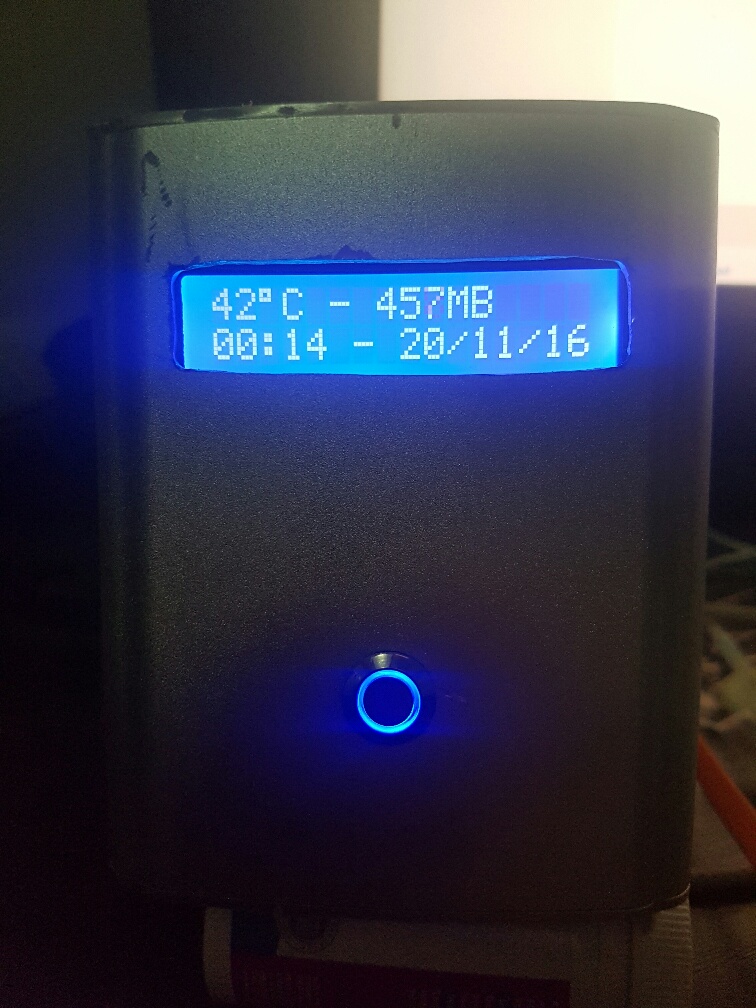

OMG I have my lcd i2c working after using info from here i played for ages and wasn't getting it right was about to give up when wife called me to come eat dinner i had rebooted pi and one last time after making no additional changes which had not work prior to that but i was like wtf...when i returned i had display

my other screen was on a different address so i changed address and rebooted "nothing" played more and "nothing" so i left it to go make coffee when i returned it worked so basically im saying when testing leave for a minute or two before u change more settings as you might have it right an not know it

hope this useless info helps someone LibreELEC (Krypton) v7.90.008

i

if anyone needs it here are my files
/storage/.kodi/userdata
lcd.rar
/storage/.kodi/addons
service.lcdd.rar
[hr]
[hr]
last but not least is the hd44780 file that gors into /storage/lcd
lcd.rar

Quote from nickr

Libreelec does not have apt-get. Apt-get is the debian package manager.

Have you followed post 5 above?

yeah i did beginning to think unit is faulty

love speed of krypton but love xonfluence more than the given skins any chance of getting xonfluence

Quote from nickr

sudo gives you root (admin) privileges. In kodi you are already root user, so just ignore the 'sudo' part.

think i must give up i tried all those settings all i got was a flashing backlight

sudo apt-get ....
get...

is that what u saying

Quote from HiassofT

The PCB looks like an I2C adapter for hd44780 LCDs/VFDs. I did some tests with one of these (might have been a different one than yours) some 2 years ago on OE and software-wise it worked out of the box with LCDproc - just some config is needed.

Off the top of my head:

• add dtparam=i2c=on to /boot/config.txt to enable the I2C support
• install the lcdproc addon and configure it to use the HD44780 driver
• copy /etc/LCDd.conf to /storage/.config/LCDd.conf and change the hd44780 section to use I2C

I found a backup of the LCDd.conf on my HDD, the hd44780 section of it looks like this (you may need to change the port to match the I2C address of your adapter board):

Code

[hd44780]
ConnectionType=i2c
Device=/dev/i2c-1
Port=0x27
Backlight=yes
Size=20x4
DelayBus=true
DelayMult=1
Keypad=no

I remember having to do some electrical modifications to the adapter board (these may or may not apply to your board). IIRC the LCD connector pinout/I2C extender connections were different to what lcdproc expected them to be and I had to modify the board to use 3.3V for I2C (it was built for 5V).

so long,

Hias

Display More

thk that what i was looking for dome commands to try i will try over weekend and give update

Being linux noob i only know the sudo commands and it stumpt me not accepting sudo commands

Quote from irishfrog

Hi all haveing issues getting lcd 1602 with piggyback board on P3 (4 cables) pin


all fourms and sites use sudo to intall tons of stuff i have loaded xmbc lcd but it fails to connect

has anyone got this working as i would love some assistance

I am kinda a linux noob but in the IT feild so i can follow instructions and figure my way round

PLEASE HELP ME

thats the issue cant find instrutions for libre cause the all use sudo commands

[hr]

Quote from lrusak

would be nice if you would post the instructions that you are trying to follow.

thats the issue all instructions for code are sudo commands
for xmbc the say install xmbcproc and turn lcd on in setting ...not workin

Hi all haveing issues getting lcd 1602 with piggyback board on P3 (4 cables) pin


all fourms and sites use sudo to intall tons of stuff i have loaded xmbc lcd but it fails to connect

has anyone got this working as i would love some assistance

I am kinda a linux noob but in the IT feild so i can follow instructions and figure my way round

PLEASE HELP ME
